Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
186
: Place the cable and hose carrier on the power chain.
Insert the pin to fix the cable and hose carrier. Tension the flexible tubing as you do so.
2
2
2
2
Pin
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
187
Rough adjustment 2

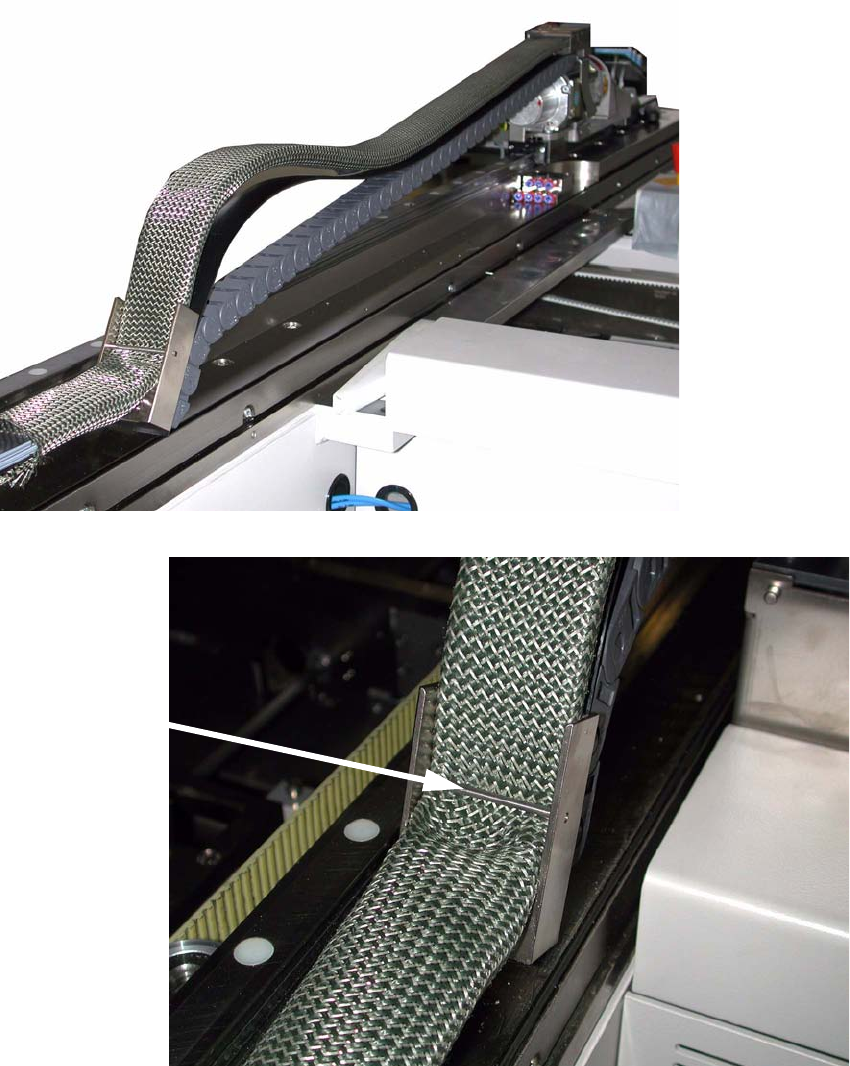

: Move the cable and hose carrier into its final position to check that the length and installation
position are correct.
2
: Gently tighten the protective tape of the power chain using the slot (but not so much that it
bulges).
The cable and hose carrier must be loose enough that it can be easily moved against the power
chain in the cable arc.
2
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
188
: Cut off the fabric hose at the fold that results (see photograph).
: Cut off the two protective tapes so that they are still held securely by the pin (at least 4 cm).
