Replacement instructions - Gantry c able and hose carrier SIPLACE HS / S / F 01/2007 Edition 188 : Cut off the fabric hose at the fo ld that result s (see photograph ). : Cut off the two protective tapes so that they are…
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
187

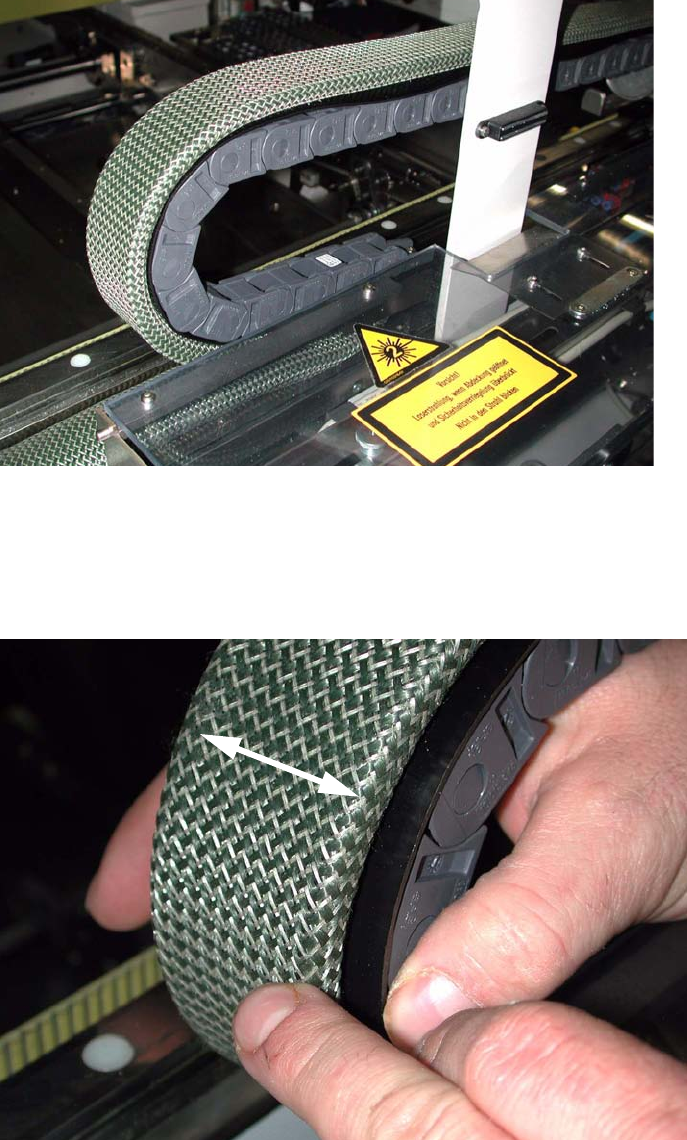

Rough adjustment 2
: Move the cable and hose carrier into its final position to check that the length and installation
position are correct.
2
: Gently tighten the protective tape of the power chain using the slot (but not so much that it
bulges).
The cable and hose carrier must be loose enough that it can be easily moved against the power
chain in the cable arc.
2
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
188

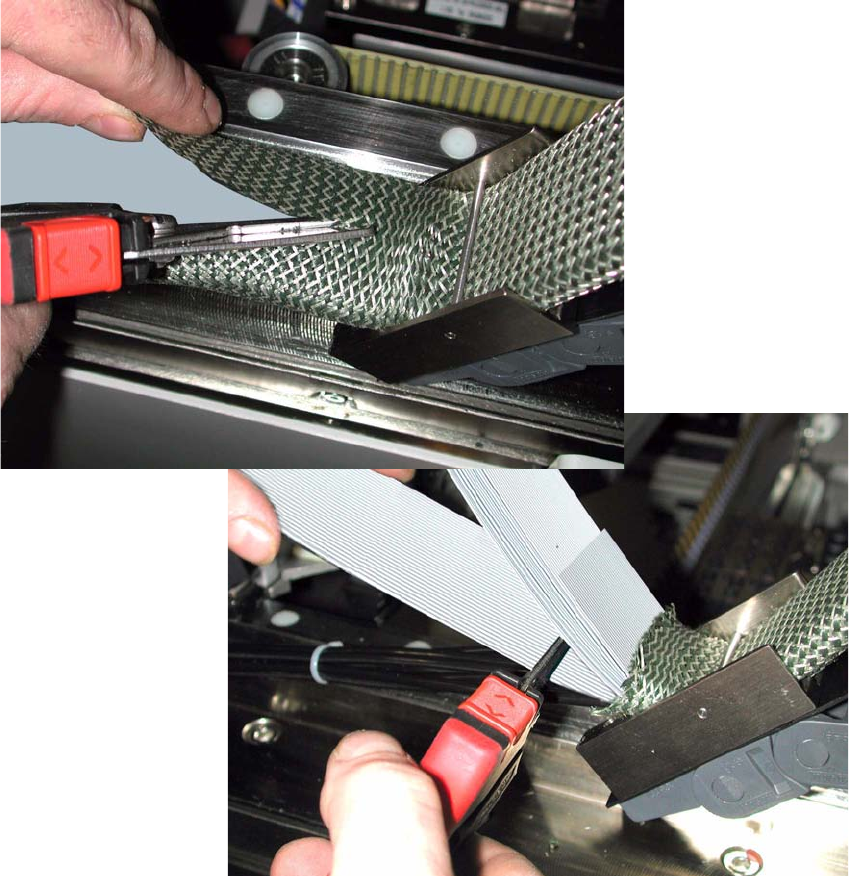

: Cut off the fabric hose at the fold that results (see photograph).
: Cut off the two protective tapes so that they are still held securely by the pin (at least 4 cm).
2
2
2
2
2
2
2
2
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
189
Fine adjustment 2
: Move the fitted cable and hose carrier, together with the air hoses, into its final position and fix
it in place with a screw.
Be careful not to push the power chain up too far, otherwise individual links will jump out or may
even break.
2
2
: Move the gantry until the two end links of the power chain are in line.
2
