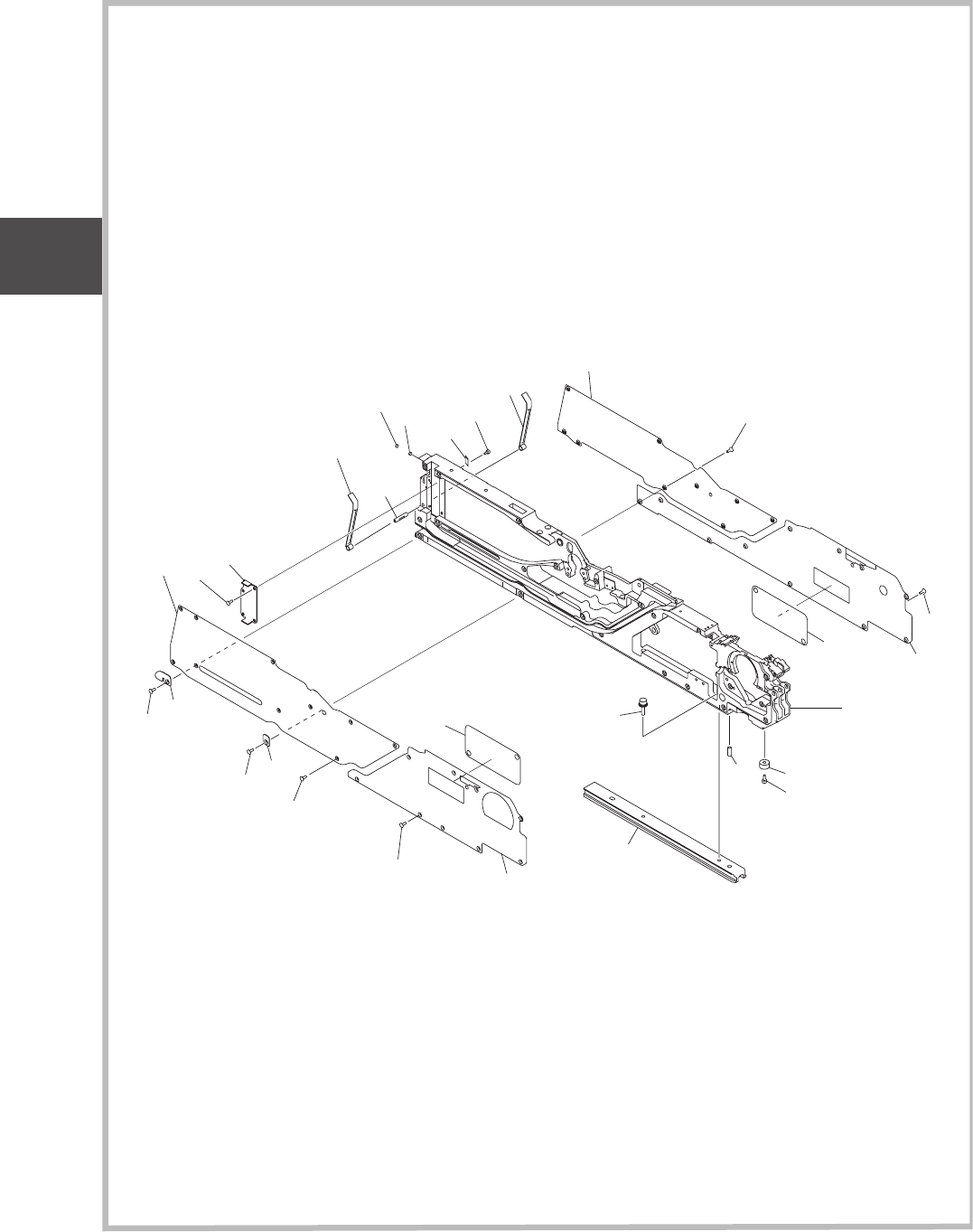

Fig. W-1
フレーム、カバー部
Frame, Cover Section
0912-002
Fig. W
テープフィーダ
Tape Feeder GT
-28080,28082
33
24
3
4
22
27
44
27
27
44
27
27
43
5
55
27
20
6
22
A6
23
50
52
26
28
8
19
30
1
8mm TF
Fig. W
GT-28080
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1 0926B00K FRAME 1 1 1092600000-001
3 0926B00A COVER(LA) 1 1 1092600000-003
4 211AD442 COVER(LB) 1 1 1092600000-004
5 0926B00B COVER(RA) 1 1 1092600000-005
6 211AD444 COVER(RB) 1 1 1092600000-006
8 0926B00G SLIDE(BASE) 1 1 1092600000-008
19 216E1741 PIN_LOCATE 2 2 1092600000-019
20 0926B007 GUIDE(TAPE) 1 1 1092600000-020
22 211AD370 COVER(FUTA) 2 2 1092600000-022
23 226J1891 MECH-P MAGNET 2 2 1092600000-023
24 226J1909 CUTTER 1 1 1092600000-024
26 226J0249 RUBBER LEGS 1 1 1092600000-026
27 221DA103 MACHINE SCREW 42 42 1092600000-027
28 221A0104 BOLT_HEX-SCT 1 1 1092600000-028
30 221AA103 ROHS_HEX-SCT 2 2 1092600000-030
33 221DA060 MACHINE SCREW 1 1 1092600000-033
43 211AC692 COVER(HAISEN) 1 1 1092600000-043
44 0877B002 MECH PARTS_SEAL 2 2 1092600000-044
50 221J0061 SPRING_PIN 1 1 1092600000-050
52 221DA101 MACHINE SCREW 4 4 1092600000-052
55 212A2794 GUIDE(TAPE) 1 1 1092600000-055
A6 0926B00E SPACER 2 2 1092600000-126
1092600200-125
GT-28080
GT-28082
Fig. W
1011-003
Fig. W-1
8mm TF
Fig. W
GT-28080

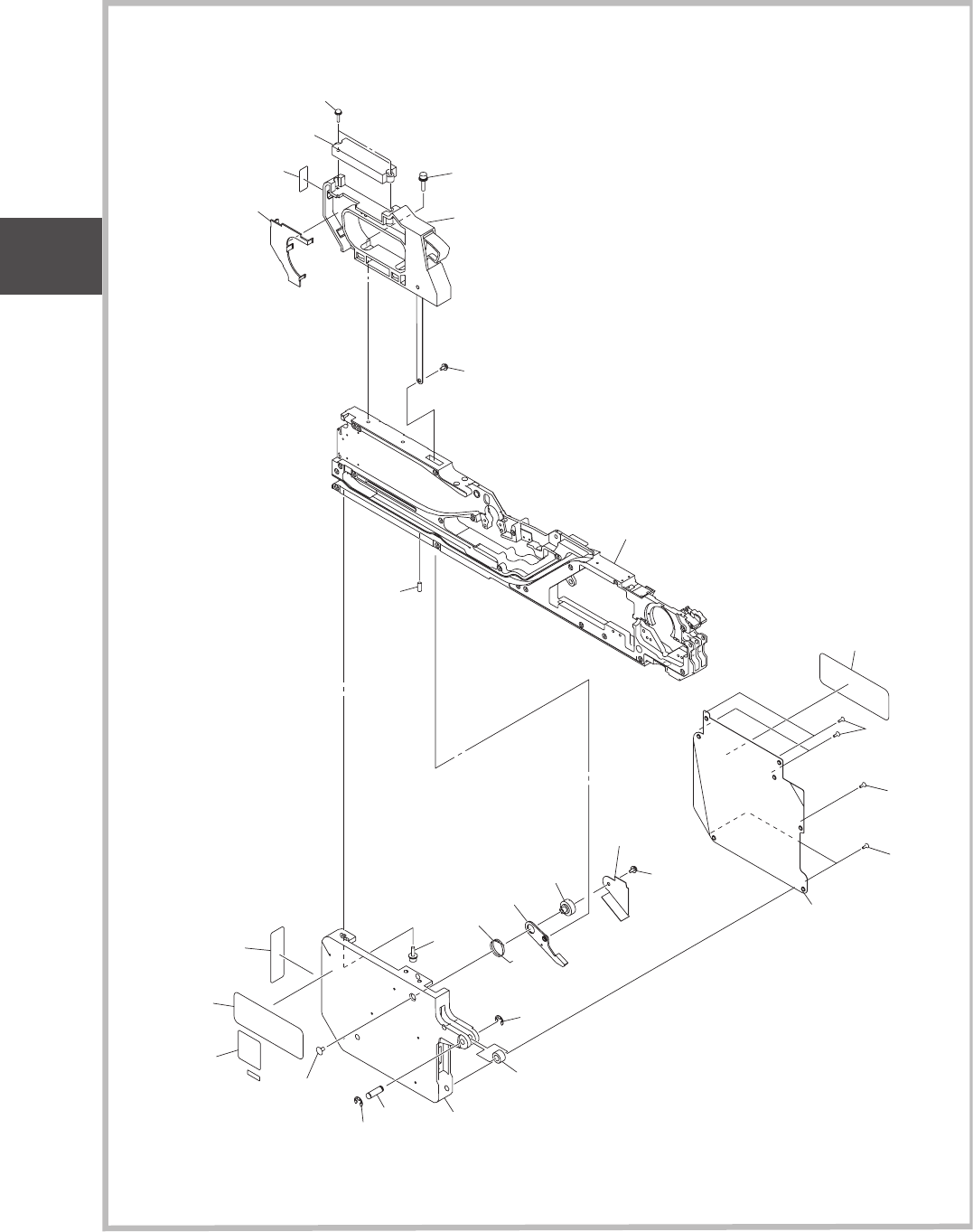

Fig. W-2
操作パネル部
Operation Panel Section
1006-003
Fig. W
テープフィーダ
Tape Feeder GT
-28080,28082
125
132
137
102
1 12
1 1 1
141
141
142
1 13
1 10
109
1 18
127
See Fig.W -1
Key No.1
127
127
107
137
149
129
1 19
117
125
131
1A1
1 16
136
168
140
8mm TF
Fig. W
GT-28080
