Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 525 221DA051 MACHINE SCREW 6 6 1092600000-025 535 221DA007 MACHINE SCREW 2 2 1092600000-035 565 4W202800 CORD 1 1 1092600000-1 15 1092600200-1 14 566 0926B504 CORD 1 1 109…
Fig. W-6
モータコントロール基板
Motor Control PCB
0912-002

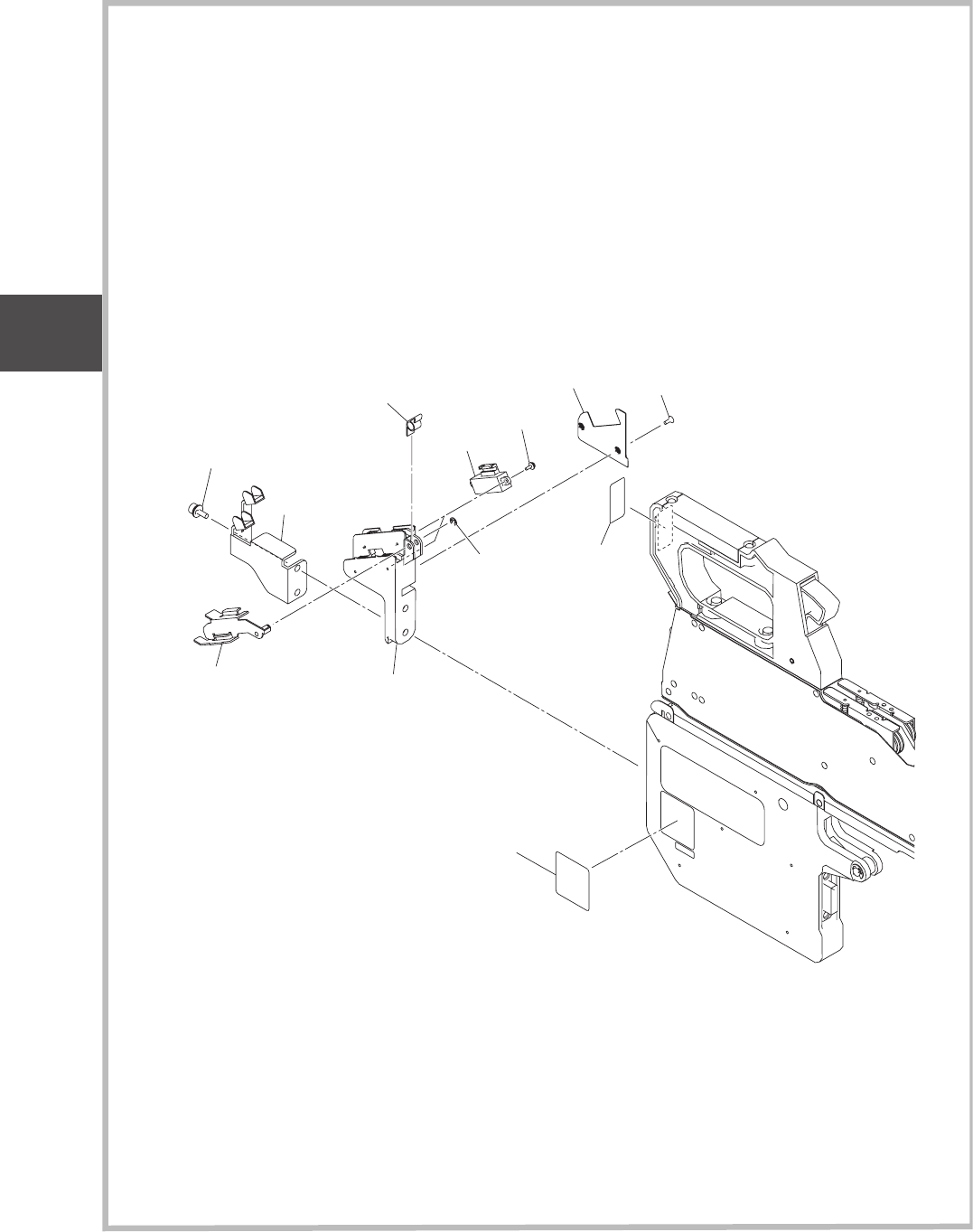

Fig. W
テープフィーダ
Tape Feeder GT
-28080,28082
569
See Fig.W-4
Key No.389
See Fig.W-4
Key No.389
See Fig.W-3
Key No.282
See Fig.W-2
Key No.168
See Fig.W-3
Key No.282
See Fig.W-4
Key No.3G1
566
571
565
525
525
525
567
535
See Fig.WD-1
Key No.16
8mm TF
Fig. W
GT-28080
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
525 221DA051 MACHINE SCREW 6 6 1092600000-025
535 221DA007 MACHINE SCREW 2 2 1092600000-035
565 4W202800 CORD 1 1 1092600000-115
1092600200-114
566 0926B504 CORD 1 1 1092600000-116
1092600200-115
567 0926B505 CORD 1 1 1092600000-117
1092600200-116
569 4W300035 WIRE 1 1 1092600000-119
1092600200-118
571 4U240497 UNIT,DRIVER 1 1 1092600000-121
1092600200-120
Fig. W
1011-003
Fig. W-6
GT-28080
GT-28082
8mm TF
Fig. W
GT-28080
Fig. WD-1
継ぎ目検出ユニット
Joint Detection Unit
1006-003
Fig. WD
継ぎ目検出ユニット
DS-28080
Joint Detection Unit DS-28080
18
15
13
1
1
17
16
12
14
19
3
4
5
8mm TF
Fig. WD
DS-28080
