Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE GD-28081 GD-28083 Fig. M 101 1-003 Fig. M-1 1 0926B00K FRAME 1 1 1092600001-001 3 0926B00A COVER(LA) 1 1 1092600001-003 4 21 1AD442 COVER(LB) 1 1 1092600001-004 5 0926B00B…

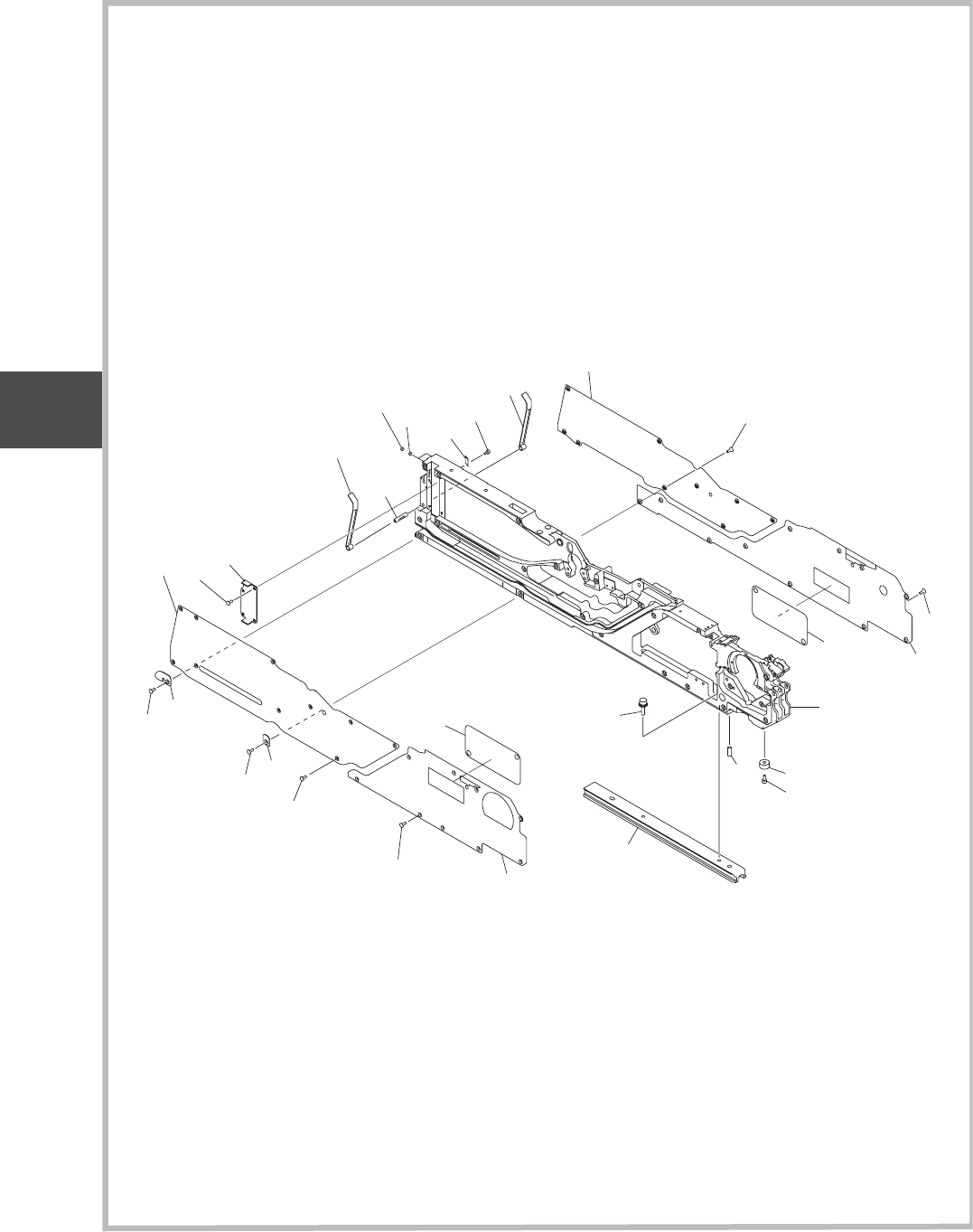

Fig. M-1
フレーム、カバー部
Frame, Cover Section
0912-002
Fig. M
テープフィーダ
Tape Feeder GD-28081,28083
33
24
3
4
22
27
44
27
27
44
27
27
43
5
55
27
20
6
22
A8
23
50
52
26
28
8
19
30
1
8mm TF
Fig. M
GD-28081
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
GD-28081
GD-28083
Fig. M
1011-003
Fig. M-1
1 0926B00K FRAME 1 1 1092600001-001
3 0926B00A COVER(LA) 1 1 1092600001-003
4 211AD442 COVER(LB) 1 1 1092600001-004
5 0926B00B COVER(RA) 1 1 1092600001-005
6 211AD444 COVER(RB) 1 1 1092600001-006
8 0926B00G SLIDE(BASE) 1 1 1092600001-008
19 216E1741 PIN_LOCATE 2 2 1092600001-019
20 0926B007 GUIDE(TAPE) 1 1 1092600001-020
22 211AD370 COVER(FUTA) 2 2 1092600001-022
23 226J1891 MECH-P MAGNET 2 2 1092600001-023
24 226J1909 CUTTER 1 1 1092600001-024
26 226J0249 RUBBER LEGS 1 1 1092600001-026
27 221DA103 MACHINE SCREW 42 42 1092600001-027
28 221A0104 BOLT_HEX-SCT 1 1 1092600001-028
30 221AA103 ROHS_HEX-SCT 2 2 1092600001-030
33 221DA060 MACHINE SCREW 1 1 1092600001-033
43 211AC692 COVER(HAISEN) 1 1 1092600001-043
44 0877B002 MECH PARTS_SEAL 2 2 1092600001-044
50 221J0061 SPRING_PIN 1 1 1092600001-050
52 221DA101 MACHINE SCREW 4 4 1092600001-052
55 212A2794 GUIDE(TAPE) 1 1 1092600001-055
A8 0926B00E SPACER 2 2 1092600001-128
8mm TF
Fig. M
GD-28081

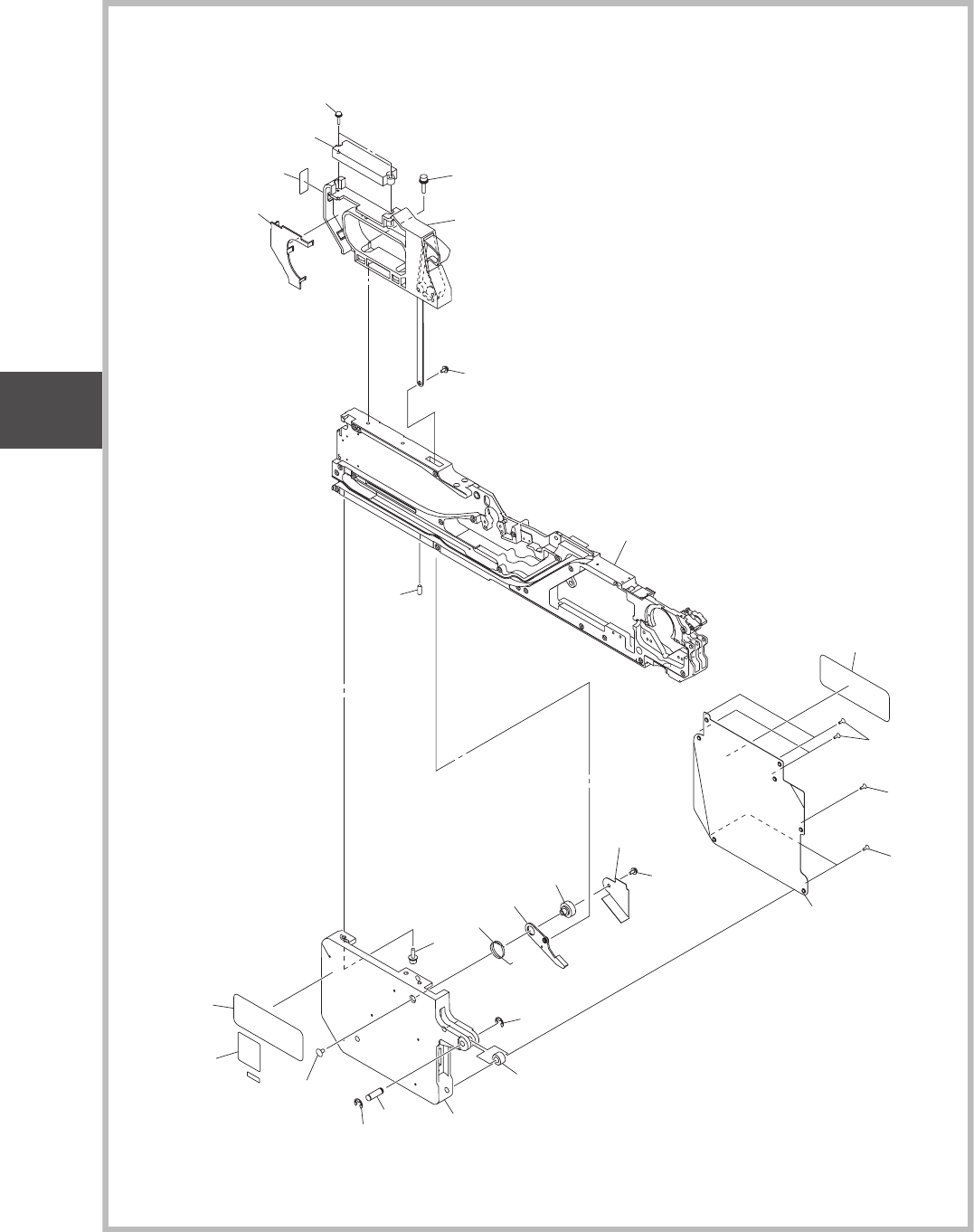

Fig. M-2
操作パネル部
Operation Panel Section
1006-003
Fig. M
テープフィーダ
Tape Feeder GD-28081,28083
525
132
137
102
112
11
1
141
141
142
113
110
109
1
18
127
See Fig.M-1
Key No.1
127
127
107
137
129
119
117
125
131
1A3
116
136
168
140
8mm TF
Fig. M
GD-28081
