Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. M 101 1-003 Fig. M-6 GD-28081 GD-28083 525 221DA051 MACHINE SCREW 6 6 1092600001-025 535 221DA007 MACHINE SCREW 2 2 1092600001-035 565 4W202800 CORD 1 1 1092600001-1 …
Fig. M-6
モータコントロール基板
Motor Control PCB
0912-002
Fig. M
テープフィーダ
Tape Feeder GD-28081,28083
569
See Fig.M-4
Key No.389
See Fig.M-4
Key No.389
See Fig.M-3
Key No.282
See Fig.M-2
Key No.168
See Fig.M-3
Key No.282
See Fig.M-4
Key No.3G1
566
571
565
525
525
525
567
535
See Fig.M-7
Key No.686
See Fig.M-3
Key No.268
8mm TF
Fig. M
GD-28081
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. M
1011-003
Fig. M-6
GD-28081
GD-28083
525 221DA051 MACHINE SCREW 6 6 1092600001-025
535 221DA007 MACHINE SCREW 2 2 1092600001-035
565 4W202800 CORD 1 1 1092600001-115
566 4W204791 CORD 1 1 1092600001-116
567 0926B505 CORD 1 1 1092600001-117
569 4W300035 WIRE 1 1 1092600001-119
571 4U240497 UNIT,DRIVER 1 1 1092600001-121
8mm TF
Fig. M
GD-28081

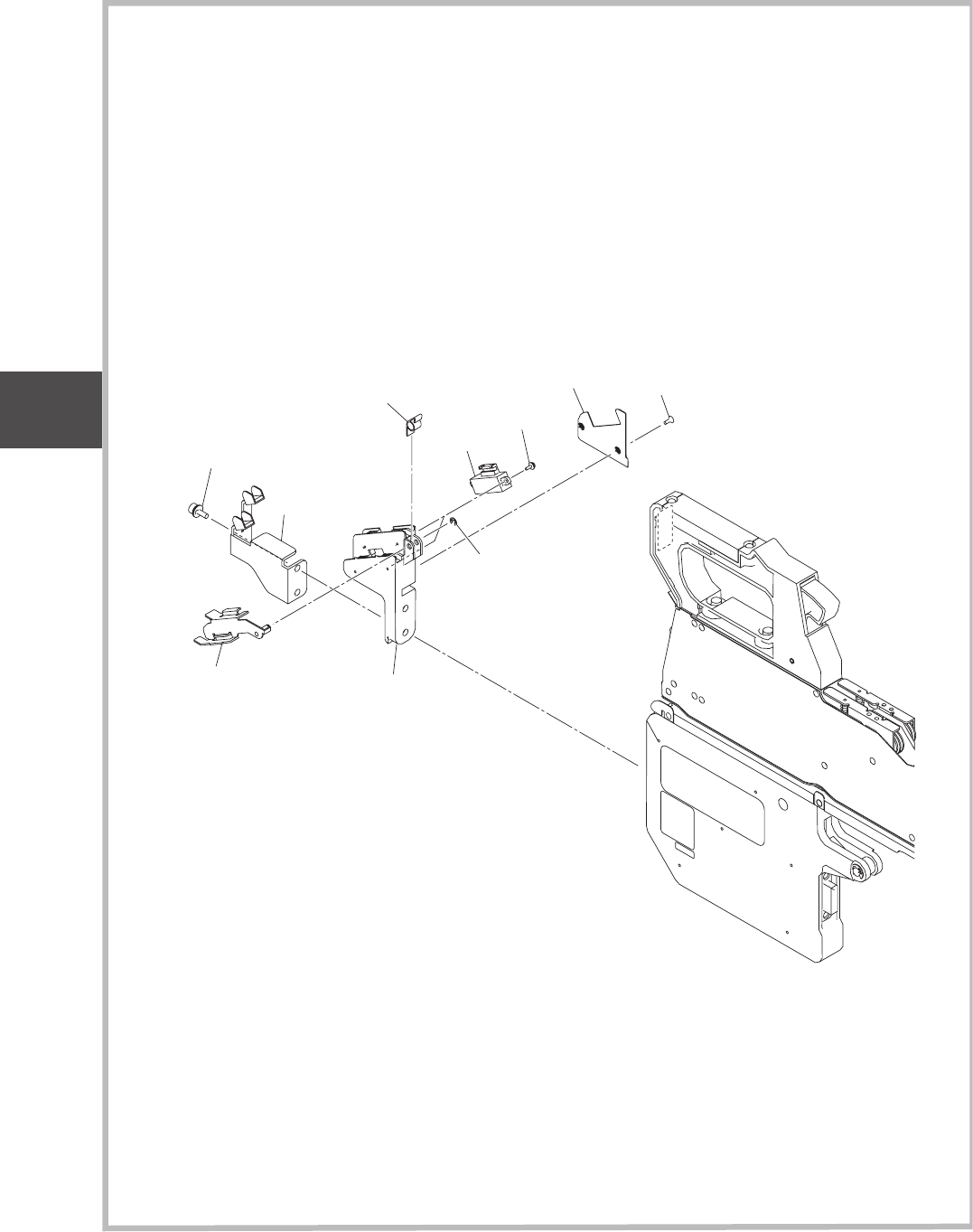

Fig. M-7
継ぎ目検出ユニット
Joint Detection Unit
0912-002
Fig. M
テープフィーダ
Tape Feeder GD-28081,28083
688
685
683
681
687
686
682
684
689
627
8mm TF
Fig. M
GD-28081
