Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 102 21 1G5104 BLOCK(KIBAN) 1 1092600602-002 107 0926C00M COVER(KIBAN) 1 1092600602-007 109 016S1022 ASSY_L VR(RELAS) 1 1092600602-009 1 10 216D0448 PIN_HINGE 1 1092600602-…

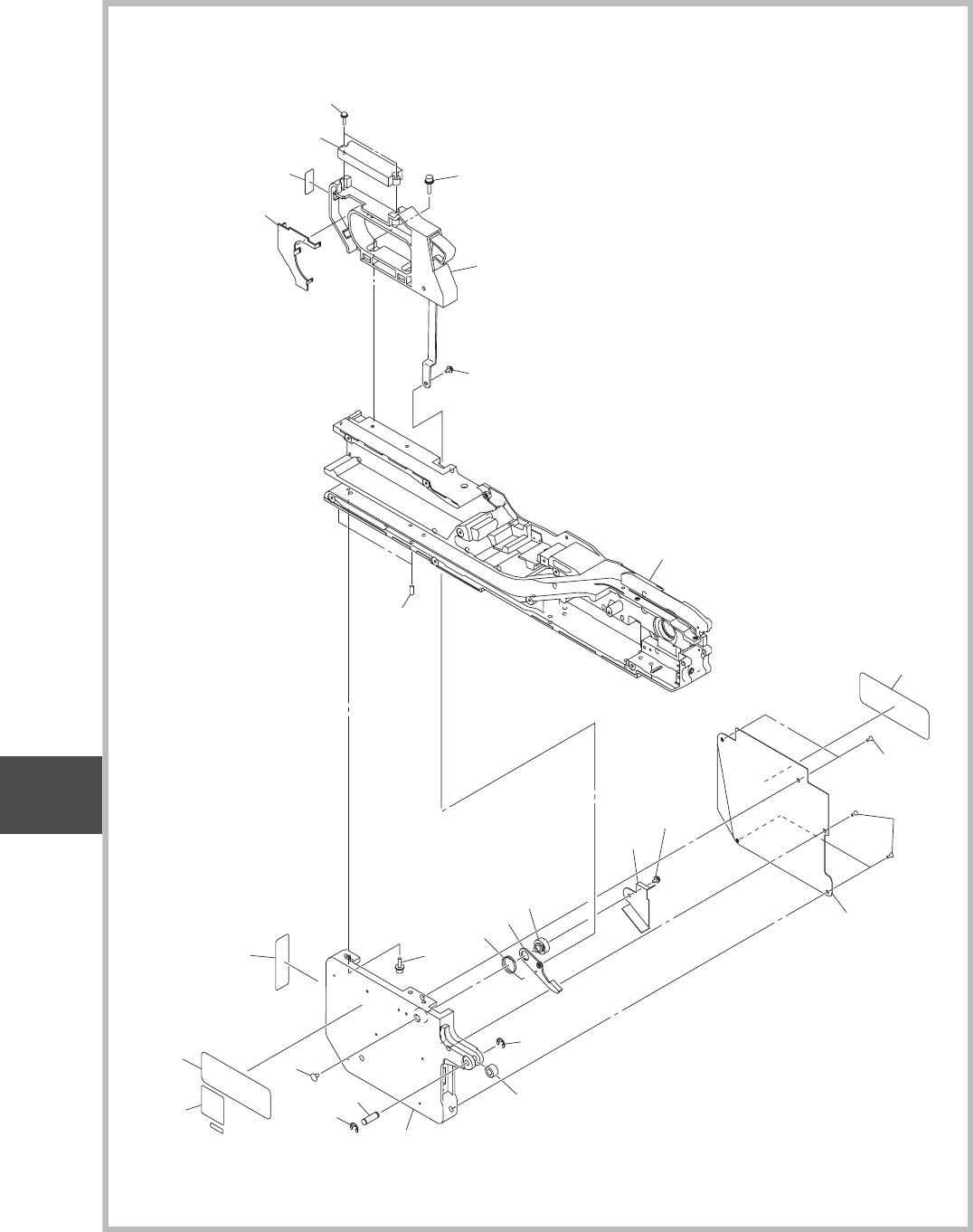

Fig. Q-2
操作パネル部
Operation Panel Section
1006-003
Fig. Q
テープフィーダ
GT-44562
Tape Feeder GT
-44562
1 19
138
139
155
129
11
1
1 12
102
134
134
127
1 13
109
1 10
123
1 18
107
125
125
138
See Fig.Q-1
Key No.1
128
1A6
1 16
133
1 17
192
137
123
44,56mm TF
Fig. Q
GT-44562
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
102 211G5104 BLOCK(KIBAN) 1 1092600602-002
107 0926C00M COVER(KIBAN) 1 1092600602-007
109 016S1022 ASSY_LVR(RELAS) 1 1092600602-009
110 216D0448 PIN_HINGE 1 1092600602-010
111 213C0206 ROLLER 1 1092600602-011
112 216F0879 PIN_GUIDE(ROLL) 1 1092600602-012
113 222P0207 SPRING_TORSION 1 1092600602-013
116 09262007 ASSY_GRIP 1 1092600602-016
117 211AB843 COVER(GRIP) 1 1092600602-017
118 211A8726 COVER(HAISEN) 1 1092600602-018
119 216E1741 PIN_LOCATE 2 1092600602-019
123 221DA051 MACHINE SCREW 2 1092600602-023
125 221DA103 MACHINE SCREW 5 1092600602-025
127 221AA102 ROHS_HEX-SCT 2 1092600602-027
128 221AB004 BOLT_HEX-SCT 2 1092600602-028
129 221DA113 MACHINE SCREW 1 1092600602-029
133 221DA133 MACHINE SCREW 2 1092600602-033
134 221KB001 E RING 2 1092600602-034
137 0804000D NAMEPLATE_INDEX 1 1092600602-037
138 0926B008 PLATE NOTICE 2 1092600602-038
139 0804000E NAMEPLATE_INDEX 1 1092600602-039
155 0804000M MECH PARTS 1 1092600602-055
192 4B111602 P.C.B,MOUNT 1 1092600602-142
1A6 221HA104 WASHER 2 1092600602-156
GT-44562
Fig. Q
1011-004
Fig. Q-2
44,56mm TF
Fig. Q
GT-44562

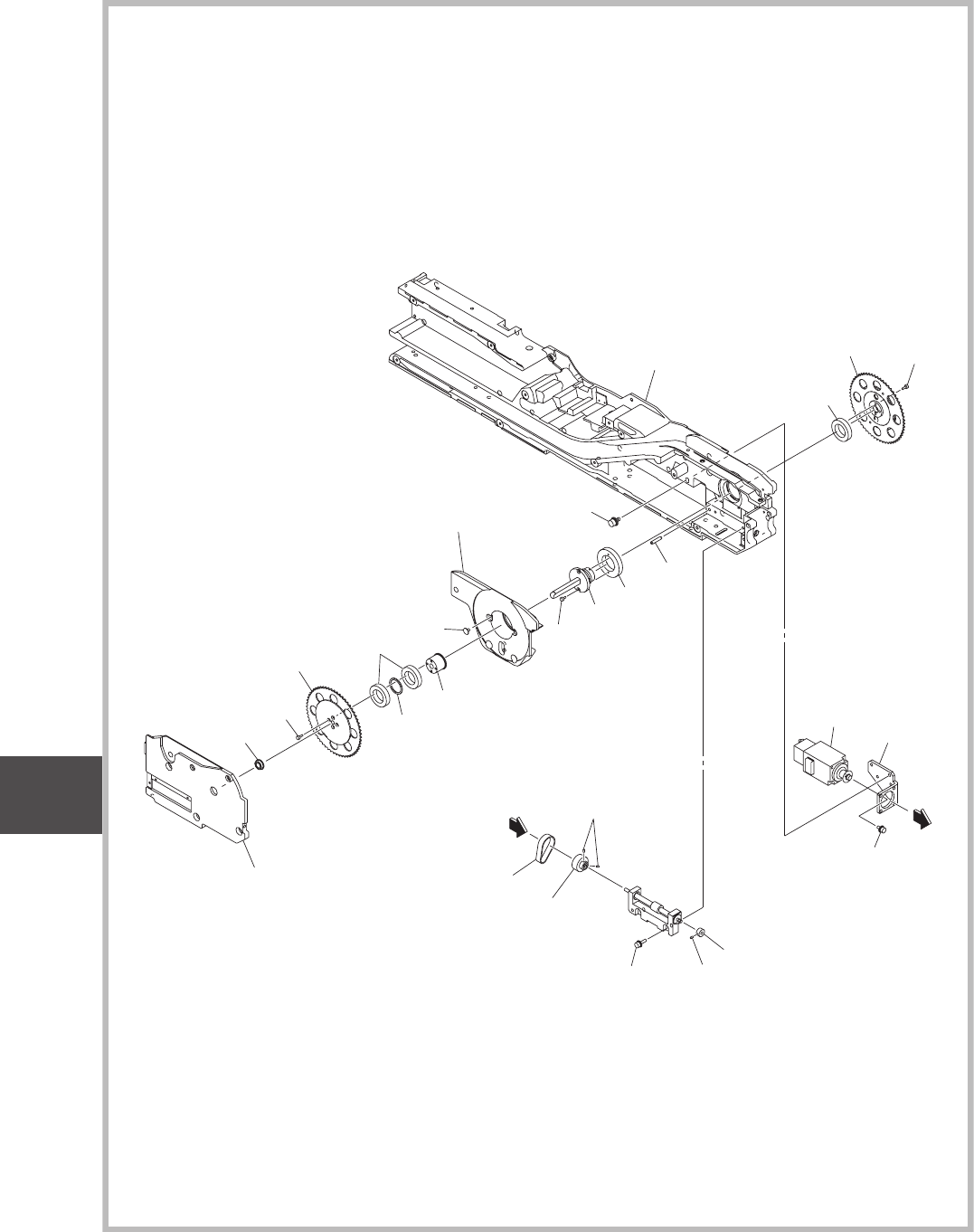

Fig. Q-3
テープ駆動部
Tape Driving Section
1006-003
Fig. Q
テープフィーダ
GT-44562
Tape Feeder GT
-44562
266
272
273
276
274
274
2C7
2C7
277
280
281
268
267
282
269
271
2C6
2C3
283
C
C
270
275
279
278
2A7
2A8
2A6
See Fig.Q-1
Key No.6
See Fig.Q-1
Key No.1
See Fig.Q-1
Key No.40
44,56mm TF
Fig. Q
GT-44562
