Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 102 21 1G5104 BLOCK(KIBAN) 1 1092600500-002 107 0926C00M COVER(KIBAN) 1 1092600500-007 109 016S1022 ASSY_L VR(RELAS) 1 1092600500-009 1 10 216D0448 PIN_HINGE 1 1092600500-…
Fig. P-2
操作パネル部
Operation Panel Section
1006-003
Fig. P
テープフィーダ
GT-24322
Tape Feeder GT
-24322
142
129
1 19
11
1
1 12
102
134
134
138
139
127
123
1 13
109
1 10
1 18
107
125
125
138
See Fig.P-1
Key No.1
128
1A4
1 16
133
1 17
171
137
123
24,32mm TF
Fig. P
GT-24322
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
102 211G5104 BLOCK(KIBAN) 1 1092600500-002
107 0926C00M COVER(KIBAN) 1 1092600500-007
109 016S1022 ASSY_LVR(RELAS) 1 1092600500-009
110 216D0448 PIN_HINGE 1 1092600500-010
111 213C0206 ROLLER 1 1092600500-011
112 216F0879 PIN_GUIDE(ROLL) 1 1092600500-012
113 222P0207 SPRING_TORSION 1 1092600500-013
116 09262007 ASSY_GRIP 1 1092600500-016
117 211AB843 COVER(GRIP) 1 1092600500-017
118 211A8726 COVER(HAISEN) 1 1092600500-018
119 216E1741 PIN_LOCATE 2 1092600500-019
123 221DA051 MACHINE SCREW 2 1092600500-023
125 221DA103 MACHINE SCREW 5 1092600500-025
127 221AA102 ROHS_HEX-SCT 2 1092600500-027
128 221AB004 BOLT_HEX-SCT 2 1092600500-028
129 221DA113 MACHINE SCREW 1 1092600500-029
133 221DA133 MACHINE SCREW 2 1092600500-033
134 221KB001 E RING 2 1092600500-034
137 0804000D NAMEPLATE_INDEX 1 1092600500-037
138 0926B008 PLATE NOTICE 2 1092600500-038
139 0804000E NAMEPLATE_INDEX 1 1092600500-039
142 0804000M MECH PARTS 1 1092600500-042
171 4B111602 P.C.B,MOUNT 1 1092600500-121
1A4 221HA104 WASHER 2 1092600500-134
GT-24322
Fig. P
1011-004
Fig. P-2
24,32mm TF
Fig. P
GT-24322

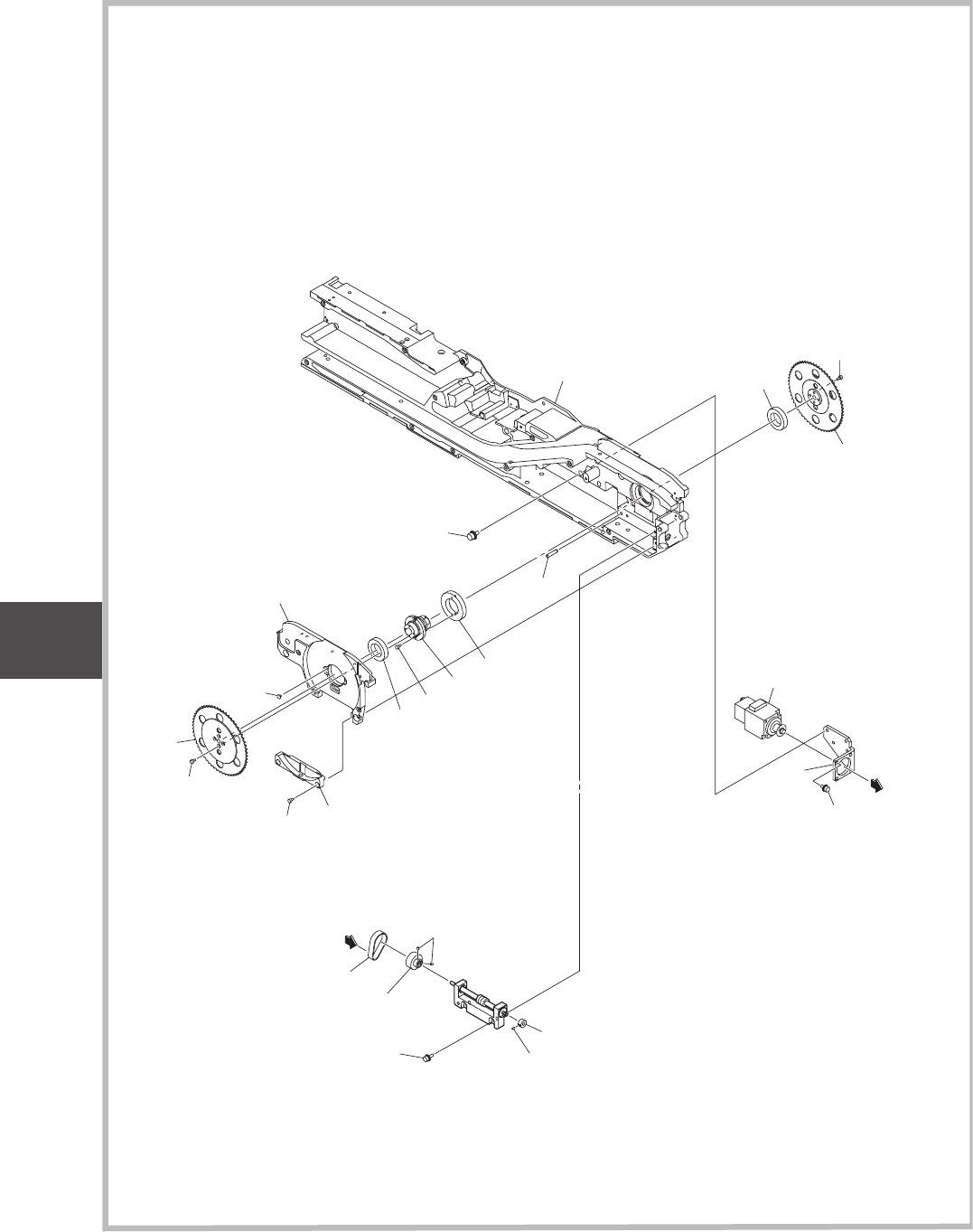

Fig. P-3
テープ駆動部
Tape Driving Section
1011-003
Fig. P
テープフィーダ
GT-24322
Tape Feeder GT
-24322
295
260
2A3
257
261
296
297
256
255
254
254
258
253
249
252
252
251
2A6
2A7
2A7
258
D
D
259
263
262
See Fig.P-1
Key No.1
See Fig.P-1
Key No.40
2A0
24,32mm TF
Fig. P
GT-24322
