Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 443 221J0059 SPRING PIN 1 1092600500-043 447 21 1DE587 PLA TE 1 1092600500-047 448 221D0201 MACHINE SCREW 2 1092600500-048 4A1 216S3289 LEVER(SUP) 1 1092600500-101 4A2 216…

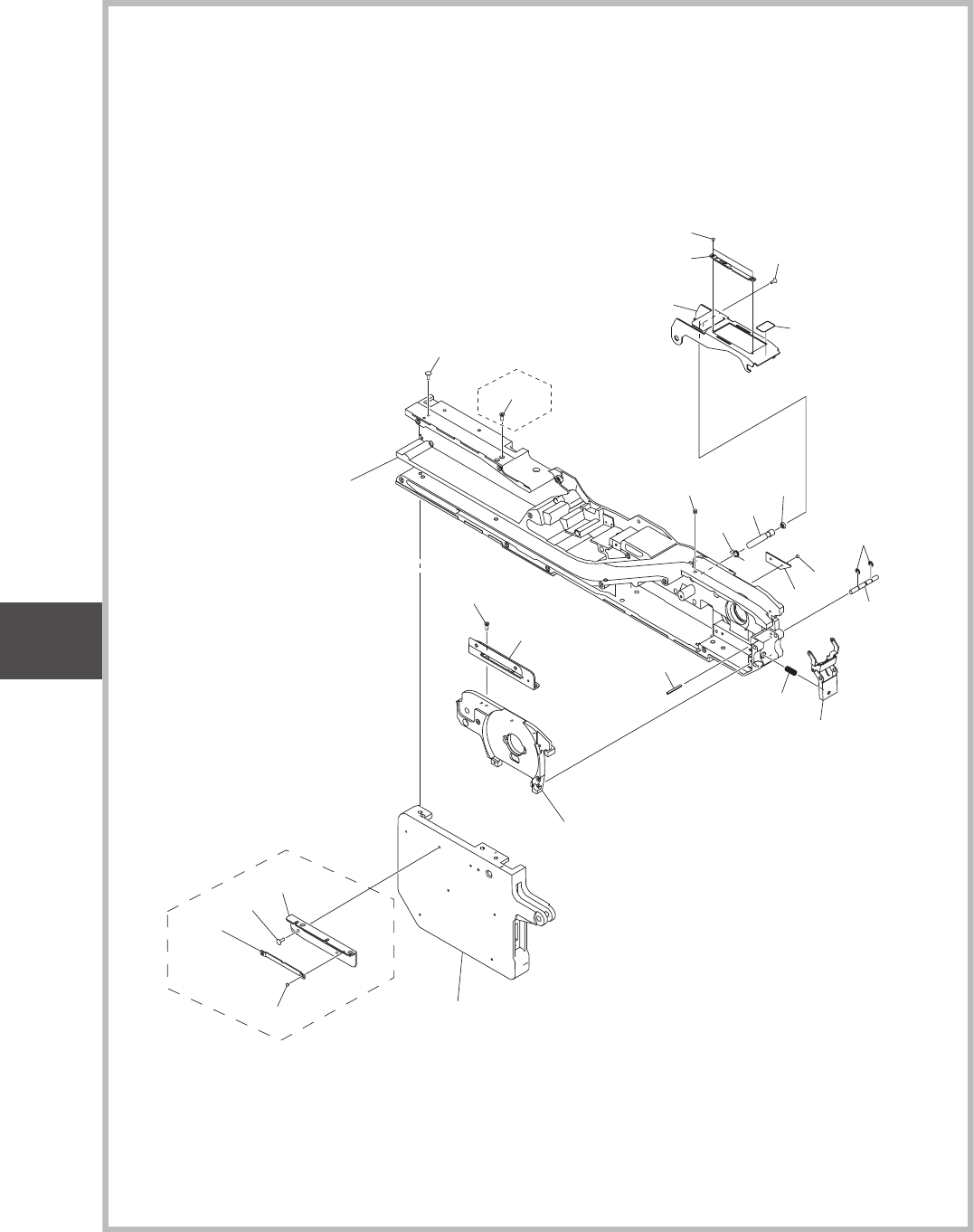

Fig. P-5
サプレッサ部
Suppressor Section
1011-004
Fig. P
テープフィーダ
GT-24322
Tape Feeder GT
-24322
4A6
4A7
4B2
4A5
4B0
4B5
4A1
4A3
4A7
4A8
4A4
4A2
4B4
4B5
4A9
4B3
4A8
See Fig.P-1
Key No.1
See Fig.P-1
Key No.40
See Fig.P-2
Key No.102
4B5
4B7
4B7
4A9
443
447
448
For 32mm
For 32mm
24,32mm TF
Fig. P
GT-24322
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
443 221J0059 SPRING PIN 1 1092600500-043
447 211DE587 PLATE 1 1092600500-047
448 221D0201 MACHINE SCREW 2 1092600500-048
4A1 216S3289 LEVER(SUP) 1 1092600500-101
4A2 216F0914 PIN_GUIDE(SUP) 1 1092600500-102
4A3 222P0201 SPRING_TORSION 1 1092600500-103
4A4 016J0026 ASSY_HOOK 1 1092600500-104
4A5 216D0467 PIN_HINGE(FRNT) 1 1092600500-105
4A6 222M1491 SPRING_COMP 1 1092600500-106
4A7 0926C304 CHUTE 1 1092600500-107
4A8 09262307 ASSY,PLATE(SUP) 1 1092600500-108
4A9 221D0196 MACHINE SCREW 2 1092600500-109
4B0 221CA027 SET SCREW 1 1092600500-110
4B2 221KB002 E RING 2 1092600500-112
4B3 0804000J NAMEPLATE 1 1092600500-113
4B4 221H0230 WASHER 1 1092600500-114
4B5 221DA103 MACHINE SCREW 3 1092600500-115
4B7 221DA005 MACHINE SCREW 2 1092600500-117
GT-24322
Fig. P
1011-004
Fig. P-5
24,32mm TF
Fig. P
GT-24322

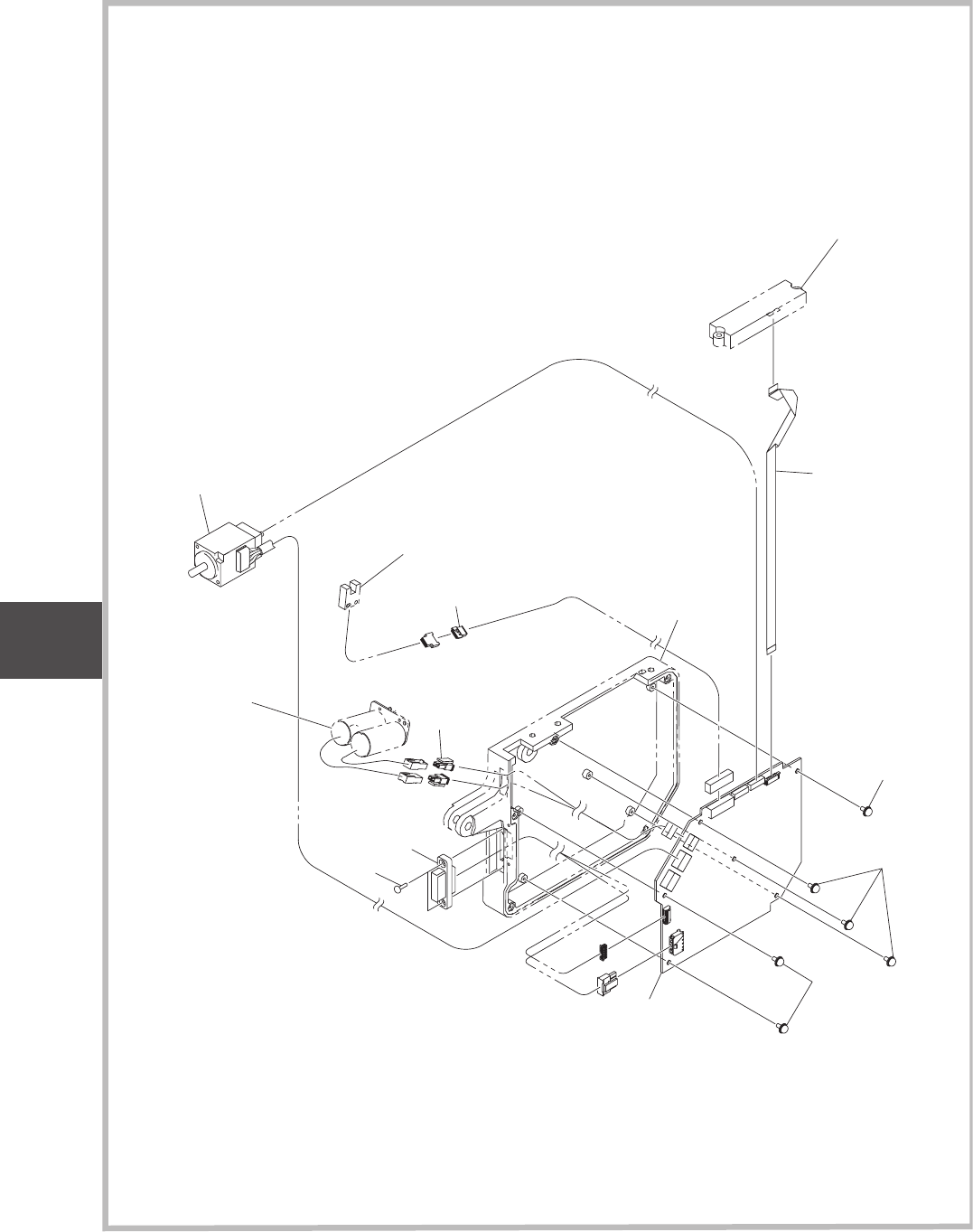

Fig. P-6
モータコントロール基板
Motor Control PCB
1006-003
Fig. P
テープフィーダ
GT-24322
Tape Feeder GT
-24322
See Fig.P-3
Key No.295
See Fig.P-2
Key No.171
572
See Fig.P-4
Key No.3B3
See Fig.P-4
Key No.380
See Fig.P-2
Key No.102
523
523
523
568
574
570
532
569
24,32mm TF
Fig. P
GT-24322
