Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 102 21 1G5053 BLOCK(KIBAN) 1 1092600400-002 107 0926C00M COVER(KIBAN) 1 1092600400-007 109 016S1022 ASSY_L VR(RELAS) 1 1092600400-009 1 10 216D0448 PIN_HINGE 1 1092600400-…

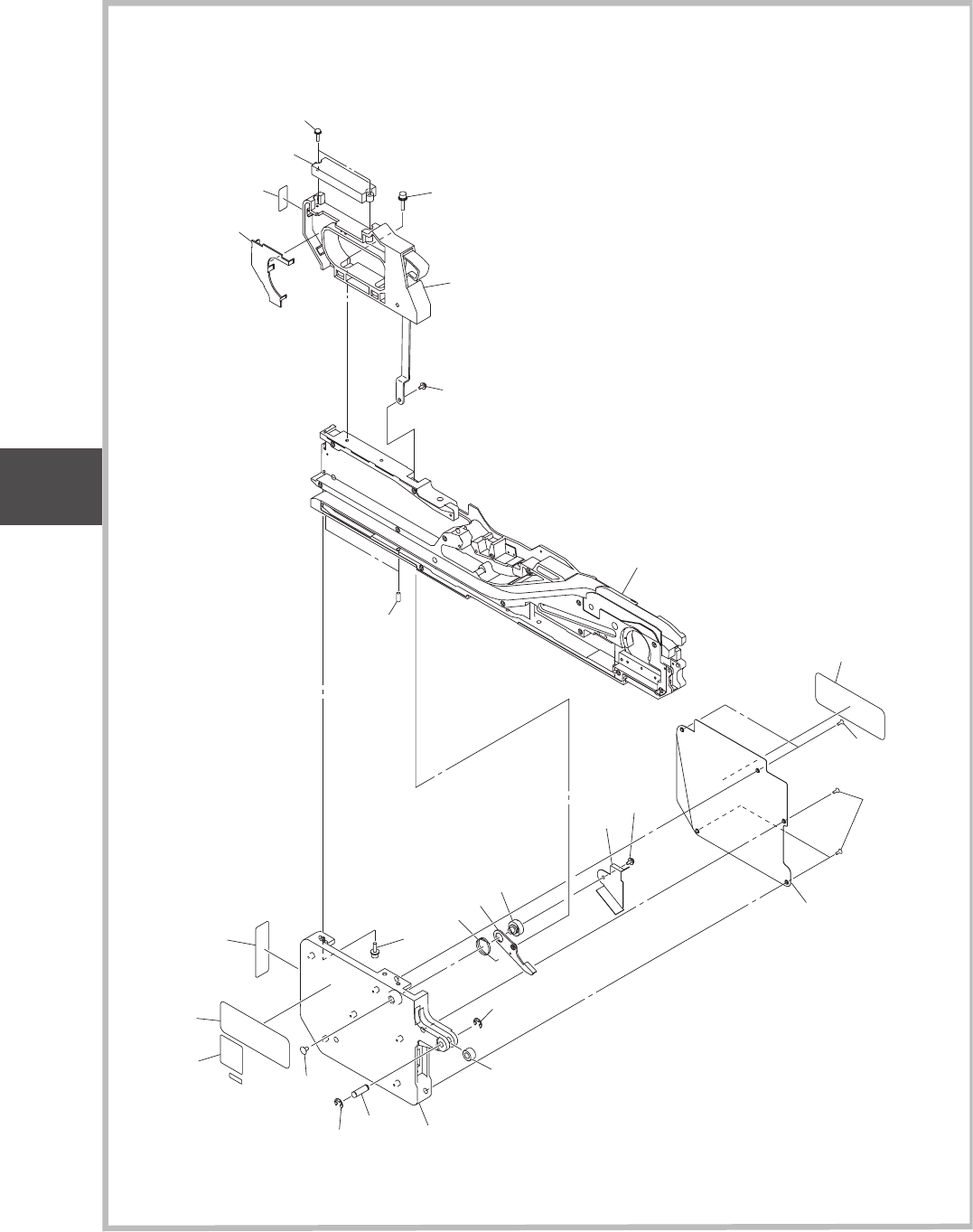

Fig. G-2
操作パネル部
Operation Panel Section
1006-003
Fig. G
テープフィーダ
GT-12162
Tape Feeder GT
-12162
See Fig.G-1
Key No.1
113
109
110
123
118
134
11
1
107
125
125
102
1
12
134
129
138
138
139
140
127
119
128
1A0
116
133
117
160
137
123
12,16mm TF
Fig. G
GT-12162
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
102 211G5053 BLOCK(KIBAN) 1 1092600400-002
107 0926C00M COVER(KIBAN) 1 1092600400-007
109 016S1022 ASSY_LVR(RELAS) 1 1092600400-009
110 216D0448 PIN_HINGE 1 1092600400-010
111 213C0206 ROLLER 1 1092600400-011
112 216F0879 PIN_GUIDE(ROLL) 1 1092600400-012
113 222P0207 SPRING_TORSION 1 1092600400-013
116 09262007 ASSY_GRIP 1 1092600400-016
117 211AB843 COVER(GRIP) 1 1092600400-017
118 211A8726 COVER(HAISEN) 1 1092600400-018
119 216E1741 PIN_LOCATE 2 1092600400-019
123 221DA051 MACHINE SCREW 2 1092600400-023
125 221DA103 MACHINE SCREW 5 1092600400-025
127 221AA102 ROHS_HEX-SCT 2 1092600400-027
128 221AB004 BOLT_HEX-SCT 2 1092600400-028
129 221DA113 MACHINE SCREW 1 1092600400-029
133 221DA133 MACHINE SCREW 2 1092600400-033
134 221KB001 E RING 2 1092600400-034
137 0804000D NAMEPLATE_INDEX 1 1092600400-037
138 0926B008 PLATE NOTICE 2 1092600400-038
139 0804000E NAMEPLATE_INDEX 1 1092600400-039
140 0804000M MECH PARTS 1 1092600400-040
160 4B111602 P.C.B,MOUNT 1 1092600400-110
1A0 221HA104 WASHER 2 1092600400-120
GT-12162
1011-004
Fig. G-2
Fig. G
12,16mm TF
Fig. G
GT-12162
Fig. G-3
テープ駆動部
Tape Driving Section
0912-002
Fig. G
テープフィーダ
GT-12162
Tape Feeder GT
-12162
255
2A7
2A7
2A3
248
259
249
256
266
251
253
254
258
250
2A6
252
264
257
See Fig.G-1
Key No.1
12,16mm TF
Fig. G
GT-12162
