P-313-004e.pdf - 第119页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 443 21 1AD950 COVER(RC) 1 1092600602-043 451 221DA106 MACHINE SCREW 2 1092600602-051 456 21 1A9426 COVER 1 1092600602-056 457 221J0059 SPRING PIN 1 1092600602-057 461 21 1…

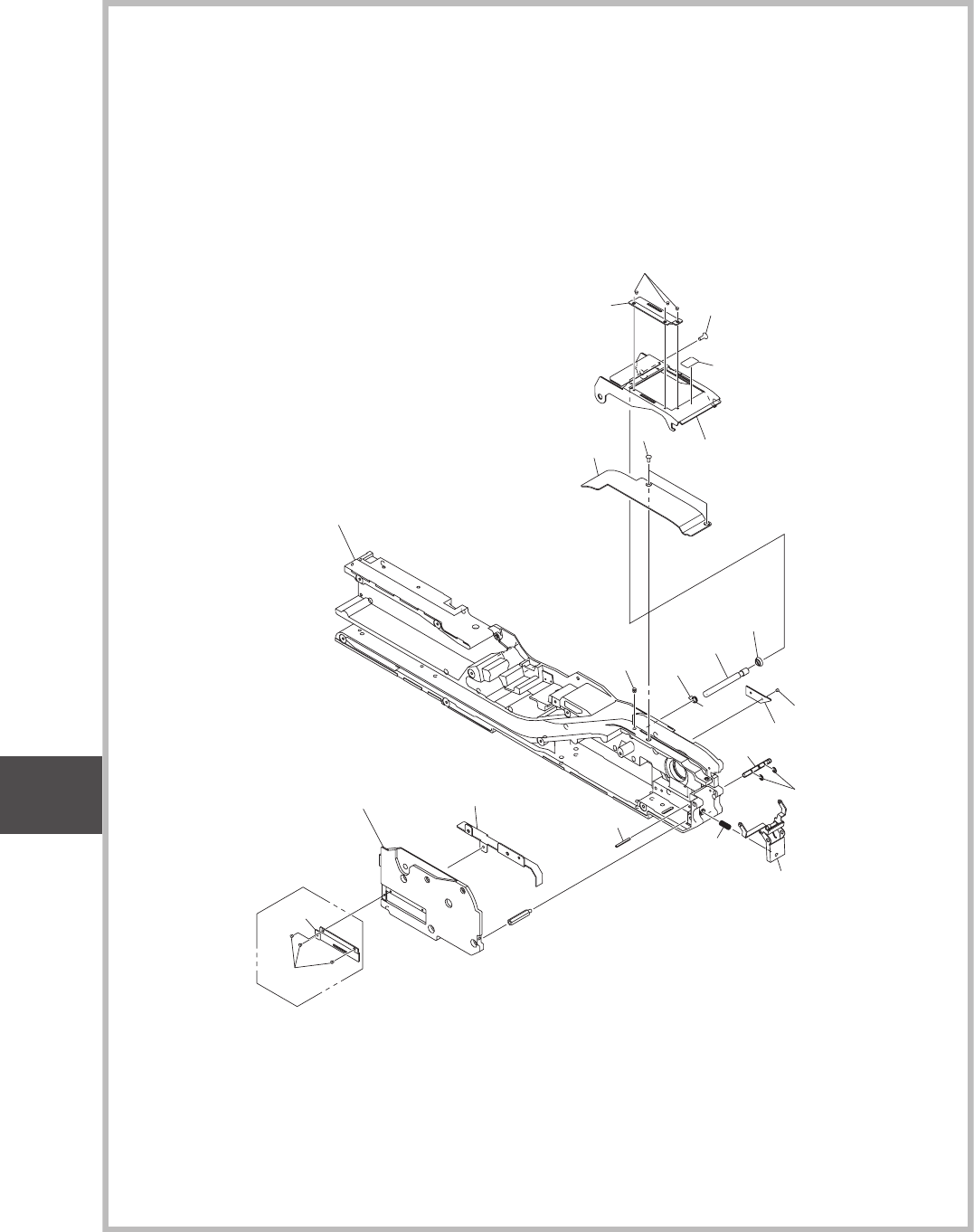

Fig. Q-5
サプレッサ部
Suppressor Section
1006-003
Fig. Q
テープフィーダ
GT-44562
Tape Feeder GT
-44562
451
443
456
4B3
4B4
4B2
4B3
4B2
4A7
4A6
4A8
4B6
4B7
4B8
4B5
4B1
457
4A9
4B0
461
462
See Fig.Q-1
Key No.6
See Fig.Q-1
Key No.1
For 56mm
44,56mm TF
Fig. Q
GT-44562
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
443 211AD950 COVER(RC) 1 1092600602-043
451 221DA106 MACHINE SCREW 2 1092600602-051
456 211A9426 COVER 1 1092600602-056
457 221J0059 SPRING PIN 1 1092600602-057
461 211DE587 PLATE 1 1092600602-061
462 221D0201 MACHINE SCREW 2 1092600602-062
4A6 216S3290 LEVER(SUP) 1 1092600602-126
4A7 216D0500 PIN_HINGE(SUP) 1 1092600602-127
4A8 222P0201 SPRING_TORSION 1 1092600602-128
4A9 016J0027 ASSY_HOOK(FRNT) 1 1092600602-129
4B0 216D0467 PIN_HINGE(FRNT) 1 1092600602-130
4B1 222M1309 SPRING_COMP 1 1092600602-131
4B2 211DD967 PLATE(SUP) 1 1092600602-132
4B3 221D0196 MACHINE SCREW 3 1092600602-133
4B4 221CA027 SET SCREW 1 1092600602-134
4B5 221KB002 E RING 2 1092600602-135
4B6 0804000H NAMEPLATE 1 1092600602-136
4B7 221H0230 WASHER 1 1092600602-137
4B8 221DA103 MACHINE SCREW 1 1092600602-138
GT-44562
Fig. Q
1011-003
Fig. Q-5
44,56mm TF
Fig. Q
GT-44562
Fig. Q-6
モータコントロール基板
Motor Control PCB
0912-002
Fig. Q
テープフィーダ
GT-44562
Tape Feeder GT
-44562
See Fig.Q-3
Key No.2A6
See Fig.Q-2
Key No.192
593
See Fig.Q-4
Key No.3D4
See Fig.Q-4
Key No.3A3
See Fig.Q-2
Key No.102
523
523
523
589
595
591
532
590
44,56mm TF
Fig. Q
GT-44562
