Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 523 221DA051 MACHINE SCREW 6 1092600602-023 532 221DA007 MACHINE SCREW 2 1092600602-032 589 4W202800 CORD 1 1092600602-139 590 4W202883 CORD 1 1092600602-140 591 4W202923 …

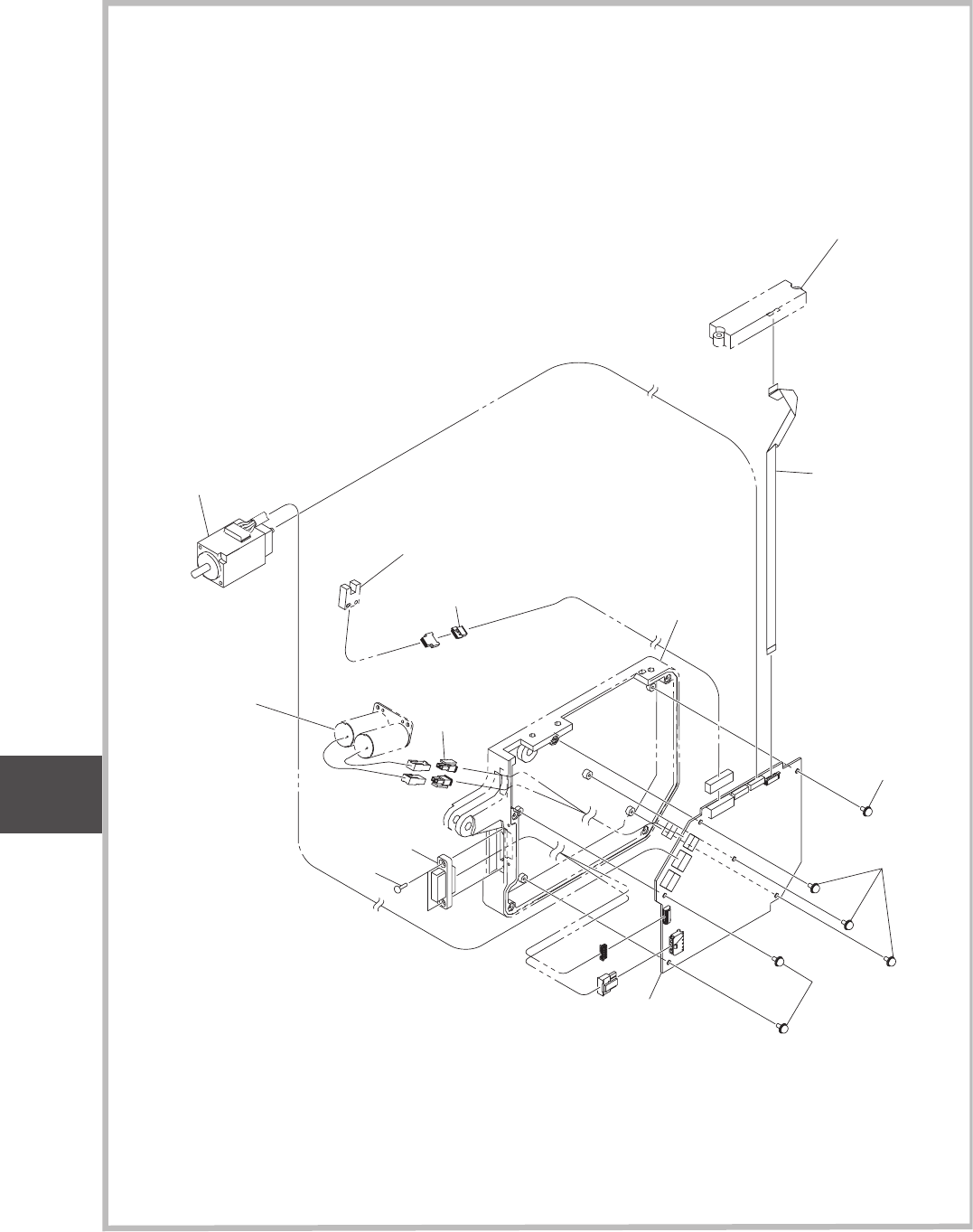

Fig. Q-6
モータコントロール基板
Motor Control PCB
0912-002
Fig. Q
テープフィーダ
GT-44562
Tape Feeder GT
-44562
See Fig.Q-3
Key No.2A6
See Fig.Q-2
Key No.192
593
See Fig.Q-4
Key No.3D4
See Fig.Q-4
Key No.3A3
See Fig.Q-2
Key No.102
523
523
523
589
595
591
532
590
44,56mm TF
Fig. Q
GT-44562
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
523 221DA051 MACHINE SCREW 6 1092600602-023
532 221DA007 MACHINE SCREW 2 1092600602-032
589 4W202800 CORD 1 1092600602-139
590 4W202883 CORD 1 1092600602-140
591 4W202923 CORD 1 1092600602-141
593 4W300034 WIRE 1 1092600602-143
595 4U240497 UNIT,DRIVER 1 1092600602-145
GT-44562
Fig. Q
0912-002
Fig. Q-6
44,56mm TF
Fig. Q
GT-44562
Fig. QD-1
継ぎ目検出ユニット
Joint Detection Unit
1006-003
Fig. QD
継ぎ目検出ユニット
DS-44562
Joint Detection Unit DS-44562
17
17
13
11
16
15
14
18
20
12
19
7
6
3
4
21
5
44,46mm TF
Fig. QD
DS-44562
