Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 3 0804000N PLA TE INDEX 1 1092600603-003 4 0804000P PLA TE INDEX 1 1092600603-004 5 221AA105 BOL T_HEX-SCT 2 1092600603-005 6 21 1DA550 PLA TE 1 1092600603-006 7 221DA1 15…

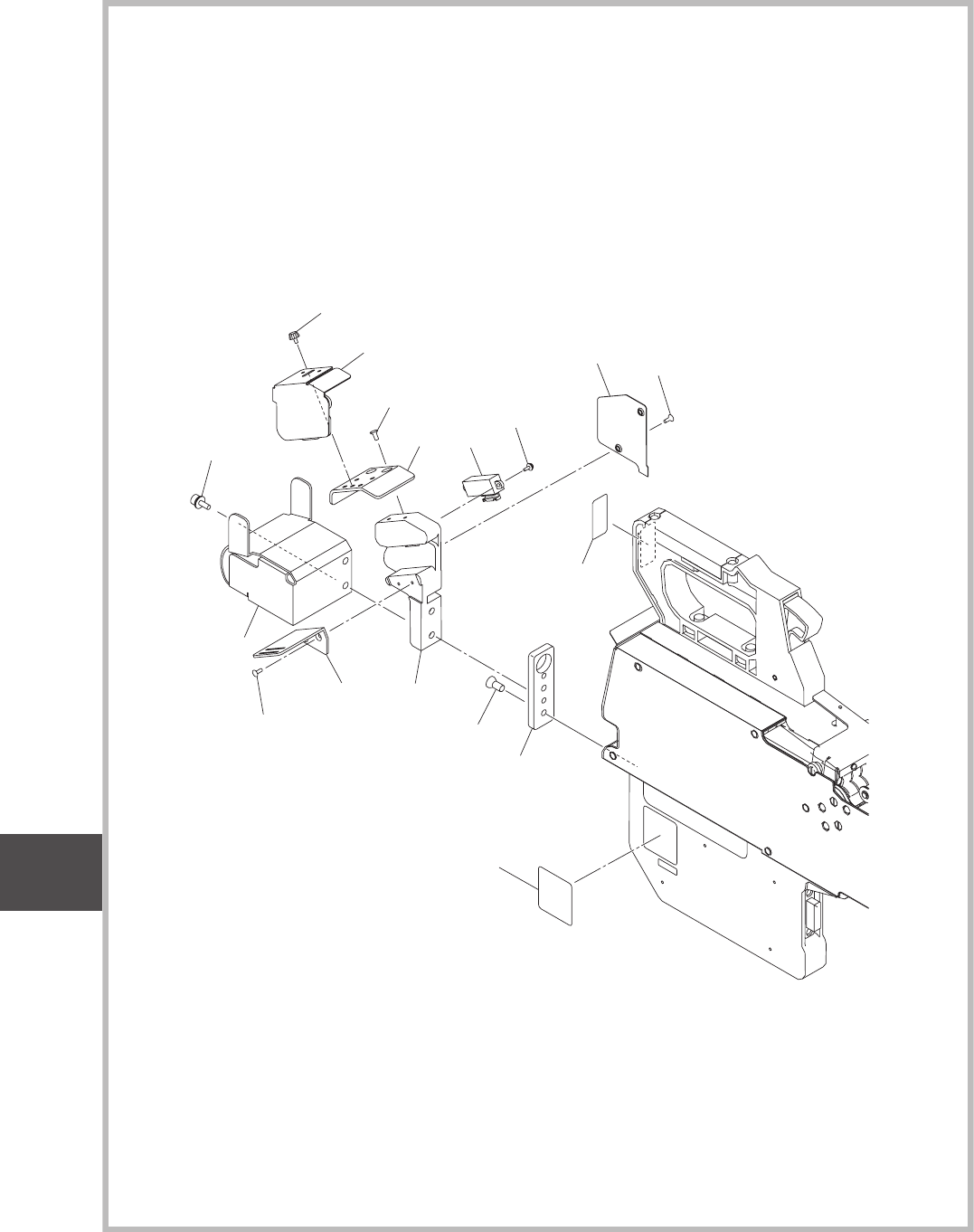

Fig. QD-1
継ぎ目検出ユニット
Joint Detection Unit
1006-003
Fig. QD
継ぎ目検出ユニット
DS-44562
Joint Detection Unit DS-44562
17
17
13
11
16
15
14
18
20
12
19
7
6
3
4
21
5
44,46mm TF
Fig. QD
DS-44562
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
3 0804000N PLATE INDEX 1 1092600603-003
4 0804000P PLATE INDEX 1 1092600603-004
5 221AA105 BOLT_HEX-SCT 2 1092600603-005
6 211DA550 PLATE 1 1092600603-006
7 221DA115 MACHINE SCREW 2 1092600603-007
11 210B4392 FRAME 1 2092600B01-001
12 011A0016 ASSY COVER 1 2092600B01-002
13 211A9111 COVER(D) 1 2092600B01-003
14 211DA676 PLATE 1 2092600B01-004
15 23G10090 SENSOR,PHOTO 1 2092600B01-005
16 221DA065 MACHINE SCREW 2 2092600B01-006
17 221DA103 MACHINE SCREW 4 2092600B01-007
18 0926J004 MACHINE SCREW 1 2092600B01-008
19 211DA677 PLATE 1 2092600B01-009
20 221DA106 MACHINE SCREW 2 2092600B01-010
21 212A2469 GUIDE 1 2092600B01-011
DS-44562
Fig. QD
1006-003
Fig. QD-1
44,56mm TF
Fig. QD
DS-44562
