Fig. T -6 モータコントロール基板 Motor Control PCB 0912-002 Fig. T テープフィーダ GT -72002 T ape Feeder GT -72002 532 See Fig.T -4 Key No.3C5 586 See Fig.T -3 Key No.2A7 See Fig.T -4 Key No.394 523 523 523 580 584 581 582 See Fig.T -2 Ke…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
443 211AE287 COVER(RC) 1 1092600700-043
449 221DA106 MACHINE SCREW 4 1092600700-049
456 211DE587 PLATE 1 1092600700-056
457 221D0201 MACHINE SCREW 2 1092600700-057
4A9 216S3291 LEVER(SUP) 1 1092600700-119
4B0 216D0497 PIN_HINGE(SUP) 1 1092600700-120
4B1 222P0201 SPRING_TORSION 1 1092600700-121
4B2 016J0028 ASSY_HOOK(FRNT) 1 1092600700-122
4B3 216D0467 PIN_HINGE(FRNT) 1 1092600700-123
4B4 222M1325 SPRING_COMP 1 1092600700-124
4B5 221C0027 SET SCREW 1 1092600700-125
4B6 221KB002 E RING 2 1092600700-126
4B7 0804000H NAMEPLATE 1 1092600700-127
4B8 221H0230 WASHER 1 1092600700-128
4B9 221DA103 MACHINE SCREW 1 1092600700-129
GT-72002
Fig. T
1011-003
Fig. T-5
72mm TF
Fig. T
GT-72002

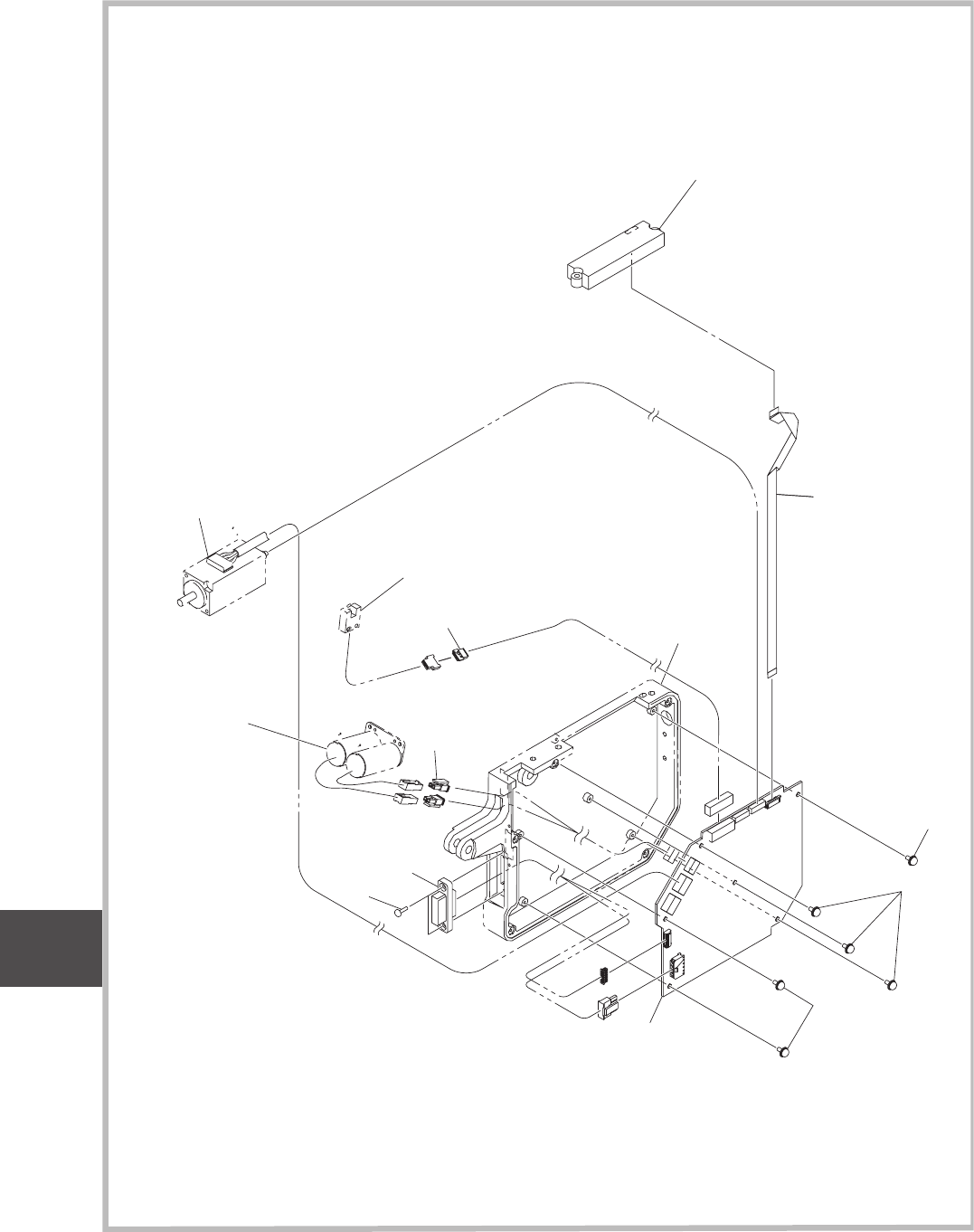

Fig. T-6
モータコントロール基板
Motor Control PCB
0912-002
Fig. T
テープフィーダ
GT-72002
Tape Feeder GT
-72002
532
See Fig.T-4
Key No.3C5
586
See Fig.T-3
Key No.2A7
See Fig.T-4
Key No.394
523
523
523
580
584
581
582
See Fig.T
-2
Key No.102
See Fig.T
-2
Key No.183
72mm TF
Fig. T
GT-72002
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
523 221DA051 MACHINE SCREW 6 1092600700-023
532 221DA007 MACHINE SCREW 2 1092600700-032
580 4W202800 CORD 1 1092600700-130
581 4W202883 CORD 1 1092600700-131
582 4W202923 CORD 1 1092600700-132
584 4W300034 WIRE 1 1092600700-134
586 4U240497 UNIT,DRIVER 1 1092600700-136
GT-72002
Fig. T
0912-002
Fig. T-6
72mm TF
Fig. T
GT-72002
