Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 439 21 1AC258 COVER(RC) 1 1092600E00-039 445 221DA106 MACHINE SCREW 4 1092600E00-045 451 21 1DE587 PLA TE 1 1092600E00-051 452 221D0201 MACHINE SCREW 2 1092600E00-052 4A4 …

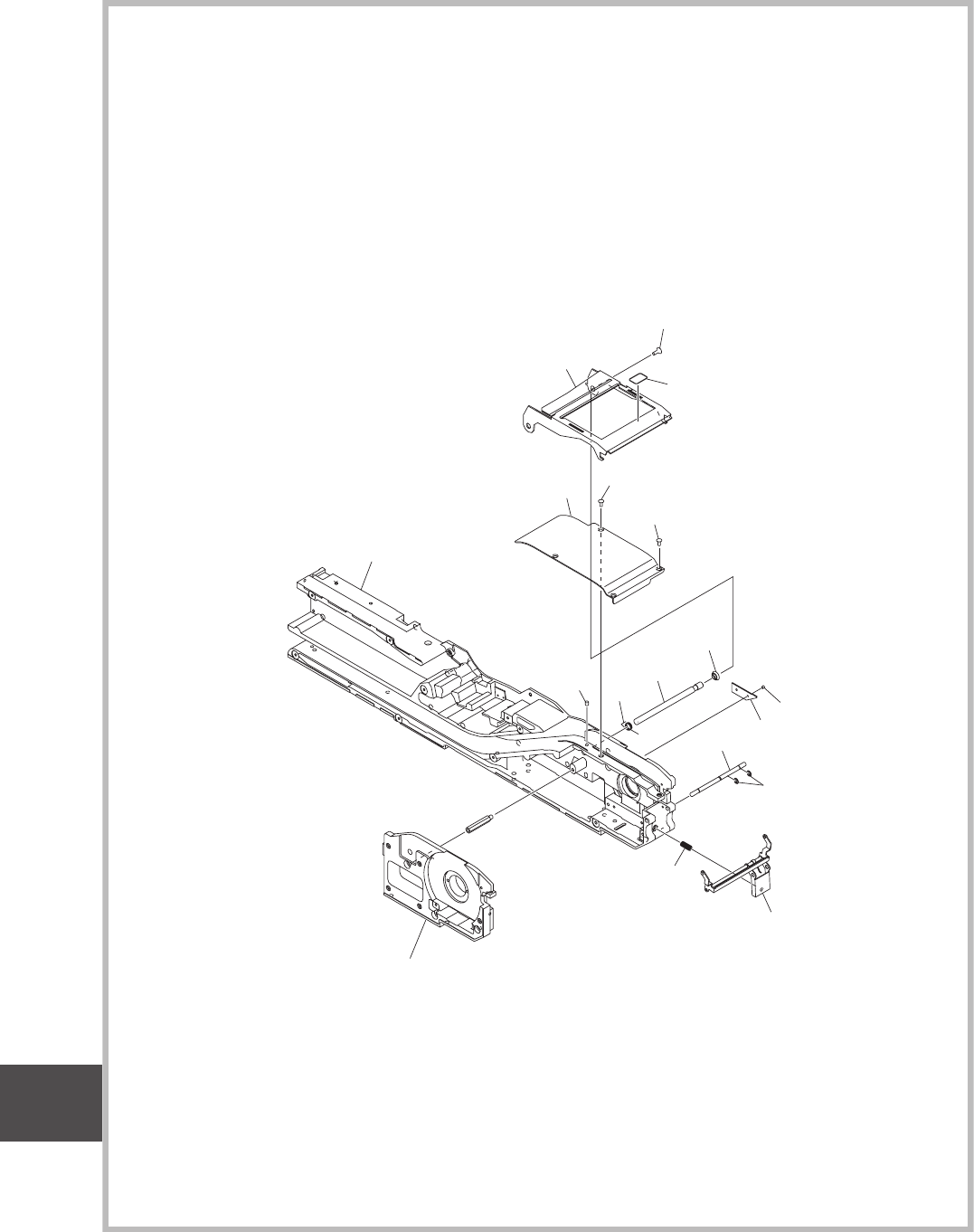

Fig. X-5
サプレッサ部
Suppressor section
1006-001
Fig. X
テープフィーダ
GT-88002
Tape Feeder GT
-88002
445
445
439
4B1
4B0
4A5
4A4
4A9
4A7
4A6
4A8
4B2
4B3
4B4
451
452
See Fig.X-1
Key No.1
See Fig.X-1
Key No.36
88mm TF
Fig. X
GT-88002
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
439 211AC258 COVER(RC) 1 1092600E00-039
445 221DA106 MACHINE SCREW 4 1092600E00-045
451 211DE587 PLATE 1 1092600E00-051
452 221D0201 MACHINE SCREW 2 1092600E00-052
4A4 216S3157 LEVER(SUP) 1 1092600E00-114
4A5 216D0583 PIN_HINGE(SUP) 1 1092600E00-115
4A6 222P0201 SPRING_TORSION 1 1092600E00-116
4A7 016J0029 ASSY_HOOK(FRNT) 1 1092600E00-117
4A8 216D0467 PIN_HINGE(FRNT) 1 1092600E00-118
4A9 222M1325 SPRING_COMP 1 1092600E00-119
4B0 221C0027 SET SCREW 1 1092600E00-120
4B1 221KB002 E RING 2 1092600E00-121
4B2 0804000H NAMEPLATE 1 1092600E00-122
4B3 221H0230 WASHER 1 1092600E00-123
4B4 221DA103 MACHINE SCREW 1 1092600E00-124
GT-88002
Fig. X
1006-001
Fig. X-5
88mm TF
Fig. X
GT-88002

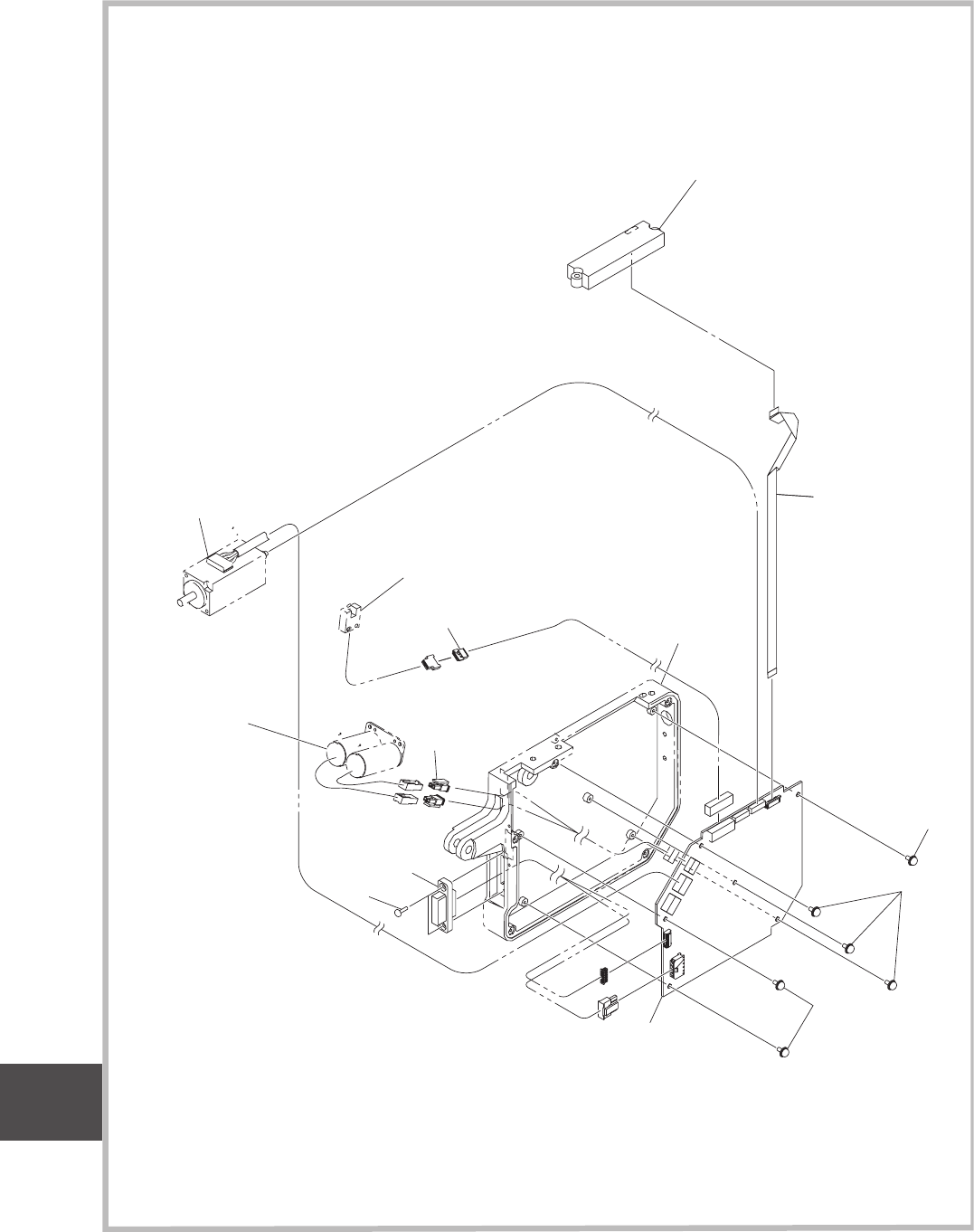

Fig. X-6
モータコントロール基板
Motor Control PCB
1006-001
Fig. X
テープフィーダ
GT-88002
Tape Feeder GT
-88002
530
See Fig.T-4
Key No.3C0
581
See Fig.T-3
Key No.2A2
See Fig.T-4
Key No.389
521
521
521
575
579
576
577
See Fig.T
-2
Key No.102
See Fig.T
-2
Key No.178
88mm TF
Fig. X
GT-88002
