Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1 210B4500 FRAME 1 1092600400-001 3 21 1AD446 COVER(LA) 1 1092600400-003 4 21 1AD447 COVER(LB) 1 1092600400-004 5 21 1AD448 COVER(LC) 1 1092600400-005 6 21 1AE090 COVER(R)…

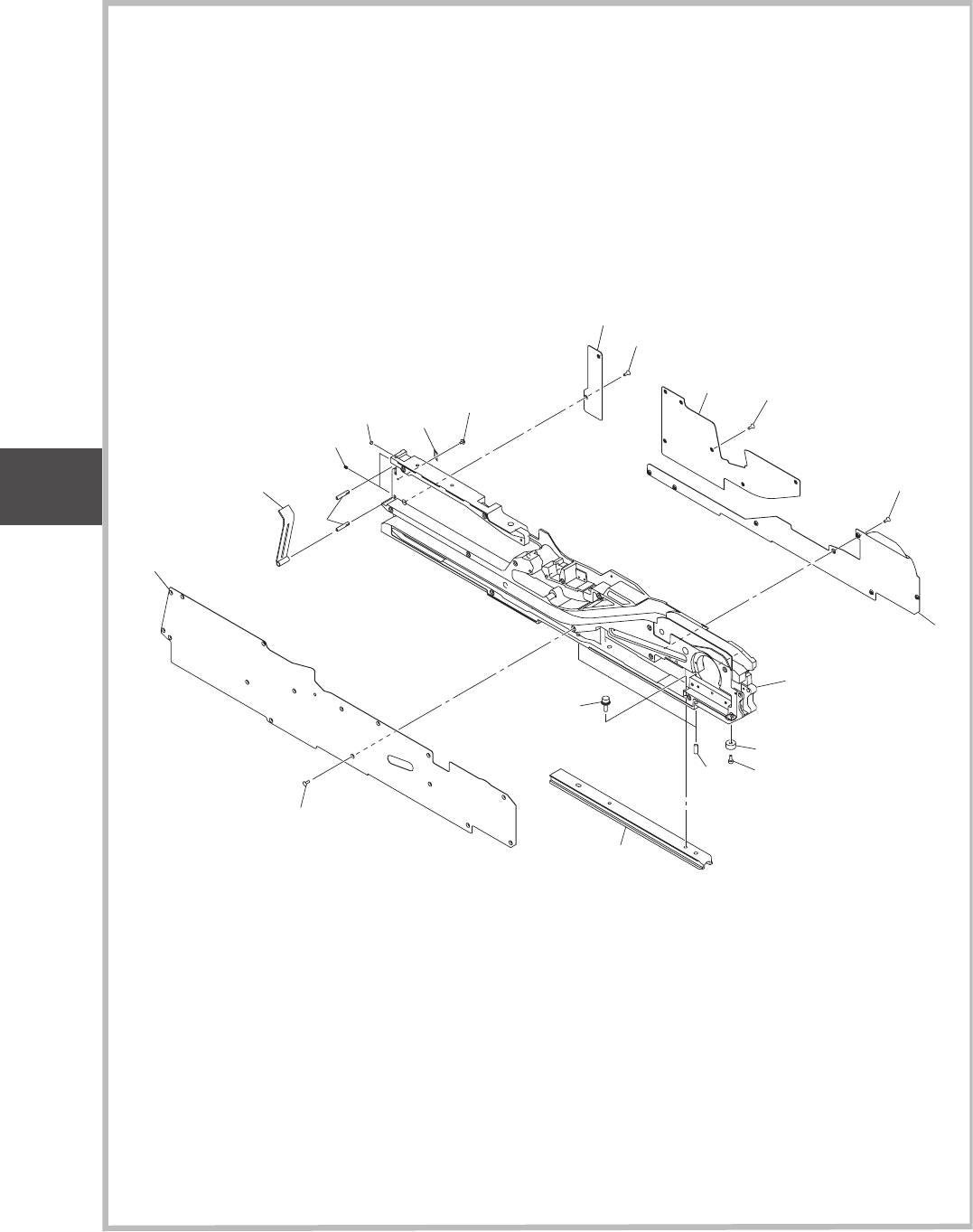

Fig. G-1
フレーム、カバー部
Frame, Cover Section
0912-002
Fig. G
テープフィーダ
GT-12162
Tape Feeder GT
-12162
1
25
22
30
5
25
25
4
3
25
20
6
21
41
43
26
24
19
8
27
12,16mm TF
Fig. G
GT-12162
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1 210B4500 FRAME 1 1092600400-001
3 211AD446 COVER(LA) 1 1092600400-003
4 211AD447 COVER(LB) 1 1092600400-004
5 211AD448 COVER(LC) 1 1092600400-005
6 211AE090 COVER(R) 1 1092600400-006
8 0926B00G SLIDE(BASE) 1 1092600400-008
19 216E1741 PIN_LOCATE 2 1092600400-019
20 211AD624 COVER(FUTA) 1 1092600400-020
21 226J1958 MECH-P MAGNET 1 1092600400-021
22 226J1909 CUTTER 1 1092600400-022
24 226J0249 RUBBER LEGS 1 1092600400-024
25 221DA103 MACHINE SCREW 31 1092600400-025
26 221A0104 BOLT_HEX-SCT 1 1092600400-026
27 221AA102 ROHS_HEX-SCT 2 1092600400-027
30 221DA060 MACHINE SCREW 1 1092600400-030
41 216E1712 PIN_LOCATE 2 1092600400-041
43 221C0107 SET SCREW 2 1092600400-043
GT-12162
0912-002
Fig. G-1
Fig. G
12,16mm TF
Fig. G
GT-12162
Fig. G-2
操作パネル部
Operation Panel Section
1006-003
Fig. G
テープフィーダ
GT-12162
Tape Feeder GT
-12162
See Fig.G-1
Key No.1
113
109
110
123
118
134
11
1
107
125
125
102
1
12
134
129
138
138
139
140
127
119
128
1A0
116
133
117
160
137
123
12,16mm TF
Fig. G
GT-12162
