Fig. GD-1 継ぎ目検出ユニット Joint Detection Unit 1006-003 Fig. GD 継ぎ目検出ユニット DS-12162 Joint Detection Unit DS-12162 17 17 13 1 1 16 15 12 14 18 3 4 19 5 12,16mm TF Fig. GD DS-12162
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
523 221DA051 MACHINE SCREW 6 1092600400-023
532 221DA007 MACHINE SCREW 2 1092600400-032
567 4W202800 CORD 1 1092600400-107
568 4W202883 CORD 1 1092600400-108
569 4W202882 CORD 1 1092600400-109
571 4W300034 WIRE 1 1092600400-111
573 4U240497 UNIT_DRIVER 1 1092600400-113
GT-12162
0912-002
Fig. G-6
Fig. G
12,16mm TF
Fig. G
GT-12162

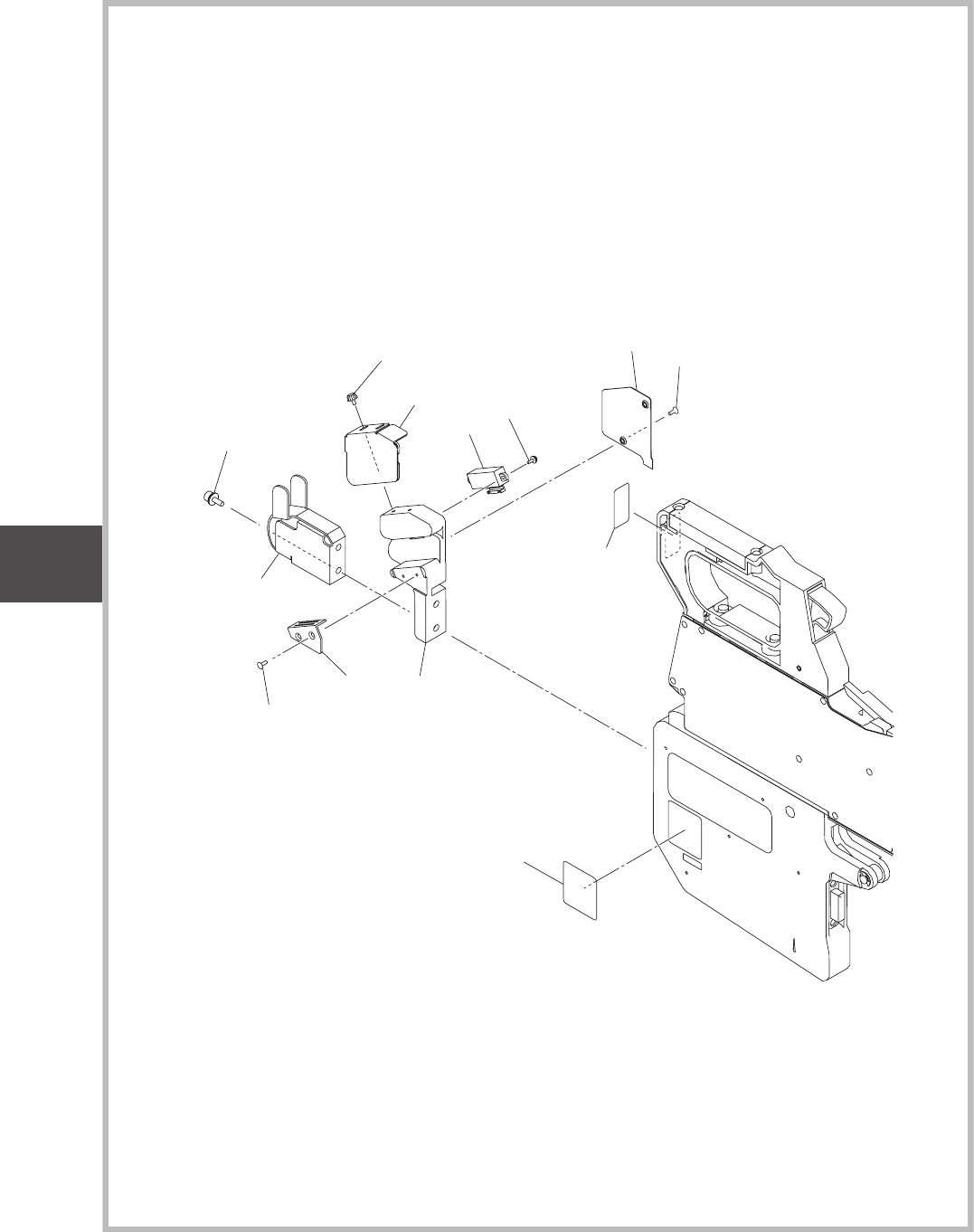

Fig. GD-1
継ぎ目検出ユニット
Joint Detection Unit
1006-003
Fig. GD
継ぎ目検出ユニット
DS-12162
Joint Detection Unit DS-12162
17
17
13
11
16
15
12
14
18
3
4
19
5
12,16mm TF
Fig. GD
DS-12162
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
3 0804000N PLATE INDEX 1 1092600401-002
4 0804000P PLATE INDEX 1 1092600401-003
5 221A0098 BOLT_HEX-SCT 2 1092600401-004
11 210B4392 FRAME 1 2092600901-001
12 011A0007 ASSY COVER 1 2092600901-002
13 211A9111 COVER(D) 1 2092600901-003
14 211D9941 PLATE 1 2092600901-004
15 23G10090 SENSOR,PHOTO 1 2092600901-005
16 221DA065 MACHINE SCREW 2 2092600901-006
17 221D0261 MACHINE SCREW 4 2092600901-007
18 0926J003 MACHINE SCREW 2 2092600901-008
19 212A2467 GUIDE 1 2092600901-009
DS-12162
Fig. GD
1006-003
Fig. GD-1
12,16mm TF
Fig. GD
DS-12162
