1. Head Module
Ver. Date CP45
CP45NEO
00 2004/11 O O
1-1
1-5.Can Head Board Ass'y Replacement Procedure
*Tools
a) +Screwdriver
b) Spanner (* mm) 2EA
*Parts
a) CAN HEAD BOARD Ass'y (J9060062B)
1] Separate Board plate(J7154110B)
2) Remove Various Connectors at Board
3) Remove Hex Support
4) Replace Head Illumination Control Board(=Can Head Board Ass'y)
Be Careful Not to Leave Out Isolation Sheet (Ref. Fig. 1-5-1)
5) Fasten Board Using Hex Support
6) Check PCB Layout in Fig. 1-5-2 and the Lable of Cable to Connect Connector to Original
Location
7) Assemble Board Plate to Complete Replacement
* Adjustments after this work
-None
.

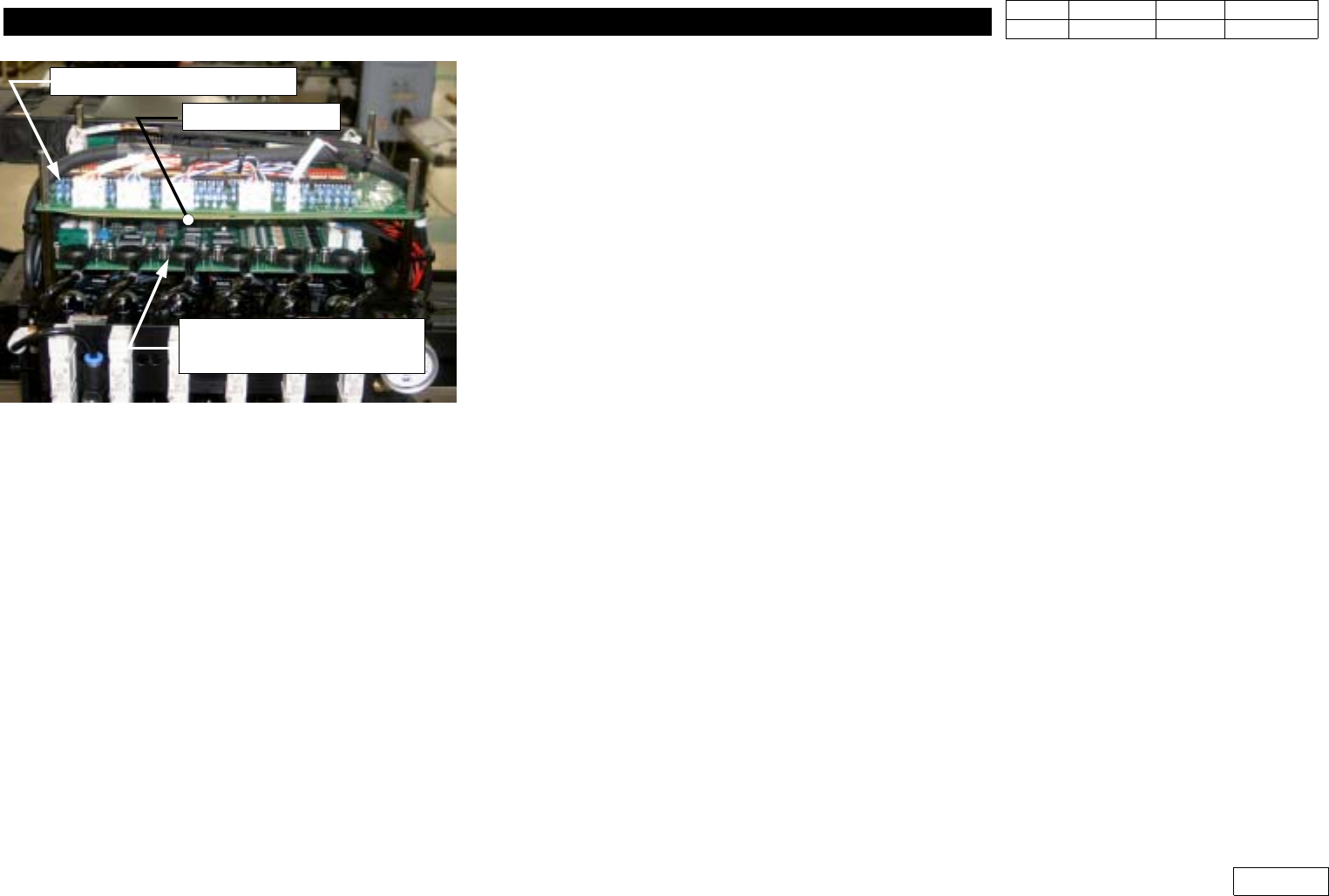

Fig.1-5-1 Can head board ass'y
CAN HEAD Board Ass'y
HEAD ILLUMINATION
CONTROL BOARD Ass'y
Isolation Sheet
1. Head Module
Ver. Date CP45
CP45NEO
00 2004/11 O O
1-1

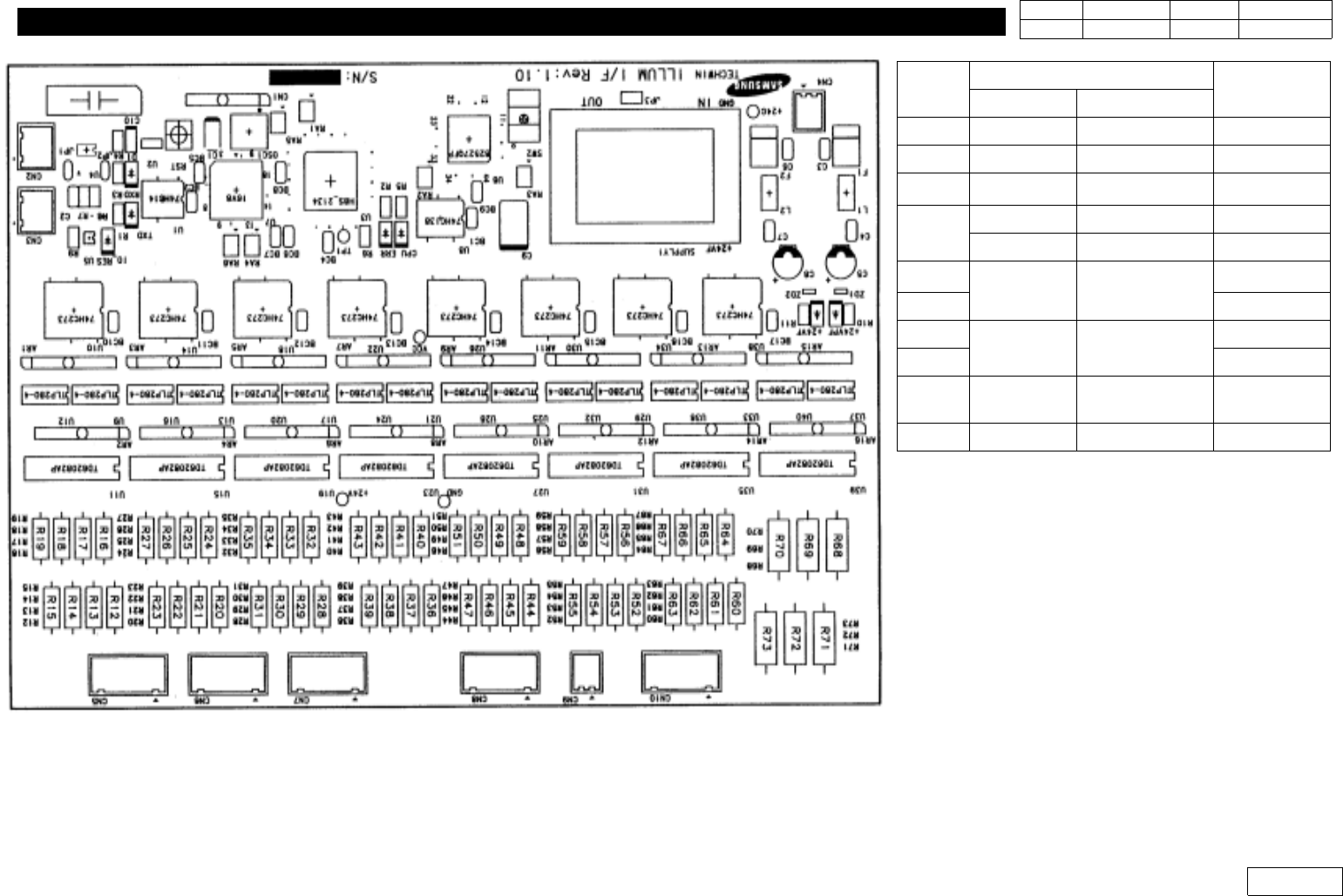

Fig.1-5-2 PCB layout (CAN HEAD BOARD ASS'Y)
Cable
Remark
Code Type
CN1
CN2 J9061329B MK-CA07
CN3 J9061328B MK-CA06
CN4
J9061221B MK-HI01
J9061757A MK-HD01 CE OPTION
CN5
J9060078B
HEAD OUTER
LED BOARD
CN6
CN7
J9060079B
HEAD SIDE
LED BOARD
T3
CN8 T2
CN9 J9060102B
FIDUCIAL ILL.
LED BOARD
CN10
1. Head Module
Ver. Date CP45
CP45NEO
00 2004/11 O O
1-1
1-6.Head Illumination Control Board Replacement Procedure
*Tools
a) +Screwdriver(Small), Wrench (5 mm) 2EA
*Part
a) Can head illimination board Ass'y(J9060140E)
1) Separate Board Plate(J7154110B) and Loosen Upper Hex Support
2) Carefully Operate Upper Can Head Board Ass'y
3) Remove Coli Tube (Cut in Minimum Length if Removal is Not Easy)
4) Loosen Lower Hex Support and Remove Connector
5) Replace Board and Assemble Lower Hex Support
6) Re-assemble Coil Tube. Be Careful Not to Break Coil Tube Pipeline
Should Replace with New Coil Tube if the Length is Short
7) Refer Fig 1-6-2 and Assemble Connector to Original Position
8) Assemble CAN Head Board Ass'y to Original Position
9) Assemble Upper Hex Support and Board Plate
* Adjustments after this work
-None
.
Fig.1-6-1 Head Illumination Control Board
CAN HEAD Board Ass'y
HEAD ILLUMINATION
CONTROL BOARD Ass'y
Isolation Sheet
