KJH_YS88_PL - 第20页
1 5 Head 1st Axis Head KJH-090615 2 1 1 4 32 34 13 15 14 17 18 12 48 61 10 1 37 37 5 41 19 3 42 43 20 33 36 38 60 44 72 59 27 26 30 39 24 7 9 49 61 55 64 47 71 51 74 65 55 41 56 55 55 58 57 66 61 50 54 70 59 53 67 69 69 …
4
4
Y-axis (Duct / Frame)
Moving-axis
KJH-090615
11
41
15
13
32
36
36
34
33
36
10
37
8
14
9
37
38
40
39
39
45
45
42
42
42
38
37
42
35
22
17
18
19
20
21
36
36
30
29
5
43
7
43
43
35
2
37
13
15
12
41
6
1
31
36
36
40
38
37
44
14
28
27
23
21
16
3
35
42
42
42
29
40
38
37
35
28
35
35
4
24
25
26
24
25
26
18
17
19
20
18
18
17
17
19
19
20
20
42
38
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M2695-01 BRACKET B, GUIDE 1
2 KJJ-M26F1-00 FRAME 1 1
3 KJJ-M26F2-00 FRAME 2 1
4 KHW-M26F4-01 DUCT, HARNESS 1
5 KGS-M2694-00 BRACKET A, GUIDE 1
6 KGS-M260A-00 TAPE, Y AXIS 1
7 KGT-M2698-00
PLATE 1, CLAMP 1
8 KGS-M2678-A0 GUIDE, CABLE Y 1
9 KV7-M2268-00 BRACKET 1, TAPE 1
10 KV7-M2269-00 BRACKET 2, TAPE 1
11 KV7-M2266-00 PLATE, NUT 1
12 KGT-M2667-00 PLATE 1
13 KGS-M260B-00 TAPE, Y DUCT 1
14 KGS-M260C-00 TAPE 2, Y DUCT 1
15 KGS-M260D-00 TAPE 3, Y DUCT 1
16 KHW-M2655-00 BRACKET, STOPPER R 1
17 KV7-M2651-00 DAMPER, STOPPER 4
18 KHW-M2654-00 PLATE , DAMPER 4
19
90990-41J180 COLLAR 4 OK ML60128-2014/7/11
KHW-M2656-00 SPACER 8
20 91312-04008 BOLT HEX. SOCKET HEAD 8
21 91312-08020 BOLT HEX. SOCKET HEAD 4
22 KHW-M2655-10 BRACKET, STOPPER L 1
23 KHW-M2652-50 BRACKET, STOPPER 2R 1
24 91312-05010 BOLT HEX. SOCKET HEAD 8
25 92902-05200 WASHER PLAIN 8
26 90172-00J050 WASHER, EXTL. TOOTHED 8
27 KHW-M2652-60 BRACKET, STOPPER 2L 1
28 KHW-M26C1-01 COVER A, Y AXIS 2
29 KHW-M26C3-01 COVER, COUPLING Y 2
30 KHW-M26C4-00 BRKT. R, HARNESS 1
31 KHW-M26C5-00 BRKT. L, HARNESS 1
32 KJJ-M2697-00 STAY, SELECTOR 1
33 KJJ-M2698-00 PLATE 1, CLAMP 1
34 KJJ-M2699-00 PLATE 2, CLAMP 1
35 90990-12J001 SCREW BIN. HEAD W/W 22
36 91312-04006 BOLT HEX. SOCKET HEAD 18 M4X6
37 91312-06010 BOLT HEX. SOCKET HEAD 24 M6X10
38 92902-06200 WASHER PLAIN 20
39
90172-00J040 WASHER EXTL. TOOTHED 5 OK ME40115-2008/4/14
92990-04400 WASHER EXTL. TOOTHED 5
40
90172-00J060 WASHER EXTL. TOOTHED 20 OK ME40115-2008/4/14
92990-06400 WASHER EXTL. TOOTHED 20
41 98502-03004 SCREW PAN HEAD 4
42 KV7-M7165-00 SEAL DON'T TOUCH 6
43 91312-04008 BOLT HEX. SOCKET HEAD 19 M4X8
44 91312-05010 BOLT HEX. SOCKET HEAD 10 M5X10

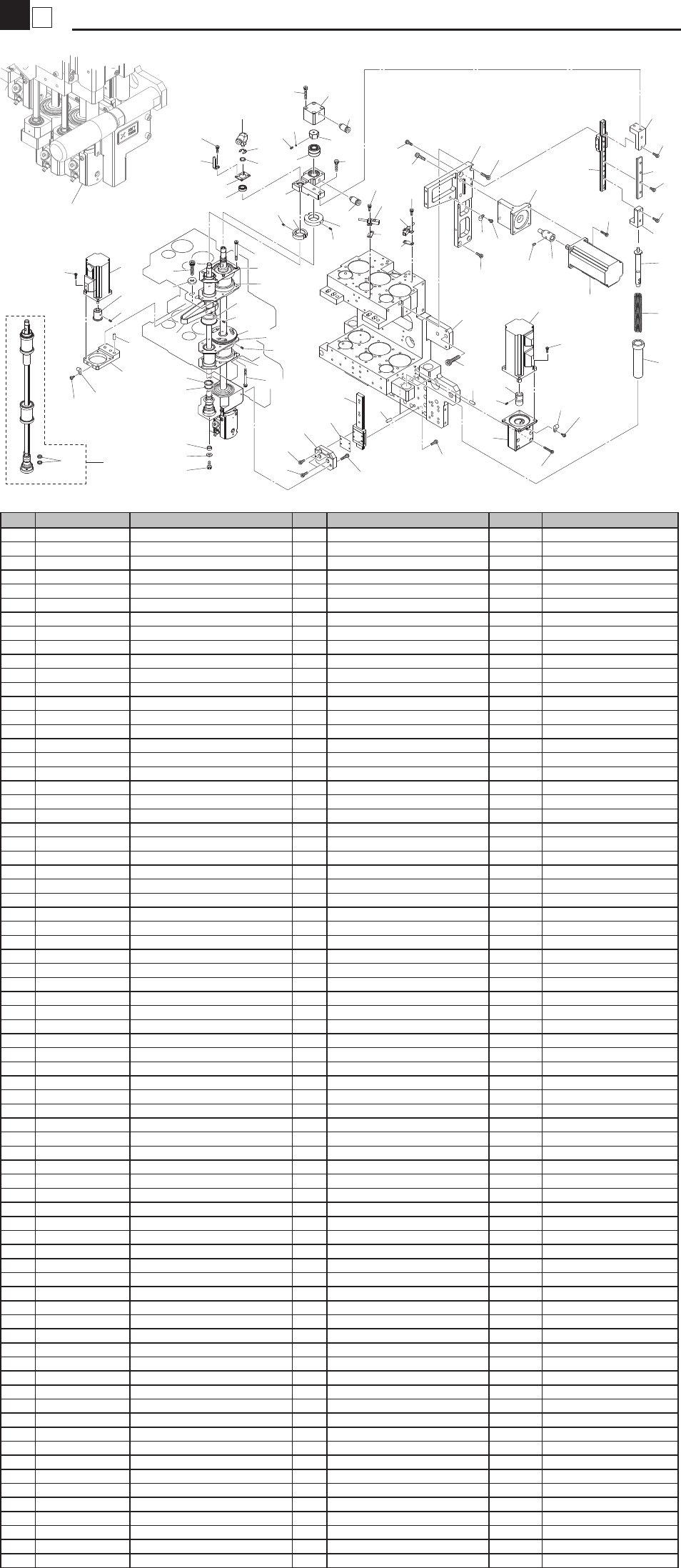

45 92990-04200 WASHER PLAIN 5 M8X20
1
5
Head 1st Axis
Head
KJH-090615
2
11
4
32
34
13
15
14
17
18
12
48
61
10
1
37
37
5
41
19
3
42
43
20
33
36
38
60
44
72
59
27
26
30
39
24
7
9
49
61
55
64
47
71
51
74
65
55
41
56
55
55
58
57
66
61
50
54
70
59
53
67
69
69
60
57
62
62
59
52
21
28
29
46
59
63
60
60
53
52
53
52
68
66
23
25
8
6
45
67
35
22
31
40
1st Axis
73
16
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGR-M7101-01 HOUSING, HEAD 1
2 KGR-M7102-00 HOLDER 1, MOTOR Z 1
3 KGR-M7105-00 BRACKET 1, Z AXIS 1
4 KGR-M7108-00 GUIDE, Z AXIS 1
5 KGR-M7109-00 HOLDER, BRG. Z 1
6 KGR-M710A-00 PLATE 1, BRG. 1
7 KGR-M710B-00 PLATE 2, BRG. 1
8 KGR-M710D-00 PLATE 4, BRG. 2
9 KGR-M710E-00 PLATE 5, BRG. 1
10 KGR-M710G-00 PLATE, GUIDE Z 1
11 KGR-M7115-00 BLOCK 1, Z AXIS 1
12 KGR-M7116-00 BLOCK 2, Z AXIS 1
13 KGR-M711A-00 GUIDE 1, SPRING 1
14 KGR-M711B-00 GUIDE 2, SPRING 1
15 KGR-M7120-00 SPRING, RETURN 1
16 KV7-M7121-01 GEAR, HEAD R 3
17 KV7-M7122-01 GEAR, MOTOR R 1
18 KV7-M7123-00 HOLDER, MOTOR R 1
19 KV7-M7124-00 NUT, LOCK 1
20 KV7-M7127-00 SET PIECE, LOCK 1
21 KGR-M7128-00 GUIDE, HOLDER 1
22 KGR-M7170-A0 N SHAFT 1 ASSY. 1
23 KGR-M7176-00 BELT, N AXIS 1
24 KGR-M7177-00 PULLEY, MOTOR N 1
25 KGR-M7178-00 PULLEY, SHAFT N 1
26 KGR-M7179-00 COLLAR, DOG 1 1
27 KGR-M7180-00 COLLAR, DOG 2 1
28 KGR-M7181-00 BRACKET, HOLDER 1
29 KGA-M7187-XX GUIDE SHIM SEL. 1
30 KGR-M7188-00 BRACKET 1, MOTOR N 1
31 90990-41J023 COLLAR 1
32 KGA-M7193-01 PINION, Z AXIS 1
33 KGR-M7194-00 PLATE, BRG. 1
34 KGR-M7195-00 RACK, Z AXIS 1
35 90990-28J041 WASHER 3
36 90990-28J042 WASHER 3
37 KGR-M7198-00 PLATE, SENSOR 2
38 90990-42J018 JOINT 1
39 KH5-M7118-00 PIN 2 TENTION 1
40 90990-36J003 WASHER, SEAL 1
41 $TSH4-M5 JOINT 2
42 90990-26J001 BEARING (79M8ADF) 3
43 90990-25J012 BEARING (WBC7-13ZZA) 3
44 90440-01J060 CIRCLIP 1
45 99009-11800 CIRCLIP 1
46 99480-04008 PIN, PARALLEL 2
47 99480-04010 PIN PARALLEL: 4X10 2
48 90K25-034203 AC SERVO MOTOR Z1 1
49 90K25-035111 AC SERVO MOTOR R1 1
50 90K23-037514 AC SERVO MOTOR N1 1
51 KJH-M653G-A0 SENSOR R1 ORG SPARE 1
52 $NK-3N NYLON CLIP 3
53 90990-11J003 SCREW, PAN HEAD W/W 3
54 92907-05600 WASHER PLAIN 2
55 92A08-03303 SET SCREW M3X3 6
56 92A08-03305 SCREW, SET 1
57 92A08-04303 SET SCREW M4X3 4
58 92A08-04305 SET SCREW M4X5 2
59 91317-03006 BOLT HEX. SOCKET HEAD 10 M3X6
60 91317-03008 BOLT HEX. SOCKET HEAD 11 M3X8
61 91317-03010 BOLT HEX. SOCKET HEAD 16 M3X10
62 91317-03014 BOLT HEX. SOCKET HEAD 4 M3X14
63 91317-03016 BOLT HEX. SOCKET HEAD 2 M3X16
64 91317-03022 BOLT HEX. SOCKET HEAD 4 M3X22
65 91317-03025 BOLT HEX. SOCKET HEAD 4 M3X25
66 91317-03035 BOLT HEX. SOCKET HEAD 14 M3X35
67 91317-04006 BOLT HEX. SOCKET HEAD 1 M4X6
68 91317-04016 BOLT HEX. SOCKET HEAD 2 M4X16
69 91317-05014 BOLT HEX. SOCKET HEAD 4 M5X15
70 91317-05020 BOLT HEX. SOCKET HEAD 2 M5X10
71 91317-06020 BOLT HEX. SOCKET HEAD 4 M6X20
72 KGR-M71C8-00 BRACKET, JOINT 1
73 90990-22J021 PACKING 2
74 KJH-M653G-D0 SENSOR N1 ORG SPARE 1
2
5
Head 2nd Axis
Head
KJH-090615
72
44
36
2680
40
50
4
70
77
61
17
45
45
16
49
41
43
38
66
47
61
30
46
32
65
79
78
66
66
69
18
51
19
65
54
69
5
6
71
52
25
76
61
76
24
20
48
48
21
23
61
22
22
66
31
15
62
6
5
63
81
42
8
66
66
56
66
9
59
71
55
67
34
60
75
61
28
27
52
35
68
29
64
2
73
1
74
68
3
67
63
37
66
7
53
67
10
68
68
39
65
11
12
14
13
58
57
33
58
57
58
57
2nd Axis
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGR-M7103-00 HOLDER 2, MOTOR Z 1
2 KGR-M7106-00 BRACKET 2, Z AXIS 1
3 KGR-M7108-00 GUIDE, Z AXIS 1
4 KGR-M7109-00 HOLDER, BRG. Z 1
5 KGR-M710C-00 PLATE 3, BRG. 2
6 KGR-M710F-00 PLATE 6, BRG. 2
7 KGR-M710J-00 BLOCK 1, STOPPER 1
8 KGR-M7112-00 BRACKET, SENSOR 1
9 KGR-M7113-00 STAY, SENSOR 1
10 KGR-M7117-00 BLOCK 3, Z AXIS 1
11 KGR-M7118-00 BLOCK 4, Z AXIS 1
12 KGR-M711A-00 GUIDE 1, SPRING 1
13 KGR-M711B-00 GUIDE 2, SPRING 1
14 KGR-M7120-00 SPRING, RETURN 1
15 KV7-M7121-01 GEAR, HEAD R 1
16 KV7-M7124-00 NUT, LOCK 1
17 KV7-M7127-00 SET PIECE, LOCK 1
18 KGR-M7128-00 GUIDE, HOLDER 1
19 KGR-M7129-00 STOPPER, GUIDE 1
20 KGR-M712A-01 GEAR 1, IDLER 1
21 KGR-M712B-00 GEAR 2, IDLER 1
22 KGR-M712C-00 PLATE 2, BRG. 2
23
90990-41J022 COLLAR 1 OK ME20075-2008/4/15
KGR-M712D-00 COLLAR 2, BRG. 1
24 KGR-M712E-00 GEAR 2, MOTOR R 1
25 KGR-M712F-01 HOLDER 2, MOTOR R 1
26 KGR-M717A-A0 N SHAFT 2 ASSY. 1
27 KGR-M7176-00 BELT, N AXIS 1
28 KGR-M7177-00 PULLEY, MOTOR N 1
29 KGR-M7178-00 PULLEY, SHAFT N 1
30 KGR-M7179-00 COLLAR, DOG 1 1
31 KGR-M7180-00 COLLAR, DOG 2 1
32 KGR-M7181-00 BRACKET, HOLDER 1
33 KGA-M7187-XX GUIDE SHIM SEL. 1
34 KGR-M7189-00 BRACKET 2, MOTOR N 1
35 KGR-M7190-00 HOLDER, MOTOR N 1
36 90990-41J023 COLLAR 1
37 KGA-M7193-01 PINION, Z AXIS 1
38 KGR-M7194-00 PLATE, BRG. 1
39 KGR-M7195-00 RACK, Z AXIS 1
40 90990-28J041 WASHER 3
41 90990-28J042 WASHER 3
42 KGR-M7198-00 PLATE, SENSOR 1
43 90990-42J018 JOINT 1
44 90990-36J003 WASHER, SEAL 1
45 $TL4-M5M JOINT 2
46 90990-26J001 BEARING (79M8ADF) 3
47 90990-25J012 BEARING (WBC7-13ZZA) 3
48 90933-01J000 BEARING 2
49 90440-01J060 CIRCLIP 1
50 99009-11800 CIRCLIP 1
51 99480-04008 PIN, PARALLEL 2
52 99480-04010 PIN PARALLEL: 4X10 4
53 90K25-034504 AC SERVO MOTOR Z2 1
54 90K25-033712 AC SERVO MOTOR R2 1
55 90K23-038815 AC SERVO MOTOR N2 1
56 KJH-M653G-B0 SENSOR R2 ORG SPARE 1
57 $NK-3N NYLON CLIP 10
58 90990-11J003 SCREW, PAN HEAD W/W 10
59 98507-03008 SCREW PAN HEAD 1
60 92907-05600 WASHER PLAIN 6
61 92A08-03303 SET SCREW M3X3 8
62 92A08-03305 SCREW, SET 1
63 92A08-04303 SET SCREW M4X3 4
64 92A08-04305 SET SCREW M4X5 2
65 91317-03006 BOLT HEX. SOCKET HEAD 16 M3X6
66 91317-03008 BOLT HEX. SOCKET HEAD 19 M3X8
67 91317-03010 BOLT HEX. SOCKET HEAD 12 M3X10
68 91317-03014 BOLT HEX. SOCKET HEAD 9 M3X14
69 91317-03016 BOLT HEX. SOCKET HEAD 2 M3X16
70 91317-03025 BOLT HEX. SOCKET HEAD 4 M3X25
71 91317-03035 BOLT HEX. SOCKET HEAD 16 M3X35
72 91317-04006 BOLT HEX. SOCKET HEAD 1 M4X6
73 91317-04016 BOLT HEX. SOCKET HEAD 3 M4X16
74 91317-05014 BOLT HEX. SOCKET HEAD 2 M5X14
75 91317-05016 BOLT HEX. SOCKET HEAD 4 M5X16
76 91317-05018 BOLT HEX. SOCKET HEAD 2 M5X18
77 KGR-M71C8-00 BRACKET, JOINT 1
78 KGR-M71CA-00 GUIDE, SENSOR 1
79 91317-03006 BOLT HEX. SOCKET HEAD 2
80 90990-22J021 PACKING 2
81 KJH-M653G-E0 SENSOR N2 ORG SPARE 1
