5 5 V ision Attachment / Cover Head KJH-090615 23 1 1 OPTION 10 19 40 41 22 17 12 18 15 7 16 9 23 42 4 5 6 23 21 20 2 1 3 8 29 26 26 26 26 26 35 29 26 28 26 13 14 26 26 27 24 34 39 26 25 28 28 33 31 30 32 26 26 38 36 37 …

100%1 / 56
4
5

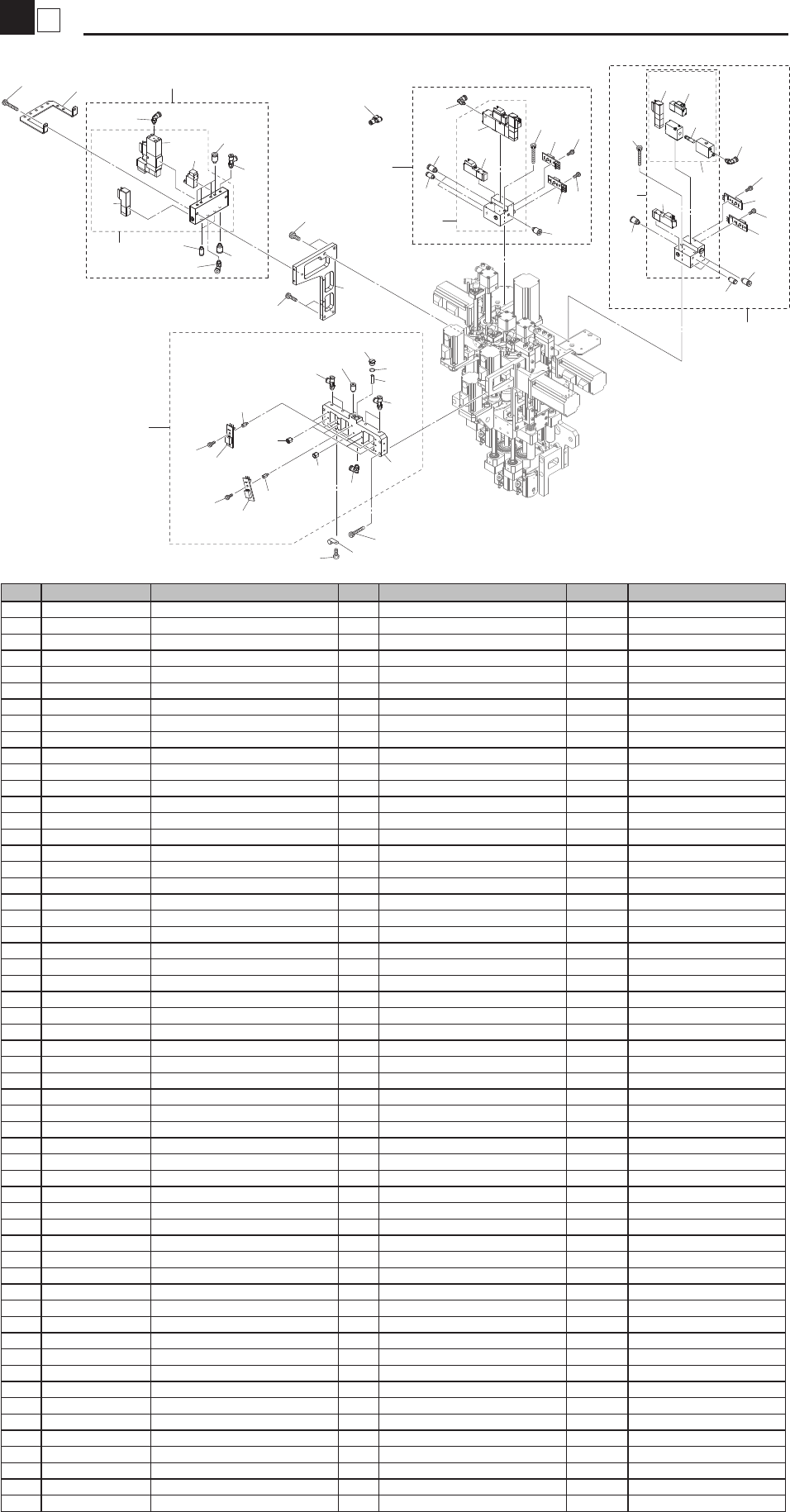

Air Unit
Head
KJH-090615
40
40
35
36
38
39
33
34
37
32
23
23
17
18
16
20
15
19
21
22
48
49
43
25
26
27
28
29
30
31
50
53
52
24
4
1
12
8
10
14
7
5
6
11
13
13
2
3
8
9
14
46
46
45
47
45
41
50
51
51
50
54
55
56
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGR-M7114-A0 JOINT MANIFOLD ASSY. 1
2 KGR-M7114-00 MANIFOLD, JOINT 1
3 KGR-M7111-D0 AIR JOINT 1 ASSY. 4
4 KGR-M7111-E0 AIR JOINT 2 ASSY. 1
5 KM5-M7174-F0 FILTER CAP 1
6 K46-M8527-C0 FILTER (SZ65111) 1
7 90990-17J008 O-RING 1
8 KM5-M7174-H0 SPACER 9
9 KV7-M4592-01 PRESSURE SENSOR ASSY 4
10 KM1-M4592-13 VAC SENSOR BOARD ASSY 1
11 $TSH4-M5M JOINT 1
12 $TL4-M5M JOINT 1
13 $TB4-M5M JOINT 4
14 91317-03006 BOLT HEX.SOCKET HEAD 9
15 KJH-M7165-A0 VALVE 1 UNIT 1
16 KJH-M7165-00 VALVE 1 ASSY. 1
17 KV7-M4592-01 PRESSURE SENSOR ASSY 1
18 KM1-M4592-13 VAC SENSOR BOARD ASSY 1
19 $TSH4-M5 JOINT 2
20 $TSH6-M5M JOINT 1
21 $TL4-M3M JOINT 1
22 $KM-05 MUFFLER 1
23 91317-03006 BOLT HEX.SOCKET HEAD 3
24 KJH-M7166-A0 VALVE 2 UNIT 1
25 KJH-M7166-00 VALVE 2 ASSY. 1
26 $TSH4-M5 JOINT 4
27 $TSH6-M5M JOINT 1
28 $TL4-M5M JOINT 1
29 $TB4-M5M JOINT 1
30 $TL4-M3M JOINT 1
31 $KM-05 MUFFLER 2
32 KJH-M7167-A0 VALVE 3 UNIT 1
33 KJH-M7167-00 VALVE 3 ASSY. 1
34 KV7-M4592-01 PRESSURE SENSOR ASSY 1
35 KM1-M4592-13 VAC SENSOR BOARD ASSY 1
36 $TSH4-M5 JOINT 2
37 $TSH6-M5M JOINT 1
38 $TL4-M3M JOINT 1
39 $KM-05 MUFFLER 1
40 91317-03006 BOLT HEX.SOCKET HEAD 3
41 $UY4 JOINT 1
42 $NK-3N NYLON CLIP 10
43 KGR-M71CJ-00 STAY, HARNESS 1
44 90990-11J003 SCREW, PAN HEAD W/W 15
45 91317-04022 BOLT HEX. SOCKET HEAD 6 M4X22
46 91317-04030 BOLT HEX. SOCKET HEAD 4 M4X30
47 KGR-M710H-00 PLATE, LEFT 1
48 91317-04010 BOLT HEX. SOCKET HEAD 2
49 91317-05012 BOLT HEX. SOCKET HEAD 2
50 KJH-M7111-A0 EJECTOR 2
51 KGR-M7111-B0 VALVE 2
52 KGR-M7111-C0 VALVE 3
53 KGS-M37P1-00 VALVE 1
54 KGA-M7111-H0 VALVE 1 Vacuum
55 KJH-M7111-G0 VALVE 1 Blow
56 KJH-M71G4-00 BIT 1
5
5

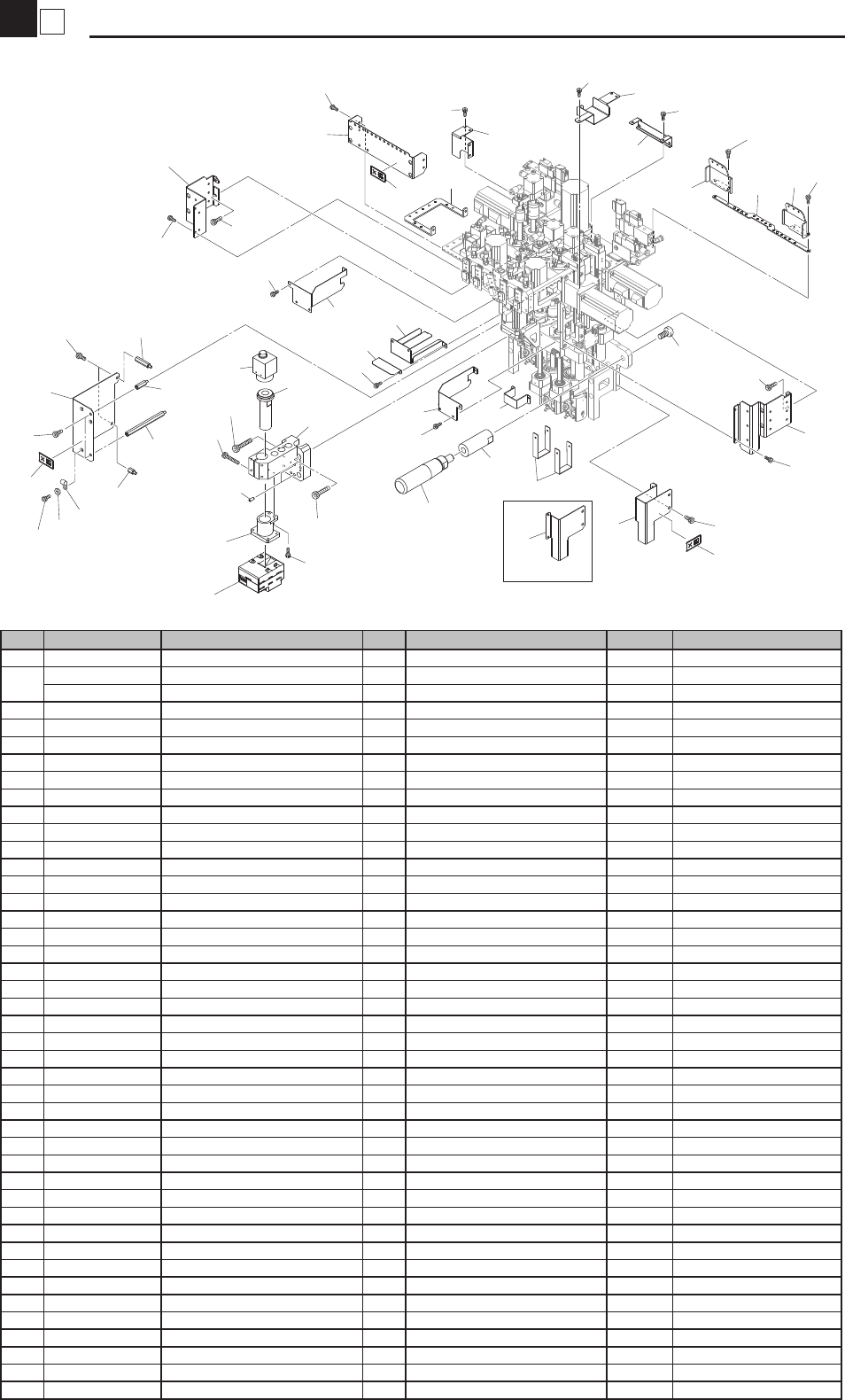

Vision Attachment / Cover
Head
KJH-090615
23
11
OPTION
10
19
40
41
22
17
12
18
15
7
16
9
23
42
4
5
6
23
21
20
2
1
3
8
29
26
26
26
26
26
35
29
26
28
26
13
14
26
26
27
24
34
39
26
25
28
28
33
31
30
32
26
26
38
36
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHN-M7210-01 CCD CAMERA 1
2
KHY-M7211-00 LENS FID. 1 OK ME80076-2008/8/18
KHN-M7211-00 LENS FID. 1
3 KJH-M7163-00 HOLDER, CAMERA 1
4 KGR-M7164-00 STAY, FID. LIGHT 1
5 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 1
6 KGR-M71C1-02 COVER, CAMERA 1
7 KGR-M71C2-00 STAY, LEFT 1
8 KGR-M71C3-00 STAY, RIGHT 1
9 KGR-M71C4-01 COVER, SENSOR 1
10 KGR-M71C7-00 COVER, MULTI MACS 1 S.T.D
11 KGR-M71C7-10 COVER, MULTI MACS 1 for Side View Unit
12 KGR-M71CB-00 COVER 1, R GEAR 1
13 KGR-M71CC-00 COVER 2, R GEAR 1
14 KGR-M71CD-00 COVER 3, R GEAR 1
15 KGR-M71CE-00 COVER 4, R GEAR 1
16 KGR-M71CF-00 COVER 5, R GEAR 1
17 KGR-M71CG-00 COVER 1, Z AXIS 1
18 KGR-M71CH-00 COVER 2, Z AXIS 1
19 KGR-M7168-00 SHAFT, HANDLE 1
20 90990-05J004 SPACER BOLT 1
21 90990-05J003 SPACER BOLT 1
22 KV7-M2256-00 GRIP 1
23 KV7-M7165-00 SEAL DON'T TOUCH 3
24 90990-05J004 SPACER BOLT 1
25 90990-05J005 SPACER BOLT 1
26 91317-03006 BOLT HEX. SOCKET HEAD 70 M3X6
27 91317-03010 BOLT HEX. SOCKET HEAD 42 M3X10
28 91317-04006 BOLT HEX. SOCKET HEAD 11 M4X6
29 91317-04008 BOLT HEX. SOCKET HEAD 4 M4X8
30 91317-04025 BOLT HEX. SOCKET HEAD 2 M4X25
31 91317-05020 BOLT HEX. SOCKET HEAD 6 M5X20
32 91317-05025 BOLT HEX. SOCKET HEAD 2 M5X25
33 99480-04010 PIN PARALLEL: 4X10 2
34 92907-03200 WASHER PLAIN 2
35 92017-08020 BOLT BUTTON HEAD 1
36 KGR-M71CM-00 PLATE, HARNESS 1
37 KGR-M71CN-00 COVER L, VALVE 1
38 KGR-M71CP-00 COVER R, VALVE 1
39 $NK-3N NYLON CLIP 10
40 KGR-M71C5-00 COVER, BODY 6
41 KGR-M71C9-00 COVER, N GEAR 3
42 KGR-M71CJ-00 STAY, HARNESS 1
6
5

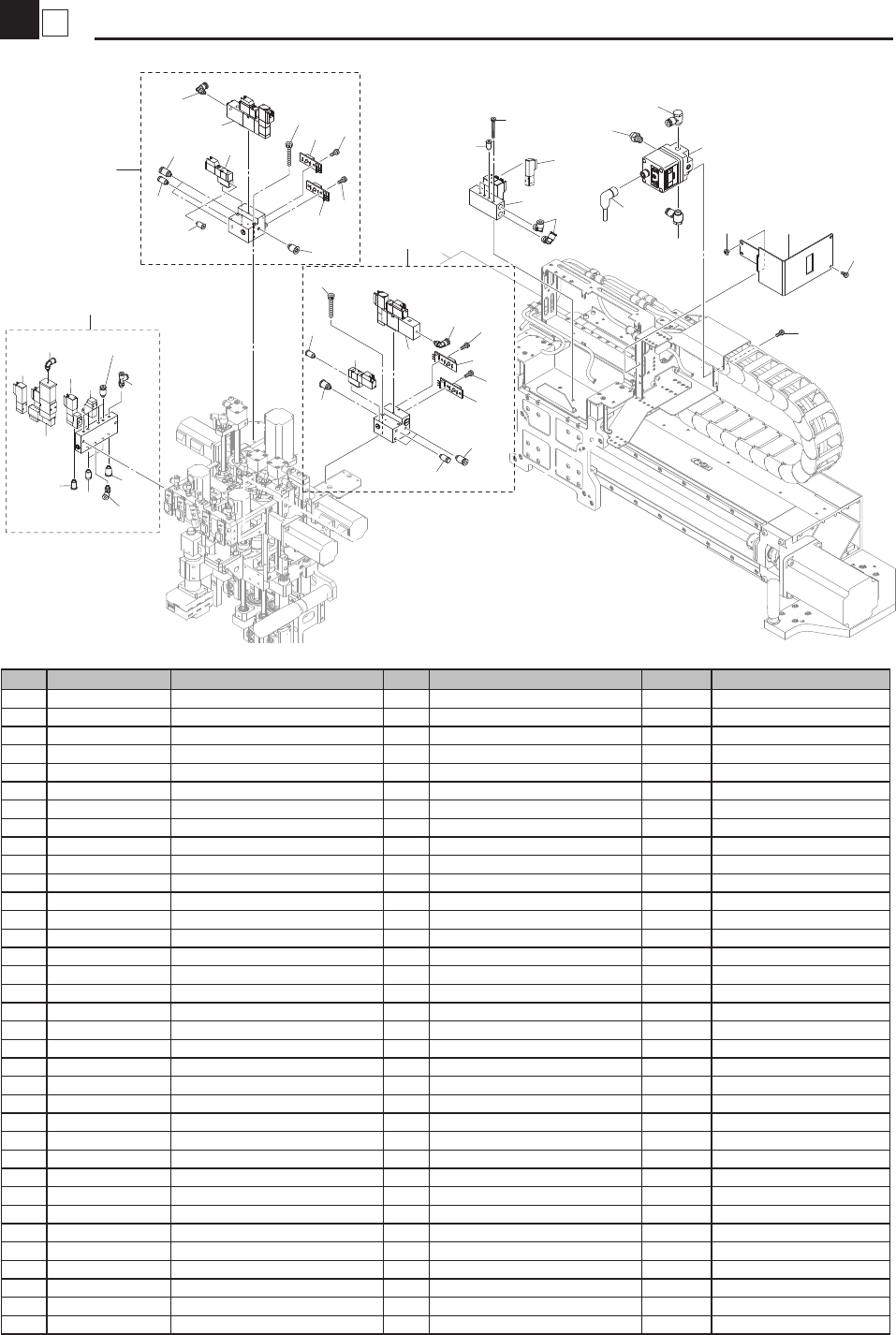

Force Control Unit (Op.)
Head
KJH-1206
9
24
24
4
5
7
8
3
6
14
28
30
31
9
24
24
3
4
6
1
5
29
8
28
31
30
5
6
12
13
8
9
7
27
23
22
17
21
19
16
25
18
25
26
20
21
10
32
33
34
30
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJH-M716A-A0 VALVE 1 UNIT (FC) 1
2
3 KV7-M4592-01 PRESSURE SENSOR ASSY 2
4 KM1-M4592-13 VAC SENSOR BOARD ASSY 2
5 $TSH4-M5 JOINT 8
6 $TSH6-M5M JOINT 3
7 $TL4-M3M JOINT 3
8 $KM-05 MUFFLER 4
9 $TSH4-M5M JOINT 3
10 KJH-M716B-A0 VALVE 2 UNIT (FC) 1
11
12 $TL4-M5M JOINT 1
13 $TB4-M5M JOINT 1
14 KJH-M716C-A0 VALVE 3 UNIT (FC) 1
15
16 KGR-M8101-00 REGULATOR 1
17 KGR-M8102-00 VALVE 1
18 KHV-M8103-00 COVER, ETR 1
19 KGR-M8104-00 MUFFLER 1
20 KJH-M66R2-00 HNS, REGULATOR 1
21 $SL6-01 JOINT 2
22 $TL6-01M JOINT 2
23 $TSH4-M5M JOINT 3
24 91317-03006 BOLT HEX. SOCKET HEAD 6 M3X6
25 91312-04006 BOLT HEX. SOCKET HEAD 3 M4X6
26 91312-04008 BOLT HEX. SOCKET HEAD 4 M4X8
27 91317-03035 BOLT HEX. SOCKET HEAD 2 M4X35
28 91317-04030 BOLT HEX. SOCKET HEAD 4
29 $TL4-M3M JOINT 1
30 KJH-M7111-A0 EJECTOR 3
31 KGR-M7111-B0 VALVE 2
32 KGR-M7111-C0 VALVE 3
33 KGR-M716D-A0 VALVE 1
34 KGS-M37P1-00 VALVE 1
35 KGR-M8102-A0 VALVE 1
