KJH_YS88_PL - 第34页
6 7 Clamp Board (Single) Conveyor Unit KJH-090615 29 22 25 3 9 19 30 23 28 27 7 9 3 22 25 29 4 5 13 26 28 19 14 18 24 6 15 17 8 28 23 12 12 14 6 24 15 21 12 10 10 12 28 26 7 20 30 16 2 2 1 1 1 5 4 13 28 26 1 1 1 (L>R)…
5
7

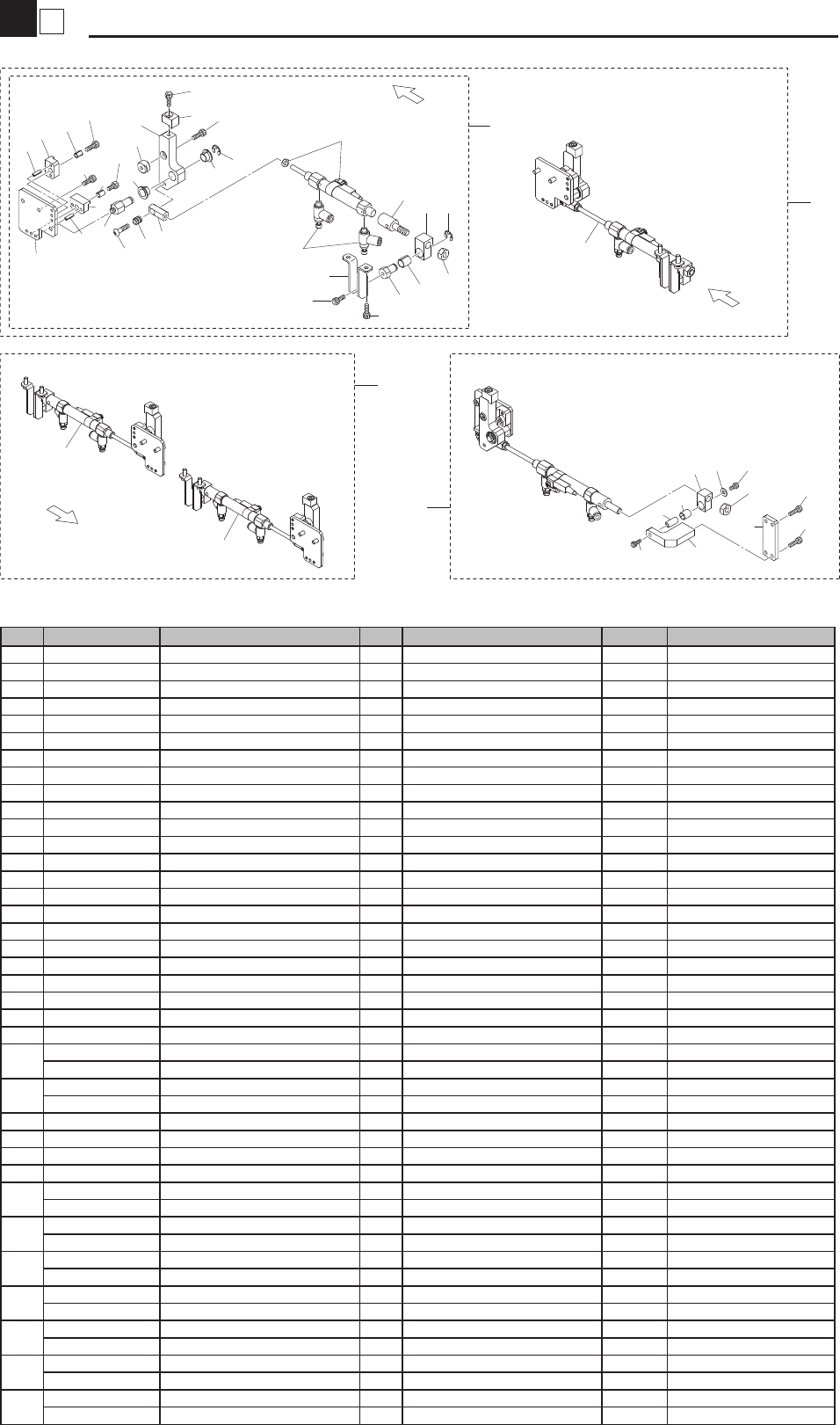

Main Stopper (Double)
Conveyor Unit
KJH-090901
32
34
35
23
18
20
7
29 23
24
24
19
13
10
26
25
22
9
21
17
6
12
8 22
28
13
14
24>25
23
2
11
27
1
27
4
11
24
24>25
24
9
5
3
15
16
28
8
4
(L>R)
(R>L)
(R>L)
R>L, L>R, The parts is the same
(S-ATS)
33
31
30
36
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M9161-00 PLATE A, MAIN STOPPER 1
2 KHW-M9162-00 SHAFT, ARM 1
3 KHW-M9163-00 ARM, STOPPER 1
4 KHW-M9164-00 BLOCK, STOPPER 2
5 KHW-M9165-00 PIN, STOPPER 1
6 KJJ-M9166-B0 CYLINDER ASSY. 1
7 KHW-M9167-00 BRKT., CYL. 1
8 KHW-M9168-00 BRKT., MAIN STP. 1
9 KHW-M916A-00 BUSH 2
10 KHW-M916B-00 STOPPER 1
11 KHW-M916C-00 SPACER 2
12 KHW-M916D-00 JOINT, CYL.BRKT 1
13 KHW-M916E-00 BUSH 1
14 KHW-M916F-00 SHAFT 1
15 KHW-M916G-00 COLLAR, JOINT 1
16 KHW-M916H-00 JOINT, CYL. 1
17 KHW-M916M-A0 SPEED CONTROLLER 2
18 KHW-M9169-00 BRKT. 1, M. STP. S-ATS 1
19 KHW-M916J-00 BRKT. 2, M. STP. S-ATS 1
20 KHW-M916K-00 SHAFT 1
21 90122-04J016 BOLT BUTTON HEAD 1
22 90440-10J050 CIRCLIP 2
23 91312-04008 BOLT HEX. SOCKET HEAD 4 M4X8
24
91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10 ME90103-2008/10/24
91312-04010 BOLT HEX. SOCKET HEAD 6 M4X10
25
91312-04012 BOLT HEX. SOCKET HEAD 5 M4X12 ME90103-2008/10/24
91312-04012 BOLT HEX. SOCKET HEAD 1 M4X12
26 91317-04012 BOLT HEX. SOCKET HEAD 1 M4XL12
27 91609-30010 PIN, SPRING 4
28 95302-06600 NUT HEXAGON 1
29 92902-04200 WASHER PLAIN 1
30
KJJ-M9160-A1 MAIN STOPPER ASSY. WR 1 NG ME90103-2008/10/24
KJJ-M9160-A0 MAIN STOPPER ASSY. WR 1
31
KJJ-M9160-B1 MAIN STOPPER ASSY. WL 1 NG ME90103-2008/10/24
KJJ-M9160-B0 MAIN STOPPER ASSY. WL 1
32
KJJ-M9160-01 MAIN STOPPER ASSY. SR 1 NG ME90103-2008/10/24
KJJ-M9160-00 MAIN STOPPER ASSY. SR 1
33
KJJ-M9160-21 MAIN STOPPER ASSY. SR 1 NG ME90103-2008/10/24
KJJ-M9160-20 MAIN STOPPER ASSY. SR 1
34
KJJ-M9160-31 MAIN STOPPER ASSY. SL 1 NG ME90103-2008/10/24
KJJ-M9160-30 MAIN STOPPER ASSY. SL 1
35
KJJ-M9160-11 MAIN STOPPER ASSY. SL 1 NG ME90103-2008/10/24
KJJ-M9160-10 MAIN STOPPER ASSY. SL 1
36
KJJ-M9160-41 MAIN STOPPER ASSY. SL 1 S-ATS NG ME90103-2008/10/24
KJJ-M9160-40 MAIN STOPPER ASSY. SL 1 S-ATS
6
7

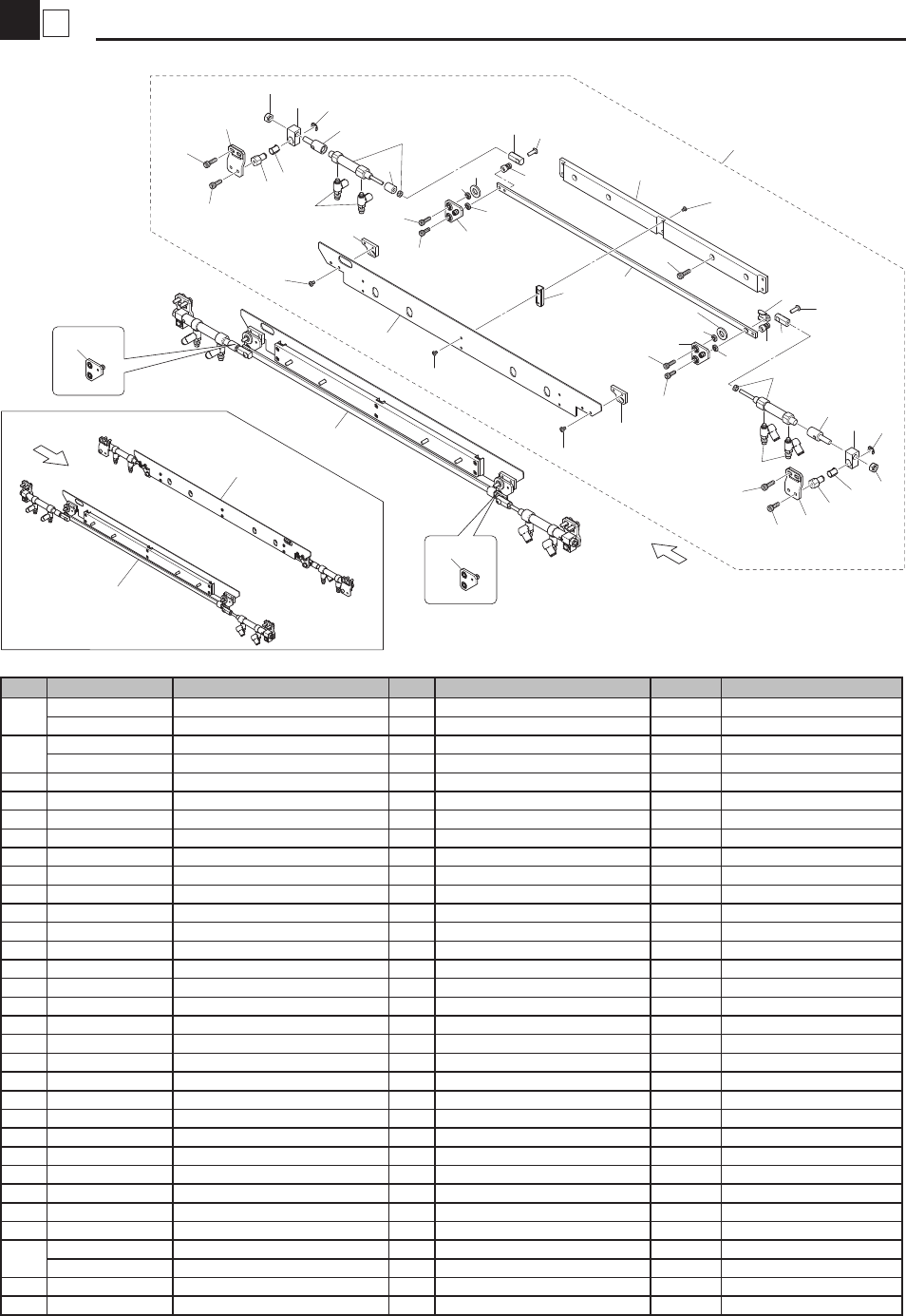

Clamp Board (Single)
Conveyor Unit
KJH-090615
29
22
25
3
9
19
30
23
28
27
7
9
3
22
25
29
4
5
13
26
28
19
14
18
24
6
15
17
8
28
23
12
12
14
6
24
15
21
12
10
10
12
28
26
7
20
30
16
2
2
11
1
5
4
13
28
26
1
11
(L>R)
(R>L)
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHV-M9260-01 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-00 CLAMP BOARD SUB ASSY 1
2
KHV-M9260-11 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-10 CLAMP BOARD SUB ASSY 1
3 KHW-M916D-00 JOINT, CYL. BRKT 2
4 KHW-M916E-00 BUSH 2
5 KHV-M926F-00 SHAFT 2
6 KHW-M916H-00 JOINT, CYL. 2
7 KHW-M9261-00 PLATE1, LINK 2
8 KHW-M9262-00 PLATE, BASE S 1
9 KHW-M9263-00 CYLINDER 2
10 KHW-M9264-B0 LINK B ASSY. 2
11 KHW-M9264-A0 LINK A ASSY. 2
12 KHW-M9265-00 SPACER 4
13 KHW-M9269-00 BRKT., CYL. 2
14 KHW-M926A-00 COLLAR 2
15 KHV-M926B-00 COLLAR, JOINT 2
16 KHV-M926C-00 PLATE, BOARD CLAMP S 1
17 KHW-M926E-00 NUT 1
18 KHV-M926G-00 PLATE 2, LINK 1
19 KHW-M9285-00 SPEED CONTROLLER 4
20 KV7-M9266-01 GUIDE 3
21 KV7-M926C-01 STOPPER, CYLNDER 1
22 KHW-M9167-00 BRKT., CYL. 2
23 KV7-M926K-00 BOLT, 1 12
24 90122-04J016 BOLT BUTTON HEAD 2
25 90440-10J050 CIRCLIP 2
26 91312-04010 BOLT HEX. SOCKET HEAD 3 M4X10
27 91312-04012 BOLT HEX. SOCKET HEAD 1 M4X12
28
91312-04016 BOLT HEX. SOCKET HEAD 10 ME90103-2008/10/24
91312-04014 BOLT HEX. SOCKET HEAD 10 M4X14
29 95302-06600 NUT HEXAGON 2
30 98902-03005 SCREW BINDING HEAD 4
7
7

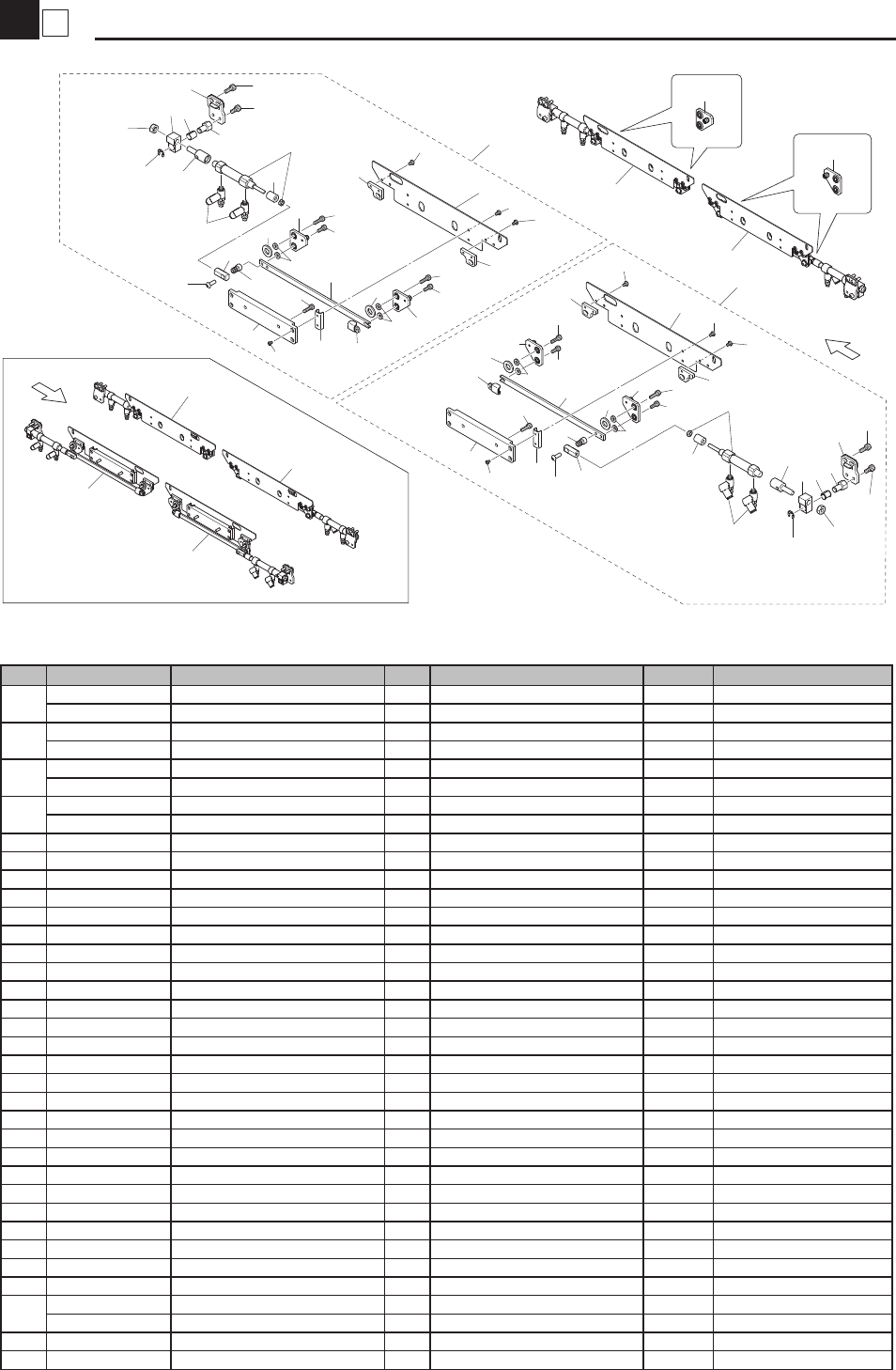

Clamp Board (Double)
Conveyor Unit
KJH-090615
30
28
30
28
31
31
27
27
6
6
5
22
22
19
19
9
24
18
18
18
14
14
14
19
13
15
15
30
30
29
28
30
10
12
12
10
10
10
32
32
25
25
25
20
32
32
25
20
16
16
21
21
23
23
30
30
13
26
26
11
11
3
3
2
2
1
1
4
4
24
24
5
7
7
8
8
17
17
The parts in the list is the same.
29
30
28
9
13
12
(L>R)
(R>L)
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHV-M9260-21 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-20 CLAMP BOARD SUB ASSY 1
2
KHV-M9260-31 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-30 CLAMP BOARD SUB ASSY 1
3
KHV-M9260-41 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-40 CLAMP BOARD SUB ASSY 1
4
KHV-M9260-51 CLAMP BOARD SUB ASSY 1 ME90103-2008/10/24
KHV-M9260-50 CLAMP BOARD SUB ASSY 1
5 KHW-M9167-00 BRKT., CYL. 1
6 KHW-M916D-00 JOINT, CYL. BRKT 1
7 KHW-M916E-00 BUSH 1
8 KHV-M926F-00 SHAFT 1
9 KHW-M916H-00 JOINT, CYL. 1
10 KHW-M9261-00 PLATE1, LINK 2
11 KHW-M9263-00 CYLINDER 1
12 KHW-M9264-A0 LINK A ASSY. 2
13 KHW-M9264-B0 LINK B ASSY. 2
14 KHW-M9265-00 SPACER 4
15 KHV-M9266-00 PLATE 2, LINK 1
16 KHW-M9268-00 PLATE, BASE W 1
17 KHW-M9269-00 BRKT., CYL. 1
18 KHW-M926A-00 COLLAR 2
19 KHV-M926B-00 COLLAR, JOINT 1
20 KHV-M926D-00 PLATE, BOARD CLAMP W 1
21 KHW-M926E-00 NUT 1
22 KHW-M9285-00 SPEED CONTROLLER 2
23 KV7-M9266-01 GUIDE 2
24 KV7-M926C-01 STOPPER, CYLNDER 1
25 KV7-M926K-00 BOLT, 1 8
26 90122-04J016 BOLT BUTTON HEAD 1
27 90440-10J050 CIRCLIP 1
28 91312-04010 BOLT HEX. SOCKET HEAD 2 M4X10
29 91312-04012 BOLT HEX. SOCKET HEAD 1 M4X12
30
91312-04016 BOLT HEX. SOCKET HEAD 6 ME90103-2008/10/24
91312-04014 BOLT HEX. SOCKET HEAD 6 M4X14
31 95302-06600 NUT HEXAGON 1
32 98902-03005 SCREW BINDING HEAD 4
