1 9 Blow Station Sel. Blow Station KJH-090615 8 5 Standard 20 23 13 15 25 27 14 19 17 22 31 23 23 12 27 11 10 26 29 9 1 30 3 3 6 3 4 2 14 25 15 35 34 33 32 32 16 21 18 28 24 24 36 ST AND DUMP BOX Selection s-A TS 37 5 7 …
2
8
Single Camera & Light Assy. (Op.)
Camera
KJH-1001
1
5
7
8
4
3
6
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJH-M7400-00 SINGLE LIGHT ASSY 1 (Can not sell)
2 KJH-M7200-00 SINGLE CAMERA ASSY 1 (Can not sell)
3 91317-04005 BOLT HEX. SOCKET HEAD 4
4 92907-04200 WASHER PLAIN 8
5
KJH-M66K0-01 HNS, LIGHT COAX 1 (Can not sell) OK ME70180-2008/8/18
KJH-M66K0-00 HNS, LIGHT COAX 1
6 KJH-M72C0-00 C+L FOV60-RF 1
7 91317-06020 BOLT HEX. SOCKET HEAD 2
8 92907-06200 WASHER PLAIN 3
1
9

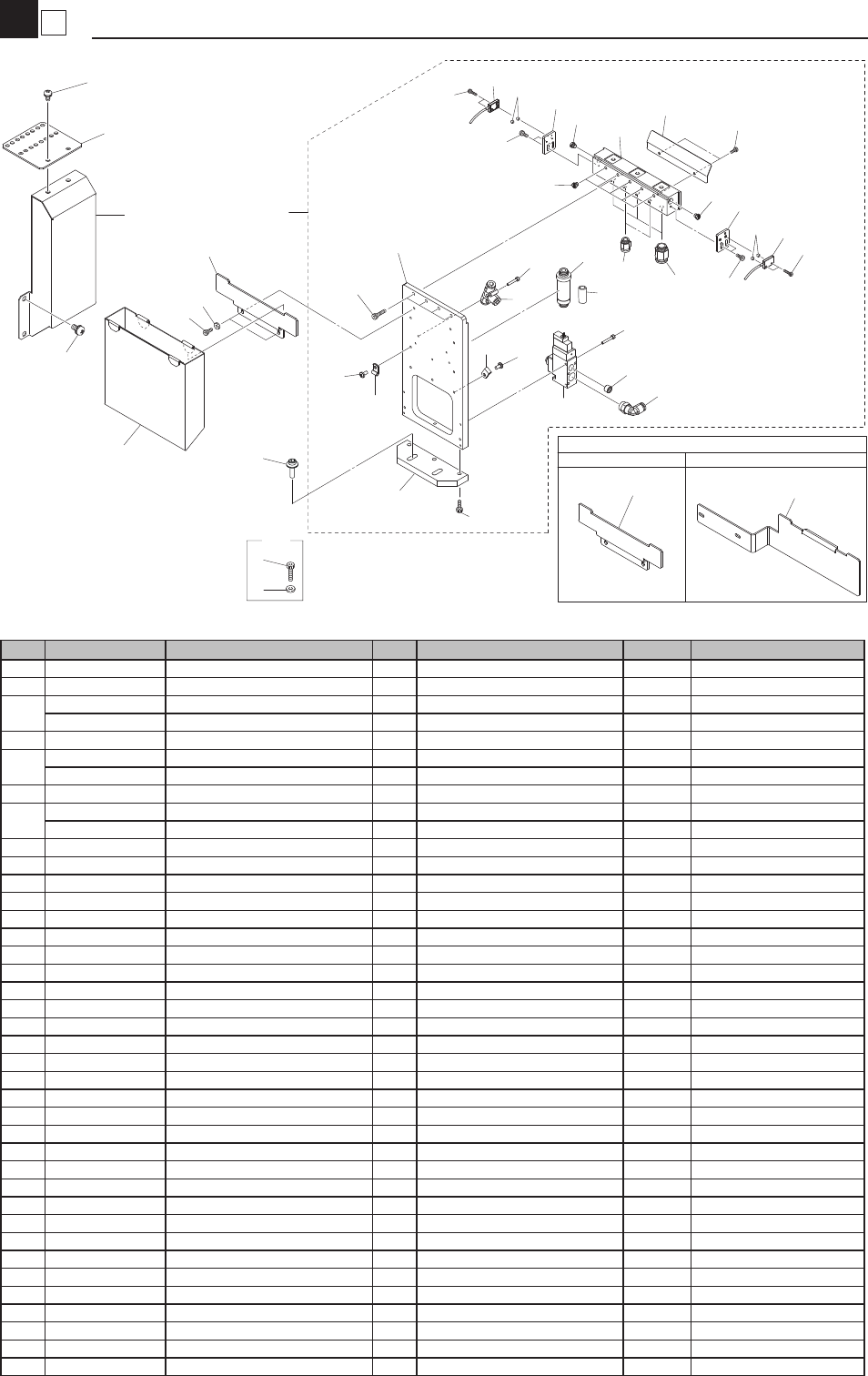

Blow Station Sel.
Blow Station
KJH-090615
8
5
Standard
20
23
13
15
25
27
14
19
17
22
31
23
23
12
27
11
10
26
29
9
1
30
3
3
6
3
4
2
14
25
15
35
34
33
32
32
16
21
18
28
24
24
36
STAND DUMP BOX Selection
s-ATS
37
5
7
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJH-M99A0-00 BLOW STN. BODY ASSY. 1
2 KGR-M99D0-00 DUMP BOX ASSY. 1
3
KGR-M99D3-00 STAND, DUMP BOX 1 STD
KGR-M99D4-01 STAND, DUMP BOX 1 S-ATS
4 91312-04008 BOLT HEX. SOCKET HEAD 2
5
90990-32J005 BOLT,FLANGE 2 OK MM10012-2015/3/16
91312-06020 BOLT HEX. SOCKET HEAD 2
6 92902-04200 WASHER, PLAIN 2
7
delete MM10012-2015/3/16
92902-06200 WASHER, PLAIN 2
8 KGR-M9901-00 BASE, BLOW ST. 1
9 KGR-M9902-00 PLATE, BLOW ST. 1
10 KGR-M9903-02 BLOCK, BLOW ST. 1
11 KGR-M9904-00 COVER, HEAD 1
12 KGR-M9905-00 BRACKET R, SENSOR 1
13 KGR-M9906-00 BRACKET L, SENSOR 1
14 KJH-M652R-00 SENSOR, BLOW ST ASSY 1
15 90990-41J066 COLLAR 4
16 KHW-M9906-A0 VALVE ASSY. 1
17 KGR-M9934-01 INLINE FILTER 1
18 K40-M8598-10 PLUG 1 1
19 $TS6-01 JOINT 2
20 $TS10-02 JOINT 3
21 $TL6-02 JOINT 1
22 $UT6 JOINT 1
23 $PF PLUG 7
24 $NK-2N NYLON CLIP 6
25 90115-02J006 BOLT HEX. SOCKET HEAD 4
26 91312-03005 BOLT HEX. SOCKET HEAD 2
27 91317-03010 BOLT HEX. SOCKET HEAD 4
28 91312-03020 BOLT HEX. SOCKET HEAD 2
29 91312-04012 BOLT HEX. SOCKET HEAD 4
30 91312-05012 BOLT HEX. SOCKET HEAD 3
31 91317-03018 BOLT HEX. SOCKET HEAD 2
32 97602-04308 SCREW, PAN HEAD W/WASHER 6
33 KHW-M9931-00 EXHAUST BOX 1
34 KHW-M9932-00 PLATE, TUBE CLAMP 1
35 97602-04308 SCREW, PAN HEAD W/WASHER 7
36 97602-05310 SCREW, PAN HEAD W/WASHER 4
37 KGR-M9934-F0 FILTER SPARE 1
1
10

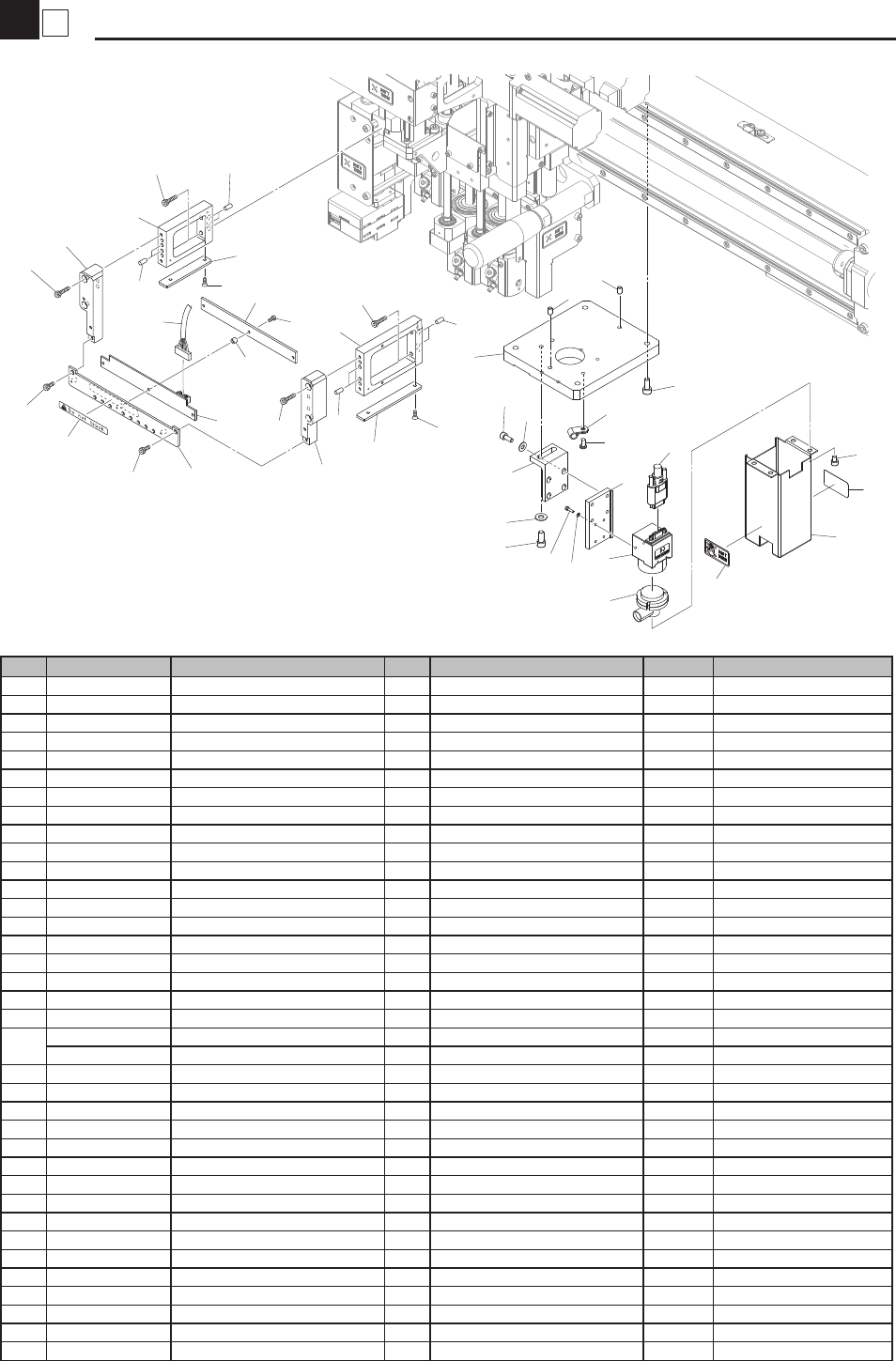

Side View Unit (Op.)
Side View Unit
KJH-090615
18
10
12
13
13
15
14
14
17
17
17
11
16
16
20
21
22
35
27
19
23
24
36
34
34
31
30
32
33
25
25
29
31
26
28
17
15
5
6
8
2
1
9
7
4
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGR-M7901-00 STAY L, SV LIGHT 1
2 KGR-M7902-00 STAY R, SV LIGHT 1
3 KHN-M7903-00 DIFFUSER, SV.LIGHT 1
4 KGR-M7904-01 BRACKET, SV LIGHT 1
5 KHL-M7905-02 S. V. LIGHT BRD. ASSY 1
6 KGR-M7906-00 PLATE L, SV LIGHT 1
7 KGR-M7907-00 PLATE R, SV LIGHT 1
8 KGR-M7908-00 COVER L, SV PLATE 1
9 KGR-M7909-00 COVER R, SV PLATE 1
10 90K41-000240 SEAL DON'T TOUCH 1
11 90166-02JA04 SCREW, PAN HEAD 3
12 90563-0AJ040 SPACER, BOLT 3
13 91317-04008 BOLT HEX. SOCKET HEAD 2
14 91317-04018 BOLT HEX. SOCKET HEAD 4
15 91317-04020 BOLT HEX. SOCKET HEAD 4
16 98707-03006 SCREW, FLAT HEAD 4
17 99480-04010 PIN, PARALLEL 8
18 KJJ-M66KB-00 HNS, X-FLEX S. VIEW 1
19 KHN-M7210-01 CCD CAMERA 1
20
KJJ-M7910-00 BASE, S. VIEW CAMERA 1 OK MF40163-2009/4/28
KGS-M7910-00 BASE, S. VIEW CAMERA 1
21 KJH-M7911-00 STAY 1, S. VIEW CAMERA 1
22 KGS-M7912-01 STAY 2, S. VIEW CAMERA 1
23 KGS-M7914-00 LENS, S. VIEW 1
24 KJH-M7915-00 COVER, S. VIEW CAMERA 1
25 KV7-M7165-00 SEAL DON'T TOUCH 2
26 90115-02J008 BOLT HEX. SOCKET HEAD 4
27 90990-11J003 SCREW PAN HEAD W/W 1
28 90990-28J002 WASHER 4
29 91317-04006 BOLT HEX. SOCKET HEAD 4
30 91317-04010 BOLT HEX. SOCKET HEAD 4
31 91317-05012 BOLT HEX. SOCKET HEAD 6
32 92907-04200 WASHER, PLAIN 4
33 92907-05200 WASHER, PLAIN 2
34 99480-04008 PIN, PARALLEL 2
35 $NK-4N NYLON CLIP 1
36 KJJ-M66K0-00 HNS, S. VIEW CAMERA 1
