KJH_YS88_PL - 第44页
1 10 Side V iew Unit (Op.) Side V iew Unit KJH-090615 18 10 12 13 13 15 14 14 17 17 17 1 1 16 16 20 21 22 35 27 19 23 24 36 34 34 31 30 32 33 25 25 29 31 26 28 17 15 5 6 8 2 1 9 7 4 3 No. Part No. Part Name Q'ty Rem…
1
9
Blow Station Sel.
Blow Station
KJH-090615
8
5
Standard
20
23
13
15
25
27
14
19
17
22
31
23
23
12
27
11
10
26
29
9
1
30
3
3
6
3
4
2
14
25
15
35
34
33
32
32
16
21
18
28
24
24
36
STAND DUMP BOX Selection
s-ATS
37
5
7
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJH-M99A0-00 BLOW STN. BODY ASSY. 1
2 KGR-M99D0-00 DUMP BOX ASSY. 1
3
KGR-M99D3-00 STAND, DUMP BOX 1 STD
KGR-M99D4-01 STAND, DUMP BOX 1 S-ATS
4 91312-04008 BOLT HEX. SOCKET HEAD 2
5
90990-32J005 BOLT,FLANGE 2 OK MM10012-2015/3/16
91312-06020 BOLT HEX. SOCKET HEAD 2
6 92902-04200 WASHER, PLAIN 2
7
delete MM10012-2015/3/16
92902-06200 WASHER, PLAIN 2
8 KGR-M9901-00 BASE, BLOW ST. 1
9 KGR-M9902-00 PLATE, BLOW ST. 1
10 KGR-M9903-02 BLOCK, BLOW ST. 1
11 KGR-M9904-00 COVER, HEAD 1
12 KGR-M9905-00 BRACKET R, SENSOR 1
13 KGR-M9906-00 BRACKET L, SENSOR 1
14 KJH-M652R-00 SENSOR, BLOW ST ASSY 1
15 90990-41J066 COLLAR 4
16 KHW-M9906-A0 VALVE ASSY. 1
17 KGR-M9934-01 INLINE FILTER 1
18 K40-M8598-10 PLUG 1 1
19 $TS6-01 JOINT 2
20 $TS10-02 JOINT 3
21 $TL6-02 JOINT 1
22 $UT6 JOINT 1
23 $PF PLUG 7
24 $NK-2N NYLON CLIP 6
25 90115-02J006 BOLT HEX. SOCKET HEAD 4
26 91312-03005 BOLT HEX. SOCKET HEAD 2
27 91317-03010 BOLT HEX. SOCKET HEAD 4
28 91312-03020 BOLT HEX. SOCKET HEAD 2
29 91312-04012 BOLT HEX. SOCKET HEAD 4
30 91312-05012 BOLT HEX. SOCKET HEAD 3
31 91317-03018 BOLT HEX. SOCKET HEAD 2
32 97602-04308 SCREW, PAN HEAD W/WASHER 6
33 KHW-M9931-00 EXHAUST BOX 1
34 KHW-M9932-00 PLATE, TUBE CLAMP 1
35 97602-04308 SCREW, PAN HEAD W/WASHER 7
36 97602-05310 SCREW, PAN HEAD W/WASHER 4
37 KGR-M9934-F0 FILTER SPARE 1
1
10
Side View Unit (Op.)
Side View Unit
KJH-090615
18
10
12
13
13
15
14
14
17
17
17
11
16
16
20
21
22
35
27
19
23
24
36
34
34
31
30
32
33
25
25
29
31
26
28
17
15
5
6
8
2
1
9
7
4
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGR-M7901-00 STAY L, SV LIGHT 1
2 KGR-M7902-00 STAY R, SV LIGHT 1
3 KHN-M7903-00 DIFFUSER, SV.LIGHT 1
4 KGR-M7904-01 BRACKET, SV LIGHT 1
5 KHL-M7905-02 S. V. LIGHT BRD. ASSY 1
6 KGR-M7906-00 PLATE L, SV LIGHT 1
7 KGR-M7907-00 PLATE R, SV LIGHT 1
8 KGR-M7908-00 COVER L, SV PLATE 1
9 KGR-M7909-00 COVER R, SV PLATE 1
10 90K41-000240 SEAL DON'T TOUCH 1
11 90166-02JA04 SCREW, PAN HEAD 3
12 90563-0AJ040 SPACER, BOLT 3
13 91317-04008 BOLT HEX. SOCKET HEAD 2
14 91317-04018 BOLT HEX. SOCKET HEAD 4
15 91317-04020 BOLT HEX. SOCKET HEAD 4
16 98707-03006 SCREW, FLAT HEAD 4
17 99480-04010 PIN, PARALLEL 8
18 KJJ-M66KB-00 HNS, X-FLEX S. VIEW 1
19 KHN-M7210-01 CCD CAMERA 1
20
KJJ-M7910-00 BASE, S. VIEW CAMERA 1 OK MF40163-2009/4/28
KGS-M7910-00 BASE, S. VIEW CAMERA 1
21 KJH-M7911-00 STAY 1, S. VIEW CAMERA 1
22 KGS-M7912-01 STAY 2, S. VIEW CAMERA 1
23 KGS-M7914-00 LENS, S. VIEW 1
24 KJH-M7915-00 COVER, S. VIEW CAMERA 1
25 KV7-M7165-00 SEAL DON'T TOUCH 2
26 90115-02J008 BOLT HEX. SOCKET HEAD 4
27 90990-11J003 SCREW PAN HEAD W/W 1
28 90990-28J002 WASHER 4
29 91317-04006 BOLT HEX. SOCKET HEAD 4
30 91317-04010 BOLT HEX. SOCKET HEAD 4
31 91317-05012 BOLT HEX. SOCKET HEAD 6
32 92907-04200 WASHER, PLAIN 4
33 92907-05200 WASHER, PLAIN 2
34 99480-04008 PIN, PARALLEL 2
35 $NK-4N NYLON CLIP 1
36 KJJ-M66K0-00 HNS, S. VIEW CAMERA 1
1
11

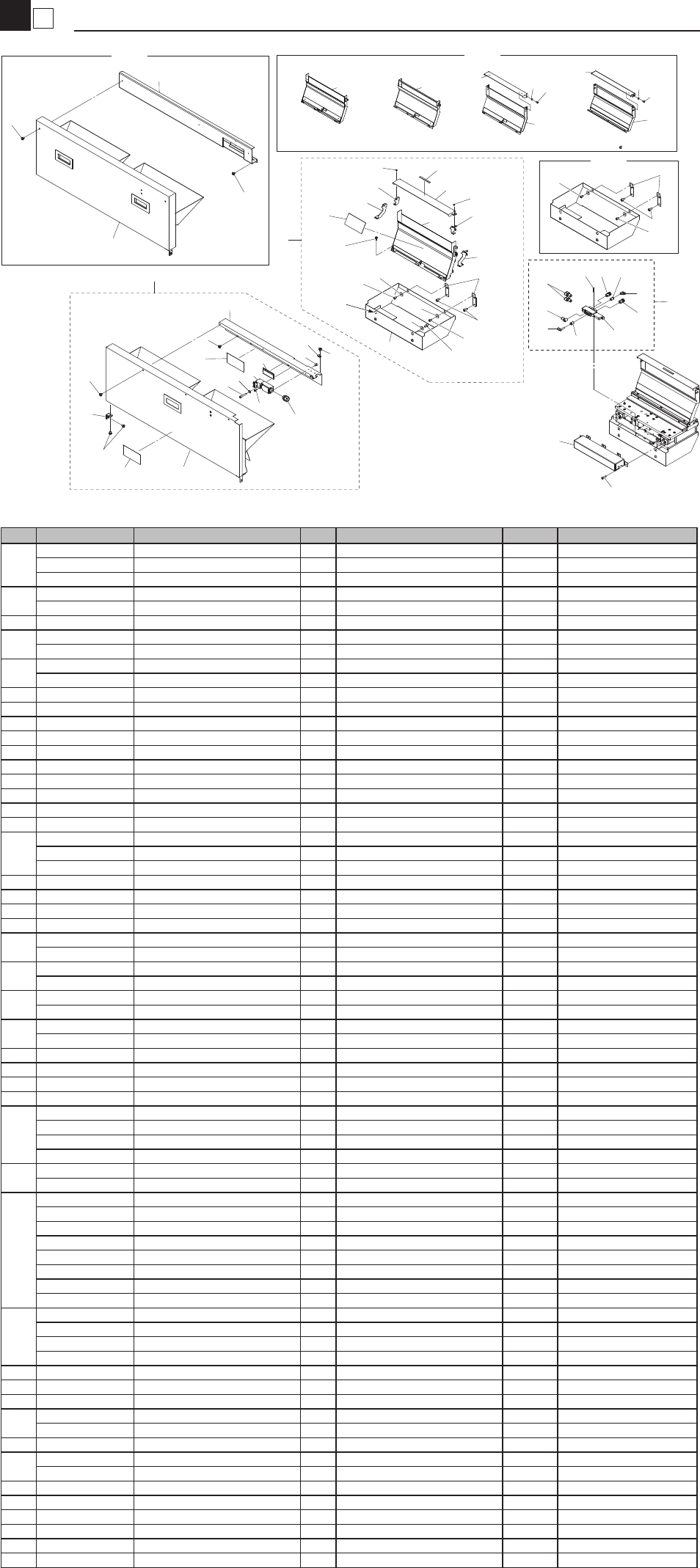

Tape Cutter 24 (384) -1
Tape Cutter
KJH-1105
32
39
36
31
7
7
3
15
1
15
11
4
14
5
2
17
6
10
8
9
13
12
33
33
37
35
16
34
44
44
41
40
43
42
18
26 21 22
23
21
19
25
20
24
22
27
28
3638
29
33
38
3638
38
30
7
1
2
8
32
31
32
39
36
31
Non Bolt to
this hole
36
36
38
30
OLD
OLD
Fig 2
Fig 1
OLD
31
Fig 3
Fig 4
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KJJ-M11C6-A2 COVER, SUB ASSY 1 OK MF50081-2009/5/27
KJJ-M11C6-A1 COVER, SUB ASSY 1 NG ME00122-2008/11/3
KJJ-M11C6-A0 COVER, SUB ASSY 1
2
KHY-M1325-01 COVER 25 1 NG ME00122-2008/11/3
KJJ-M1325-10 COVER 25 1
3 KJJ-M11C8-00 BRKT. , CUTTER COVER 2
4
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
5
KGS-M5126-02 SCREW (M3X8) 1 OK ME70188-2008/7/25
KGS-M5126-01 SCREW 1
6 KW7-M643A-00 SC LOCK 1
7 90990-12J001 SCREW BIN. HEAD W/W 6
8 90990-12J004 SCREW, BIN. HEAD W/W 3
9 91312-04006 BOLT HEX. SOCKET HEAD 2
10 91312-04025 BOLT HEX. SOCKET HEAD 2
11 92902-04200 WASHER, PLAIN 2
12 97602-04308 SCREW, PAN HEAD W/WASHER 2
13 $NK-3N NYLON CLIP 2
14 90K41-000350 LABEL, ALERT 1
15 90K41-000730 LABEL, ALERT 2
16
KJH-M3T50-00 SLOPE ASSY, 384 4 OK MH30023-2011/3/9
KJH-M3T00-A0 SLOPE ASSY, 384 4 OK MFY0105-2010/1/14
KJJ-M3T00-F0 SLOPE ASSY, 384 4
17 KJJ-M3T00-J0 SAFETY COVER ASSY 2
18 KHY-M3T00-E0 CUTTER VALVE ASSY 2
19 KHY-M3T0C-00 CUTTER VALVE 1
20 $SLH6-01 JOINT 1
21
$KM-10 MUFFLER 2 NG MF30188-2009/3/30
$KM-11 MUFFLER 2
22
$TL6-01 JOINT 2 NG MF30188-2009/3/30
$TSH6-01 JOINT 2
23
Delete MF30188-2009/3/30
$UL6M JOINT 1
24
Delete MF40063-2009/4/9
$ULA6M JOINT 1
25 $UYD6-4 JOINT 2
26 91312-03020 BOLT HEX. SOCKET HEAD 2
27 KJJ-M3T25-00 VALVE COVER 1 1
28 91312-04006 BOLT HEX. SOCKET HEAD 5
29
KJJ-M11C1-04 DUCT 1 1 OK MF50071-2009/5/20
KJJ-M11C1-03 DUCT 1 1 OK MF30092-2009/4/9
KJJ-M11C1-02 DUCT 1, 384 1 OK MF30155-2009/3/26
KJJ-M11C1-01 DUCT 1, 384 1
30
KJJ-M11C3-01 BRKT. 384, DUCT 1 2 NG MEX0004-2008/11/6
KJJ-M11C3-00 BRKT. 384, DUCT 1 2
31
KJJ-M3T53-22 UPPER COVER 1, 384 1 Resin tape OK ML20100-2014/3/13
KJH-M3T53-21 UPPER COVER 1, 384 1 OK MJ10035-2012/3/30
KJH-M3T53-20 UPPER COVER 1, 384 1 Fig 4 NG H015520-2011/1/26
KJJ-M3T53-12 UPPER COVER 1, 384 1 Resin tape OK H019289-2014/5/16
KJH-M3T53-01 UPPER COVER 1, 384 1 OK MJ10035-2012/3/30
KJH-M3T53-00 UPPER COVER 1, 384 1 Fig 3 NG MH30023-2011/3/9
KJH-M3T0E-00 UPPER COVER 1, 384 1 Fig 2 NG H013829-2010/1/18
KJJ-M3T0E-00 UPPER COVER 1, 384 1 Fig 1
32
KJJ-M3T51-01 UPPER COVER 2, 384 1 Slope step OK MK90021-2013/10/16
KJJ-M3T51-00 UPPER COVER 2, 384 1 NG MH30023-2011/3/9
KJH-M3T0S-01 UPPER COVER 2, 384 1 Fig 2 NG H013829-2010/1/18
KJJ-M3T0S-01 UPPER COVER 2, 384 1 Fig 1
33 KHY-M11C5-00 WASHER 6
34 90K41-000240 SEAL DON'T TOUCH 1
35 90K41-000730 LABEL, ALERT 1
36
91312-04006 BOLT HEX. SOCKET HEAD 4 OK MEX0004-2008/11/6
91312-04006 BOLT HEX. SOCKET HEAD 6
37 91312-04008 BOLT HEX. SOCKET HEAD 3
38
91312-05008 BOLT HEX. SOCKET HEAD 9 OK MEX0004-2008/11/6
91312-05008 BOLT HEX. SOCKET HEAD 8
39 92902-04600 WASHER, PLAIN 7
40 KHY-M3T52-00 FES STAY, L 1
41 KHY-M3T52-10 FES STAY, R 1
42 KHY-M3T52-20 FIX STAY, L 1
43 KHY-M3T52-30 FIX STAY, R 1
44 98902-04006 SCREW, BINDING HEAD 10
