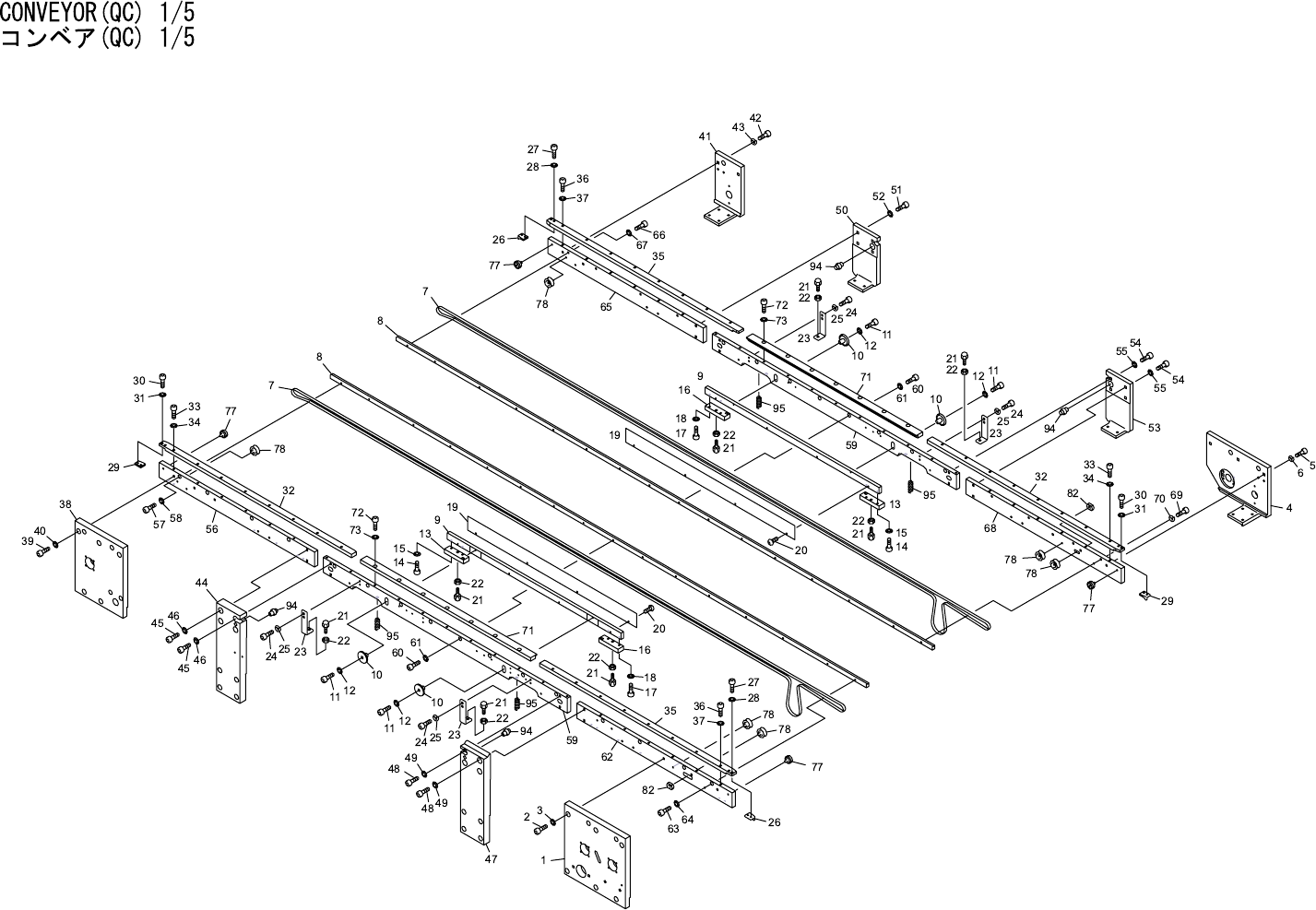

CONVEYOR(QC) 1/5
コンベア(QC) 1/5
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No.
Drg.No. & Code No.
QTY Description Rating Materials Remarks
1 DEQC0041 1 BKT BKT FE
2 H5322A 3
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M06X015 FE
3 W1013A 3
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H FE
4 DEQC0052 1 BKT BKT FE
5 H5323A 3
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M06X018 FE
6 W1024A 3
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
7 DEQC0220 2 CONVEYOR, BELT ｺﾝﾍﾞｱ ﾍﾞﾙﾄ OT
8 DEQC0230 2 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ AL
9 DEQC0240 2 PLATE ﾌﾟﾚｰﾄ AL
10 DEQC0251 4 GUIDE ｶﾞｲﾄﾞ FE
11 H5277A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M03X012 FE
12 W1010A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
13 DEQC0260 2 BLOCK ﾌﾞﾛｯｸ FE
14 H5276A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M03X010 FE
15 W1010A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
16 DEQC0270 2 BLOCK ﾌﾞﾛｯｸ FE
17 H5276A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M03X010 FE
18 W1010A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
19 DEQC0281 2 PLATE ﾌﾟﾚｰﾄ FE
20 K5255T 8
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M03X006 FE
21 DEQC0300 8 STOPPER ｽﾄｯﾊﾟ FE
22 N1082A 8
NUT, HEX
ﾅｯﾄ 六角
M5 P=0.8 FE
23 DEQC0310 4 BKT BKT FE
24 H5288A 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M04X010 FE
25 W1022A 8
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
26 DEQC0350 2 GUIDE ｶﾞｲﾄﾞ FE
27 H5273T 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M03X004 FE
28 W1010A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
29 DEQC0360 2 GUIDE ｶﾞｲﾄﾞ FE
30 H5273T 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M03X004 FE
31 W1010A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
32 DEQC0380 2 GUIDE, BOARD ｶﾞｲﾄﾞ 基板 FE
33 H5288A 16
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M04X010 FE
34 W1011A 16
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L FE
35 DEQC0390 2 GUIDE, BOARD ｶﾞｲﾄﾞ 基板 FE
36 H5288A 16
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M04X010 FE
37 W1011A 16
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L FE
38 DEQC0450 1 BKT BKT FE
