Manual S-20/S-23 HM/S-25 HM/F4/F5 HM/HS-50 Placement of 0402 components
03/2001 edition
67
8.3.2 Parameters for LEAD measuring mode
Å From the Measuring Mode menu (see Fig. 8 - 5 on page 64), click on the Set …’ button for
Lead. The following options must be checked in the Lead Measuring Mode window:
Measur: Tip measurement via outer tips
Window: Separately for each pin
Fig. 8 - 8 Setting Lead measuring mode
Placement of 0402 components Manual S-20/S-23 HM/S-25 HM/F4/F5 HM/HS-50
03/2001 edition
68
8.3.3 Checking the hex values
Å From the Measuring Mode menu (see Fig. 8 - 5 on page 64), click on the Hex entries ...
button.
ATTENTION: 8
Only people with sufficient technical knowledge should change the parameters shown in Fig.
8 - 9. 8
Only the Size and Lead check boxes must be checked in the Measuring Mode 2 menu. The
parameters shown in Fig. 8 - 9
must be entered. 8

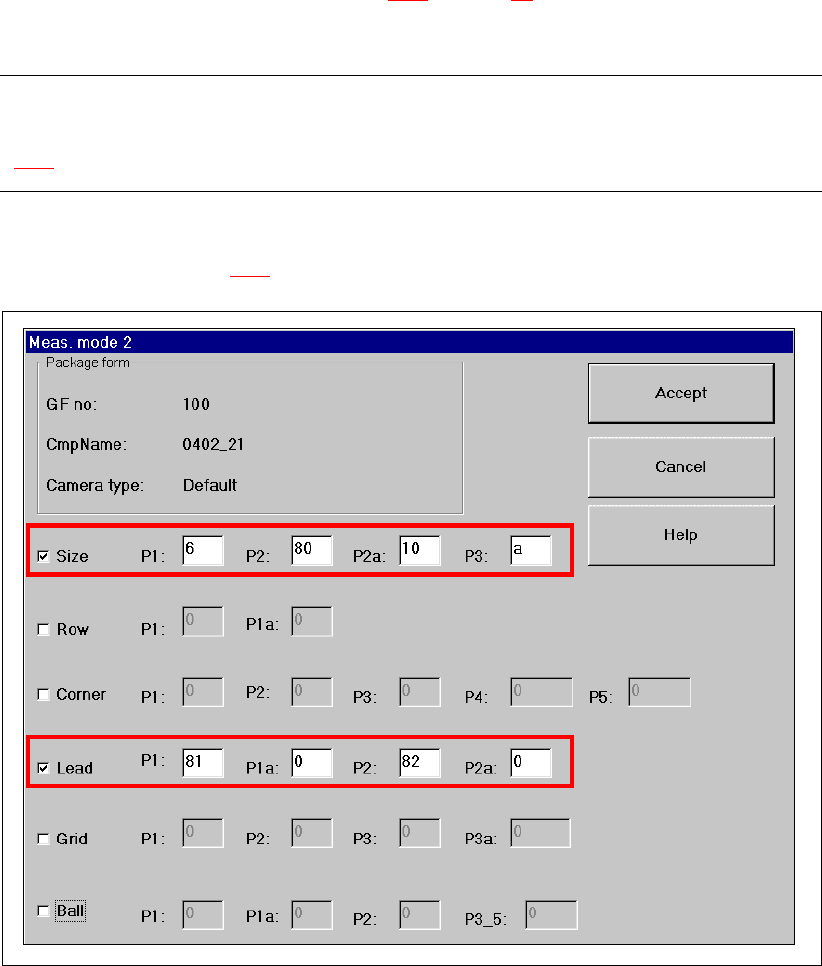

Fig. 8 - 9 Measuring Mode 2 Default setting
Manual S-20/S-23 HM/S-25 HM/F4/F5 HM/HS-50 Placement of 0402 components
03/2001 edition
69
The error Component length outside tolerance occasionally occurs with 0402 components. This
is generally caused by dirty nozzles.
It can also occasionally occur with 0402 components with a dark body and very narrow leads,
even though the nozzles are clean. In this case, you should change parameter P2a under Size
from 10 to 11.
Fig. 8 - 10 Measuring Mode 2 Size mode parameter P2a modified
8.4 Checking the lead dimensions
Å From the Test Component menu (see Fig. 8 - 3 on page 62), click on the Lead Dimensions>
button. The Lead Dimensions video image appears, together with the parameters.
Å Check the set values
optical length: 0.95 mm (up to 1 mm is possible)
optical width: 0.45 mm (up to 0.5 mm is possible)
Å Press ESC to exit the Lead Dimensions option.
