BLUE UNDER SCREE N CLEANER MODULE ELECTRICAL SCHEMATIC Chapter Issue 10, Jul 16 Technical Reference Manual 24.5 ELECTRICAL SCHEMA TIC Figure 24-3 USC with VF25, V30 or VF35 V acuum Filtration Unit M36 Machine Control Enc…
BLUE UNDER SCREEN CLEANER MODULE
OVERVIEW
24.4 Technical Reference Manual Chapter Issue 10, Jul 16
VF10 Vacuum
Filtration Unit
The onboard VF10 Venturi Vacuum Filtration Unit, located in the front of the
machine frame, uses compressed air to create a vacuum.
BLUE UNDER SCREEN CLEANER MODULE
ELECTRICAL SCHEMATIC
Chapter Issue 10, Jul 16 Technical Reference Manual 24.5
ELECTRICAL SCHEMATIC

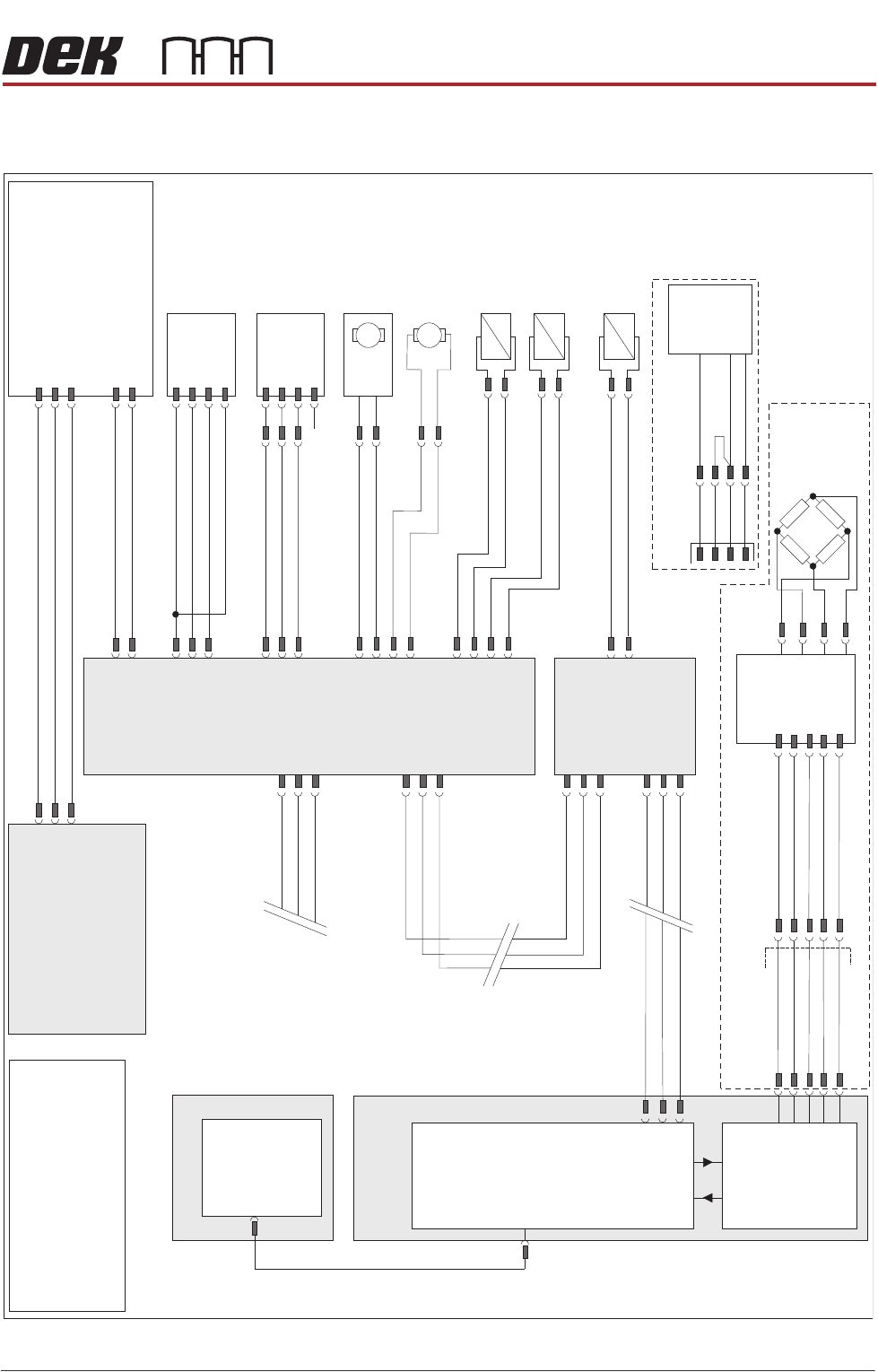

Figure 24-3 USC with VF25, V30 or VF35 Vacuum Filtration Unit
M36 Machine
Control Enclosure
PC
Motherboard
USB
NextMove ES
(I/O Node 1)
1
2
4
CAN_H
CAN_L
CAN GND
M36PL35
16SK08
Cleaner
Squeegee Bar
16SOL08
DIG OUT 14
0V
I/Ps
CAN Bus
O/Ps
9SK63
1
4
3
6
7
9PL64
Solvent
Load Cell
9SE26
NextMove
Interface
M36PL09
Solvent ‘Time To Go’ (TTG) Option
1
2
10
12
14
8
7
5
1
AN IN0 -
AN IN0 +
0V USR
+12V
-12V
M37 Power Supply Module
Solvent
Level Amp
-V
+V
-IN
+IN
Vacuum Filtration Unit
NOTE
For Vacuum sensing
Option refer to circuit
185229.
L
N
E
Vac
Pump
Supply
Main Machine
I/O Node 2
N2SK2
CAN In
N2PL4
7
2
3
9
21
L
N
E
M37PL35
M35SK02
M35SK01
1
2
Screen Clean
I/O Node 4
N2SK3
7
2
3
9PL69
1
4
3
6
7
Level +
Ext Service Panel
AGND
0V USR
+12V
-12V
CAN Out
N4SK3
7
2
3
CAN Out
N4SK2
7
2
3
CAN In
1
2
N4PL6
8SK13
R/H Clean
Home Clamp
8SOL20
N4PL2
DIG OUT 0
0V
1
2
3
4
1
2
8SK11
L/H Clean
Home Clamp
8SOL19
1
2
DIG OUT 0
0V
N4PL5
1
2
3
4
DIG OUT 3
0V
+12V
Sig
0V
(L)
N4PL4
4
5
6
Screen Cleaner
Home
8SE10
DIG IN 2
DIG OUT 1
8SK76
8SK71
1
2
N4PL1
4
5
6
DIG IN 1
Paper Low/
Paper Usage
8SE18
Solvent
Pump
8M14
0V
24V
M
M
Paper Feed
Motor
8M5
8SK72
1
2
DIG OUT 2
0V
+12V
Sig
0V
(L)
N/C
NOTE
The breaks in the CAN Bus chain
reflect that additional I/O Nodes
may be fitted, refer to Machine
Control chapter for the complete
CAN Bus chain.
9SE69
Solvent
Float
Sensor
969PL
9PL130
+V
0V
Output
E BY DEK Variation
BLUE UNDER SCREEN CLEANER MODULE
ELECTRICAL SCHEMATIC
24.6 Technical Reference Manual Chapter Issue 10, Jul 16

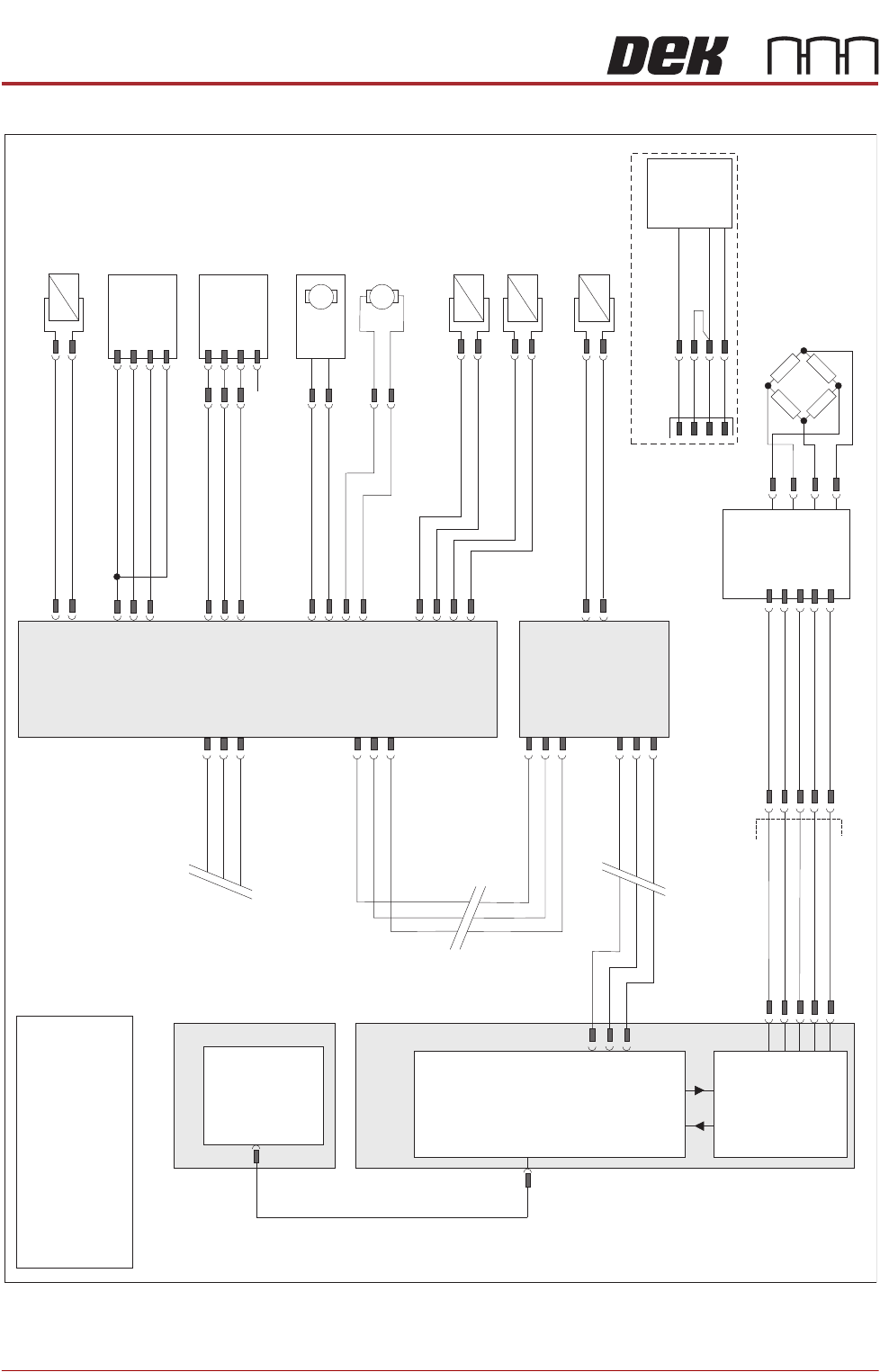

Figure 24-4 USC with VF10 Vacuum Filtration Unit
M36 Machine
Control Enclosure
PC
Motherboard
USB
NextMove ES
(I/O Node 1)
1
2
4
CAN_H
CAN_L
CAN GND
M36PL35
16SK08
Cleaner
Squeegee Bar
16SOL08
DIG OUT 14
0V
I/Ps
CAN Bus
O/Ps
9SK63
1
4
3
6
7
9PL64
Solvent
Load Cell
9SE26
NextMove
Interface
M36PL09
1
2
10
12
14
8
7
5
1
AN IN0 -
AN IN0 +
0V USR
+12V
-12V
Solvent
Level Amp
-V
+V
-IN
+IN
Main Machine
I/O Node 2
N2SK2
CAN In
N2PL4
7
2
3
9
21
Screen Clean
I/O Node 4
N2SK3
7
2
3
9PL69
1
4
3
6
7
Level +
Ext Service Panel
AGND
0V USR
+12V
-12V
CAN Out
N4SK3
7
2
3
CAN Out
N4SK2
7
2
3
CAN In
8SK13
R/H Clean
Home Clamp
8SOL20
N4PL2
DIG OUT 0
0V
1
2
3
4
1
2
8SK11
L/H Clean
Home Clamp
8SOL19
1
2
DIG OUT 0
0V
N4PL5
1
2
3
4
+12V
Sig
0V
(L)
N4PL4
4
5
6
Screen Cleaner
Home
8SE10
DIG IN 2
DIG OUT 1
8SK76
8SK71
1
2
N4PL1
4
5
6
DIG IN 1
Paper Low/
Paper Usage
8SE18
Solvent
Pump
8M14
0V
24V
M
M
Paper Feed
Motor
8M5
8SK72
1
2
DIG OUT 2
0V
+12V
Sig
0V
(L)
N/C
NOTE
The breaks in the CAN Bus chain
reflect that additional I/O Nodes
may be fitted, refer to Machine
Control chapter for the complete
CAN Bus chain.
M35SK01
1
2
1
2
N4PL6
Vacuum Unit
8SOL29
DIG OUT 3
0V
9SE69
Solvent
Float
Sensor
969PL
9PL130
+V
0V
Output
E BY DEK Variation
