CYCLONE UNDER STENCIL CLEANER MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 11, Feb 18 Technical Reference Manual 26.11
Stencil Cleaner
Height and
Parallelism
The stencil cleaner height, X and Y parallelism are factory set using a special
jig and should not be adjusted. In the event of adjustment being required,
contact your local CSG office.
CYCLONE UNDER STENCIL CLEANER MODULE
REPLACEMENT PROCEDURES
26.12 Technical Reference Manual Chapter Issue 11, Feb 18
REPLACEMENT PROCEDURES
WARNING
SOLVENT SPRAY. THE UNDER STENCIL CLEANER SPRAYS A FINE JET OF
SOLVENT SOLUTION ON TO THE CLEANER. APPROVED PROTECTIVE
CLOTHING SHOULD BE WORN.
CAUTION
PRINT MEDIUM AND SOLVENTS. WHEN USING OR HANDLING ANY PRINT
MEDIUM OR SOLVENT FORMULATION THE MANUFACTURERS’ SAFETY DATA
SHEETS MUST BE STRICTLY ADHERED TO.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
Fabric Size
Change
The cyclone under screen cleaner is interchangeable between 300mm, 400mm
and 515mm fabric sizes. To change to a different fabric size to suit the product,
the following items are required:
• Vacuum chamber 300mm, 400mm, 460mm or 515mm
• Fabric Cassette 300mm, 400mm or 515mm (quantity 2)
• Fabric Roll 300mm, 400mm or 515mm (quantity 2)
NOTE
460mm Vacuum chamber uses a 515mm Cassette and Fabric Roll
Type Size Cassette Chamber & Roll Chamber Roll
Standard 300mm 300mm 193262 191178 176217
400mm 400mm 193263 191176 176216
460mm
515mm
222903 222904 176215
515mm 193264 191182 176215
Duo 300mm 300mm 211217 211218 176217
400mm 400mm 211219 211220 176216
460mm
515mm
222510 222509 176215
515mm 211221 211222 176215
CYCLONE UNDER STENCIL CLEANER MODULE
REPLACEMENT PROCEDURES
Chapter Issue 11, Feb 18 Technical Reference Manual 26.13
To change the cyclone cleaner to a different fabric size, carry out the following:
1. Select Open Cover Commands.
2. Select Unload Screen.
3. Open the front printhead cover.
4. Remove the stencil from the machine.
5. Power down the machine.
6. Remove the fabric cassette from the cleaner tray.
7. Locate the solvent tube that connects the vacuum chamber to the in-line
connector.
8. Disconnect the solvent tube from the left hand side of the in-line connector.
9. Using a 4mm Allen key, remove the three screws that secure the vacuum

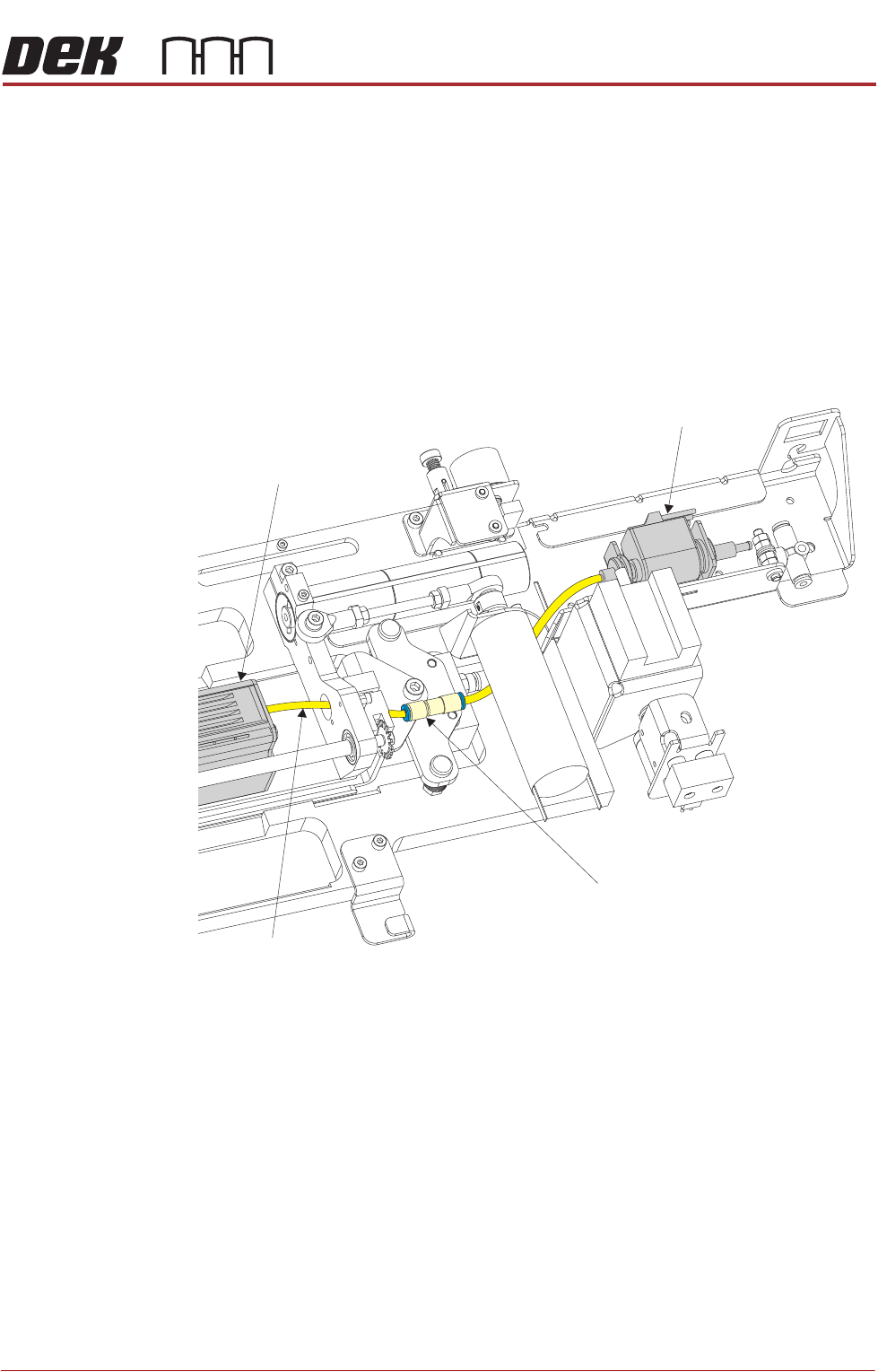

Vacuum Chamber
Solvent Pump
In-Line Connector
Solvent Tube
View on Right Hand Side of Cyclone Cleaner
