RAPID TRANSIT CONVEYOR (RTC) MODULE OVERVIEW 22.2 Technical Reference Manual Chapter Issue 4, Aug 14 Figure 22-2 Rear View of RTC Rails NOTE Information given in this manual referenc es a machine set up for left to right…
RAPID TRANSIT CONVEYOR (RTC) MODULE
OVERVIEW
Chapter Issue 4, Aug 14 Technical Reference Manual 22.1
CHAPTER 22 RAPID TRANSIT CONVEYOR (RTC) MODULE
OVERVIEW

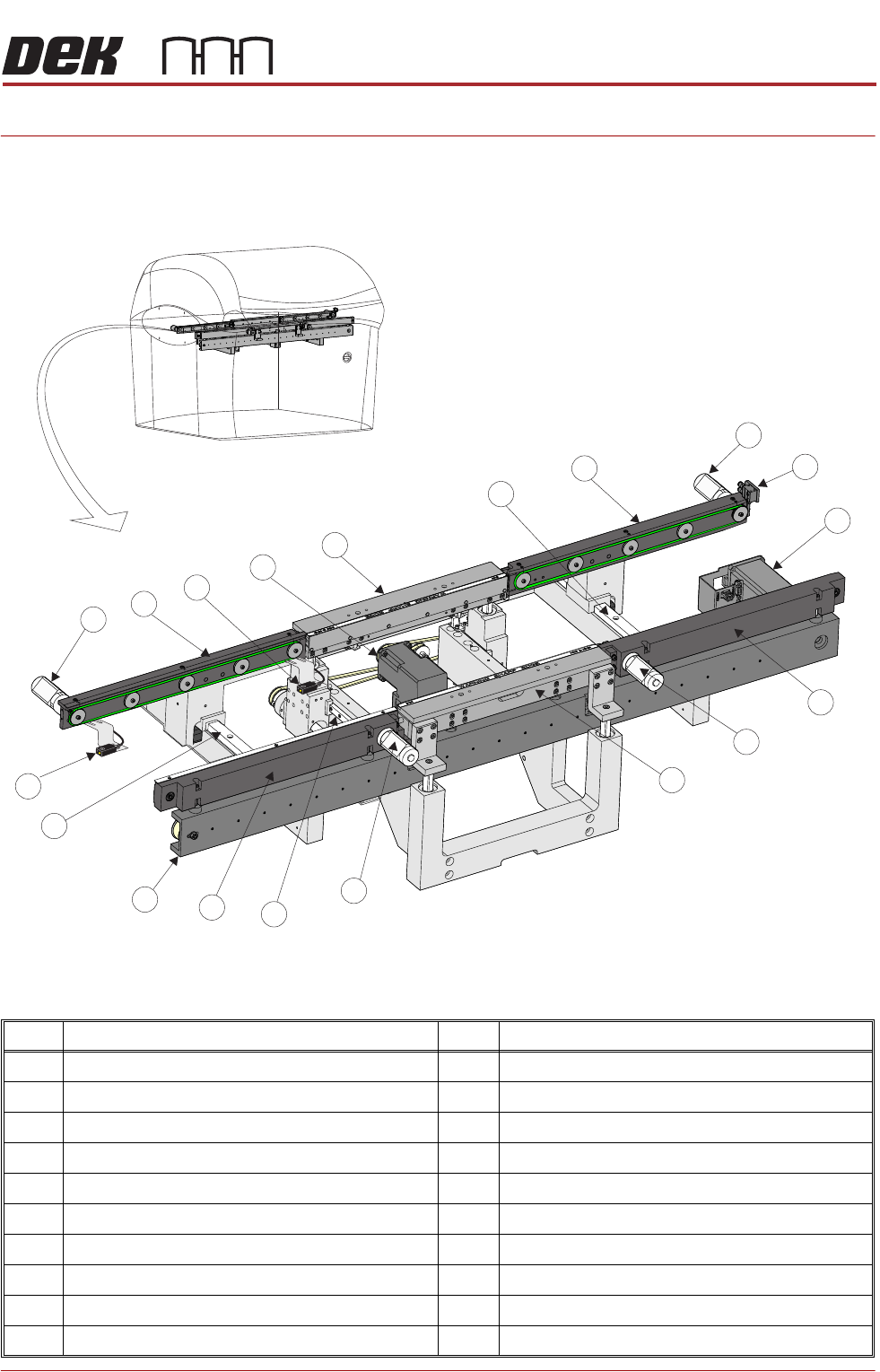

Figure 22-1 Front View of RTC Rails
Item Description Item Description
1 Rear Outroad Conveyor Transport Belt Motor 11 Inroad Conveyor Linear Guide
2 Outroad Board Stop 12 Board at Left Sensor
3 Board Load Servo Motor 13 Rear Inroad Conveyor Transport Belt Motor
4 Front Outroad Conveyor 14 Rear Inroad Conveyor
5 Front Outroad Conveyor Transport Belt Motor 15 Board at Stop Sensor
6 Front Print Station and Board Clamp 16 Moving Rail Stepper Motor
7 Front Inroad Conveyor Transport Belt Motor 17 Rear Print Station and Board Clamp
8 Rail Width Linear Guide (in 2 positions) 18 Outroad Conveyor Linear Guide
9 Front Inroad Conveyor 19 Rear Outroad Conveyor
10 Transport Mechanism
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
RAPID TRANSIT CONVEYOR (RTC) MODULE
OVERVIEW
22.2 Technical Reference Manual Chapter Issue 4, Aug 14
Figure 22-2 Rear View of RTC Rails
NOTE
Information given in this manual references a machine set up for left to right feed
direction. For machines designated right to left feed direction, contact ASM
Customer Support for assistance. Right to left feed machines are not a direct
mirror of the left to right machine the following exceptions relate:
1. In the circuit diagram, later in this chapter, Node 11 becomes Node 16.
2. In the circuit diagram, motor wiring designations are mirrored.
3. The motors are wired in the single direction mode, that is, left to right or right
to left; a machine wired for one direction cannot be wired for the opposite feed
direction.
Item Description Item Description
1 Transport Mechanism Drive Belt 8 Transport Mechanism Linear Guide
2 Pneumatic Rail Width Clamp (in 2 positions) 9 Outroad Vane
3 Rail Lifted Sensor 10 Board Stop Vane
4 Moving Rail Home Sensor 11 Inroad Vane Stepper Motor
5 Moving Rail Leadscrew (in 2 positions) 12 Transport Mechanism Home Vane
6 Transport Mechanism Home Sensor 13 Inroad Vane
7 Board at Right Sensor 14 Inroad Vane Lift Solenoid
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
RAPID TRANSIT CONVEYOR (RTC) MODULE
OVERVIEW
Chapter Issue 4, Aug 14 Technical Reference Manual 22.3
The rapid transit conveyor (RTC) is a programmable width conveyor system
which sets the rail width and transports boards through the machine using belts
and vanes. The system can accommodate up to three boards in the machine
at one time thereby reducing the machine cycle time.
The RTC system consists of three sections:
• Inroad Conveyor
•Print Station
• Outroad Conveyor
Using belts, Board 1 is transported to the end of the inroad conveyor where the
board is stopped by the board stop vane.
The inroad vane is raised and the vane stepper motor drives the inroad vane to
snug the board.
The transport mechanism moves the vanes placing the board in the centre of
the print station.
Board 1
Board Stop Vane
Inroad Conveyor
NOTE
1. Front rail removed for clarity.
2. Board direction Left to Right.
Vane Stepper Motor Board Stop VaneInroad Vane
Board 1
Board 1
Print Station
