BOARD SUPPORT TO OLING MODULE DEDICATED TOOLING SY STEM Chapter Issue 7, Jan 15 Technical Reference Manual 29.5 DEDICA TED TOOLING SYSTEM The dedicated tooling syst em is a 3-pi ece co nstruction comprising a plate assem…
BOARD SUPPORT TOOLING MODULE
VACUUM BOX TOOLING
29.4 Technical Reference Manual Chapter Issue 7, Jan 15
Figure 29-4 Vacuum Box Tooling Rapid Transit Conveyor
Nominal Board Length -4mm
2mm( overhang of board, each end)
290mm 375mmMinimum Maximum
Plan View of Vacuum Box
Nominal Board
Width -13.5mm
6mm(overhang rear
)and front7.5mm
36mm Vacuum Hole
Insert Magnetic Pins as Required
Front View of Vacuum Box
81mm
280mm
+0.00mm
-0.05mm
NOTE
2 Front Dowel Pins
( diameter)4mm
Left Hand Side View of Vacuum Box
29.5mm
NOTE
View showing board
positioned on Vacuum
Box
NOTE
A 12mm elbow and
a machined adaptor ring
is fitted
BOARD SUPPORT TOOLING MODULE
DEDICATED TOOLING SYSTEM
Chapter Issue 7, Jan 15 Technical Reference Manual 29.5
DEDICATED TOOLING SYSTEM
The dedicated tooling system is a 3-piece construction comprising a plate
assembly which locates on a tooling tower and magnetic support pins that
provide support under the plate assembly when accommodating wide boards.
The system is manufactured to provide board support at the standard tooling
height of 81mm. The plate assembly can be specifically machined to accom-
modate underside components on customers products.
The tooling tower has dowel pin registration and is held in position on the
manual tooling plate by two magnetic clamps located in the vacuum chamber
of the tooling tower. Additional board support can be utilized with the optional
vacuum facility.

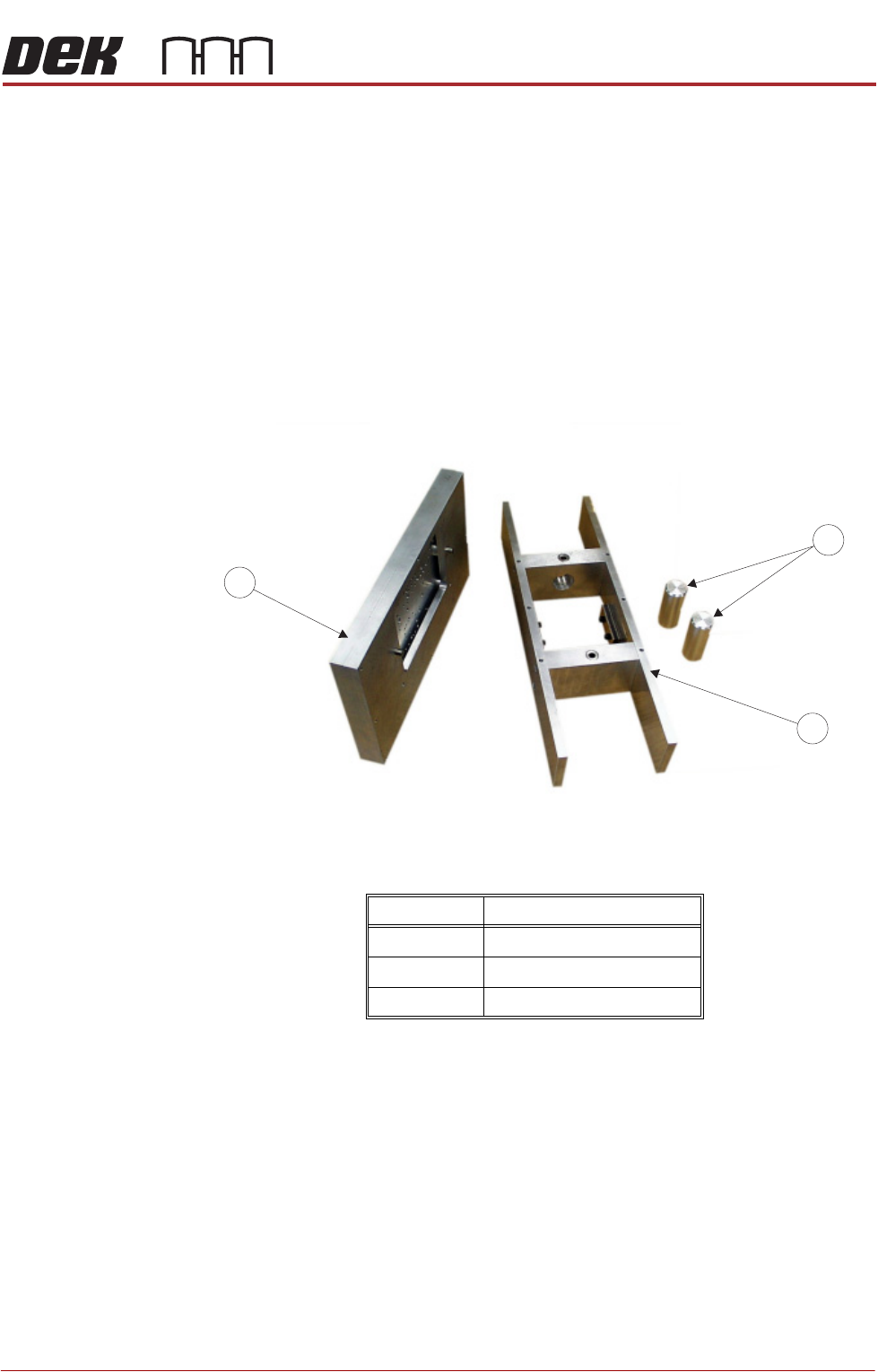

Figure 29-5 Dedicated Tooling System
Item Description
1 Plate Assembly
2 Tooling Tower
3 Magnetic Tooling Pins
1
3
2
BOARD SUPPORT TOOLING MODULE
PROFLOW STENCIL SUPPORT
29.6 Technical Reference Manual Chapter Issue 7, Jan 15
PROFLOW STENCIL SUPPORT
The ProFlow Stencil Support unit provides stencil support when printing with
ProFlow and helps to avoid smearing paste onto the top of the stencil.
These are used mainly when printing boards that are narrower than the ProFlow
transfer head (300mm minimum).
The ProFlow Stencil Support is compatible with all tooling options. The stand-
ard height (when the adjustable tooling top is in the closed position) is 81mm.

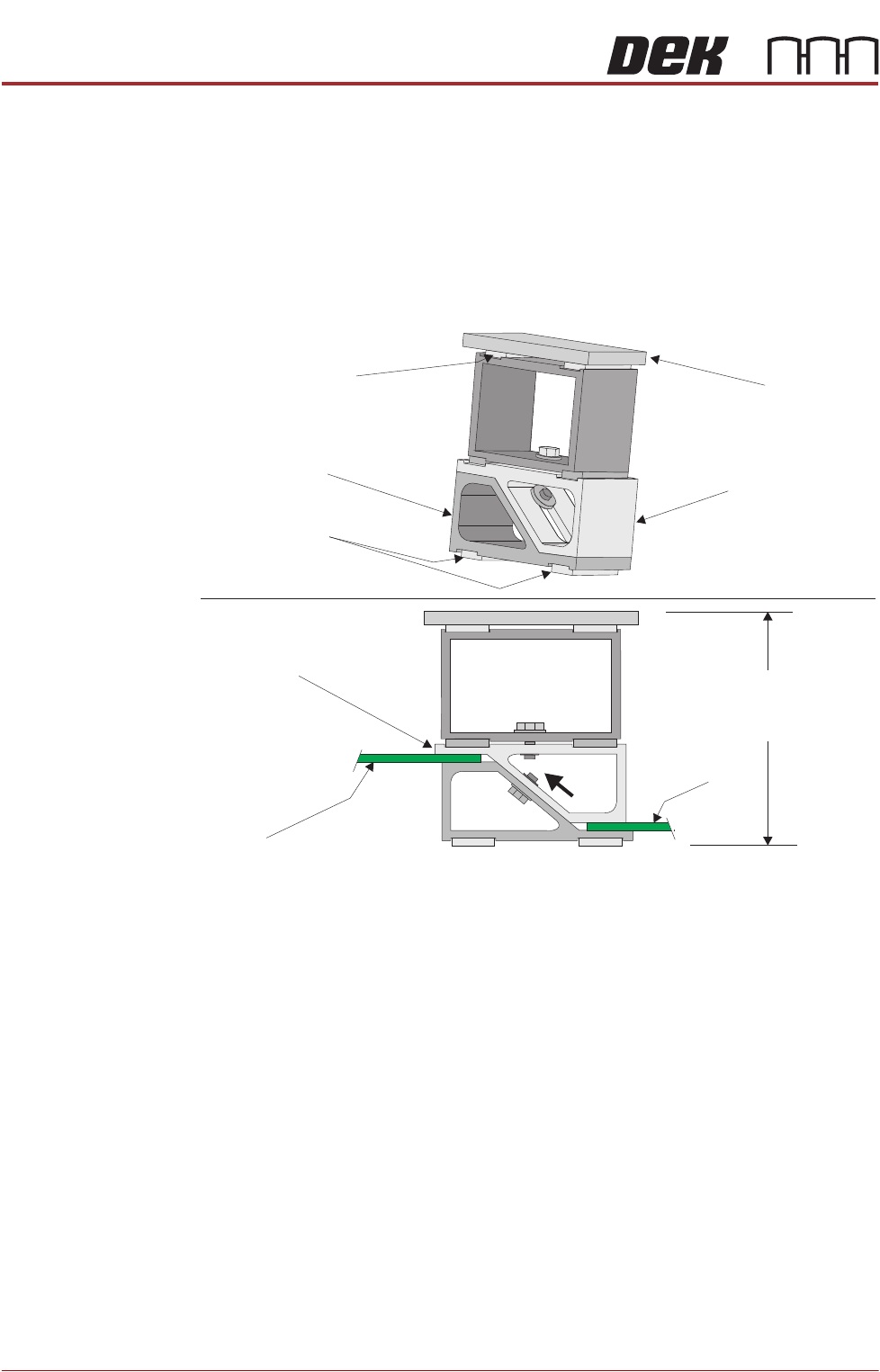

Figure 29-6 ProFlow Stencil Support
Changeable Gauge
Plate
The Changeable Gauge Plate, standard thickness 3/16" (4.77mm), may be
changed in order to support larger stencil areas. These are easily removed and
held in position by fixed magnetic supports.
Tooling Bottom The Tooling Bottom is the fixed base for the stencil support with magnetic feet
attached for easy position on the tooling table.
Adjustable Tooling
Top
The Adjustable Tooling Top can be moved by releasing the 7mm hexagonal nut
securing it to the tooling bottom. The unit can be slid upwards, raising the height
of the support unit, to the desired height.
Changeable
Gauge Plate
Tooling Bottom
Magnetic Feet
Magnetic Support
(2 positions)
Adjustable Tooling
Top
Board
Adjustable
Tooling Top
Board
Stencil Support
Height (81mm +
PCB Thickness)
