FOREIGN MACHINE INTERFACE MULTI-INTERFACE UNIT Chapter Issue 5, Aug 14 Technical Reference Manual 33.17 Protocol Selection The MIU stores pre programmed protocols for communications with the most common manufacturers of …
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
33.16 Technical Reference Manual Chapter Issue 5, Aug 14
M1SK01 & M1SK02
Pin No. Function Pin No. Function
1 O/P 04a - Solid State Relay 26 I/P 03 - Opto Isolated
2 O/P 04b - Solid State Relay 27 NC
3 O/P 03a - Solid State Relay 28 NC
4 O/P 03b - Solid State Relay 29 O/P 02 - Lowside Driver
5 Links Pin 5 of M1SK01 & M1SK02 30 NC
6 Links Pin 6 of M1SK01 & M1SK02 31 NC
7NC 32+24V US
8 NC 33 +24V SW
9 I/P 04 - Opto Isolated 34 O/P 02a - Solid State Relay
10 I/P 02 - Opto Isolated 35 O/P 02b - Solid State Relay
11 NC 36 O/P 01a - Solid State Relay
12 O/P 04 - Lowside Driver 37 O/P 01b - Solid State Relay
13 O/P 03 - Lowside Driver 38 Links Pin 38 of M1SK01 & M1SK02
14 NC 39 NC
15 +24V US 40 NC
16 +24V SW 41 I/P +V for Optos 01 & 02
17 0V 42 I/P 01 - Opto Isolated
18 Links Pin 18 of M1SK01 & M1SK02 43 NC
19 Links Pin 19 of M1SK01 & M1SK02 44 NC
20 Links Pin 20 of M1SK01 & M1SK02 45 O/P 01 - Lowside Driver
21 Links Pin 21 of M1SK01 & M1SK02 46 NC
22 Links Pin 22 of M1SK01 & M1SK02 47 NC
23 NC 48 +12V
24 NC 49 +12V
25 I/P +V for Optos 03 & 04 50 0V
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 5, Aug 14 Technical Reference Manual 33.17
Protocol Selection The MIU stores pre programmed protocols for communications with the most
common manufacturers of board handlers. Provision has been made for
extending the list of available types to 16.
The upline and downline protocols are selected using the Protocol Selection
switches on the MIU, Protocol Selection section refers. The upline and down-
line selectors are independent of each other allowing the upline and downline
machines to be of different protocols.
Internal links are provided between the upline connector (M1SK01) and the
downline connector (M1SK02) which may be used if communication is required
to by-pass the DEK machine.

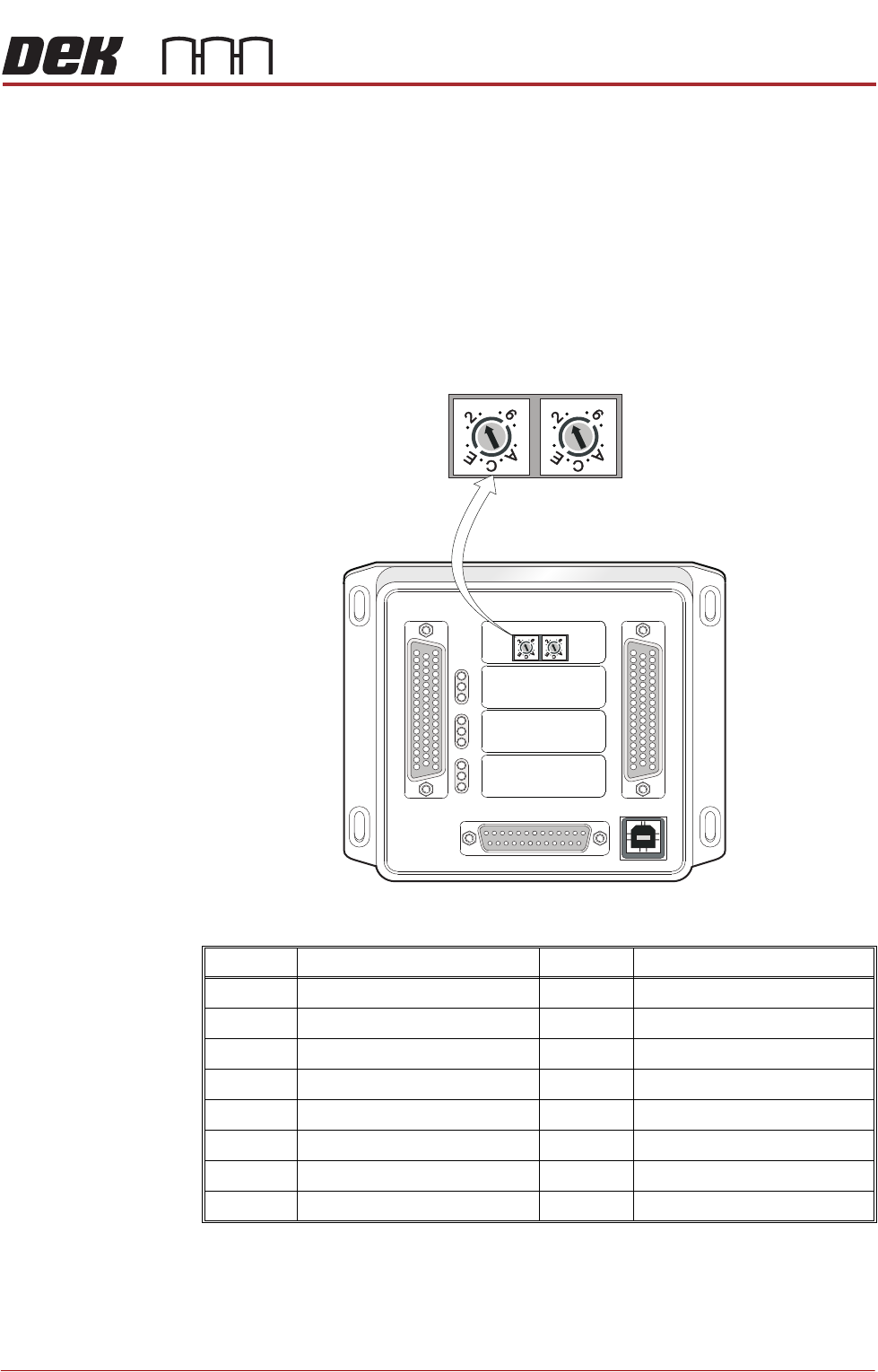

Figure 33-16 Interface Selector Switches
M1SK1
UPLINE
M1SK2
DOWNLINE
M1PL3
DEK M/C
M1SK4
DEK USB
+12V
+24V
+24V SW
SEND UPLINE
SEND DOWNLINE
CONTROLIN
UPLINE READY
DOWNLINE READY
CONTROL OUT
POWER
I/P'S
O/P'S
PROTOCOL SELECTION
UP
LINE
DOWN
LINE
MIU 191114
4
80
4
80
4
80
4
80
Upline Interface
Selector Switch (SW2)
Downline Interface
Selector Switch (SW3)
Position Interface Type Position Interface Type
0 Not used 8 Sanyo
1 Not used 9 Not used
2 SMEMA A SMEMA 2
3 Siemens B Reserved
4SMPI CTBA
5TDK DTBA
6 Not used E TBA
7 Fuji / Panasonic F Hardware Self Test Function
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
33.18 Technical Reference Manual Chapter Issue 5, Aug 14
Interface Cable Part Numbers
Protocol / Direction GA Number BOM Number
SMEMA Upline 131342 131343
SMEMA Downline 131344 131345
Siemens Upline 131334 131335
Siemens Downline 131336 131337
SMPI Upline 131330 131331
SMPI Downline 131332 131333
TDK Upline 131322 131323
TDK Downline 131324 131325
Fuji Upline 126405 126757
Fuji Downline 126406 126758
Panasonic Upline 131338 131339
Panasonic Downline 131340 131341
Sanyo Upline 142505 146120
Sanyo Downline 142504 146119
