FOREIGN MACHINE INTERFACE MULTI-INTERFACE UNIT Chapter Issue 5, Aug 14 Technical Reference Manual 33.19 SMEMA Interface Figure 33-17 SMEMA Upline Interface Cable B PLB A PLA DEK Machine 50 W ay D-type View on Arrow A 33 …
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
33.18 Technical Reference Manual Chapter Issue 5, Aug 14
Interface Cable Part Numbers
Protocol / Direction GA Number BOM Number
SMEMA Upline 131342 131343
SMEMA Downline 131344 131345
Siemens Upline 131334 131335
Siemens Downline 131336 131337
SMPI Upline 131330 131331
SMPI Downline 131332 131333
TDK Upline 131322 131323
TDK Downline 131324 131325
Fuji Upline 126405 126757
Fuji Downline 126406 126758
Panasonic Upline 131338 131339
Panasonic Downline 131340 131341
Sanyo Upline 142505 146120
Sanyo Downline 142504 146119
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 5, Aug 14 Technical Reference Manual 33.19
SMEMA Interface

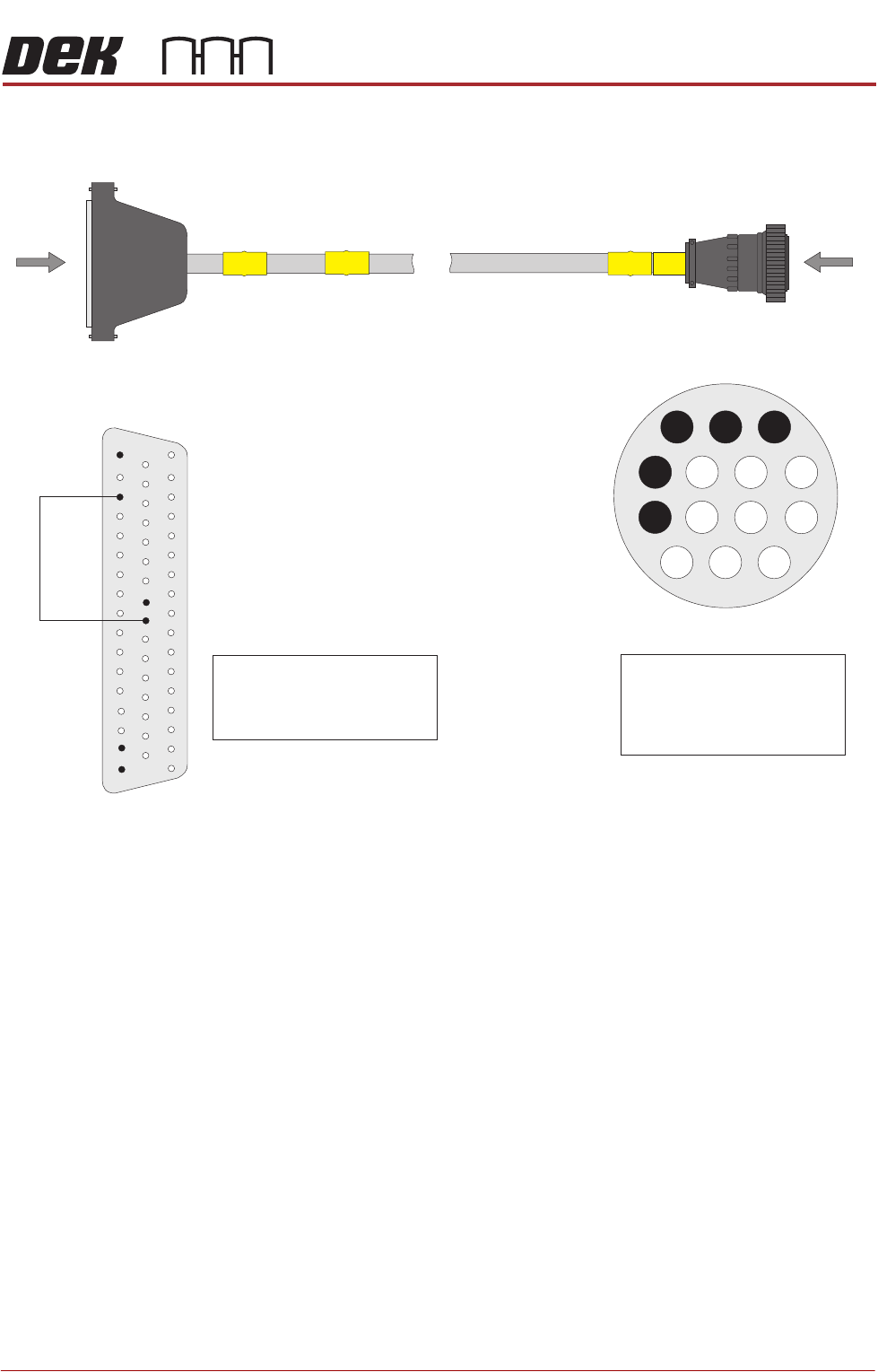

Figure 33-17 SMEMA Upline Interface Cable
B
PLB
A
PLA
DEK Machine
50 Way D-type
View on Arrow A
33
25
26
15
2
50
1
18
34
17
View on Arrow B
1
2
3
4
8
Pin 1 - Machine Ready (H)
Pin 2 - Machine Ready (L)
Pin 3 - Board Available (H)
Pin 4 - Board Available (L)
Pin 8 - Shield
Pin 1 - Machine Ready (H)
Pin 2 - Machine Ready (L)
Pin 17 - Board Available (L)
Pin 26 - Board Available (H)
SMEMA Upline Plug
AMP 206044-1
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
33.20 Technical Reference Manual Chapter Issue 5, Aug 14

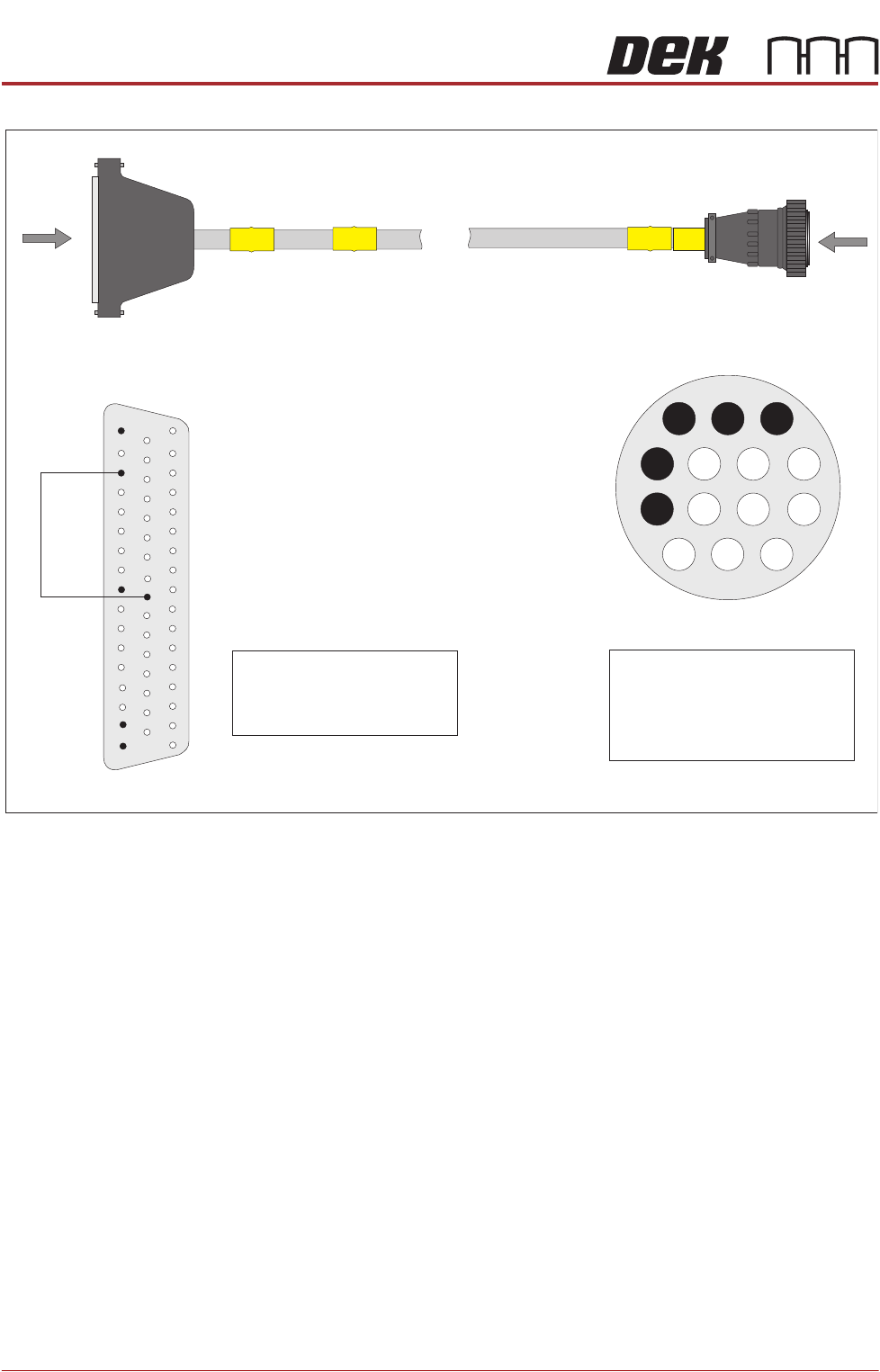

Figure 33-18 SMEMA Downline Interface Cable
B
PLB
SMEMA Downline Plug
AMP 206044-1
A
PLA
DEK Machine
50 Way D-type
View on Arrow B
1
3
2
8
4
Pin 1 - Machine Ready (H)
Pin 4 - Board Available (H)
Pin 8 - Shield
Pin 2 - Machine Ready (L)
Pin 3 - Board Available (L)
View on Arrow A
33
25
9
15
2
50
1
18
34
17
Pin 1 - Machine Ready (L)
Pin 9 - Board Available (H)
Pin 2 - Machine Ready (H)
Pin 17 - Board Available (L)
