FOREIGN MACHINE INTERFAC E MULTI-INTERFACE UNIT 33.40 Technical Reference Manual Chapter Issue 5, Aug 14 Figure 33-38 Sanyo Upline Logical T iming Diagram Upline M/C (I/P to DEK M/C) Run Signal DEK M/C (O/P from DEK M/C)…

100%1 / 276
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 5, Aug 14 Technical Reference Manual 33.39
Figure 33-37 Sanyo Downline Interface Cable
B
Sanyo Downline Plug
PLB
A
PLA
DEK Machine
50 Way D-type
View on Arrow B
Pin 1 - Run Signal
Pin 2 - PCB Requirement Signal
Pin 3 - Input Machine Run Signa
Pin 4 - Input Machine PCB
Transfer Signal
Pin 5 - Input Machine Ready Signal
Pin 8 - VLED In (+24V)
Pin 9 - VLED Out (+24V)
Pin 10 - GND
1
2
3
4
7
8
9
10
5
6
Pin 3 - Input Machine Ready Signal
Pin 10 - Run Signal
Pin 15 - VLED Out (+24V)
Pin 26 - Ready Signal
Pin 34 - Input Machine PCB
Transfer Signal
Pin 36 - Input Machine Run Signal
Pin 41 - VLED In (+24V)
Pin 42 - PCB Requirementr Signal
View on Arrow A
3
10
42
41
50
1
18
34
35
36
37
17
15
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
33.40 Technical Reference Manual Chapter Issue 5, Aug 14
Figure 33-38 Sanyo Upline Logical Timing Diagram
Upline M/C
(I/P to DEK M/C)
Run Signal
DEK M/C
(O/P from DEK M/C)
O/P M/C
Run Signal
DEK M/C
(O/P from DEK M/C)
O/P M/C PCB
Requirement Signal
Upline M/C
(I/P to DEK M/C)
Ready Signal
Upline M/C
(I/P to DEK M/C)
PCB Transfer
Signal
DEK M/C Belts Running
DEK M/C Input Sensor
DEK M/C Board At Stop Sensor
DEK M/C
Ready
Board At Stop
Transfer Complete
< Transfer Period
Belt Overrun
< Transfer Period
A
B
- Board Trailing Edge at Sensor
- Board Leading Edge at Sensor
A
B
NOTES
This signal informs the printer that the upline machine is in automatic operation. When
this signal is off, the printer stops after completing the current board.
Run Signal
OM/P /C
Run Signal
Ready Signal
OM/P /C
PCB Requirement
Signal
PCB Transfer
Signal
This signal shows that the upline machine is transferring a board. Upon receipt of this
signal the printer starts the belts to take in the board.
This signal informs the upline machine that the printer is ready to receive a board. A
board transfer is only possible when this signal is on.
This signal shows that the upline machine is ready to start processing a board.
This signal informs the upline machine that the printer is in automatic operation, ie
initialized.
Signal Name Definition
FOREIGN MACHINE INTERFACE
MULTI-INTERFACE UNIT
Chapter Issue 5, Aug 14 Technical Reference Manual 33.41

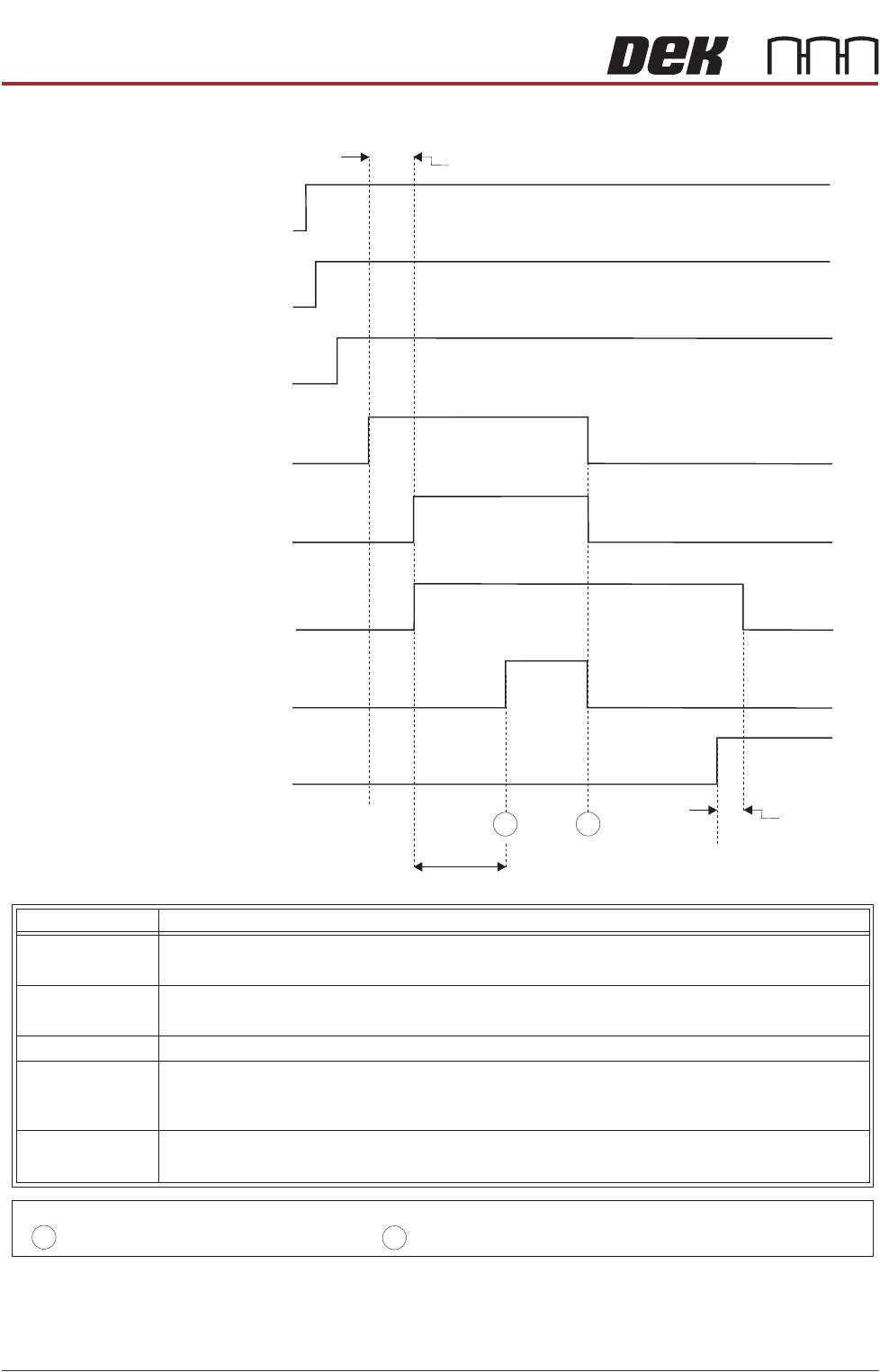

Figure 33-39 Sanyo Downline Logical Timing Diagram
Downline M/C
(I/P to DEK M/C)
Downline M/C
(I/P to DEK M/C)
I/P M/C
Run Signal
DEK M/C
(O/P from DEK M/C)
DEK M/C
(O/P from DEK M/C)
DEK M/C
(O/P from DEK M/C)
Run Signal
PCB Requirement
Signal
I/P M/C
Ready Signal
I/P M/C PCB
Transfer Signal
- Board Trailing Edge at Sensor
- Board Leading Edge at Sensor
A
B
NOTES
DEK M/C Belts Running
DEK M/C Output Sensor
< Transfer Period
< Transfer Period
A
B
This signal informs the downline machine that the printer is in automatic operation, ie
initialized. When this signal is off, the downline machine stops after completing the
current board.
IM/P /C
Run Signal
Run Signal
IM/P /C
Ready Signal
PCB Requirement
Signal
IM/P /C
PCB Transfer
Signal
This signal shows that the printer is transferring a board. Upon receipt of this signal
the downline machine starts the belts to take in the board.
This signal informs the printer that the downline is ready to receive a board. A board
transfer is only possible when this signal is on.
This signal shows that the printer is ready to start processing a board.
This signal informs the printer that the downline machine is in automatic operation.
Signal Name Definition
