PNEUMATIC MODULE
OVERVIEW
Chapter Issue 7, Aug 14 Technical Reference Manual 35.1
CHAPTER 35 PNEUMATIC MODULE
OVERVIEW
NOTE
The Pneumatic Module is located at the front of Type 4 printers and accessed
by removing the front panel.

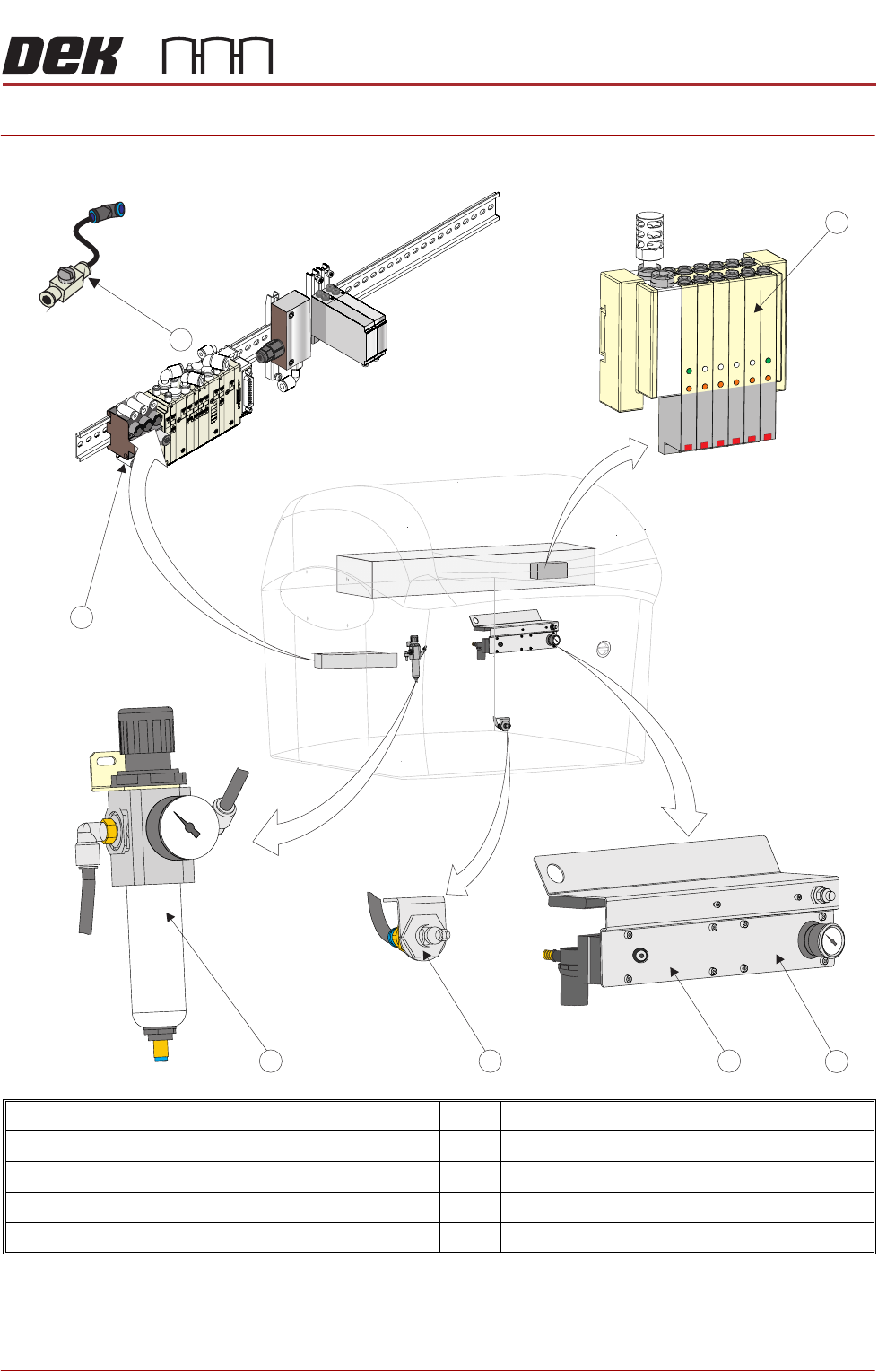

Item Description Item Description
1 Print Carriage Solenoids 5 Filter, Regulator, Sensor and Gauge Assembly
2 Venturi Vacuum Pump (Vacuum Tooling) 6 Printer Rear Solenoids
3 VF10 Venturi Vacuum Filtration Unit 7 Isolator Switch Valve
4 External Connection
6
5 4 3
2
1
7
PNEUMATIC MODULE
OVERVIEW
35.2 Technical Reference Manual Chapter Issue 7, Aug 14
WARNING
COMPRESSED AIR. COMPRESSED AIR SHOULD NEVER IMPINGE UPON THE
BODY. PORTS, PIPES, ETC MUST NEVER BE BLOCKED BY HAND. BEFORE
CONNECTING OR DISCONNECTING ANY PNEUMATIC COMPONENTS, ENSURE
THE COMPRESSED AIR SUPPLY HAS BEEN DISSIPATED AND DISCONNECTED
FROM THE MACHINE.
The mains air supply to the DEK printer should be between 5 bar and 8 bar.
The air should be to quality class 2.3.3, where:
2 (dirt) = 1 micron or less
3 (water) = -20°C pressure dew point
3 (oil) = 1mg/m3 or less
The mains air supply is filtered and regulated to 0.5MPa (5 bar) before being
sensed by the air pressure switch, which is set at 0.3MPa (3 bar) The com-
pressed air input is applied to the following:
• Printer Rear Solenoids
• Print Carriage Solenoids
• High Throughput Conveyors (HTC)
• Vacuum Tooling
• Grid-Lok Tooling
• Air Ionizer
The electrically activated solenoid valves provide pneumatic power through
several types of air cylinder.
Printer Rear
Solenoids
The number of solenoids varies from printer to printer depending on which
options are fitted to the printer. The solenoids are labelled with the solenoid
number for identification.
Solenoid Number Function
16SOL22 Rail Board Stop
16SOL14 Camera/Remote Board Stop
Rail Width Clamp (RTC Printer)
16SOL10 Board Clamps
16SOL08 Understencil Cleaner Squeegee Bar
16SOL07 Screen Clamps
16SOL31B Chase Clamps
16SOL31A Lid Bolt
16SOL03 Inroad Vane Lift (RTC Printer)
PNEUMATIC MODULE
OVERVIEW
Chapter Issue 7, Aug 14 Technical Reference Manual 35.3
Print Carriage
Solenoids
The number of solenoids varies from printer to printer depending on which
options are fitted to the printer. The electrical connections to the solenoids are
labelled with the solenoid number for identification.
Solenoid Number Function
9SOL29 Screen Load
9SOL28 Auto Drip Tray
9SOL27 Paste Dispenser Tilt
9SOL26 Paste Dispenser
9SOL25 ProFlow Paste
