Head Module 4-9 NO. LEVEL P ART NO. P ART NAME Q’TY TYPE Old No. Stock Apply Reference 124 J671 1 1068A BARB_FITTING 1 M-3ALU-4 125 J90833026A Z, R HOME SENSOR CABLE ASSY 1 SM431_HD009 126 J90832963A EL_HOME_SENSOR_CABLE…
Samsung Component Placer SM431 Service Manual
4-8
NO. LEVEL
PART NO. PART NAME Q’TY
TYPE Old No.
Stock
Apply Reference
93 J71551343A FLAT_TUBE_CLAMP 1
94 J70551456A FLAT_CABLE_CLAMP_1 1
95 J70551457A FLAT_CABLE_CLAMP_2 1
96 J31081030A SERVO_MOTOR 1
97 J67081010A ATMOSPHERIC_FILTER 1
98 J90551228A Z_BALL_SPLINE_ASSY_M 1
99 J66021088A TIMING_BELT 1
100 J67111068A BARB_FITTING 1
101 J7155541A PIN_Z 1
102 J7455026A SPRING BUSH 2
103 J70551452A Z_SPACER 1
104 J70551422A TENSION_SPRING 1
105 J71591093A SPACER1_M 1
106 J90591053A FLYING_LENS_ASSY_M 1
107 J67511010A CCD_MEGA_CAMERA 1
108 J71591088A MOUNT_M 1
109 J90551236A SM431_HEAD_PNEUMATIC_MODULE_ASSY 1
110 J91741192A VACUUM_SENSOR_BOARD 1
111 J66071066A LM_GUIDE 8 SEBS5BYUU1_86P
112 J66111001A Z_BALL_SPLINE_ASSY 1 WSP5-H125CM/A
113 J91741188A SM431_HEAD_IF_BOARD 1
114 J90551232A SM431_MOVING_HEAD_ASSY 1
115 J67111068A BARB_FITTING 1 M-3ALU-4
116 J91661028A FLYING_OUTER_PCB_A_ASSY 1
117 J90551235A SM431_FLYING_ILLUMINATION_ASSY 1
118 J91661029A FLYING_OUTER_PCB_B_ASSY 1
119 J66061027A BALL_SCREW 1 W1000P_3SS_C5T510
120 J61071081A TENSION-SPRING 2 AWU6-35
121 J91741193A MEGA_CAMERA_IO_BOARD 1 J91741193A
122 J90833075A FLY_CAM_SIG_EXT_CABLE_ASSY 1 SM431-VIS003
123 J67131004A AIR_TUBE 4.2
TU0425C
Head Module
4-9
NO. LEVEL
PART NO. PART NAME Q’TY
TYPE Old No.
Stock
Apply Reference
124 J67111068A BARB_FITTING 1 M-3ALU-4
125 J90833026A Z, R HOME SENSOR CABLE ASSY 1 SM431_HD009
126 J90832963A EL_HOME_SENSOR_CABLE_ASSY 1 SM431_HD003
127 J66071067A LM_GUIDE 2 SEBS7BYUU2_150P/W2
128 J6719025A HEAD_PULLS 1
129 J91741188A SM431_HEAD_IF_BOARD 1
130 J71551356A B_SOL_BKT 1
131 J73541014A FLAT_CABLE_PAD 1
132 J73541011A X_CABLE_CUSHION 1
133 J70541289A X_CABLE_FIX_BKT 1
134 J70541282A CABLE_FIX_COVER 1
135 J70541281A CABLE_FIX_BKT 1
136 J70541280A PCB_BASE_RIGHT 1
137 J70541279A PCB_BASE_LEFT 1
138 J70541278A GREASE_BKT_RIGHT 1
139 J70541277A GREASE_BKT_LEFT 1
140 J70541276A HEAD_MAIN_FRAME 1
141 J70541275A HEAD_REAR_COVER 1
142 J70541273A CONNECTOR_BKT 1
143 J70541264A X_CABLE_CUSHION_BKT 1
144 J6702037A VALVE SOLENOID 4 WAY, 24VAC.ALU 1 44B-BAA-GDFC-1BA
145 J6702049A SOLENOID VALVE 1 RCS242-M3-D24NP
146 J72601002A FLYING_OUTER_INSULATION 2
147 J72601003A FLYING_COAXIAL_INSULATION 1
148 J66011110A MINATURE_BEARING 1 MF104BZZ
Samsung Component Placer SM431 Service Manual
4-10
4.2. Flying Vision (Camera Board Cover Ass’y)
4.2.1. Camera Board Cover Ass’y 更换代表性实例
由于头部冲击, Camera Board被损坏时
Fly-Camera 影像输出出现异常时
为了安装微小部件，更换成其他FOV或者高像素照相机时
4.2.2. 必要工具
T Wrench (其他提供工具) or Hex Wrench
4.2.3. Camera Board Cover Ass’y 更换步骤
1. 操作示教框把Head Assembly最大限度地往两边移动。
2. 请正常关闭PC后，关闭设备前面的Main Switch。

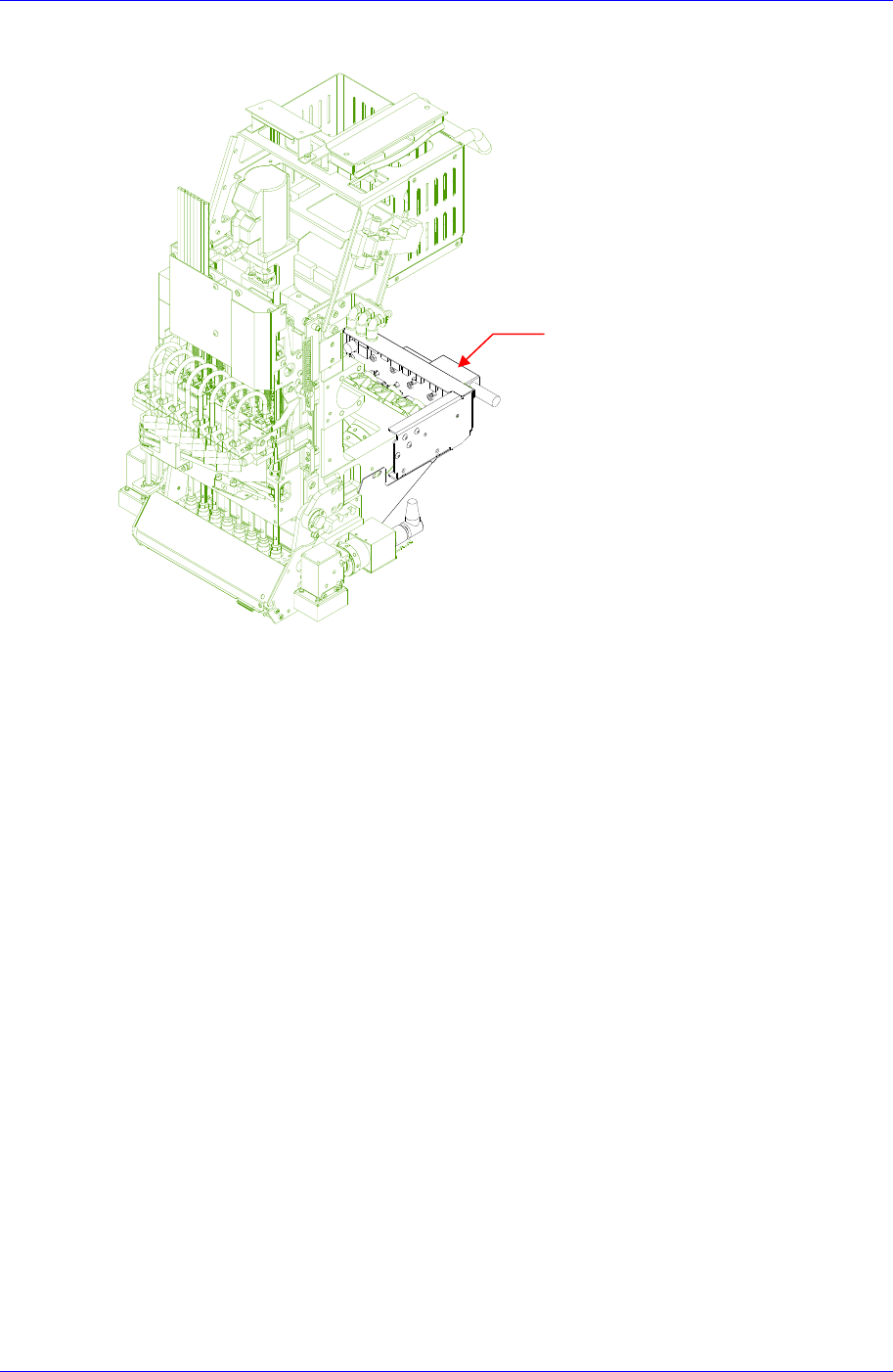

Flying Vision
Camera Cover-Board Ass’y
