Samsung Component Placer SM431 Service Manual 5-6 5.1.6. Conveyor Ass’y (6/6)

Conveyor & BUT

5-5

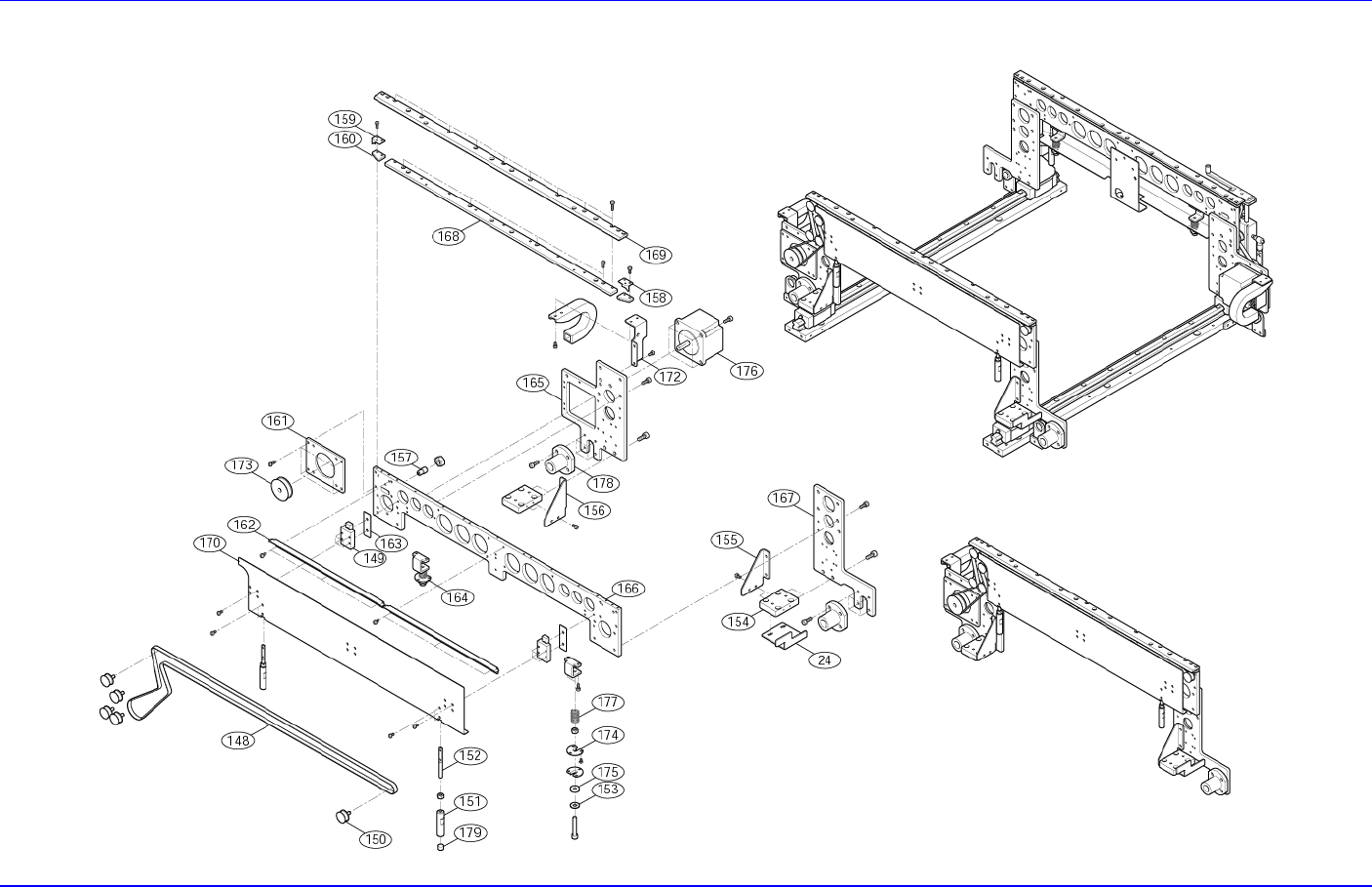

5.1.5. Conveyor Ass’y (5/6)

Samsung Component Placer SM431 Service Manual

5-6

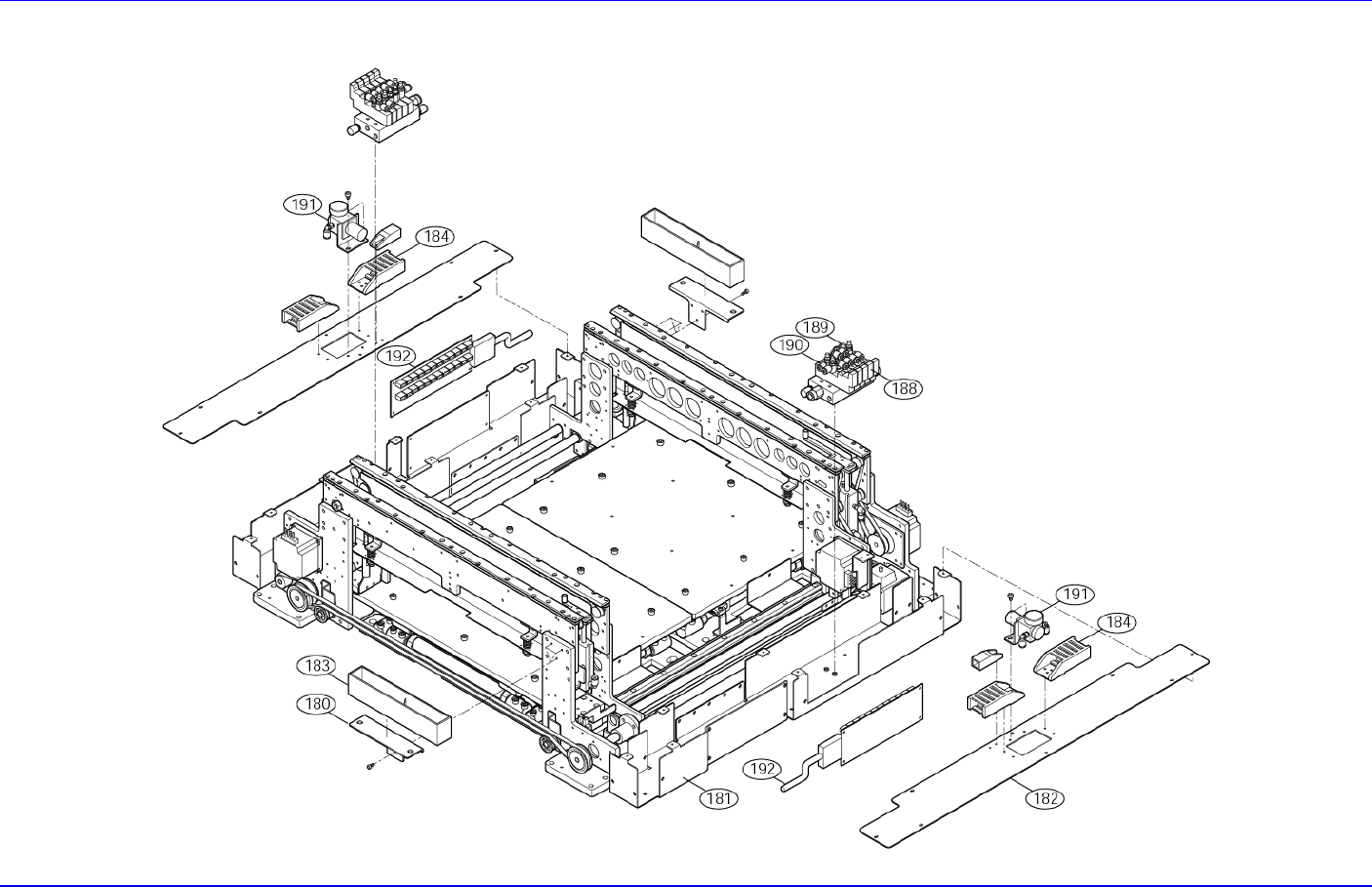

5.1.6. Conveyor Ass’y (6/6)

Conveyor & BUT

5-7

NO. LEVEL

PART NO. PART NAME Q'TY

TYPE Old No. Stock

Apply Reference

A-1 J90531211A SM431_LR_CONVEYOR_ASSY 1

1 J31081004A MOTOR-PBM423DXC24-SANYO 1

PBM423DXC24

2 J32111003A PHOTO_SENSOR 1

3 J3212002A SENSOR-EE-SX670A 1

EE-SX670A

4 J3212004A SENSOR-EE-SX672A 1

EE-SX672A

5 J66061005A CYLINDER 1

6 J66071075A LM_GUIDE 2

SBG15SL-2-K1-750L-N-SBC

7 J66191024A IDLER_BEARING 5

8 J70531380A LM_BLOCK_PLATE 2

9 J70531381A SHUTTLE_FRAME_RIB_L 1

10 J70531382A SHUTTLE_FRAME_RIB_R 1

11 J70531407A SHUTTLE_WIDTH_FRAME 1

12 J70531384A SHUTTLE_BELT_FIX_PLATE 1

13 J70531385A BELT_TENSION_SCREW 1

14 J70531386A PCB_GUIDE_EDGE_05T_L 2

15 J70531387A PCB_GUIDE_EDGE_05T_R 2

16 J70531388A SHUTTLE_BELT_UNDER_GUIDE 4

17 J70531389A PCB_GUIDE_EDGE_3_2T 4

18 J70531390A SHUTTLE_PULLEY_BASE 1

19 J70531391A SHUTTLE_PCB_SENSOR_BKT2 1

20 J70531392A SHUTTLE_PULLEY_SHAFT 1

21 J70531393A CABLE_VEYOR_BKT2 1

22 J70531394A CABLE_VEYOR_BKT1 1

23 J70531395A SHUTTLE_PCB_GUIDE_3_2T 1

24 J70531396A SHUTTLE_BELT_FIX_BKT 1

25 J70531397A SHUTTLE_CYLINDER_BKT 1

26 J70531399A SHUTTLE_PCB_SENSOR_BKT1 1

27 J70531402A SHUTTLE_HOME_SENSOR_BKT 1

28 J70531403A SHUTTLE_HOME_SENSOR_DOG 1

29 J70531404A MOVING_IDLER_SHAFT 2

30 J70531405A SHUTTLE_MOVING_MOTOR_BKT 1
