Feeder Base & ANC 7-15 NO. LEVEL P ART NO. P ART NAME Q'TY TYPE Old No. Stock Apply Reference A-1 J90561021A SM431_ANC_ASSY 1 J90561021A 1 J70561096A ANC_COVER 1 2 J6703031A SPEED CONTROLLER 1 AS121 1F-M5-04 3 J…

Samsung Component Placer SM431 Service Manual

7-14

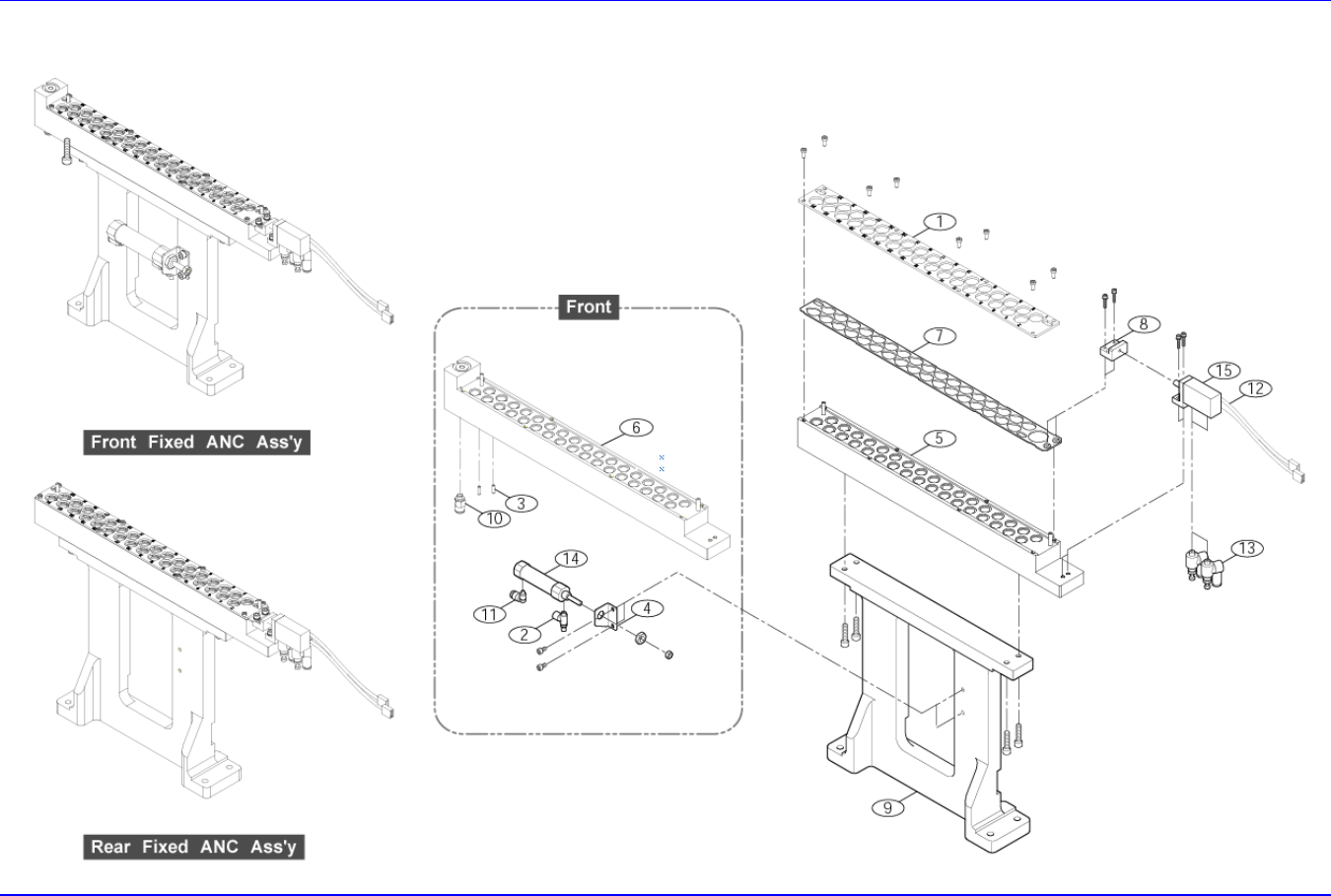

7.3. Fixed ANC Ass’y 所需材料

Feeder Base & ANC

7-15

NO. LEVEL

PART NO. PART NAME Q'TY

TYPE Old No. Stock

Apply

Reference

A-1 J90561021A SM431_ANC_ASSY 1 J90561021A

1 J70561096A ANC_COVER 1

2 J6703031A SPEED CONTROLLER 1 AS1211F-M5-04

3 J6061200836 DOWEL_PIN 2 DIA2*8

4 J70561001A CYLINDER_BRACKET 1

5 J70561101A ANC_MAIN_BODY_REAR 1

6 J70561099A ANC_MAIN_BODY_FRONT 1

7 J70561100A ANC_NOZZLE_SHUTTER 1

8 J7156043B SHUTTER BRACKET 1

9 J71561004A ANC_SUPPORT 1

10 J6711147A STRAIGHT FITTING 1 KQ2H04-M5

11 J1301188 ELBOW FITTING 1 KQ2L04-M5

12 J90833136A ANC_SENSOR_CABLE_ASSY 1 SM431_CV007-1

13 J6703028A SPEED CONTROLLER 2 SS4-M5MA

14 J67011016B AIR_CYLINDER 1 TCP1B16-30

15 J6701029A AIR CYLINDER 1 BDAS6*5-1A-ZC153A2

Samsung Component Placer SM431 Service Manual

7-16

7.4. ANC Module

7.4.1. ANC Module 代表替换事例

 因碰撞等原因ANC无法正常工作时

7.4.2. 必要工具

 Dial Gage (最小标度 1 0)

 T Wrench (其他提供工具) or Hex Wrench

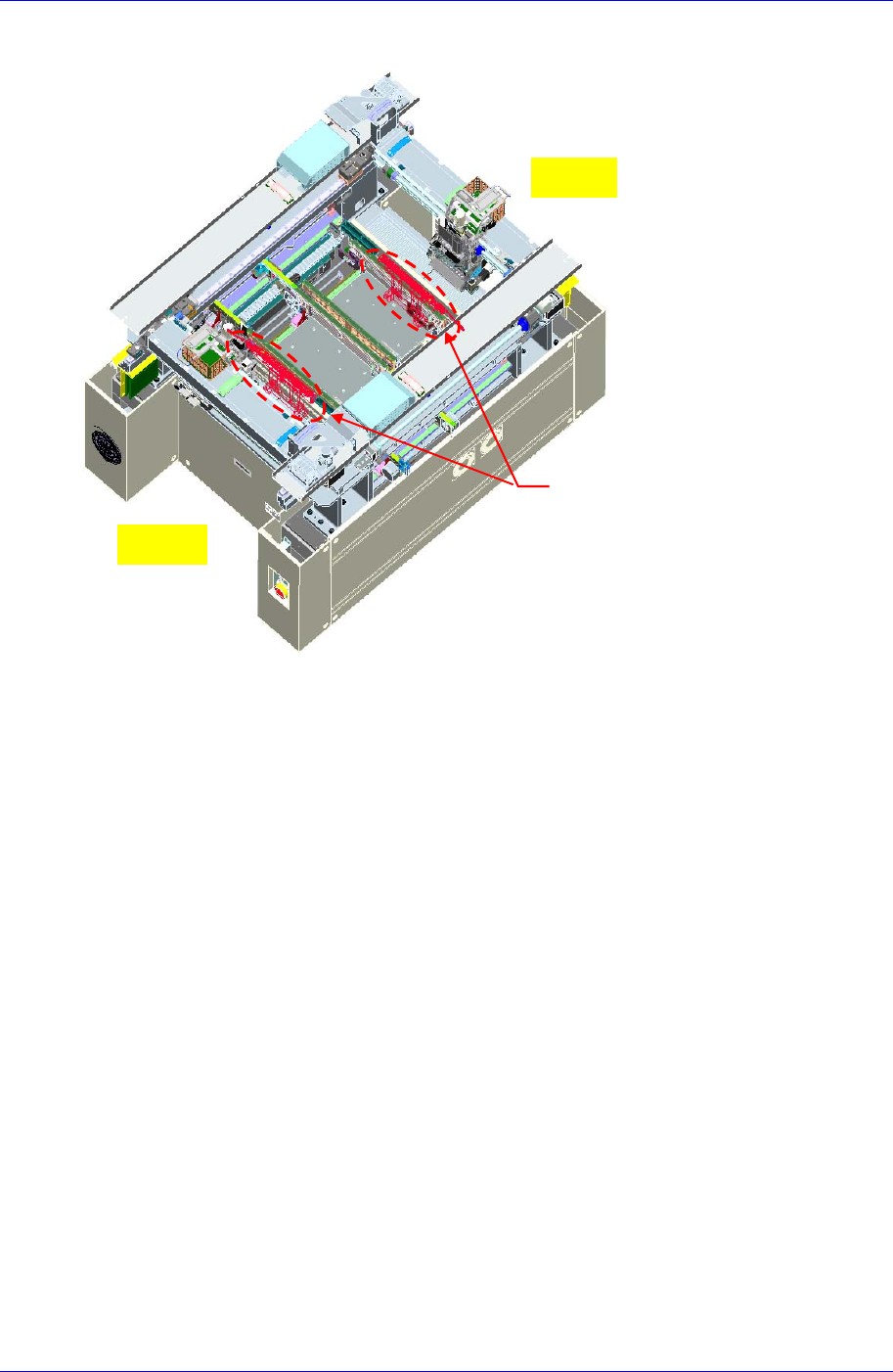

Front/ Rear ANC

Front

Rear
