Air Ass’y 9-5 9.1.5. Air Ass’y (5/5) HARNESS ASSY J90832949A HEAD AIR SOL PWR CABLE ASSY J67110119B KQ2U04-06 U2_4-6*4(Black) J90551236A HEAD PNEUMATIC MOD ULE ASSY J67110104B KQ2H04-00 J67111140A KQ2L10-01S 3-J6712008A …
Samsung Component Placer SM431 Service Manual
9-4

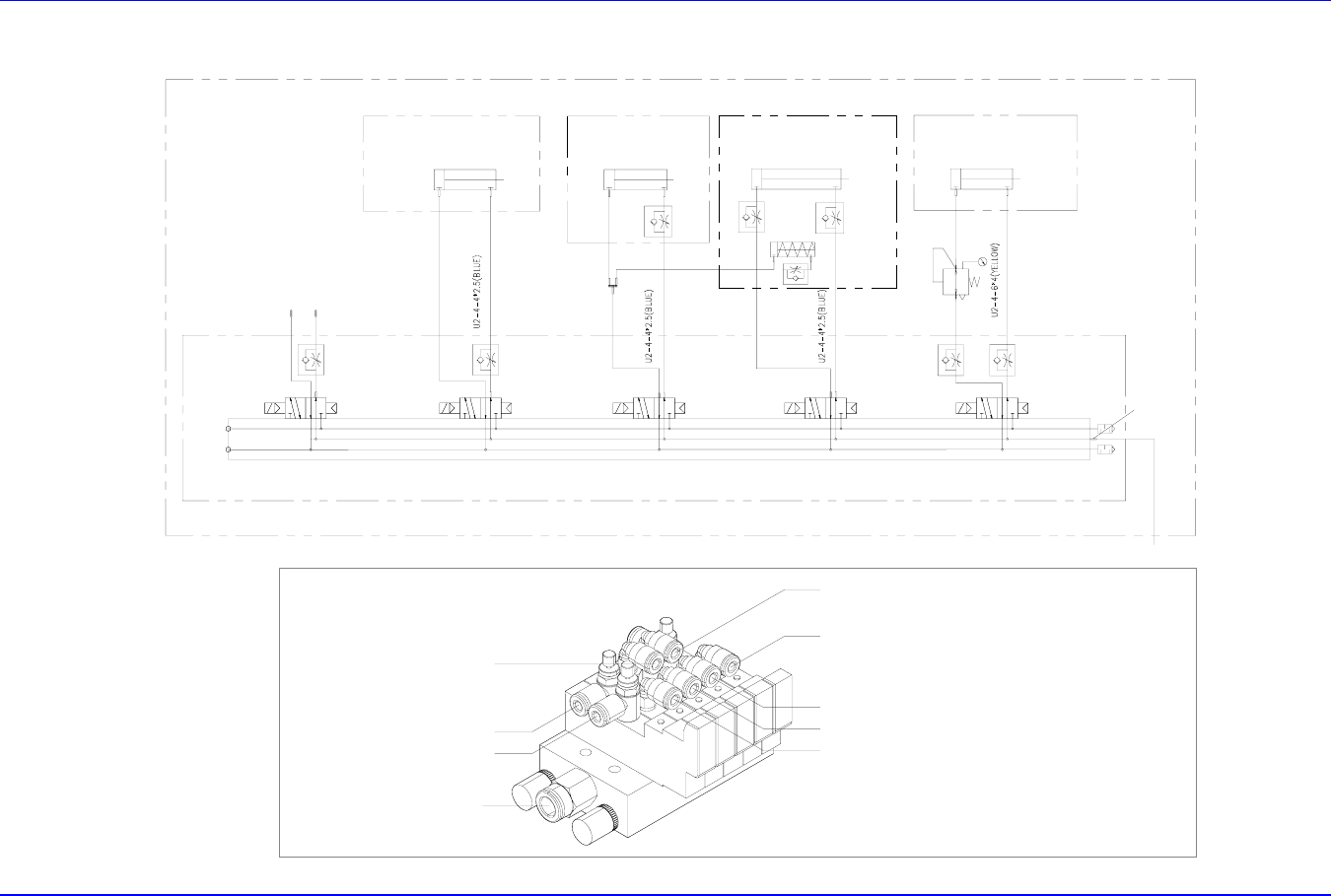

9.1.4. Air Ass’y (4/5)
C
BUT Cylinder (Push-Operated)
BUT Cylinder (Pull-Ready)
Conveyor PCB Stopper Cylinder (Push-Operated)
Conveyor Edge Fixer Cylinder (Push-Operated)
ANC Shutter Cylinder (Push-Closed)
Conveyor Edge Fixer Regulator
SM411_MANIFOLD
ANC Shutter Cylinder (Push-Open)
Conveyor PCB Stopper Cylinder (Pull-Ready)
Air Ass’y
9-5

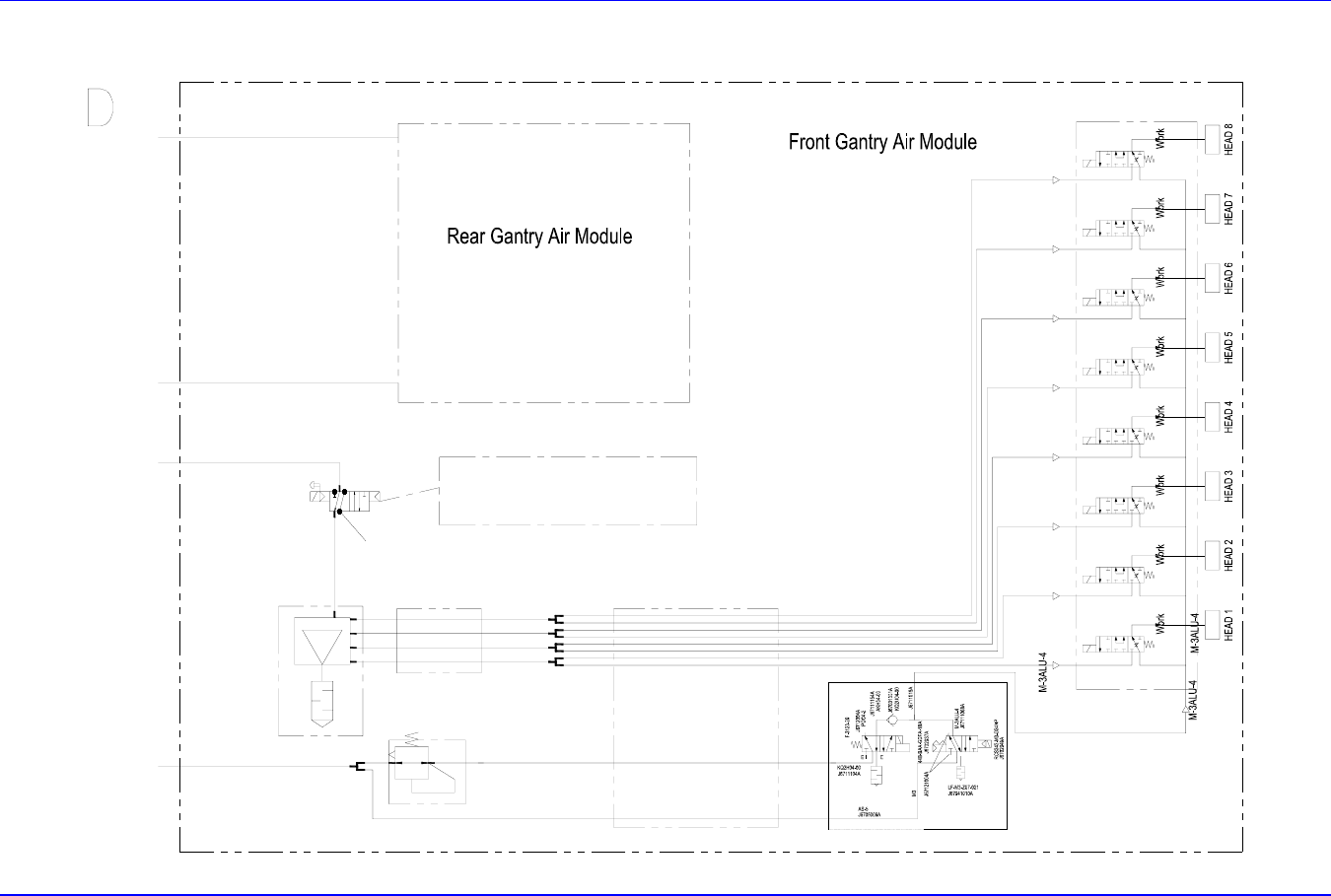

9.1.5. Air Ass’y (5/5)
HARNESS ASSY
J90832949A HEAD AIR SOL PWR CABLE ASSY
J67110119B
KQ2U04-06
U2_4-6*4(Black)
J90551236A
HEAD PNEUMATIC MODULE ASSY
J67110104B
KQ2H04-00
J67111140A
KQ2L10-01S
3-J6712008A
PT 1/8
J67111140A
KQ2L10-01S
J6702021A
K180-4E1-21-DC24V
J67110119B
KQ2U04-06
J67091007A
AR08-T2-DOMO-J267A
J67131026A
MULTI_TUBE(UML_410-BK*10)
J67071024A
VKME10A-S640S2-B04
Samsung Component Placer SM431 Service Manual
9-6
NO. LEVEL
PART NO. PART NAME Q'TY
TYPE Old No. Stock
Apply
Reference
A-1
J90581024A SM431_AIR_ASSY
1
1
J67111150A UNIVERSAL_ELBOW_FITTING
2
KQ2V12-04S
2
J67081019A FILTER_REGULATOR
1
AW40-04D
3
J67081020A MIST_SEPARATOR
1
AFM40-04D
4
J6708018A FILTER ELEMENT
1
AF40P-060S
5
J67081009A FILTER_ELEMENT
1
AFM40P-060AS
6
J67111017A DOUBLE_UNIVERSAL_ELBOW_06
1
KQ2VD06-02S
7
J67111138A DOUBLE_UNIVERSAL_ELBOW_10
1
KQ2VD10-02S
8
J67111018A DOUBLE_UNIVERSAL_ELBOW_08
1
KQ2VD08-02S
9
J1301189 ELBOW FITTING
2
PL6-02
10
J6711244A MALE ELBOW
1
KQ2L12-03
11
J6712013A PLUG
1
PT 1/4 (SUS)
12
J67091007A REGULATOR 2 AR08-T2-D0M0-J267A
13
J67071024A VACUUMM_GENERATOR 2 VKME10A-S640S2-B04
