Samsung Component Placer SM431 Service Manual 10-18 10.5. Regenerative resistor 10.5.1. Regenerative resistor 代表替换事例 Regenerative resistor 不良 10.5.2. 必要工具 十字十字形 (+) 螺丝刀 Nipper 10.5.3. Regenerative resistor 替换次序 1. …
Electric Device
10-17
NO. LEVEL
PART NO. PART NAME Q'TY
TYPE Old No. Stock
Apply
Reference
A-1 J91691003A REAR_ELECTRIC_PANEL_ASSY 1
1 J3501040A MAGNETIC CONTACTOR 1 LC1D096BD, DC24V, 1A1B
2 J3603015A CIRCUIT PROTECTOR 2 C60a-2P-C16(23812)
3 J3603016A CIRCUIT PROTECTOR 1 C60a-3P-C16(23825)
4 J3601018A FUSE 3 250V 5A
5 J3601019A FUSE 2 250V 10A
6 J3716042A STOPPER 2 UA-51
7 J3716044A TEMINAL BLOCK 63
WDU 2.5
8 J3716046A END PLATE 11 WAP2.5-10
9 J3716047A CROSS CONNECTION 6 ZQV2.5
10 J3716067A FUSE TERMINAL BLOCK 5 ASK 1
11 J91741194A SAFETY_FROP_BOARD_ASSY 1 SAFROP_REV.1.0
12 J3153056A SERVO MOTOR DRIVER(750W) 4 MCDDT3520
13 J31531019A SERVO_MOTOR_DRIVER 2 MBDDT2210001
14 J3153055A SERVO MOTOR DRIVER(100W) 2 MADDT1205
15 J3105010A COOLING FAN 1 4715MS-22T-B50
Samsung Component Placer SM431 Service Manual
10-18
10.5. Regenerative resistor
10.5.1. Regenerative resistor 代表替换事例
Regenerative resistor 不良
10.5.2. 必要工具
十字十字形(+)螺丝刀
Nipper
10.5.3. Regenerative resistor 替换次序
1. 正常关闭PC后关闭设备前面的Main Switch。
2. 请务必关闭设备后面的MCB完全切断电源。

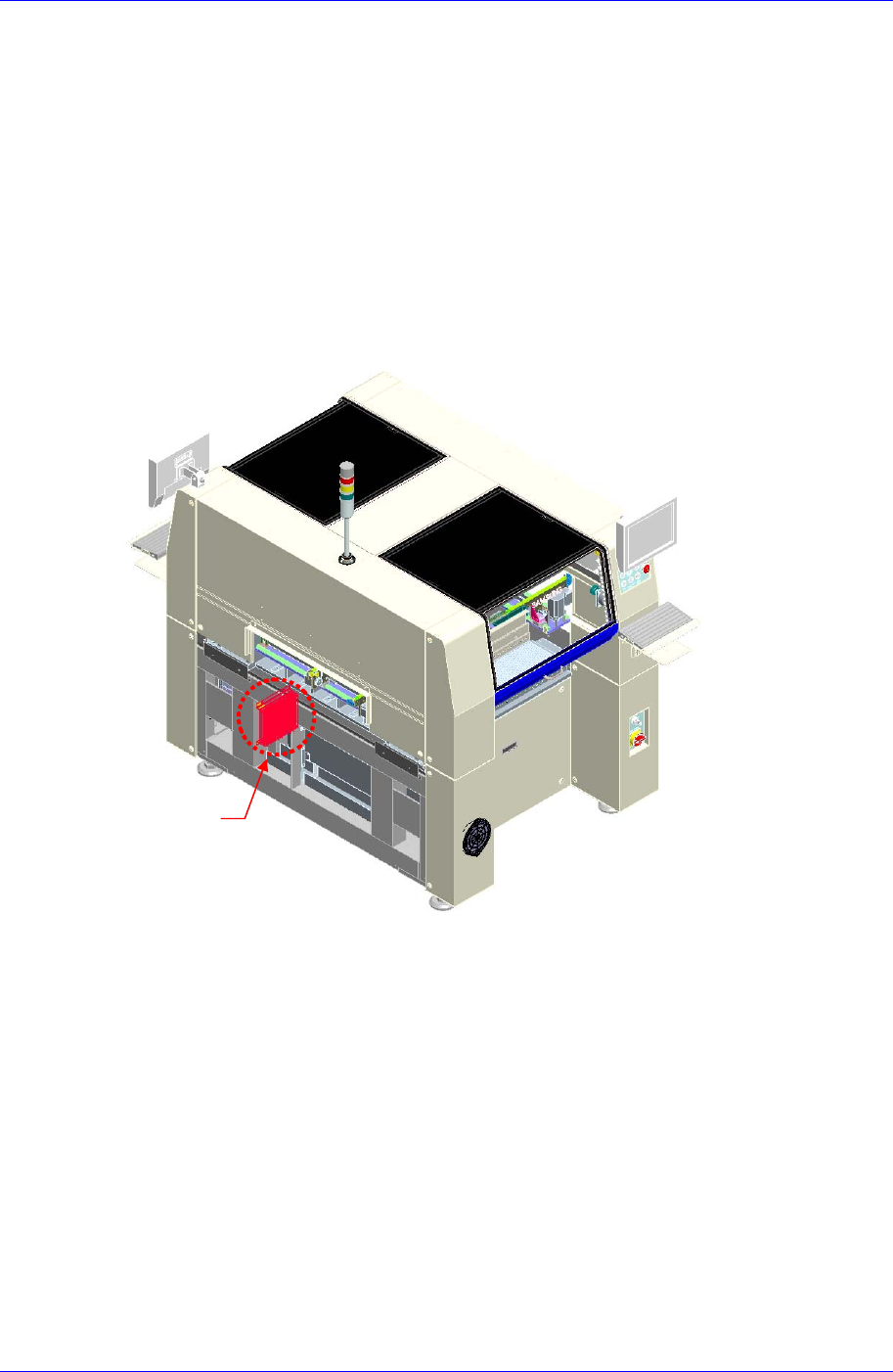

Regenerative
Resistor
Electric Device
10-19
3. 用十字形螺丝刀拧开固定设备正面基准左侧Cover的固定螺丝(4-M5*30)后拆卸
Cover。
4. 用十字形螺丝刀拧开固定相应回生电阻(MD026, MD028, MD027)的固定螺丝
(M4*16)后拆卸回生电阻。
Regenerative
Resistor
圆头螺丝
(
4-M5*30
)
Cable Tie
MD026 MD028 MD027
