PC
12-1
第 12 章. PC
12.1. PC 参数
12.1.1. User Interface Computer
12.1.1.1. Software
SM431 MMI Software
12.1.2. 内置的电脑 Computer
12.1.2.1. Hardware
Windows XP Embedded
CPU Intel Core 2 Duo E7400
MC68040 (VME)
Hitachi HDD 80GB, SATA
DDR2 SDRAM 1G(PC2-6400)
支持 USB Port (可使用USB Memory )
Keyboard: Mini Keyboard (86 Key)
Mouse: 光电鼠标 (Microsoft 互换)
12.1.2.2. Display
Monitor: 12.1 inch TFT LCD (1024 x 768)
为了提高性能，变更设备的配置无需预先告知。
" 备注
Samsung Component Placer SM431 Service Manual
12-2
12.2. 硬件/ Device Driver 安装方法
12.2.1. Backplane/ Mono Camera Board/ Ethernet 通信/ SBC

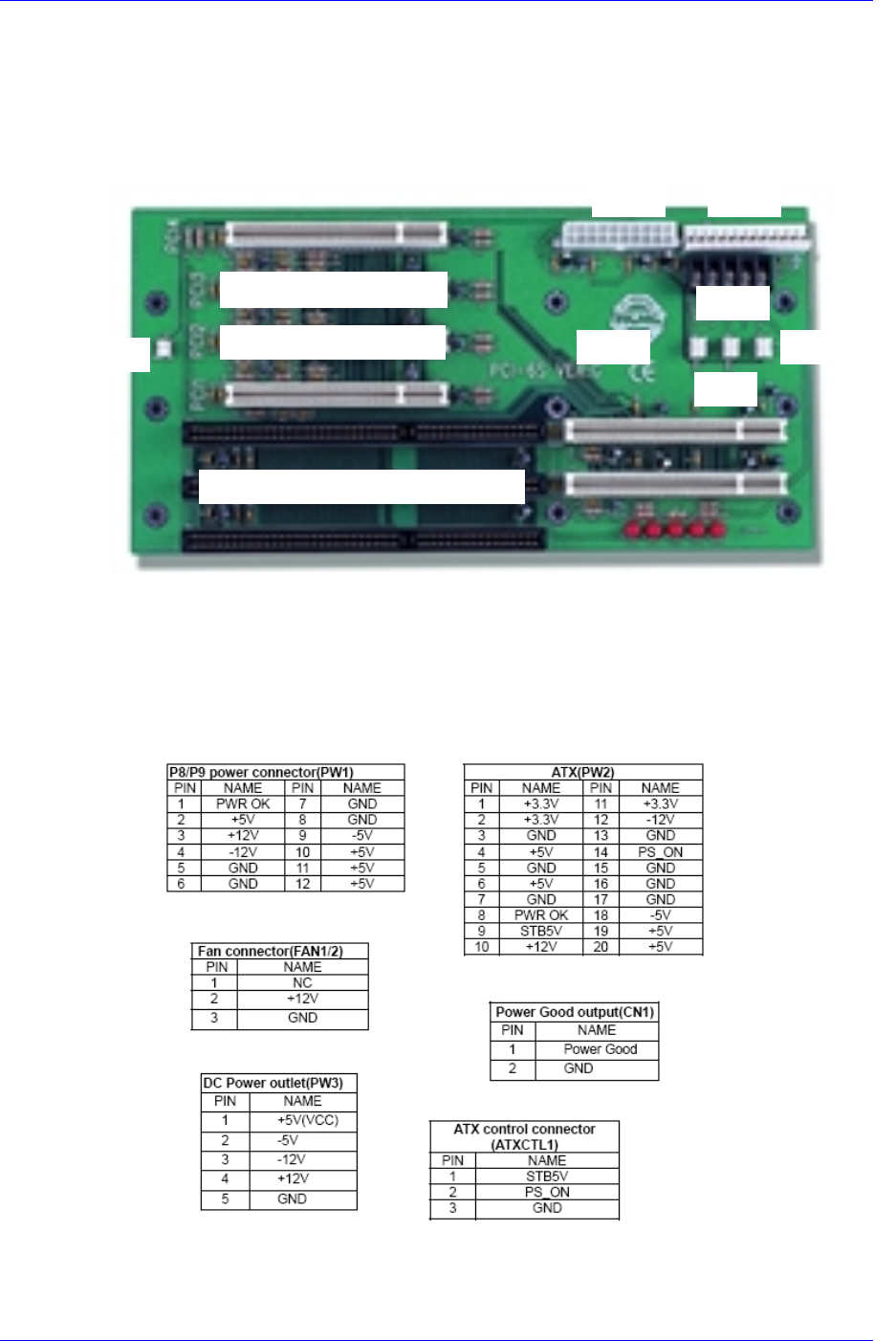

12.2.1.1. PCI-6S Backplane 设置
6-Slot PC/AT Passive Backplane With 1×ISA. 4×PCI AND 2×PICMG
LED Power Indicators : +5V, -5V, +12V, -12V and +3.3V
20 Pin ATX Connector, Standard AT Connector, 5-Pin Terminal Block
Size : 264.44 × 132.99 mm
ATXCTL1 Connector的2号(PC_ON)和3号(GND)务必为Short
Nexte
y
e Ima
g
e Graber
Sin
g
le Board Com
p
uter
(
SBC
)
Nexte
y
e Ima
g
e Graber
PW2 PW1
PW3
FAN1
ATXCTL1
FAN2
CN1
