12 WF 2 TX-Series Maintenance Calibrate the maintained C&P20x 14 min 3 / 4 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n…
12 WF 2 TX-Series Maintenance Calibrate the maintained C&P20x 14 min 2 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, T4
Wear Part:
W25
Consumables:
www.asm-smt.com

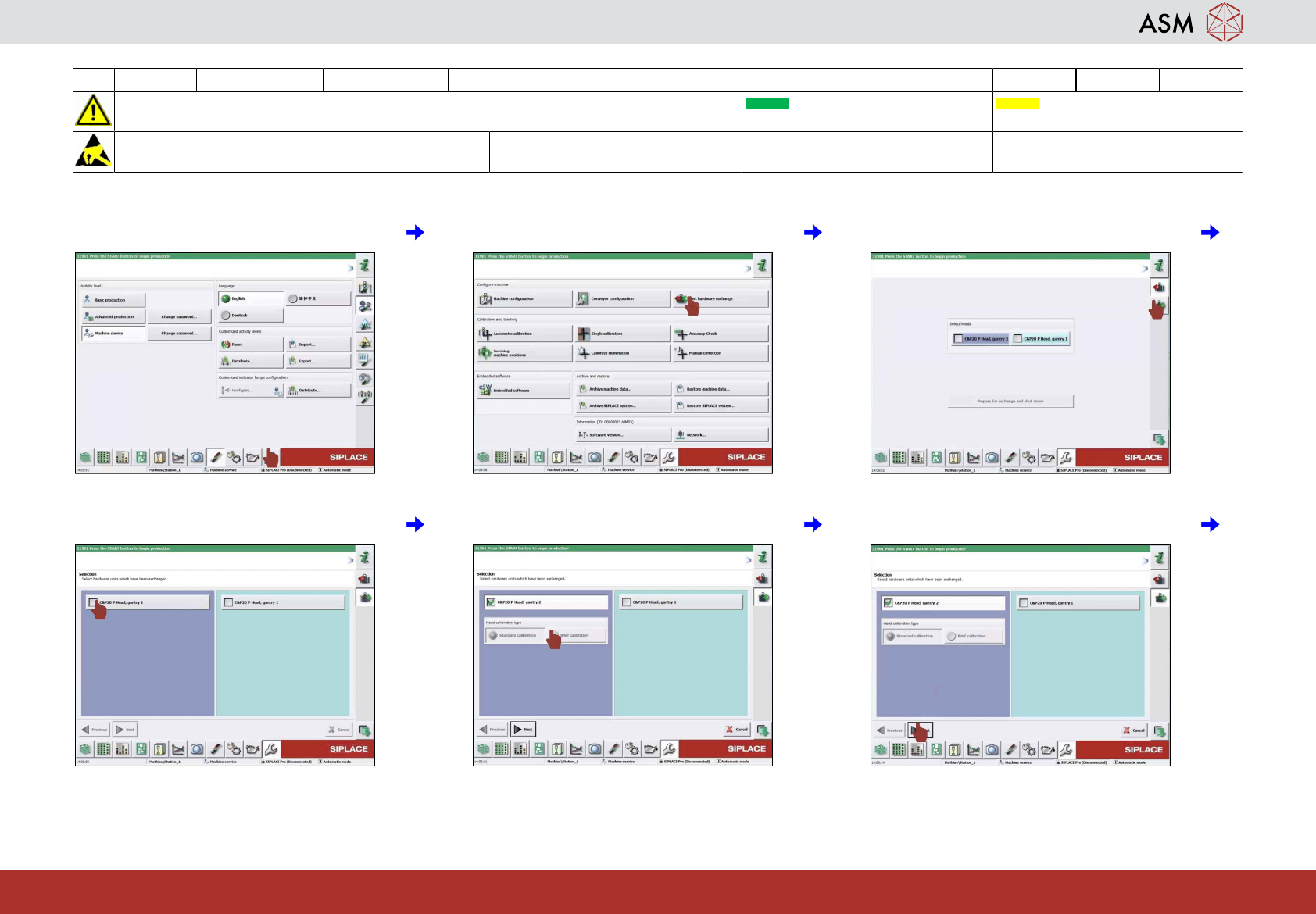

7 Click on "Machine calibration". 8 Click on "Fast hardware exchange". 9 Click on "Head exchange".
10 Select the head to be calibrated. 11 Select "Brief calibration" if possible. 12 Click on "Next".
12 WF 2 TX-Series Maintenance Calibrate the maintained C&P20x 14 min 3 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, T4
Wear Part:
W25
Consumables:
www.asm-smt.com

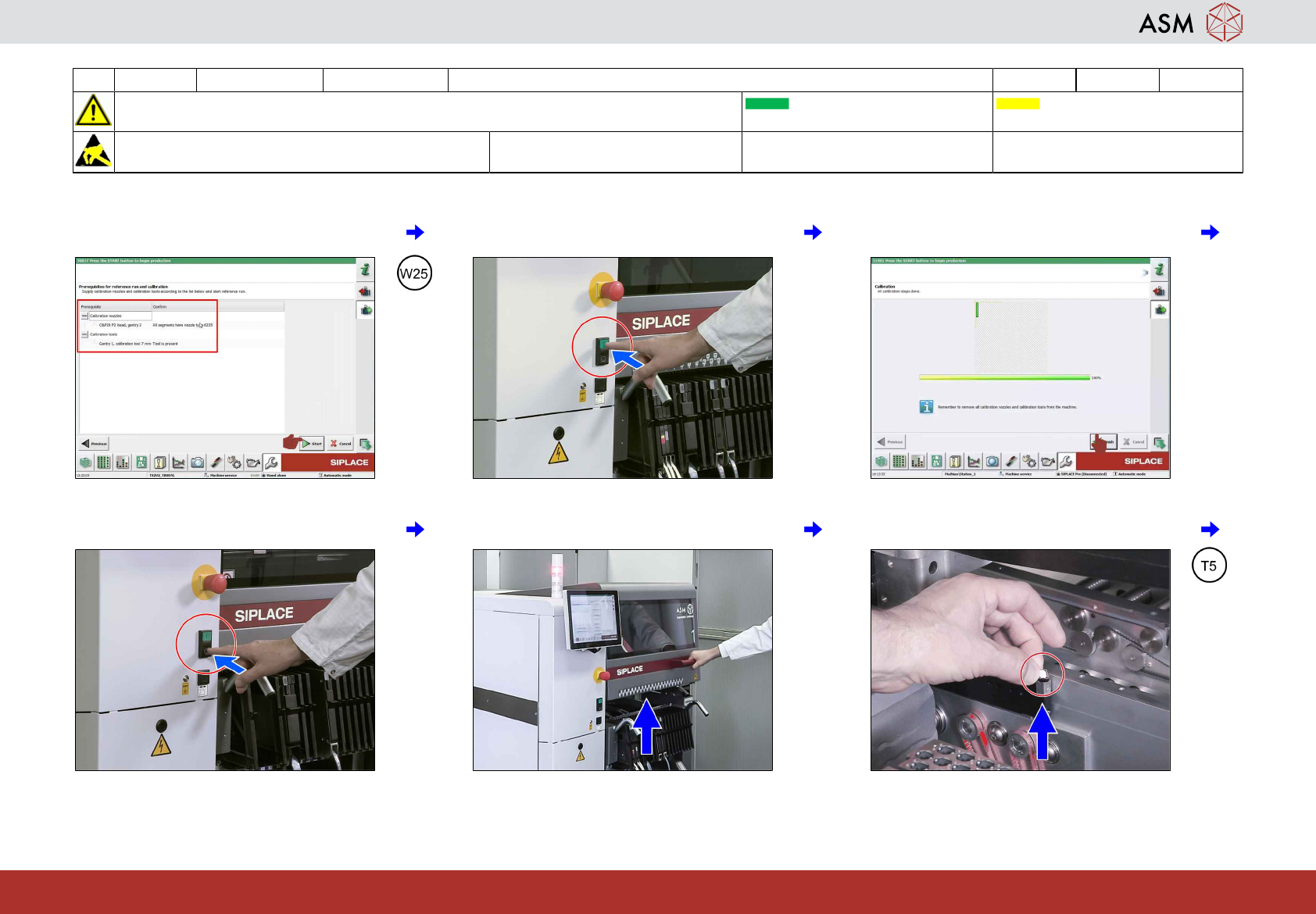

13 Check / modify nozzle configuration and
click on "Start".
14 Press the start button. 15 Click on "Finish".
16 Press the stop button. 17 Open the cover. 18 Remove the calibration tool.
12 WF 2 TX-Series Maintenance Calibrate the maintained C&P20x 14 min 4 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, T4
Wear Part:
W25
Consumables:
www.asm-smt.com

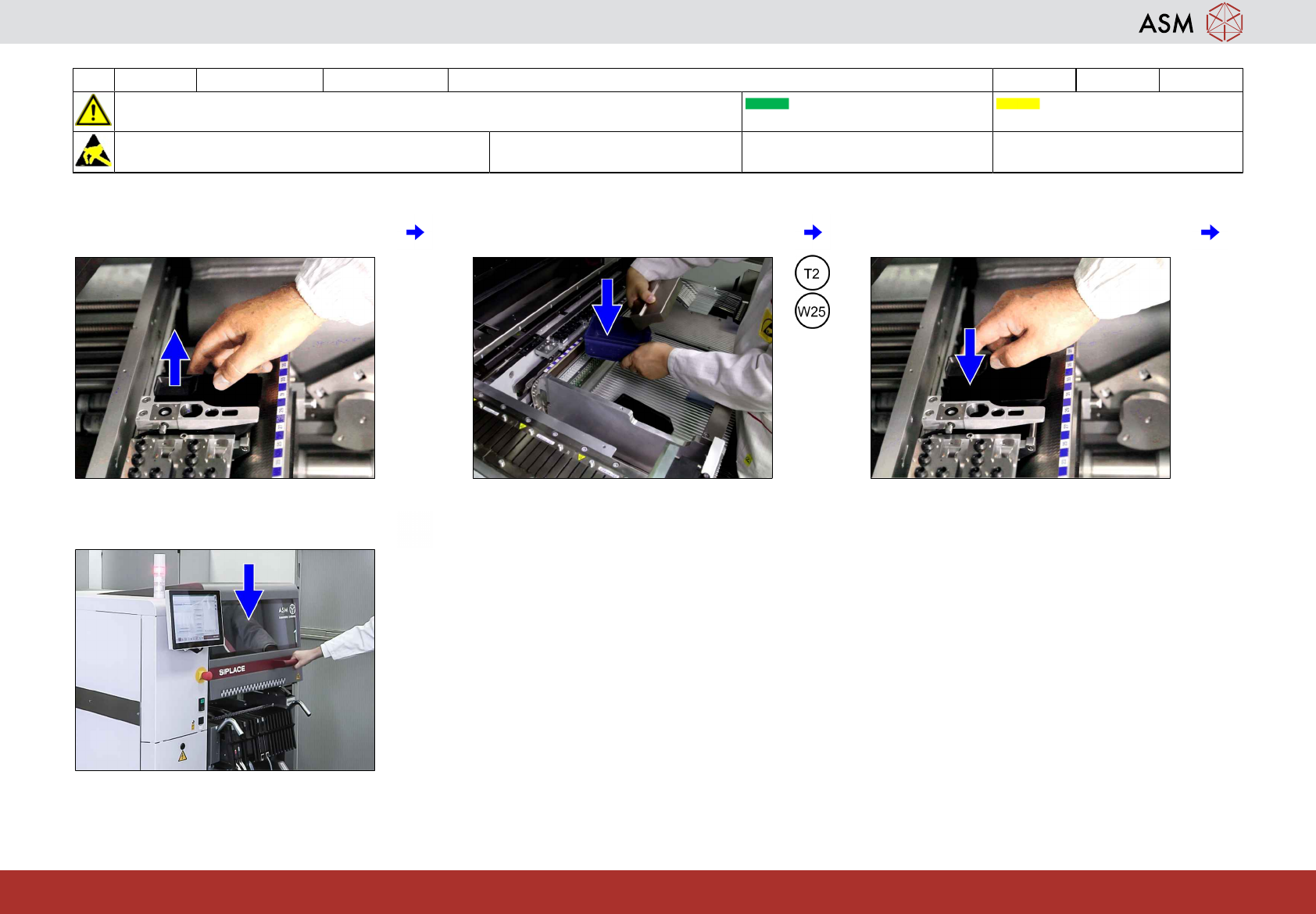

19 Remove the reject bin. 20 Remove the calibration nozzles from the
reject bin.
21 Return the reject bin.
22 Close the cover.
