A Clean Machine:
Effective Residue Management
As is the case with all industrial processes, substances are generated during
SMT production which have to be removed from the process cycle because
they contaminate the system. Our highly effective residue management
function puries the process gas safely and reliably, and keeps your system
clean and dry.
清洁型解决方案：
高效的残渣管理
和所有工业制程一样，SMT生产线同样也会产生可能污染系统的残渣，因此必须及时将
残渣从制程循环中排出。我们的高效残渣管理系统可以安全、可靠的净化制程气体，保
持系统洁净、干燥。
Agglomerator
technology
11
Ecient cleaning for a clean and dry process chamber
System integrated solution
Reliable, stable process
Easy accessibility
Low maintenance effort
low
maintenance
expenses
高效清洁，保证炉膛清洁、干燥
一体化系统解决方案
可靠、稳定制程
易于操作
低维护需求
Inlet and Outet of the VisionXC
VisionXC系统的机器入口和出口
Liquid residues condense above all on the cooling
tract’s lter units, by which they are then removed.
The system is easy to clean. The lters are ex-
changed in sets at the back of the system. The
process chamber doesn’t even have to be opened.
Optional 7 stages for max efciency, Filters up to
98% increase process safety.
液体残留物首先在冷却区单元内冷凝过滤，然后被排
出。过滤单元易于清洁，过滤器可以通过系统背部直接
更换而无需打开炉膛。可选配七段过滤，最高过滤效率
高达98%。

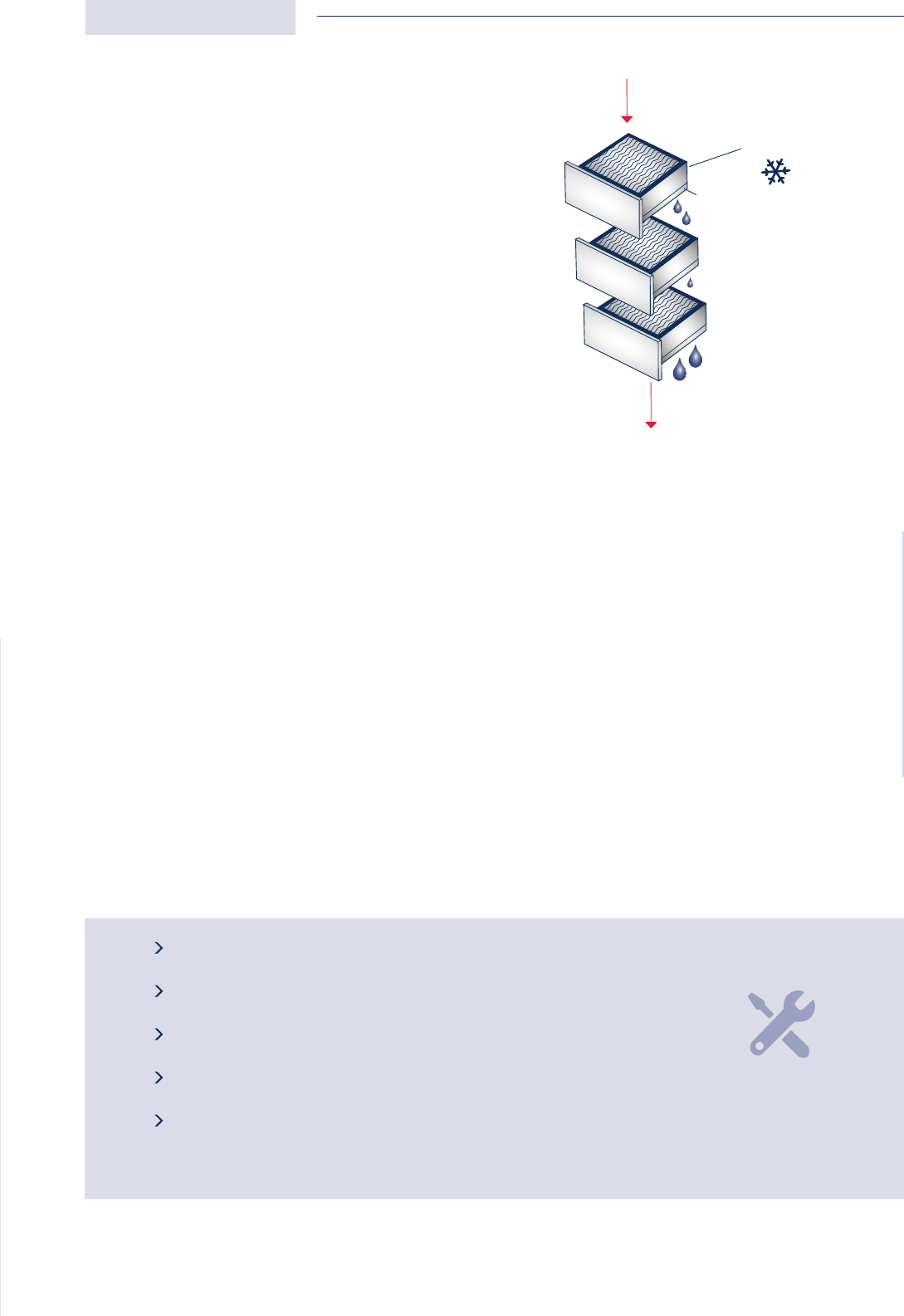

Cold condensation
lter
cooler
drop formation
VisionXC | Residue Management
12
It is important to have a high-performance cooling tract in order to guarantee optimum sol-
dering results and ensure that modules are cooled gently.
Rehm Thermal Systems offers a wide range of cooling tract variants for reflow convection
soldering with its VisionXC, which can be precisely ne-tuned to suit any production process.
The water-cooled standard solution with heat exchanger and adjustable ventilation system
works as an effective "Closed Loop" system. There are several efcient, additional options for
large and high-mass boards, primarily a bottom cooling system.
为获得最佳焊接结果以及组件得到平缓冷却，需配备高性能冷却系统。
锐德为VisionXC提供了多种冷却系统，并支持精确微调以适应个性化生产制程。带热交换器和可调通风系
统的标准水冷解决方案可作为“闭环”系统，实现高效冷却。对于大型高密度PCB板，您可以选装底部冷却
系统。
Stress-free to below 50 °C
with powerful cooling systems
Stress-free cooling using individually adjustable ventilators in the classic cooling zone
Optimum cooling of large, high-mass boards thanks to additional bottom cooling
Flexible combination possibilities through a range of different options
New, sustainable cooling principle as a result of liquid nitrogen cooling
无应力冷却至50℃以下
性能强劲的冷却系统
利用冷却区中多个可单独调节的风机实现无应力冷却
提供底部冷却系统选件，完美冷却大型、高密度组件
多种冷却选项。支持灵活配置
创新型可持续液氮冷却技术
