2 Retrofit Instructions for PCB Camera Multicolor, HS-50 / HS-60 SIPLACE HS- 50/HS-60 2.14 Attachments: PCBs, Cables and Circuit Diagrams 11/2004 Edition 82 Fig. 2.14.7 Main Distribution Frame for HS-50, Retrofit / Chang…
SIPLACE HS-50/HS-60 2 Retrofit Instructions for PCB Camera Multicolor, HS-50 / HS-60
11/2004 Edition 2.14 Attachments: PCBs, Cables and Circuit Diagrams
81
2.14.2 Circuit Diagrams for Retrofitting on HS-50
2

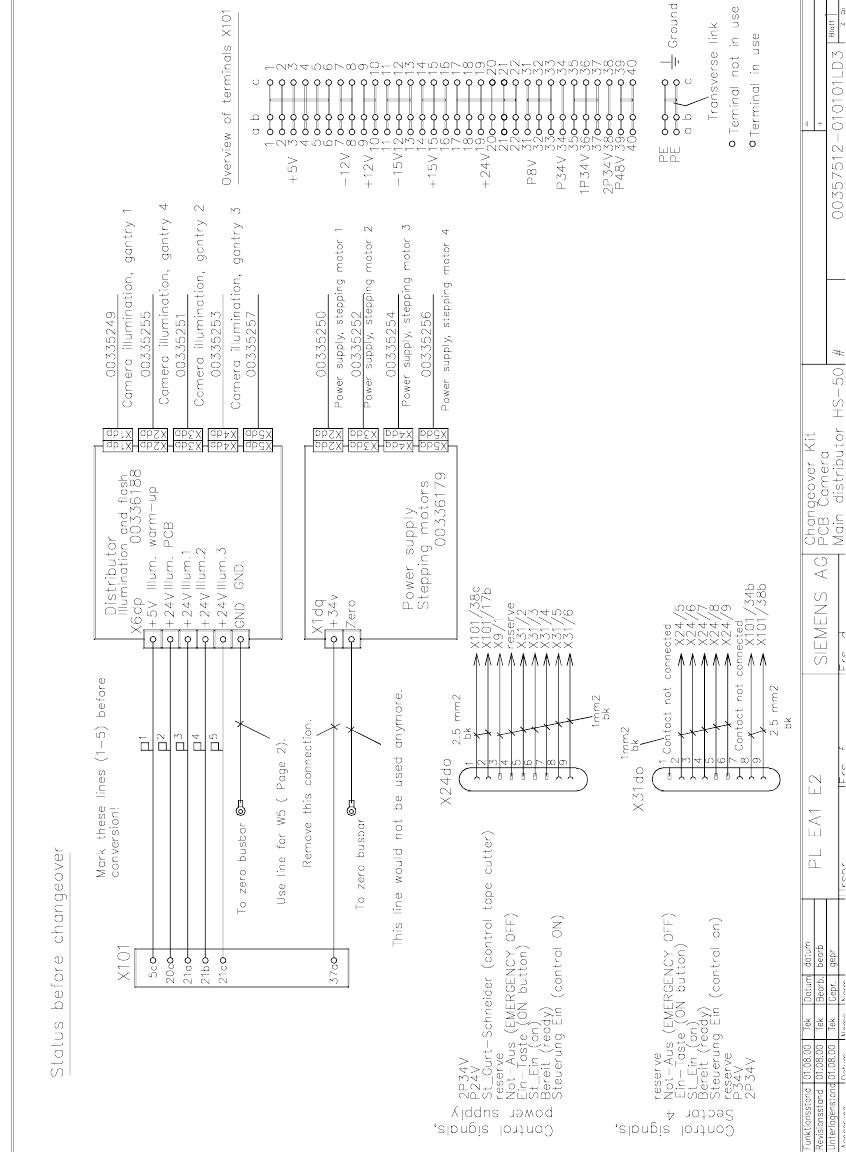

Fig. 2.14.6 Main Distribution Frame for HS-50, Wiring BEFORE Changeover / Retrofitting
2 Retrofit Instructions for PCB Camera Multicolor, HS-50 / HS-60 SIPLACE HS-50/HS-60
2.14 Attachments: PCBs, Cables and Circuit Diagrams 11/2004 Edition
82
Fig. 2.14.7 Main Distribution Frame for HS-50, Retrofit / Changeover Kit Cables W1 to W5
SIPLACE HS-50/HS-60 2 Retrofit Instructions for PCB Camera Multicolor, HS-50 / HS-60
11/2004 Edition 2.14 Attachments: PCBs, Cables and Circuit Diagrams
83
Fig. 2.14.8 Main Distribution Frame for HS-50, View AFTER Changeover / Retrofitting
