4022 593 51894 Operating Manual
09.01 AX-301/501, AX-3/5 9
1

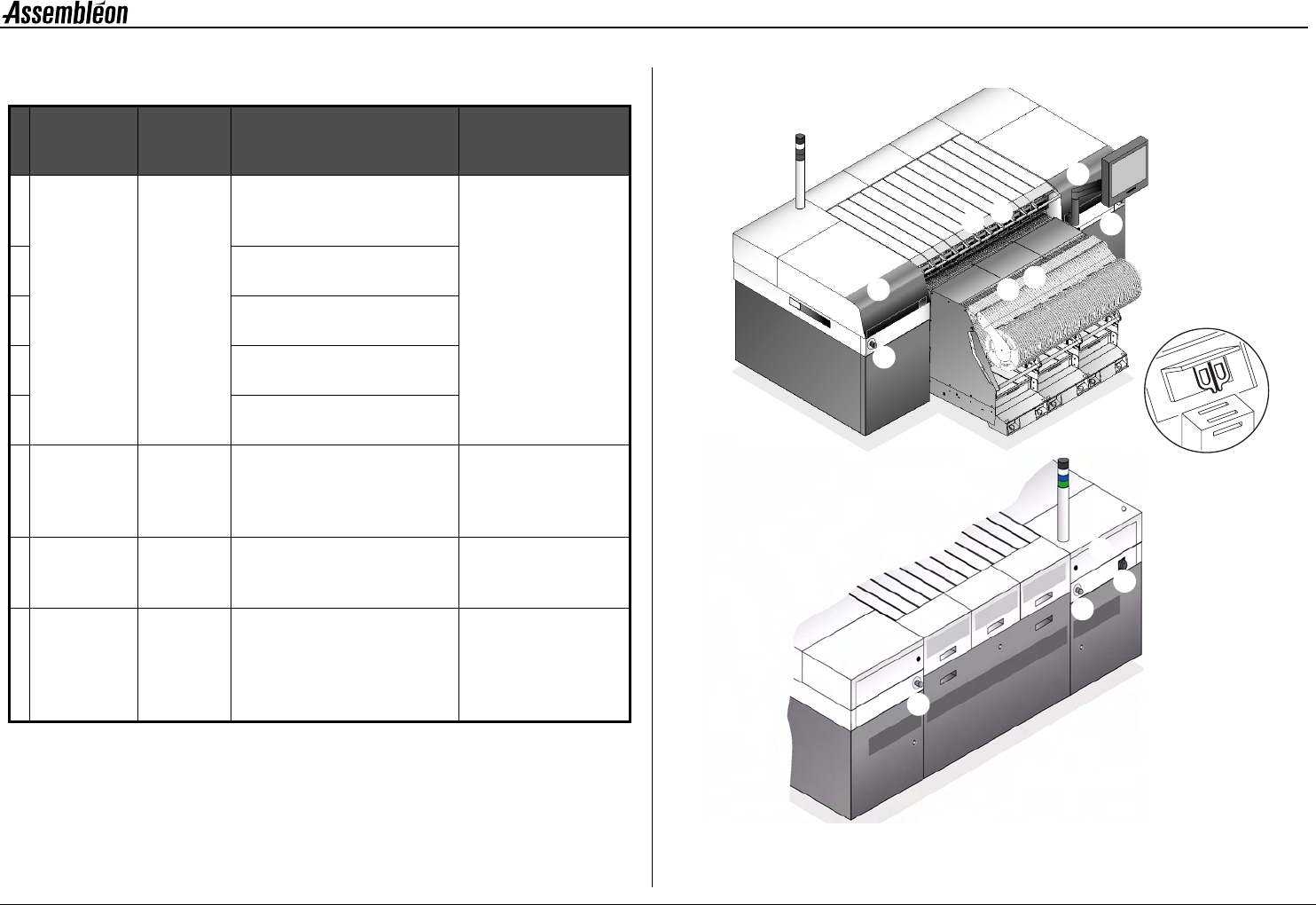

1.7 Safety devices
Figure 3 Safety devices
Locations of safety devices are depicted in figure 4 and
figure 5.
Figure 4 Location of safety devices
Safety device
Hazard
protected
Detection method
Machine condition
after safety device is
activated
1 Safety
interlock.
Hazardous
moving
parts.
Safety circuit interruption by
opening any (left or right)
transport cover.
All moving parts will be
stopped and power to
servo systems is turned
off.
2 Safety circuit interruption by
opening any robot.
3 Safety circuit interruption by
opening any safety cap.
4 Safety circuit interruption by
lowering any trolley.
5 Safety circuit interruption by
removing any trolley lift cover.
6 Emergency
stop button.
Hazardous
moving
parts.
Safety circuit interruption by
pushing the emergency stop
button.
All moving parts will be
stopped and power to
servo systems is turned
off.
7 Electrical
disconnect.
Hazardous
voltage.
Mains power supply to the
machine interruption by turning
the electrical main switch to 'off'.
All power to the machine
is turned off.
8Air
disconnect.
Hazardous
air
pressure.
Main air supply to the machine
interruption by turning the main
air switch to 'off'.
All air pressure to the
machine is turned off,
and present air
pressure is released
safely.
6
6
7
8
1
1
2
3
4
5
6
6
Safety interlock
4022 593 51894 Operating Manual
09.01 AX-301/501, AX-3/5 10
1
Figure 5 Safety devices, rear
Pull the red emergency stop buttons (6) to release the
emergency.
Lock the electrical main switch (7) and the air main
switch (8) by a padlock to avoid unauthorized use.
1.8 Noise levels
Figure 6 Noise levels
1.9 Emergency contact
In case assistance is needed during an emergency
situation, contact the regional Assembléon
organization.
Figure 7 Numbers
1.10 Liability
Assembléon will not be liable for any costs, damages or
personal injuries if the machine is not used according
to the safety rules given in this manual.
Instructions written in English are original instructions.
Instructions written in other languages are a
translation of the original.
Location Noise level
Average sound-pressure level measured at 3 operator
positions at height = 1.6 m and distance = 1 m
≤ 75 dB(A)
Sound pressure at operator’s position ≤ 72 dB(A)
Average environmental noise level during measurement 58 dB(A)
5.5
8
67
Region Number
Asia +65-62-61-4611
America's 1-800-474-4547
Europe +31-20-5040679
4022 593 51894 Operating Manual
09.01 AX-301/501, AX-3/5 11
1
1.11 Recommended tools for working safely
1.12 Location of this operating manual
Locate this manual close to the machine.
This enables users to have easy access to the relevant information.
Description Picture Application
1 Stepstool Useful for smaller persons:
reaching inside the machine
or closing robots.
2 Pallet truck Lifting and moving of
heavy modules.
3 Gloves Skin protection during
lubrication.
