4022 593 51894 Operating Manual
09.01 AX-301/501, AX-3/5 11
1

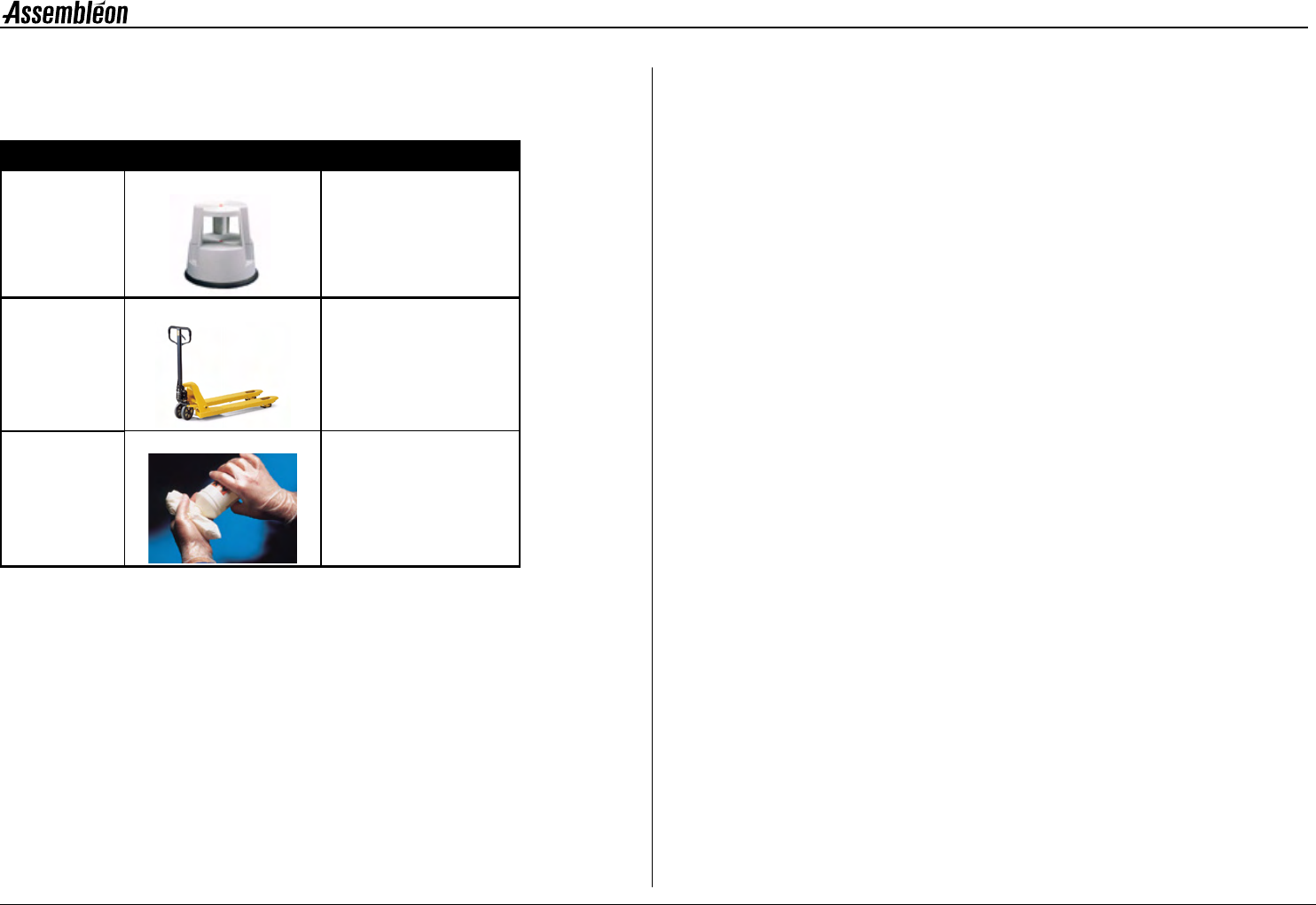

1.11 Recommended tools for working safely
1.12 Location of this operating manual
Locate this manual close to the machine.
This enables users to have easy access to the relevant information.
Description Picture Application
1 Stepstool Useful for smaller persons:
reaching inside the machine
or closing robots.
2 Pallet truck Lifting and moving of
heavy modules.
3 Gloves Skin protection during
lubrication.
4022 593 51894 Operating Manual
09.01 AX-301/501, AX-3/5 12
2
CHAPTER 2 General machine information
2.1 Front side items
Figure 8 Front side items
1 Lamp post
• White Emergency activated / machine stopped /idle state.
• Blue Request for operator interference, caused by faulty
conditions.
• Green Safe running mode.
• Beeper Request for operator interference.
2Touch screen.
The graphical user interface for operating the machine.
3 Run-in, run-out covers.
Protecting the run-in and run-out.
4 Pick and place modules.
Picking components from the feeder and placing it on a board.
5 Feeder trolley.
6 Front-left door of the base.
7 Front-right door of the base.
1
2
3
4
5
3
6
7
4022 593 51894 Operating Manual
09.01 AX-301/501, AX-3/5 13
2
2.2 Rear side items
Figure 9 Rear side items
1 Electrical main switch.
2 Rear-left-upper door of the base,
covering the air supply unit, providing air for picking components
and bulk feeders.
3 Rear left-lower door of the base.
4 Rear right-upper door of the base.
5 Rear right-lower door of the base.
1
2
3
4
5
