2 Operational safety 2.2 Warning labels 12 User Manual SIPLACE Linear Dipping Unit E 12/2018 2.2 Warning labels The warning labels are made of soft PVC film, and are abrasion-proof, light-fast and resistant to water and …
2 Operational safety
2.1 Safety instructions
User Manual SIPLACE Linear Dipping Unit E 12/2018 11
2.1.4 Danger of crushing
WARNING
Danger of crushing
There is danger of severe injury to hands and fingers when reaching into areas of the LDU
with moving parts.
► Observe correct handling and the safety instructions.
► Do not reach into areas with moving parts while the LDU is running.

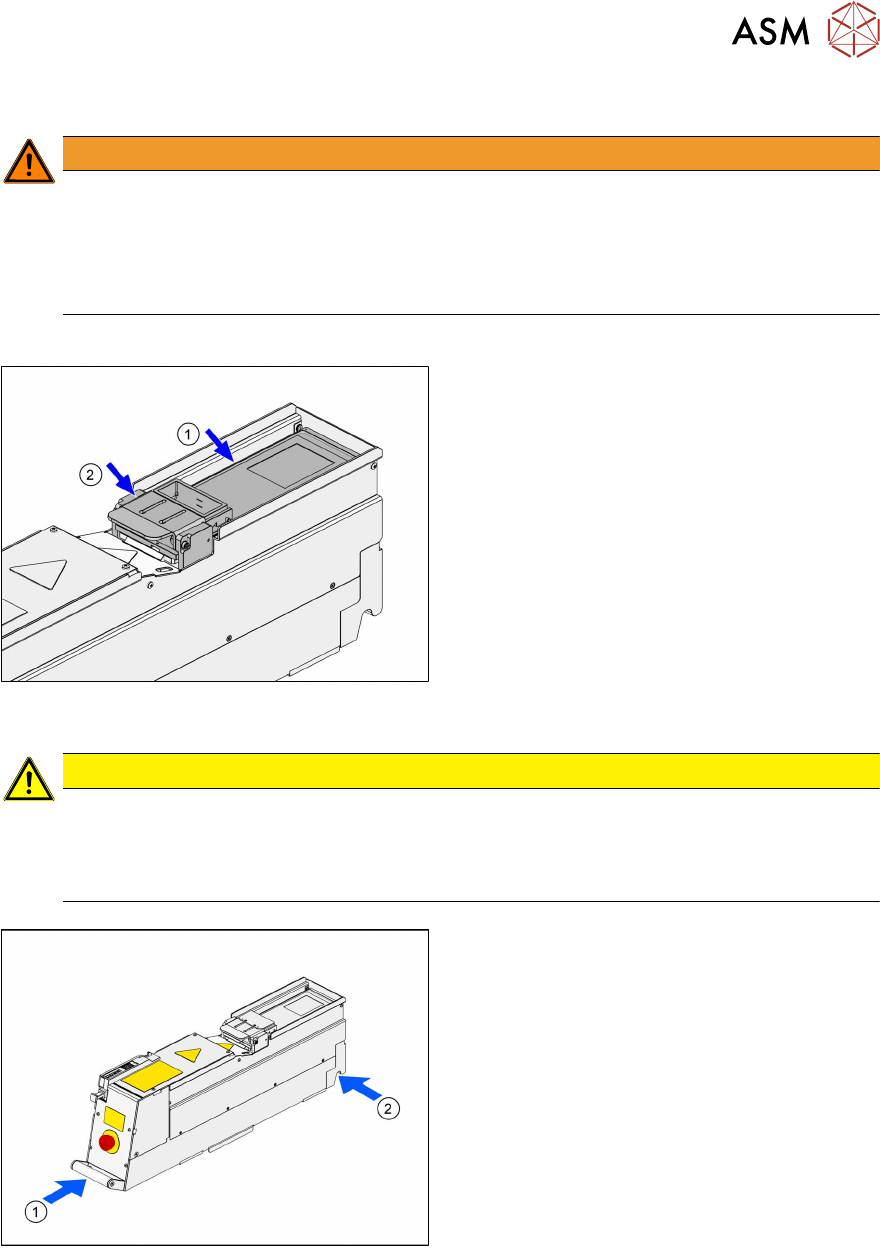

In particular, be careful at the following positions of the LDU:
(1) Travel range of the dip plate.
(2) Travel range of the squeegee.
2.1.5 Transport safety information
CAUTION
Danger of tilting or falling down
The LDU E can tilt or fall down when handled incorrectly during transport.
► Always carry the LDUE with both hands holding it as upright and horizontal as
possible.
Take the handle(1) of the LDU E with one hand
and support the housing with the other hand(2).
2 Operational safety
2.2 Warning labels
12 User Manual SIPLACE Linear Dipping Unit E 12/2018
2.2 Warning labels
The warning labels are made of soft PVC film, and are abrasion-proof, light-fast and resistant to
water and weathering. The design of the warning labels complies with the requirements of
ISO3864‑2 und ANSIZ535.4.
2.2.1 Warning labels on the LDU
Warning label W 201
Safe operation of the LDU
Safe operation of the LDU depends absolutely on the operator being familiar
with the user manual and safety instructions and putting them into effect.
Warning label - hazardous substances
Health risk
The flux and cleaning agents used may contain substances which are haz-
ardous to your personal health. Always wear your personal protective equip-
ment and observe the safety data sheet of the relevant flux or cleaning
agent.
2 Operational safety
2.3 Safety features
User Manual SIPLACE Linear Dipping Unit E 12/2018 13
Warning label W 204
Danger of crushing
Reaching into the LDU while it is running can lead to injuries to arms and
hands.
Pictogram span of control
Indicates the span of control of the module.
Warning Label W 210
Emergency stop button
Indicates the position of the emergency stop button.
2.2.2 Important note on warning, prohibition and cautionary labels
WARNING
Warning labels
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any missing, damaged or illegible warning labels. Please observe the correct posi-
tion of the warning labels.
2.3 Safety features
The LDUE has an emergency stop button. When pressed, the power supply to the LDUE is imme-
diately interrupted. After releasing the emergency stop button the LDUE will be in idle mode. To
switch back to operation mode you have to press a key.
WARNING
Placement machine and LDUE have separate emergency circuits.
The emergency stop button of the LDUE only interrupts the power supply to motors of the
LDU.
The emergency stop button of the placement machine interrupts the power supply to the
placement machine.
► Please ensure to press the correct emergency stop button in an emergency.
