4 Operation 4.5 Fitting 42 User Manual SIPLACE Linear Dipping Unit E 12/2018 Fitting the drip tray and the park plate Prerequisites: The park plate and the drip tray are not yet fitted. ► Click on the Fit drip tray and p…
4 Operation
4.5 Fitting
User Manual SIPLACE Linear Dipping Unit E 12/2018 41
4.5 Fitting
Before filling in the flux, you have to fit all the parts of the LDU. You will be guided through this pro-
cess by the station software.
NOTICE
Observe the exact order
It is important to perform the steps for fitting the parts in the order described here.
► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Table (3) on which the LDU is
set up.
► Select the icon of the LDU(1).
► Click on the Settings... button (2).
► Select the Cleaning tab.
4 Operation
4.5 Fitting
42 User Manual SIPLACE Linear Dipping Unit E 12/2018

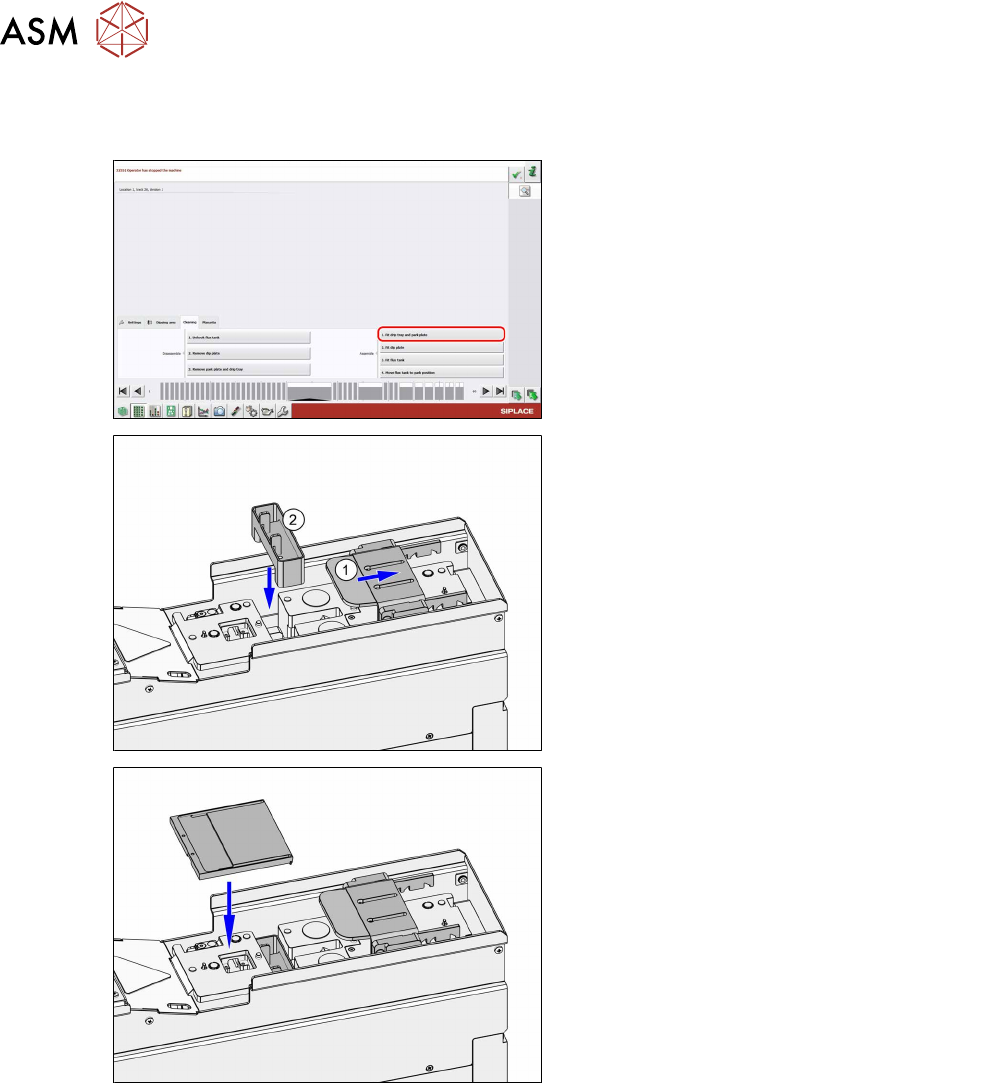

Fitting the drip tray and the park plate
Prerequisites: The park plate and the drip tray are not yet fitted.
► Click on the Fit drip tray and park plate
button.
(1) The LDU moves the squeegee axis to the
front over the lift axis.
► (2) Fit the drip tray.
► Fit the park plate.
4 Operation
4.5 Fitting
User Manual SIPLACE Linear Dipping Unit E 12/2018 43
Fitting the dip plate
Prerequisites: The drip tray and the park plate are fitted. The dip plate is not yet fitted.
► Click on the Fit dip plate button.
(1) The LDU moves the squeegee back over the
park plate and moves the lift axis up.
► (2) Fit the dip plate in the orientation
shown.
Fitting the flux tank
Prerequisites: The park plate and the dip plate are fitted.
► Click on the Fit flux tank button.
(1) The LDU moves the lift axis down.
(2) The LDU moves the squeegee to the front.
► (3) Place the flux tank onto the dip plate
and push it under the downholder to the
fixed stop.
