4 Operation
4.17 Operating the control unit
58 User Manual SIPLACE Linear Dipping Unit E 12/2018

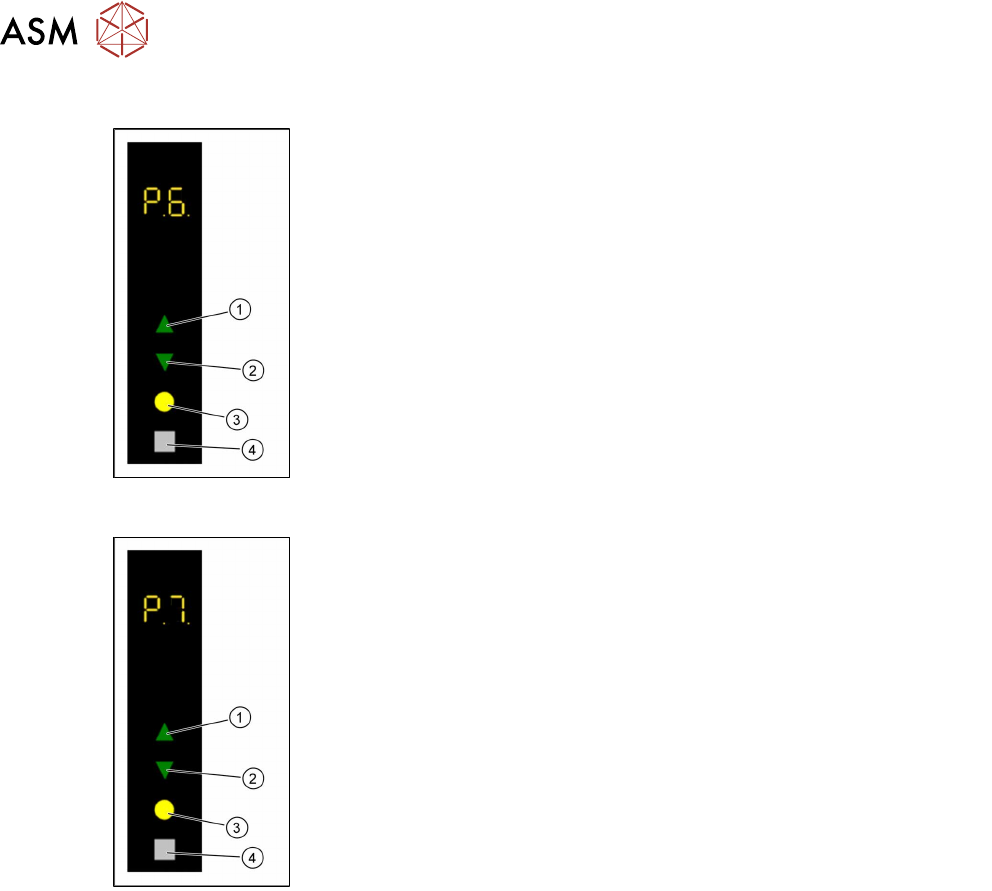

Performing a self-test
► Use the Up (1) or Down key (2) to select the operating mode P1.
► Press and hold theSelect(3) and Adjust (4) keys simultaneously to
switch to the Service activity level.
► Use the Up (1) or Down key (2) to select the operating mode P6.
► Press the Select key (3).
The LDU performs a self-test.
Calibrating the axes
► Use the Up (1) or Down key (2) to select the operating mode P1.
► Press and hold theSelect(3) and Adjust (4) keys simultaneously to
switch to the Service activity level.
► Use the Up (1) or Down key (2) to select the operating mode P7.
► Press and hold the Adjust key(4) until the digits 01 are shown in the 7
segment display 3/4.
► Press the Select key (3).
The LDU performs an axis calibration.
5 Cleaning
5.1 Cleaning agents and tools
User Manual SIPLACE Linear Dipping Unit E 12/2018 59
5 Cleaning
WARNING
Danger of crushing.
Service mode gives you access to all the movable parts of the LDU.
► Do NOT reach into the machine while it is running.
WARNING
Health risk.
The flux and cleaning agents used may contain substances which are hazardous to your
personal health.
► Wear your personal protective equipment (coat, glasses, mask, and gloves).
► Observe the safety data sheet of the relevant flux.
WARNING
Damage of the LDU by improper disassembly.
A disassembly of the LDU beyond the actions described in this chapter can lead to damage
and may only be handled by specially trained employees.
► Remove only those parts which have to be cleaned for proper operation of the LDU.
WARNING
Damage of the LDU by spilled cleaning agents.
The LDU moves during the cleaning process.
► Make sure that there are no cleaning agents or tools on the LDU.

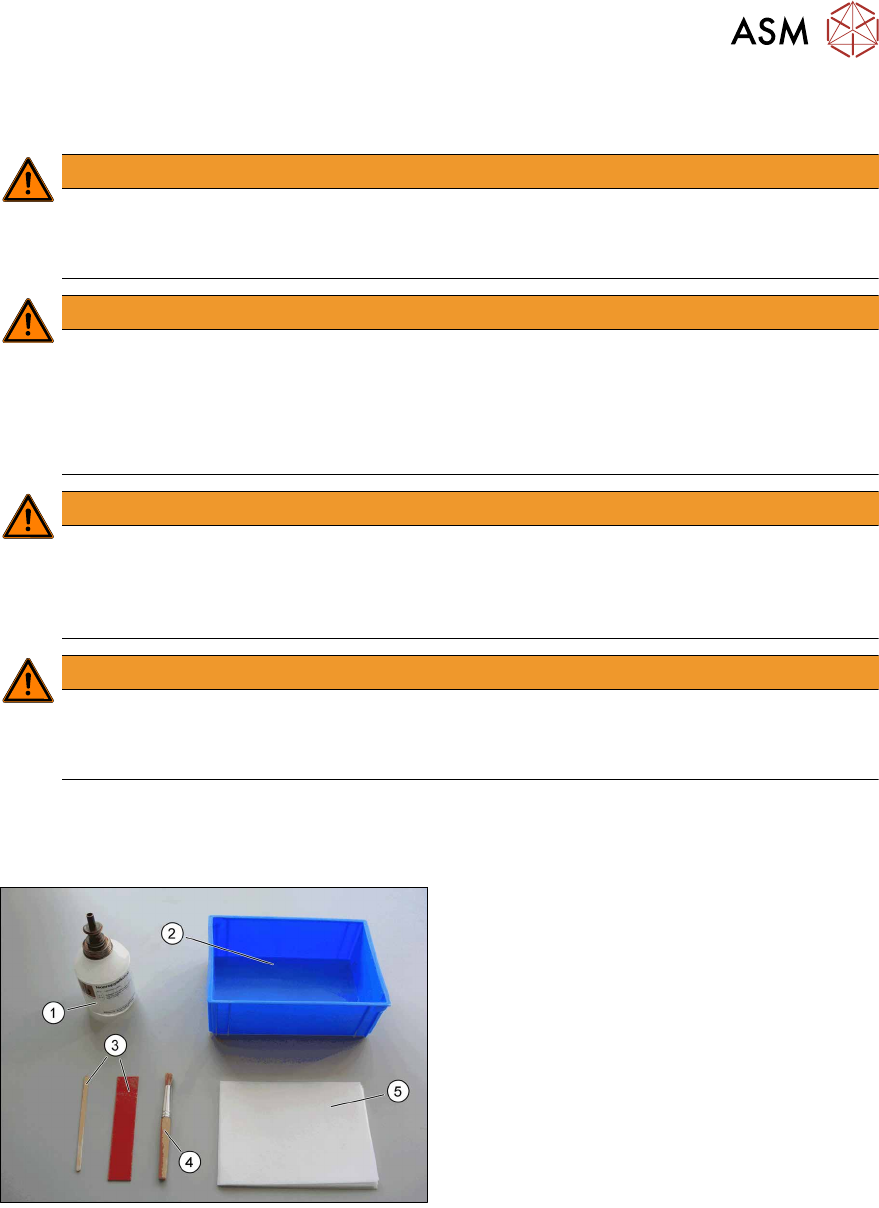

5.1 Cleaning agents and tools
Suitable cleaning agents and tools are:
1. Ethanol, isopropyl and water
2. Tub or bowl for cleaning
3. Plastic or wooden scraper
4. Brush
5. Lint-free cleansing tissues
5 Cleaning
5.2 Removing the parts to be cleaned
60 User Manual SIPLACE Linear Dipping Unit E 12/2018
5.2 Removing the parts to be cleaned
NOTICE
Observe the exact order
It is important to perform the steps for removal of the parts to be cleaned in the sequence
described here.

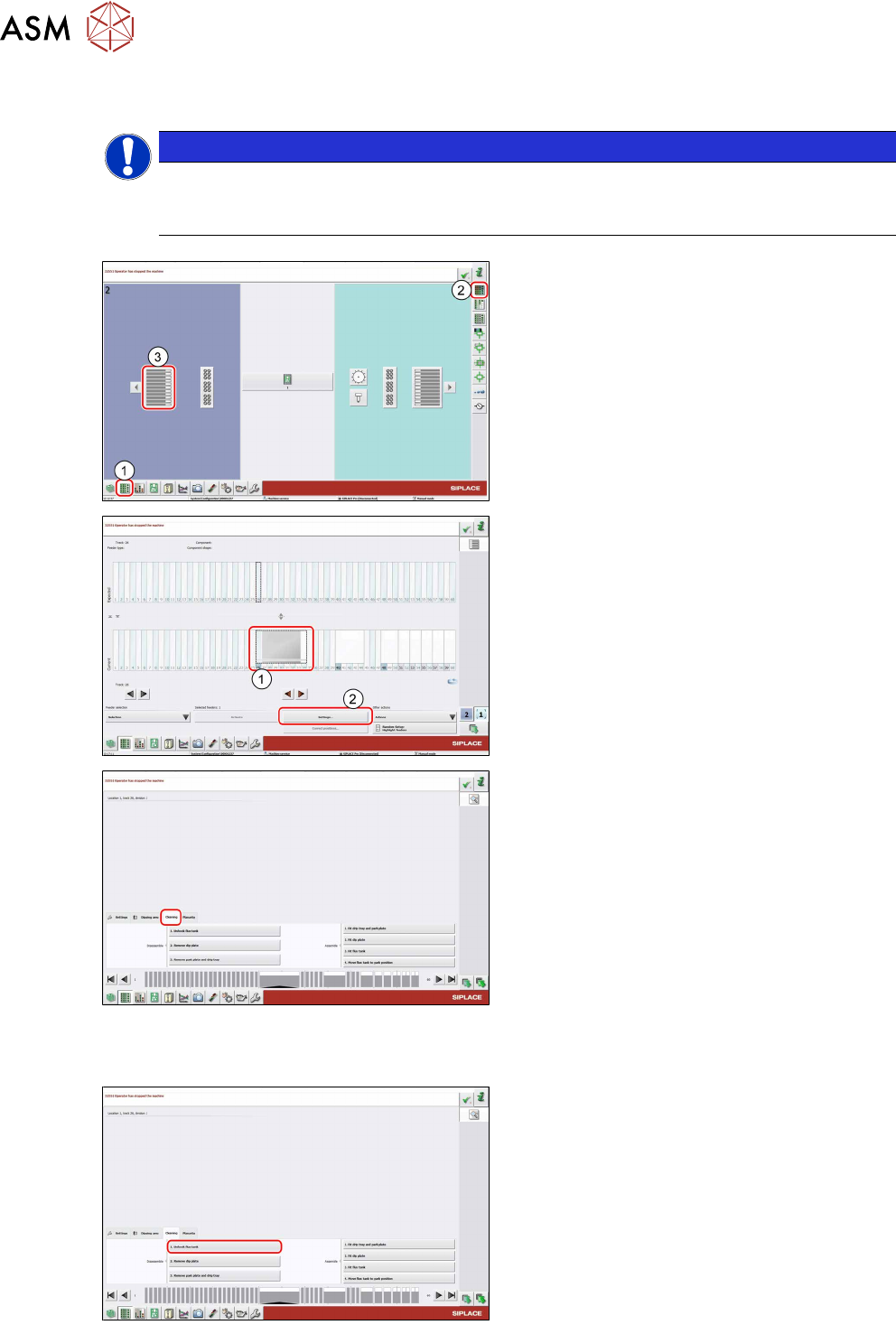

► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Table (3) on which the LDU is
set up.
► Select the icon of the LDU(1).
► Click on the Settings... button (2).
► Select the Cleaning tab.
Releasing the flux tank
Prerequisites: Park plate and dip plate are fitted.
► Click on the Unhook flux tank button.
