5 Cleaning
5.4 Refitting the cleaned parts
User Manual SIPLACE Linear Dipping Unit E 12/2018 65

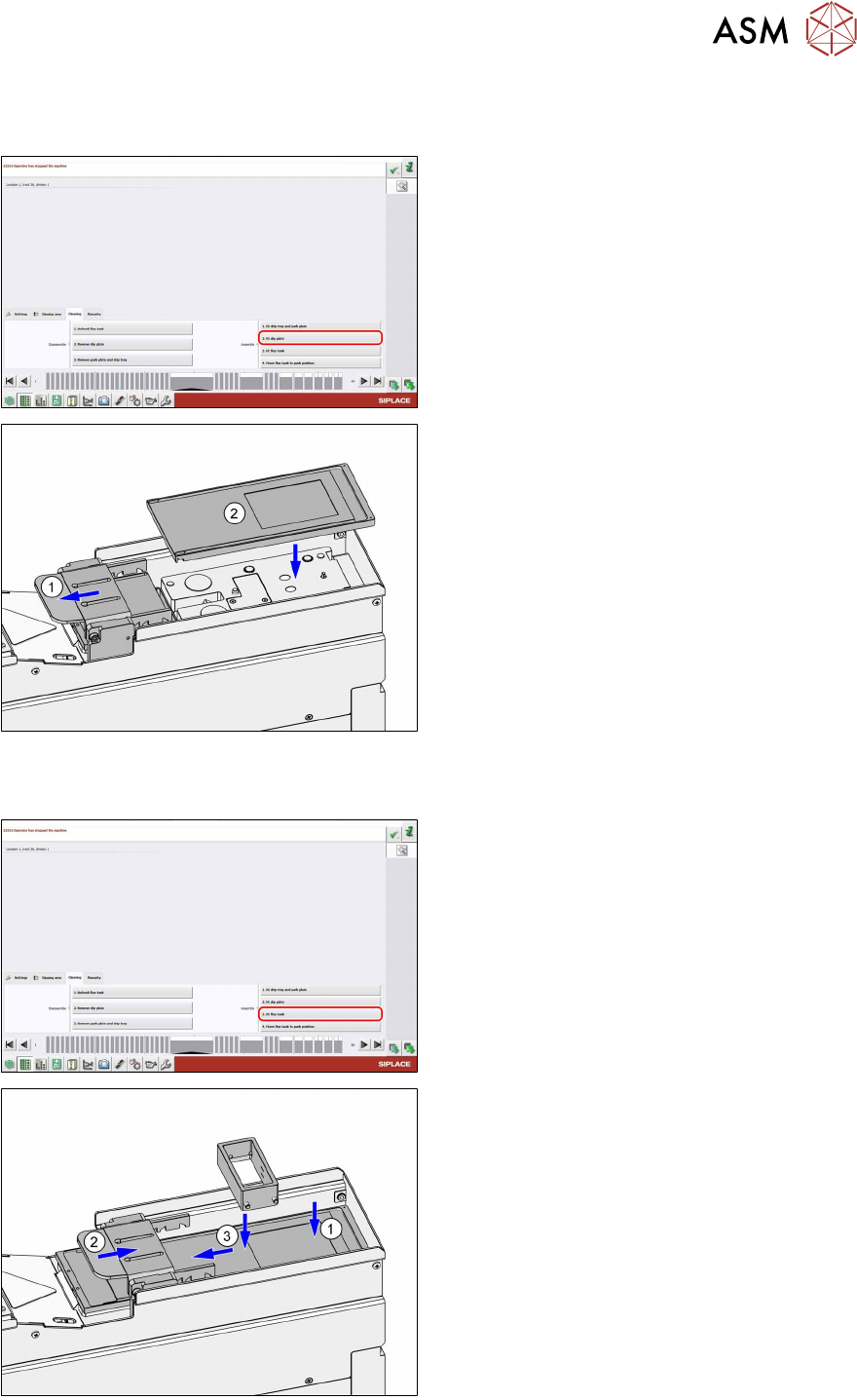

Fitting the dip plate
Prerequisites: The drip tray and the park plate are fitted. The dip plate is not yet fitted.
► Click on the Fit dip plate button.
(1) The LDU moves the squeegee back over the
park plate and moves the lift axis up.
► (2) Fit the dip plate in the orientation
shown.
Fitting the flux tank
Prerequisites: The park plate and the dip plate are fitted.
► Click on the Fit flux tank button.
(1) The LDU moves the lift axis down.
(2) The LDU moves the squeegee to the front.
► (3) Place the flux tank onto the dip plate
and push it under the downholder to the
fixed stop.
5 Cleaning
5.4 Refitting the cleaned parts
66 User Manual SIPLACE Linear Dipping Unit E 12/2018
Moving the flux tank to the park position
Prerequisites: The park plate and the dip plate are fitted.
► Click on the Move flux tank to park posi-
tion button.
(1) The LDU moves the lift axis to the zero posi-
tion while the downholder locks the flux tank.
(2) The LDU moves the squeegee back over the
park plate.
► (3) Ensure that the four pins of the flux
tank engage correctly in the retaining
clamp of the downholder.
CAUTION
Damage to the surfaces when operating without flux.
If you operate the LDU without flux, there is a risk that the flux tank and plates may scrape
against one another. The flux acts as lubrication for these parts.
► Always use flux when operating the LDU.
