- - 3. BASE FR AM E E LECT R IC AP P ARATU S C OM P ONEN TS (1) 4 1 2 8 1 3 1 2 1 0 6 5 2 1 9 1 5 1 7 1 8 1 6 1 4 7 3 3 9 9 1 1 1 1 2 0 2 4 3 3 2 5 2 4 2 7 2 8 2 9 3 4 3 5 3 8 2 6 3 0 2 2 2 3 2 5 3 7 2 1 3 2 3 1 3 6 A…
- -

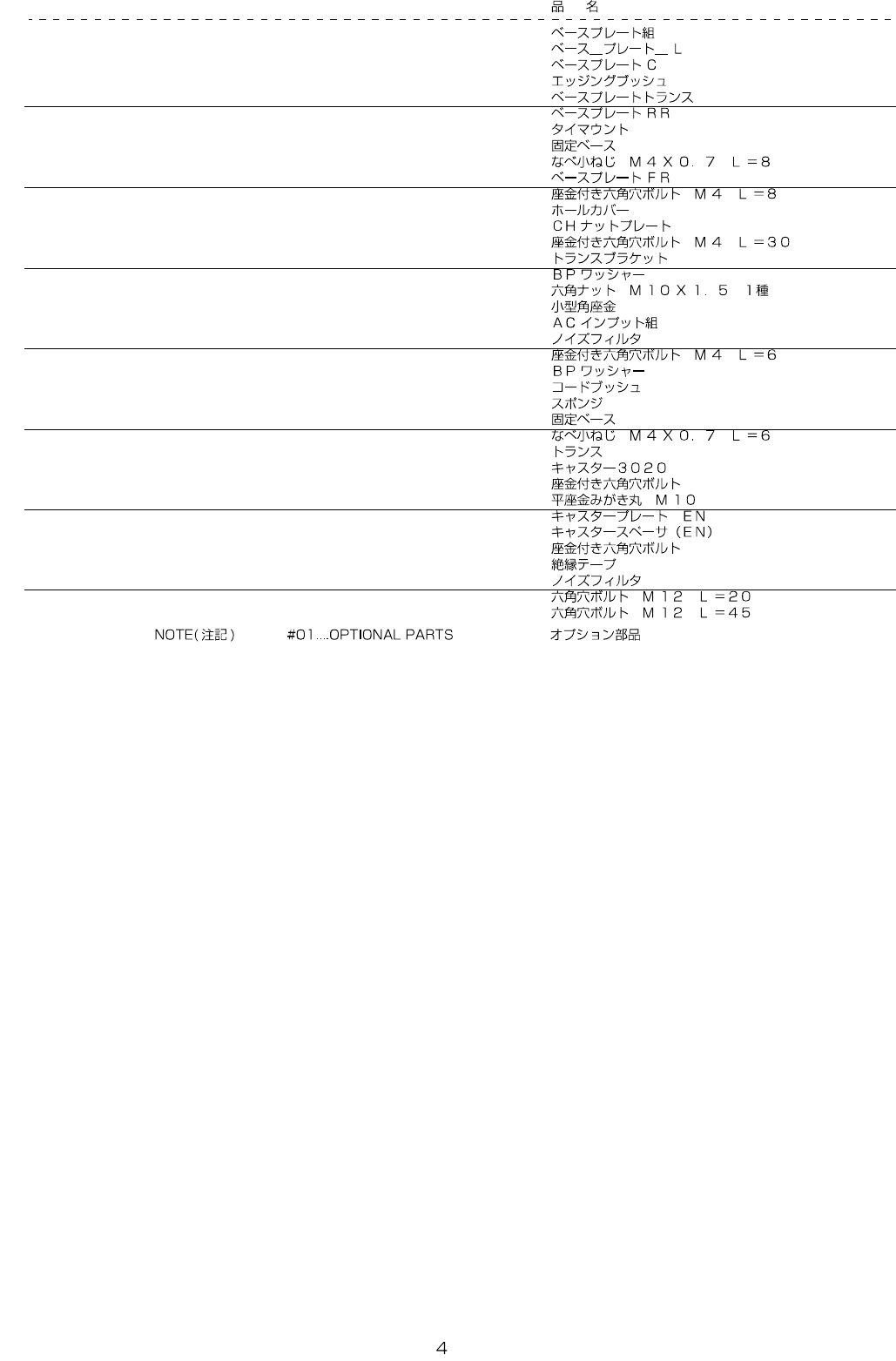

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83538 BASE PLATE ASSY 1
2 401-14022 BASE_PLATE_L (1)
3 401-82999 BASE_PLATE_C (1)
4 HX-0009600-0A EDGING (0.07)
5 401-82997 BASE_PLATE_TRANS (1)
6 401-82996 BASE_PLATE_RR (1)
7 HX-0055700-00 TIE MOUNT (6)
8 HX-0029400-00 FIXED BASE (8)
9 SM-4040801-SC SCREW M4X0.7 L=8 (14)
10 401-08554 BASE PLATE FR (1)
11 SL-6040892-TN SCREW M4 L=8 (2)
12 400-94549 HOLE COVER (4)
13 400-98142 CH NUT PLATE (4)
14 SL-6043092-TN SCREW M4 L=30 (8)
15 401-82998 TRANS_BRACKET (1)
16 400-94475 BP WASHER (22)
17 NM-6100001-SC NUT M10X1.5 TYPE1 (18)
18 400-44814 WASHER PLATE (4)
19 401-83540 AC INPUT UNIT 1
20 401-82379 NOISE FILTER (1)
21 SL-6040692-TN SCREW M4 L=6 (4)
22
#01
400-94475 BP WASHER 4
23 HX-0018800-0F CORD BUSH 1
24 400-80833 SPONGE 22
25 HX-0029400-00 FIXED BASE 31
26 SM-4040601-SC SCREW M4X0.7 L=6 31
27
#01
401-83386 TRANSFORMER 1
28
#01
400-94543 CASTER 3020 4
29
#01
SL-6102042-TN SCREW 16
30
#01
WP-1052001-SC WASHER 10 32
31
#01
400-94545 CASTER PLATE EN 4
32
#01
400-00406 CASTER SPACER(EN) 4
33
#01
SL-6104042-TN BOLT 16
34 400-45554 INSULATION TAPE 0.3
35
#01
HN-0040100-00 NOISE FILTER 1
36
#01
SM-9122003-SC BOLT M12 L=20 4
37 SM-6124502-TN BOLT M12 L=45 4
- -
3. BASE FRAME ELECTRIC APPARATUS COMPONENTS (1)
4
1 2
8
1 3
1 2
1 0
6
5
2
1 9
1 5
1 7 1 8
1 6
1 4
7
3
3
9
9
1 1
1 1
2 0
2 4
3 3
2 5
2 4
2 7
2 8
2 9
3 4
3 5
3 8
2 6
3 0
2 2
2 3
2 5
3 7
2 1
3 2
3 1
3 6
A
A
1
3 9 4 1
4 2
4 0
4 3
4 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47582 VACUUM_PUMP_ASM 1
2 401-29244 VACUUM PUMP ASM (1)
3 401-66451 VP_RUBBER (2)
4 SL-6040642-TN BOLT (2)
5 PX-0553020-00 SILENCER (1)
6 PV-0253010-00 CHECK VALVE (1)
7 401-66450 VP_STAY (1)
8 401-66448 VP_BR (1)
9 401-66449 VP_FIX_BR (2)
10 CM-3003000-02 LABEL2 (25) (1)
11 SL-6040892-TN SCREW M4 L=8 (4)
12 SL-6061292-TN SCREW M6 L=12 4
13 401-47523 PLATE_SUPPORT 2
14 401-83539 BREAKER_ASM 1
15 401-29262 AC INPUT SURGE PROTECTOR ASM (1)
16 401-83474 BREAKER_BR (1)
17 401-82380 CIRCUIT PROTECTOR (1)
18 401-82381 CIRCUIT PROTECTOR (1)
19 SL-4041091-SC SCREW M4 L=10 (1)
20 SL-6061492-TN SCREW M6 L=14 (2)
21 401-83537 CTRL_UNIT_ASM 1
22 401-47545 CTRL_BASE_L (1)
23 401-47544 CTRL_BASE_U (1)
24 HX-0002600-00 GUIDE RAIL (14)
25 SL-4040891-SC SCREW M4X8 (8)
26 400-47087 BACK_BOAD_BAR (1)
27 SL-4031491-SC SCREW M3X14 (3)
28 401-72512 CPCI BACK BOARD 6SLOT (1)
29 SL-4851091-SC SCREW (16)
30 401-47546 CTRL_UNIT_FRAME (1)
31 401-23242 CPU BOARD (1)
32 401-33294 IP-X11 SET GEN ASM (1)
33 401-29141 DC FAN ASM (2)
34 HM-0003300-30 FAN GUARD (2)
35 SL-4033091-SC SCREW M3 L=30 (4)
36 401-28871 IO CONTROL PCB ASM (1)
37 E1038-871-000 PLATEN LOCK CAM SCREW (2)
38 SL-6040892-TN SCREW M4 L=8 (2)
39 401-82995 SUPER_INPAUSE_PWB_STAY (1)
40 401-29641 SUPER IMPOSE BOARD (1)
41 HX-0035400-0P SPACER (1)
42 SL-4030681-SC SCREW M3 L=6 (1)
43 SL-6030692-TN SCREW M3 L=6 (1)
44 401-29648 POSITION BOARD (1)
