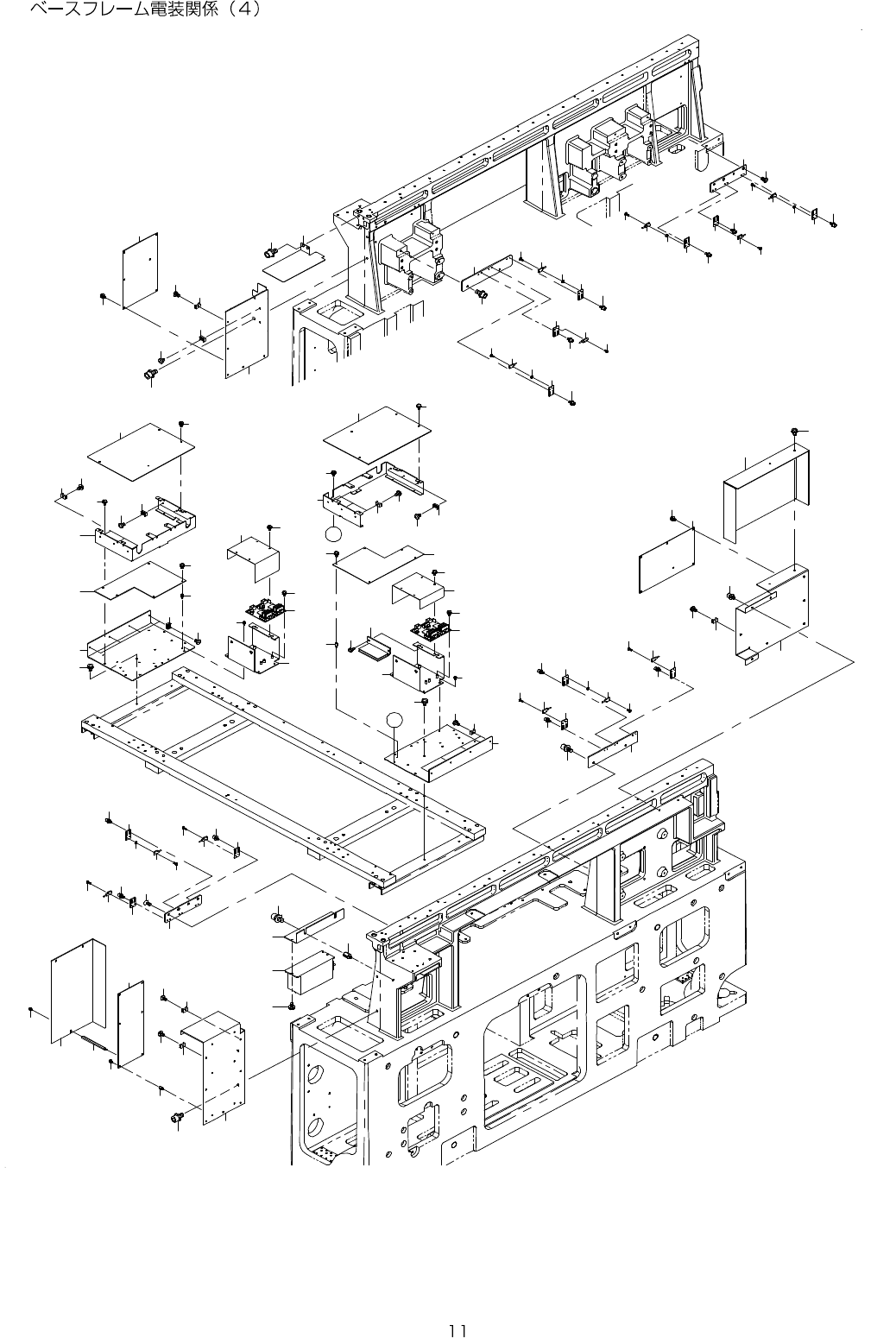

- - 6. BASE FR AM E E LECT R IC AP P ARATU S C OM P ONEN TS (4) 4 3 5 6 7 8 9 1 2 1 2 1 3 1 4 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 1 2 0 2 4 2 3 2 4 2 3 3 1 2 3 2 4 2 8 2 8 2 4 3 1 2 5 2 3 2 5 2 3 2 4 2 5 3 1 2 3 2 4 2 5 2 5 …
- -

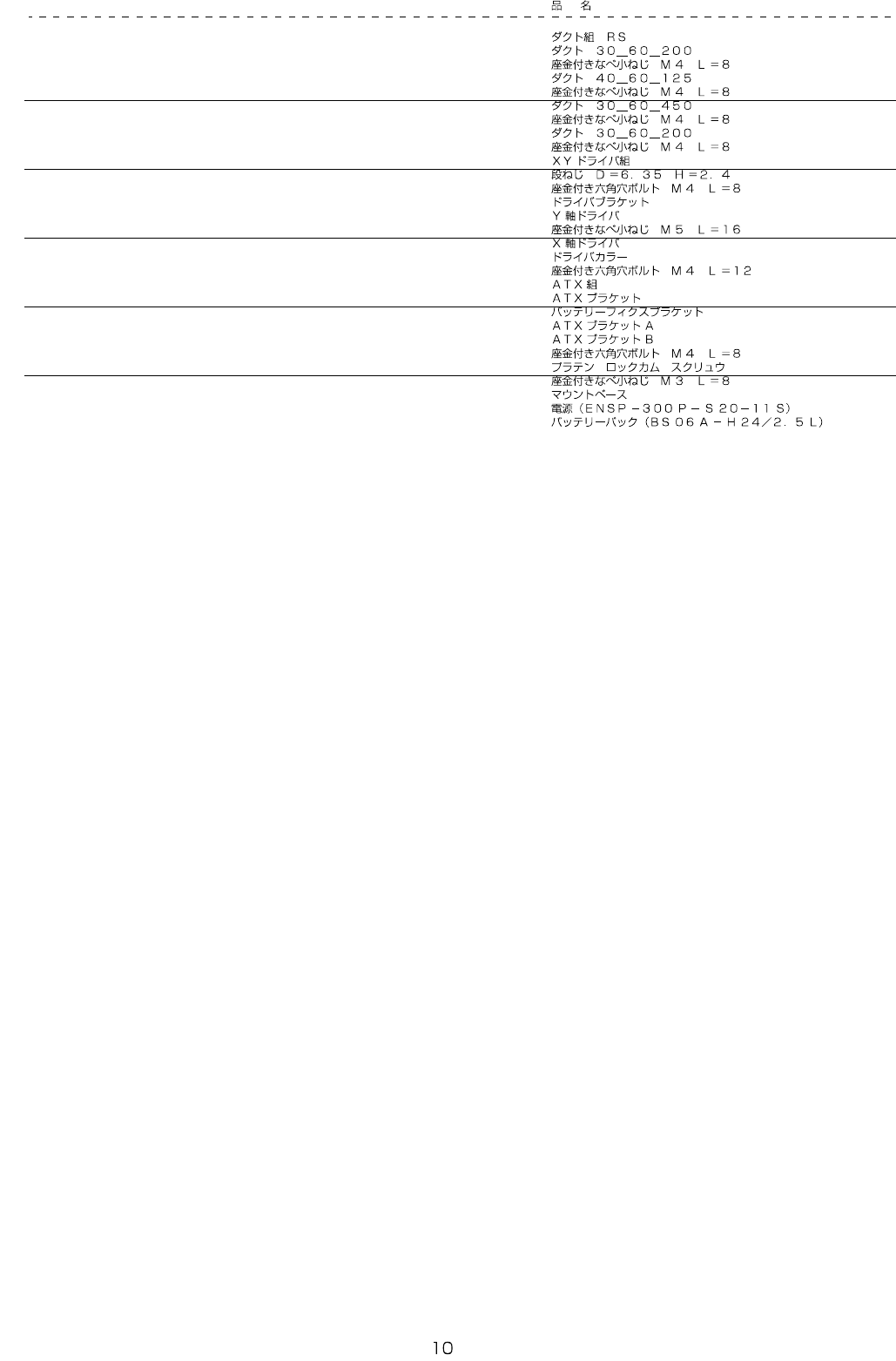

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-86387 DUCT_ASSY_RS 1
2 400-77404 DUCT 30_60_200 (7)
3 SL-4040891-SC SCREW M4X8 (14)
4 400-32368 DUCT 40_60_125 (2)
5 SL-4040891-SC SCREW M4X8 (4)
6 400-94478 DUCT 30_60_450 (4)
7 SL-4040891-SC SCREW M4X8 (8)
8 400-94479 DUCT 30_60_200 (4)
9 SL-4040891-SC SCREW M4X8 (8)
10 401-83542 XY_DRIVER_UNIT 1
11 SD-0640246-SP SHOULDER SCREW D=6.35 H=2.4 (2)
12 SL-6040892-TN SCREW M4 L=8 (2)
13 401-83491 DRIVER_BR (2)
14 401-29654 Y AXIS DRIVER (2)
15 SL-4051691-SC SCREW M5 L=16 (3)
16 401-29652 X AXIS DRIVER (1)
17 401-83517 DRIVER_COLLAR (6)
18 SL-6041292-TN SCREW M4 L=12 (6)
19 401-83541 ATX_UNIT 1
20 401-83495 ATX_BRACKET (1)
21 401-83496 BATTERY_FIX_BR (1)
22 401-27497 ATX_BRACKET_A (1)
23 401-27498 ATX_BRACKET_B (1)
24 SL-6040892-TN SCREW M4 L=8 (8)
25 E1038-871-000 PLATEN LOCK CAM SCREW (2)
26 SL-4030891-SC SCREW M3 L=8 (6)
27 HX-0070600-0A MOUNT BASE (2)
28 EZ-1468979-11 POWER (ENSP-300P-S20-11S) (1)
29 EZ-1756647-11 BATTERY PACK (BS06A-H24/2.5L) (1)
- -
6. BASE FRAME ELECTRIC APPARATUS COMPONENTS (4)
4
3
5
6
7
8
9
1 2
1 2
1 3
1 4
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 1
2 0
2 4
2 3
2 4
2 3
3 1
2 3
2 4
2 8
2 8
2 4
3 1
2 5
2 3
2 5
2 3
2 4
2 5
3 1
2 3
2 4
2 5
2 5
2 5
2 7
2 3
2 4
2 3
2 4
2 4
3 1
2 3
3 2
1 4
1 3
1 4
1 3
1 1
9
9
6
2
2 4
2 3
2 5
2 5
2 5
2 5
3 1
2 4
2 3
2 5
2 3
2 5
2 4
2 7
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 9
2 9
3 0
3 0
3 1
3 6
3 4
3 5
3 7
3 8
4 8
4 8
4 0
4 1
4 1
4 2
4 3
4 3
4 4
4 0
4 4
4 5
4 5
4 6
4 7
4 6
4 7
4 7
4 6
4 7
4 6
4 7
4 6
4 6
4 7
3 9
3 9
4 9
4 9
A
A
5 0
5 0
5 1
5 1
5 2
5 2
1
1
1 0
1 0
2 2
2 2
5 3
5 3
3 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 SL-4030691-SC SCREW M3 L=6 16
2 401-83016 BANK_RELAY_BR_F 1
3 401-83017 BANK_RELAY_COVER_F 1
4 401-83020 SAFETY_PWB_BR 1
5 401-28872 SAFETY PCB ASM 1
6 401-28876 E BANK RELAY PCB ASM 2
7 400-46040 HEAD STUD 10 6
8 HX-0033900-0N SPACER 1
9 SL-6061292-TN SCREW M6 L=12 6
10 401-83074 DRIVER_COVER 2
11 SL-4030691-SC SCREW M3 L=6 6
12 SL-4040891-SC SCREW M4X8 9
13 HX-0029400-00 FIXED BASE 13
14 SM-4040601-SC SCREW M4X0.7 L=6 13
15 401-83018 BANK_RELAY_BR_R 1
16 401-83019 BANK_RELAY_COVER_R 1
17 SL-6040892-TN SCREW M4 L=8 3
18 SL-4030691-SC SCREW M3 L=6 6
19 SL-4040891-SC SCREW M4X8 2
20 HX-0029400-00 FIXED BASE 6
21 SM-4040601-SC SCREW M4X0.7 L=6 6
22 SL-4030691-SC SCREW M3 L=6 4
23 401-86919 SEPARATE SENSOR ASM 6
24 401-84970 FDS_BR 12
25 SM-4020501-SC SCREW M2 L=5 24
26 SL-6030692-TN SCREW M3 L=6 24
27 401-83196 SENSOR_BR_L 2
28 401-83197 SENSOR_BR_R 2
29 SL-6051292-TN SCREW M5 L=12 4
30 SM-1040852-TP DISH SCREW 4
31 401-53419 CHANGER_COLLAR 12
32 401-83497 BANK_RELAY_COVER_FL 1
33 SL-4030891-SC SCREW M3 L=8 2
34 401-83071 BU_DRIVER_BASE_S 1
35 401-29636 BU AXIS SERVO AMP 1
36 400-01512 COVER STUD YF 2
37 SL-6061292-TN SCREW M6 L=12 2
38 SL-4040891-SC SCREW M4X8 2
39 401-83072 CONVEYOR_PWB_BASE 2
40 401-28875 CONVEYOR PCB ASM 2
41 401-54209 2PHASE DRIVER PCB ASM 4
42 HM-0013200-00 STEPPING MOTOR 1
43 SL-4040891-SC SCREW M4X8 4
44 HX-0035400-0F SPACER 10
45 SL-4030691-SC SCREW M3 L=6 10
46 HX-0029400-00 FIXED BASE 20
47 SM-4040601-SC SCREW M4X0.7 L=6 20
48 401-83075 PWB_COVER_SIDE 2
49 SL-4030691-SC SCREW M3 L=6 10
50 401-83076 PWB_COVER_TOP 2
51 SL-4030691-SC SCREW M3 L=6 8
52 401-83073 DRIVER_BRACKET 2
53 SL-4040891-SC SCREW M4X8 4
